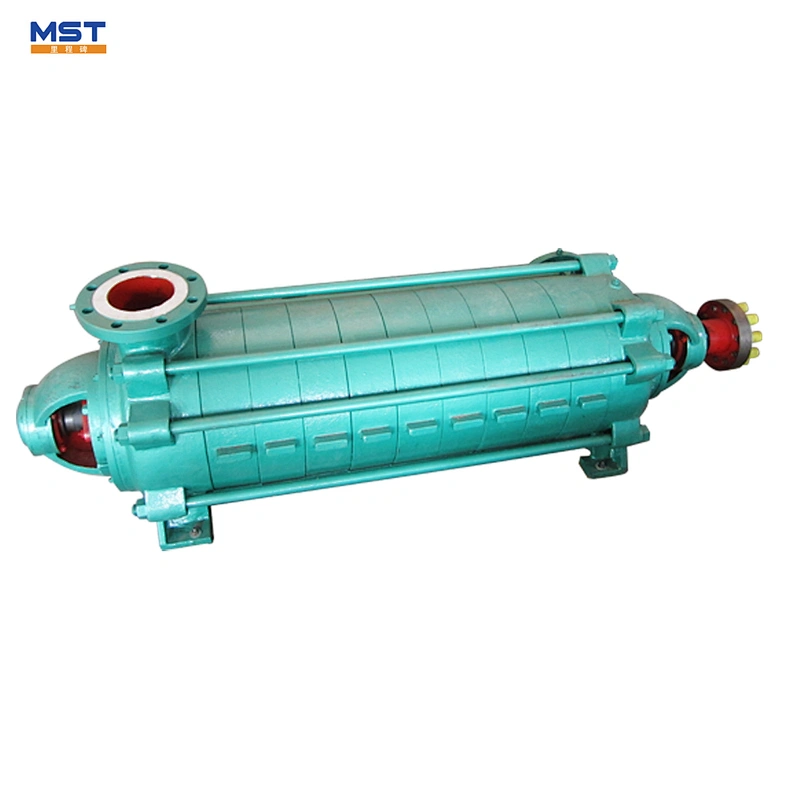

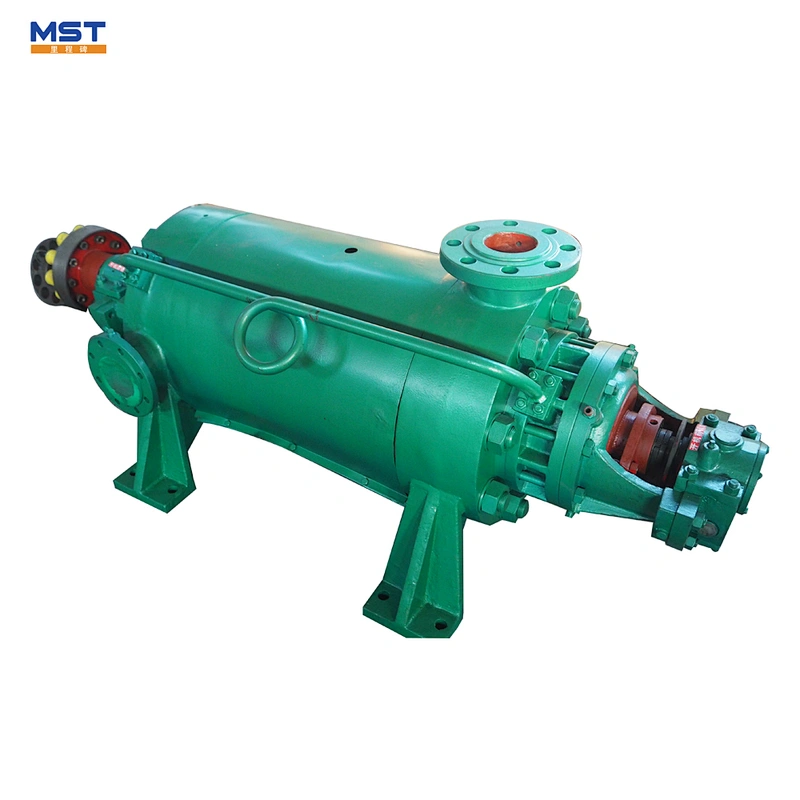

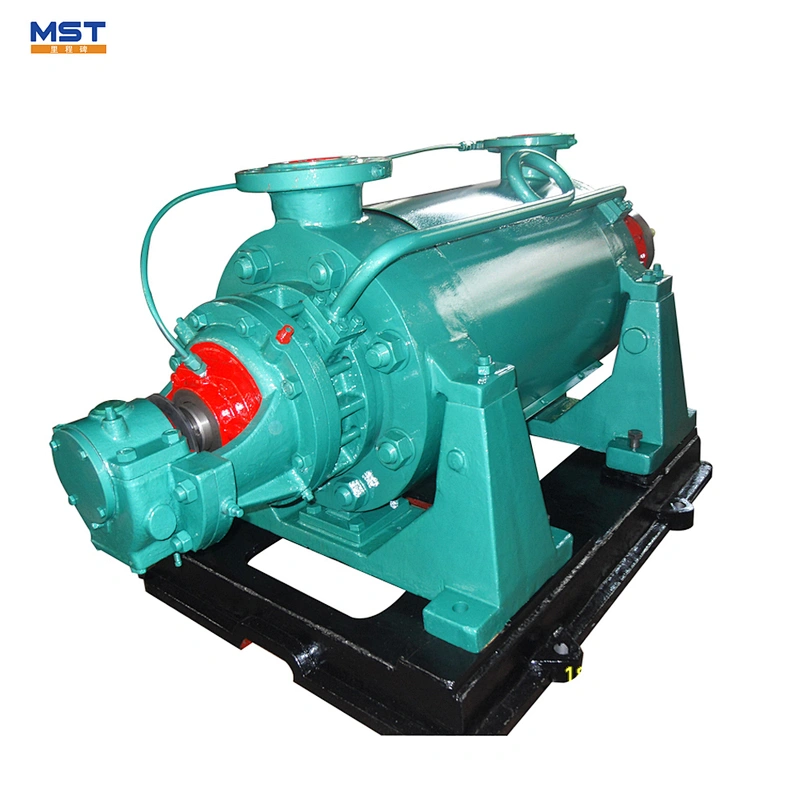

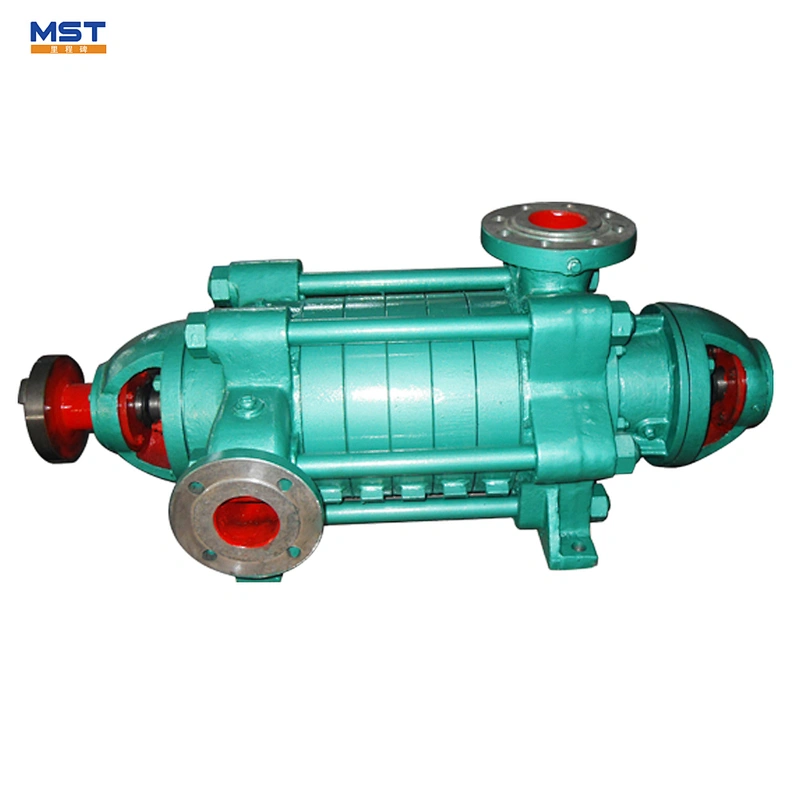

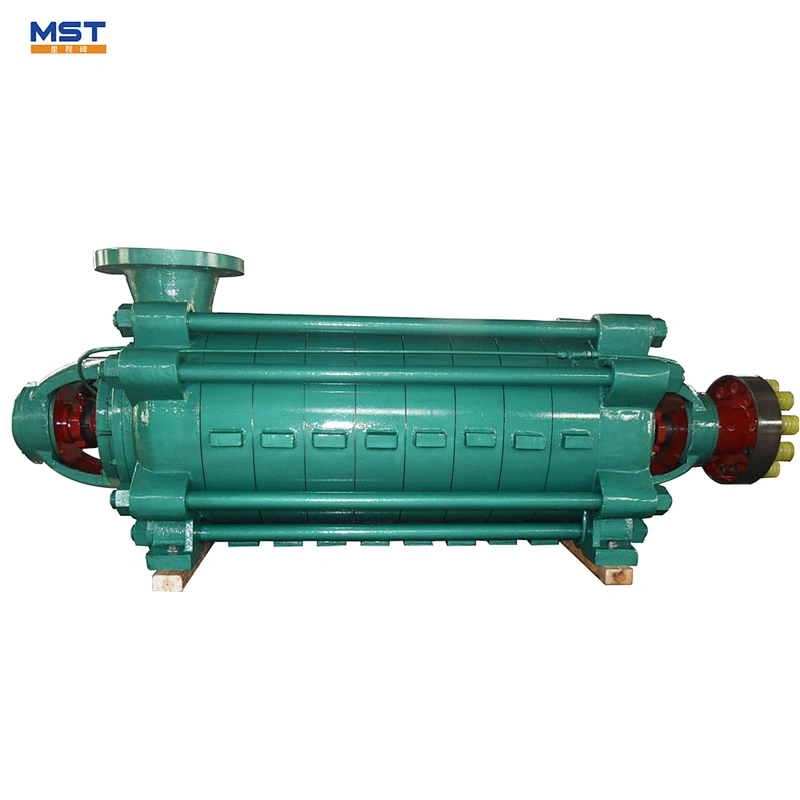

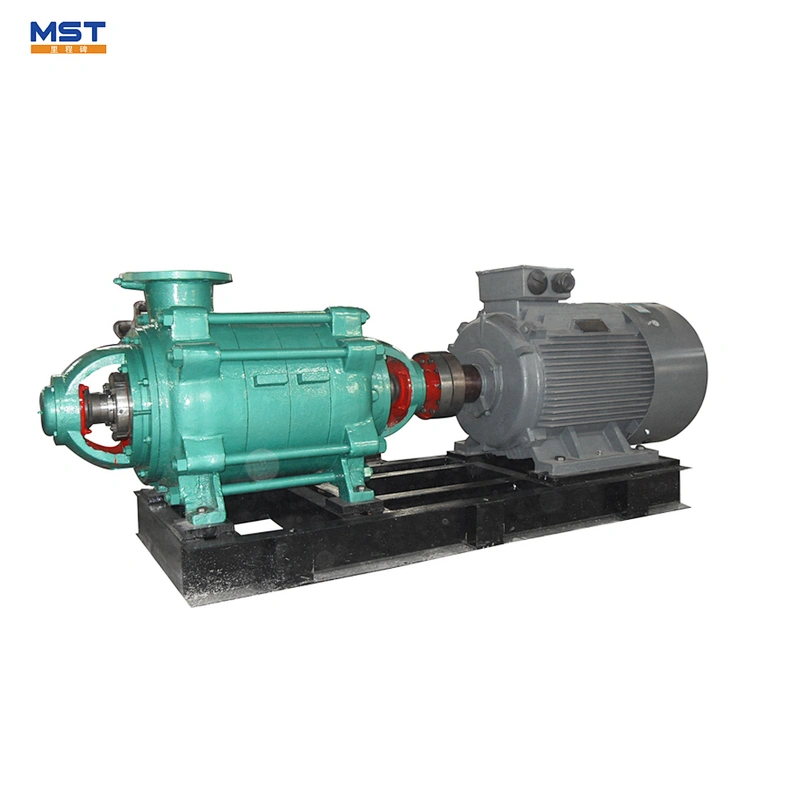

30kw multistage boiler feed water pump
Product Description
D/DA 30kw multistage boiler feed water pump is an energy-saving product series performance parameters and technical data are higher. 30kw multistage boiler feed water pump is suitable for the circulation and pressurization of cold and warm clear water in high-pressure operation system, water supply under parallel operation of several pumps in civil construction, water supply for fire control, boiler, cooling water system and the delivery of various liquid.
Basic performance data
| Max. Flow | 840m³/h |
| Max.Head: | 1000m |
| Max. Power: | 1800kw |
| Speed: | 1450rpm/2900rpm |
| Stage: | 2~12 |
| Material: | Cast iron,Cast steel, Ductile iron |
Pump Structure:
| 1 | bearing cover | 2 | nut | 3 | bearing | 4 | water baffle |
| 5 | bearing base | 6 | shaft sleeve | 7 | gland packing | 8 | packing rings |
| 9 | suction part | 10 | middle bush | 11 | wearing rings | 12 | impellers |
| 13 | middle part | 14 | diffuser baffle | 15 | wing sleeve | 16 | tie bolts |
| 17 | discharge wing | 18 | balance bush | 19 | balance ring | 20 | balance ring |
| 21 | discharge part | 22 | stuffing box housing | 23 | shaft | 24 | shaft sleeve |
Performance data
Pump Performance:
Pump Show:
Pump Application:
- long distance water transferring
- boiling water feeding and transferring
- water system boosting
- agricultural irrigation
- mining water supply
- fire fighting
- offshore projects
Technical Data:
| Model | Capacity (m³/h) | Head (m) | Speed (rpm) | Motor Power (kw) | Impeller Dia (mm) |
| 6-25*5 | 6.3 | 125 | 2950 | 7.5 | 139 |
| 6-50*4 | 6.3 | 200 | 2950 | 18.5 | 198 |
| 12-25*4 | 12.5 | 100 | 2950 | 11 | 146 |
| 6-80*3 | 6 | 240 | 2950 | 18.5 | 235 |
| 12-80*4 | 12.5 | 320 | 2950 | 45 | 235 |
| 25-30*3 | 25 | 90 | 2950 | 15 | 160 |
| 46-30*5 | 46 | 150 | 2950 | 37 | 162 |
| 85-67*4 | 85 | 268 | 2950 | 110 | 235 |
| 120-50*5 | 120 | 250 | 2950 | 132 | 213 |
| 150-30*8 | 150 | 240 | 2950 | 160 | 172 |
| 150-100*6 | 150 | 600 | 2950 | 400 | 289 |
| 200-100*6 | 200 | 600 | 2950 | 560 | 290 |
| 280-65*6 | 280 | 390 | 1480 | 500 | 430 |
| 300-45*4 | 300 | 180 | 1480 | 200 | 360 |
| 150D30*6 | 155 | 180 | 1480 | 132 | 305 |
