Boiler feed water pump 200 l/min
D/DA is an energy-saving product series. Its performance parameters and technical data are higher. It is suitable for the circulation and pressurization of cold and warm clear water in high-pressure operation system, water supply under parallel operation of several pumps in civil construction, water supply for fire control, boiler, cooling water system and the delivery of various liquid.
Structure
![F~70`OM2H$XL5N%8X]W}C7M](http://sc02.alicdn.com/kf/HTB1vzG0HXXXXXcGXFXXq6xXFXXXZ/200953651/HTB1vzG0HXXXXXcGXFXXq6xXFXXXZ.jpg?imageMogr2/format/webp/auto-orient)
Performance Curve

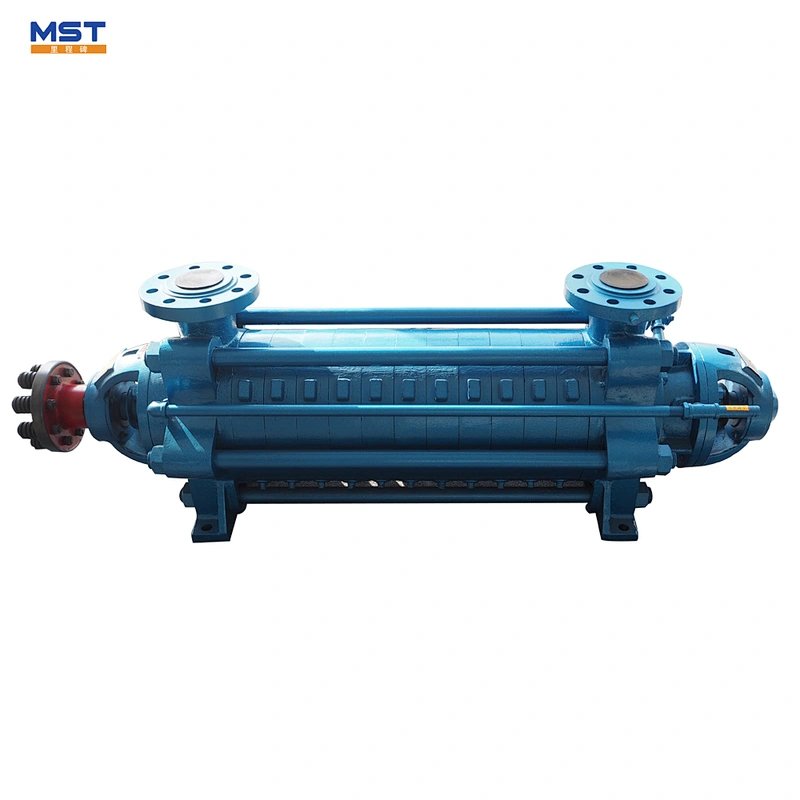

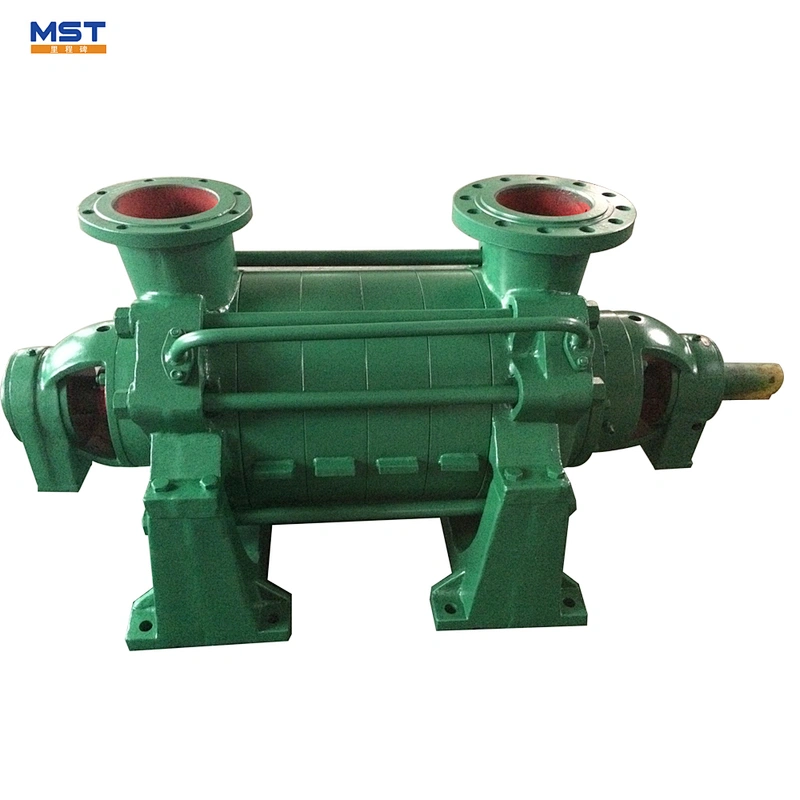

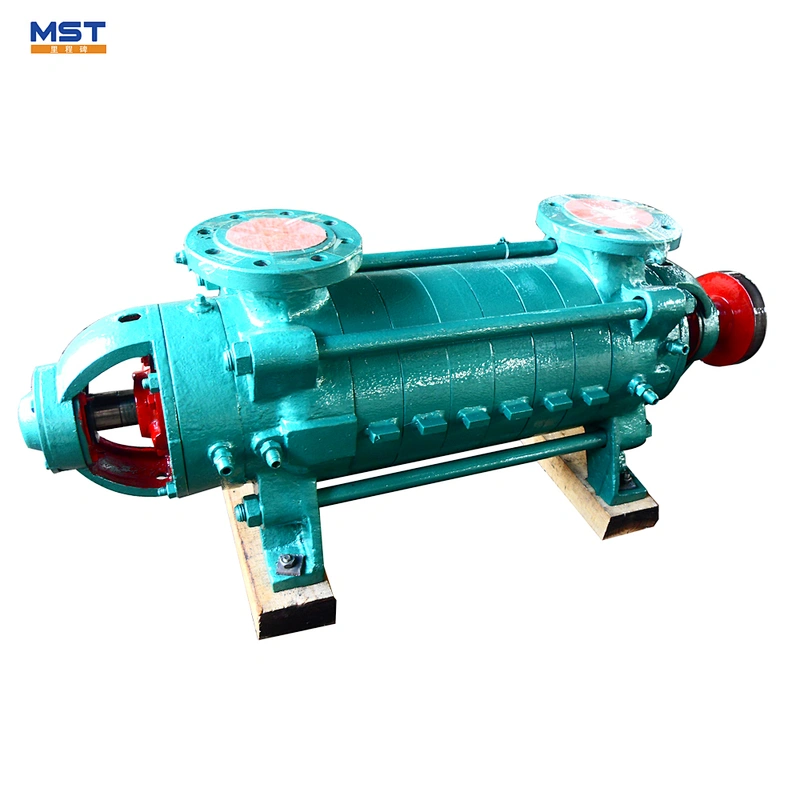

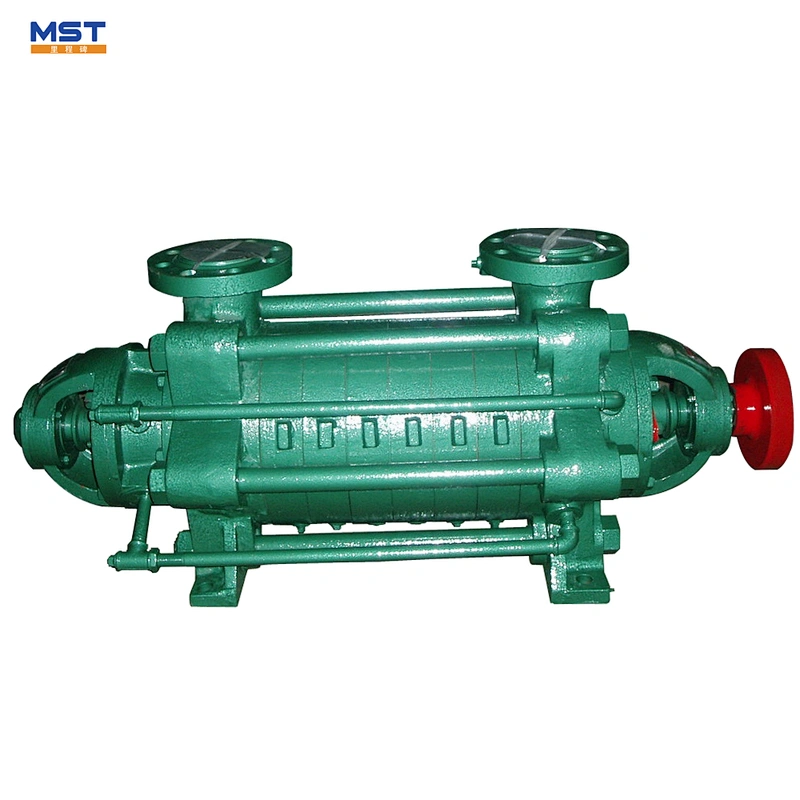

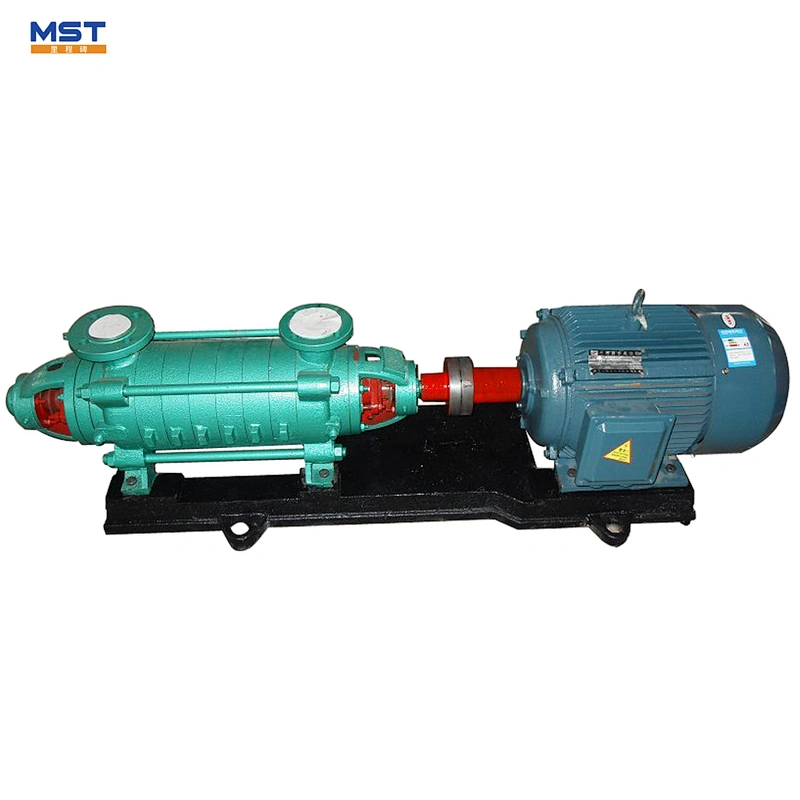

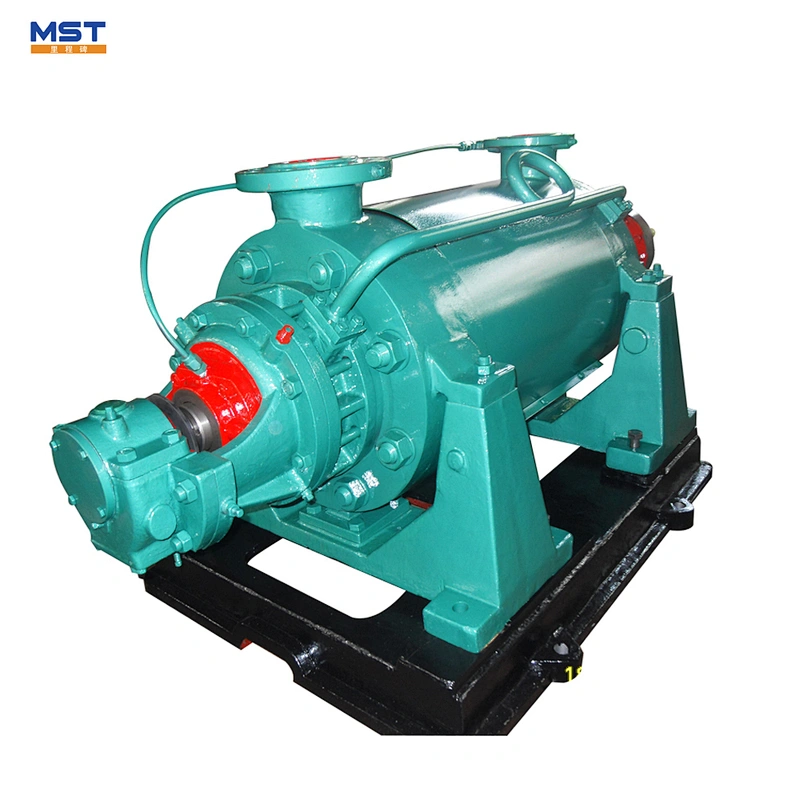

Pump Show
Application
- long distance water transferring
- boiling water feeding and transferring
- water system boosting
- agricultural irrigation
- mining water supply
- fire fighting
- offshore projects
Performance Table
Model | Capacity | Head | Speed | Motor Power | Impeller Dia | Weight | |
m3/h | L/S | ||||||
D6-50x2 | 6.3 | 1.75 | 100 | 2950 | 11 | 198 | 140 |
D6-50x12 | 6.3 | 1.75 | 600 | 2950 | 55 | 198 | 340 |
D25-50x3 | 25 | 6.94 | 150 | 2950 | 30 | 196 | 220 |
D25-50x12 | 25 | 6.94 | 600 | 2950 | 110 | 196 | 409 |
D46-50x12 | 46 | 12.78 | 600 | 2950 | 160 | 210 | 475 |
D85-67x9 | 85 | 23.6 | 603 | 2950 | 250 | 235 | 1840 |
D120-50x2 | 120 | 33.3 | 100 | 2950 | 55 | 213 | 640 |
D120-50x9 | 120 | 33.3 | 450 | 2950 | 220 | 213 | 1200 |
D155-67x9 | 155 | 43.1 | 603 | 2950 | 450 | 235 | 1800 |
D360-40X10 | 360 | 100 | 400 | 1480 | 630 | 360 | 2550 |
D580-70X10 | 580 | 161.1 | 700 | 1480 | 1800 | 473 | 4120 |
D720-60x9 | 720 | 200 | 540 | 1480 | 1600 | ||
