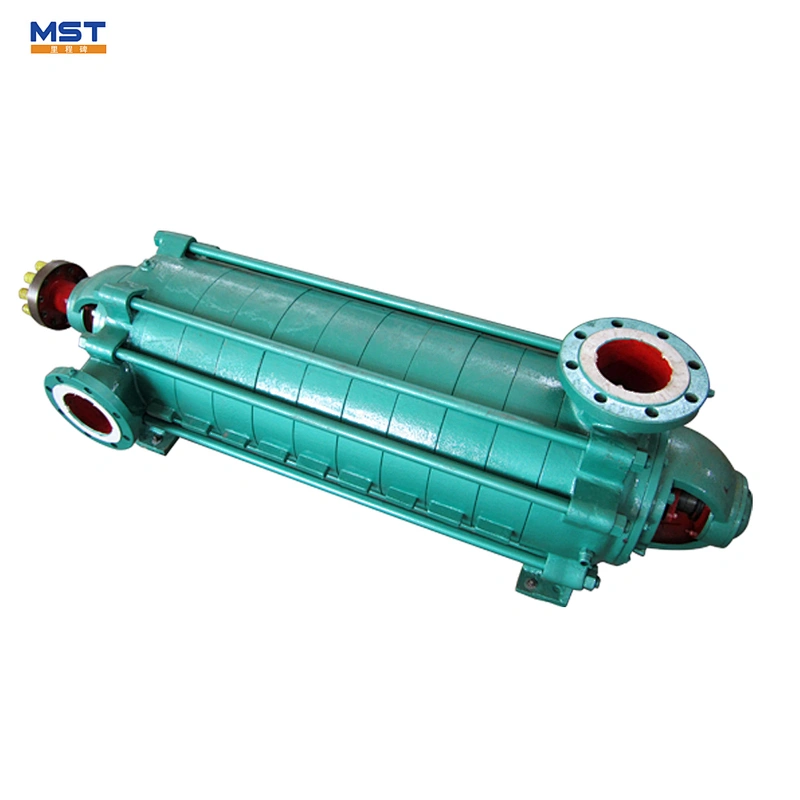

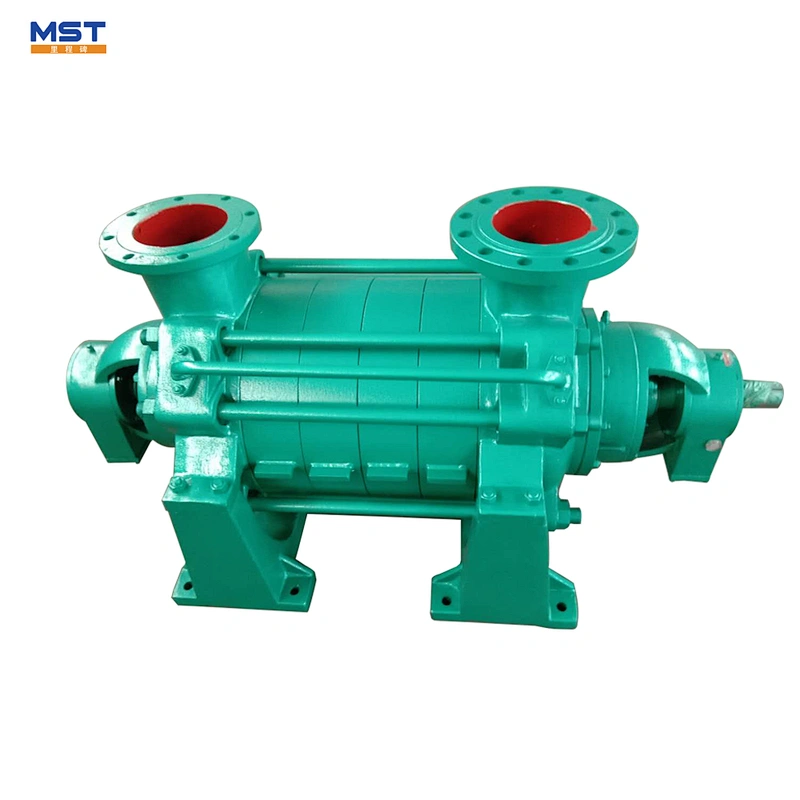

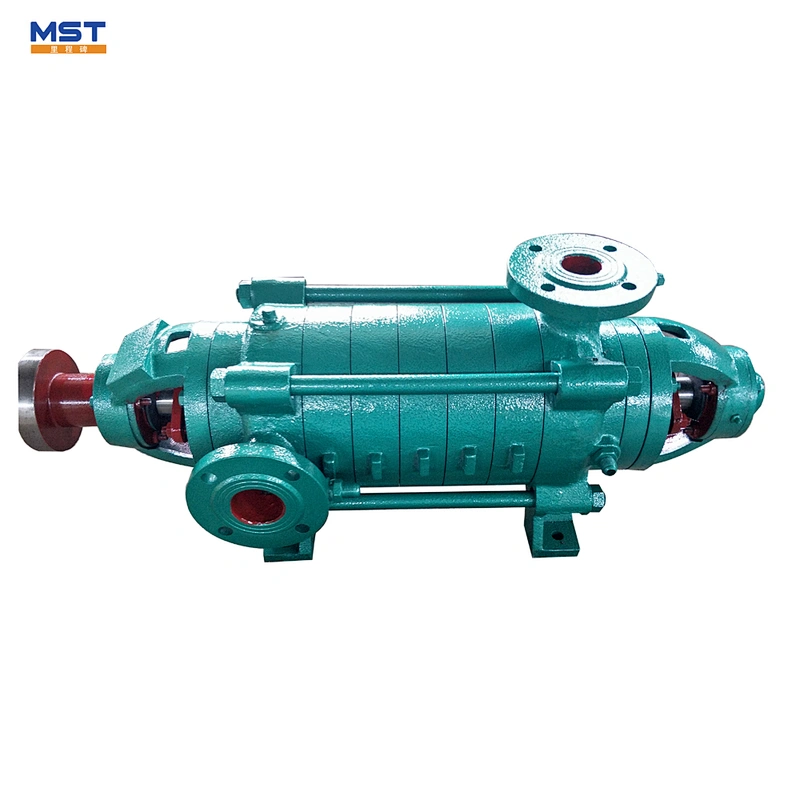

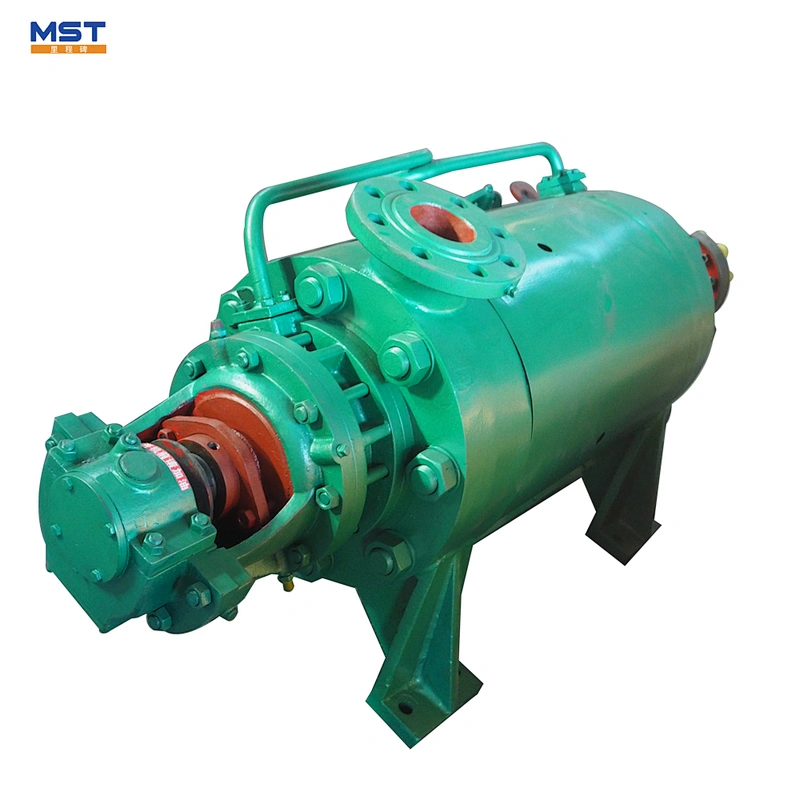

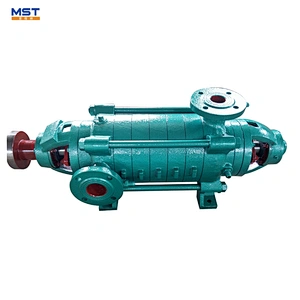

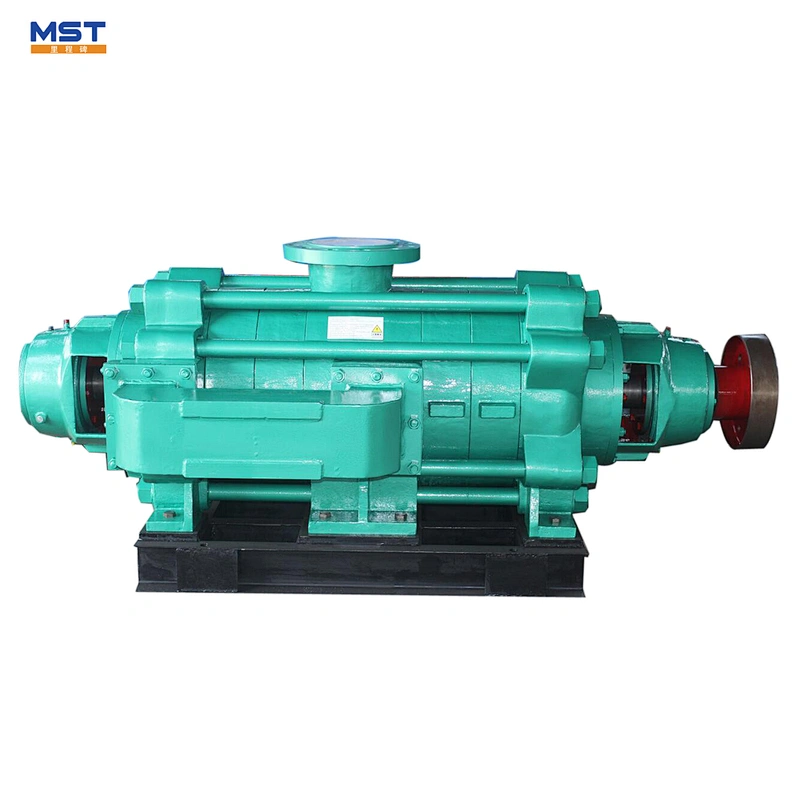

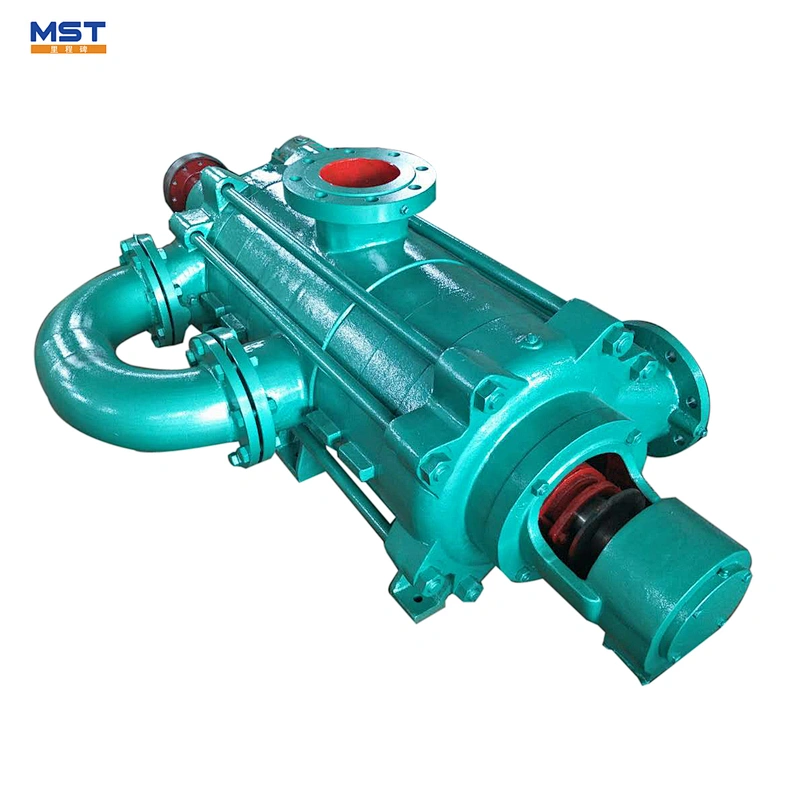

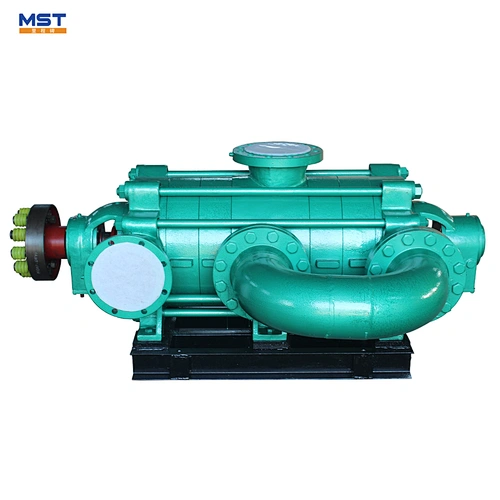

SS304 Pressure Regulator Water Pump

Model NO.: MST-D
Price:: USD 1450.00-8970.00 / set
Delivery: FOB
Minimum order quantity: 1 set
Supply Ability: 500 set / Year
Country of Origin: TIANJIN, QINGDAO, SHANGHAI, NINGBO, GUANGZHOU
Stock Time: Shipped in 15 days after payment Day

Quantity:

Product Description
Basic Information

SS304 Pressure Regulator Water Pump

Product Description

Description

D/DA Centrifugal High Suction Seawater Desalination Pump is an energy-saving product series. Its performance parameters and technical data are higher. It is suitable for the circulation and pressurization of cold and warm clear water in high-pressure operation system, water supply under parallel operation of several pumps in civil construction, water supply for fire control, boiler, cooling water system and the delivery of various liquid.

Product Name	High pressure water supply pump
Material	Cast iron/stainless steel
Color	As customer requested
Driven	Motor/ Diesel
Pump Speed	1450RPM/2900RPM
Capacity	3.75~840m3/h
Head	19~680m
Application	Boiler water feed; Mine water delivering; Industrial washing...etc

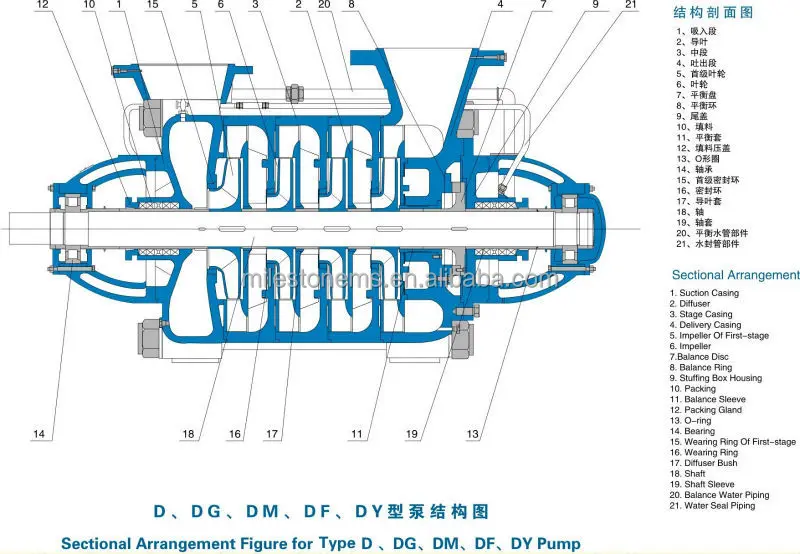

Centrifugal High Suction Seawater Desalination Pump structure

Centrifugal High Suction Seawater Desalination Pump performance

Centrifugal Multistage Water Pump Application

long distance water transferring
boiling water feeding and transferring
water system boosting
agricultural irrigation
mining water supply
fire fighting
offshore projects

Technical Data

Model	Capacity	Head	Speed	Power	NPSHr	Weight
D6-25x10	6m3/h	250m	2950RPM	18.5kw	2.0m	160kg
D25-50x10	25m3/h	500m	2950RPM	75kw	2.7m	367kg
D120-50X9	120m3/h	450m	2950RPM	220kw	5.1m	1200kg
D280-65x10	280m3/h	650m	1480RPM	900kw	3.7m	2280kg
D720-60x9	720m3/h	540m	1480RPM	1600kw	4.5m	3900kg
DG150-100x9	150m3/h	900m	2950RPM	710kw	4.8m	3185kg
