IS&ISR Series centrifugal water pump handle clean water and the liquid of which physical and chemical properties are similar to clean water. High quality centrifugal fresh water pump is used for industrial and city clean water supply and drainage, irrigation, fire protection, long distance water supply, metallurgy, chemical, textile, china processing, pigment, paper making.
SPECIFICATIONS
Material of construction
Casing
Cast iron, Stainless steel
Impeller
Cast iron, Stainless steel
Shaft
45# steel, 2Cr13
Main performance parameters
Max. capacity
m³/h
400
Max. head
m
125
Outlet diameter
mm
50~200
Driven system
Speed
1450rpm/1750rpm
2900rpm/3600rpm
Volts& Frequency
380V/460V
50HZ/60HZ
Max. power
KW
90
Main Features
1) Choice of piston ring style labyrinth
2) Fully interchangeeable with the common brand reducing inventory hold requirements
3) A full range of mechanical seal adaptations available upon request
4) Oil lubrications or packed grease
5) Painted to customer specifications upon request

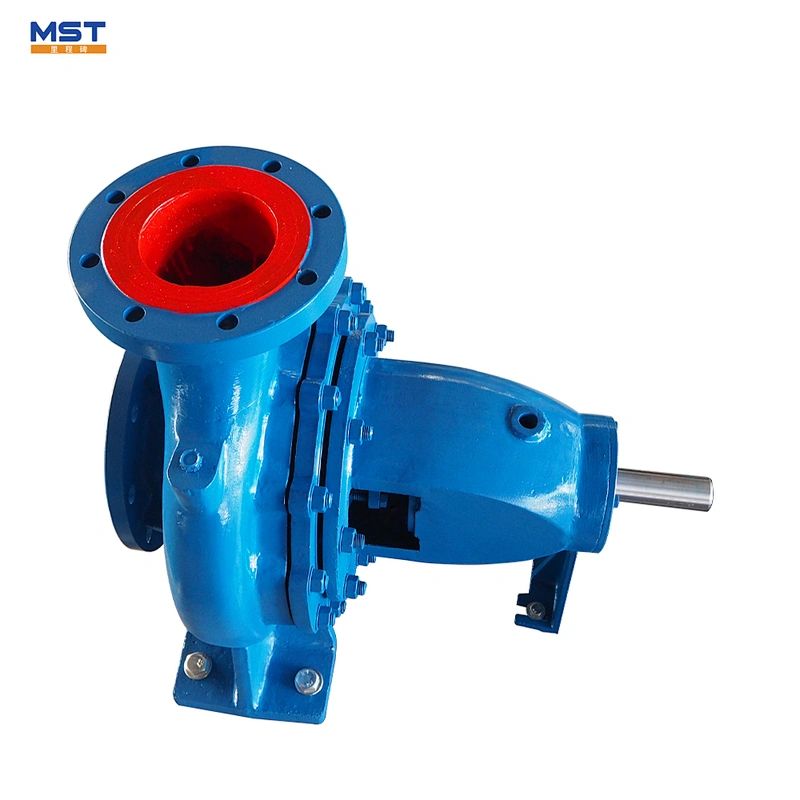

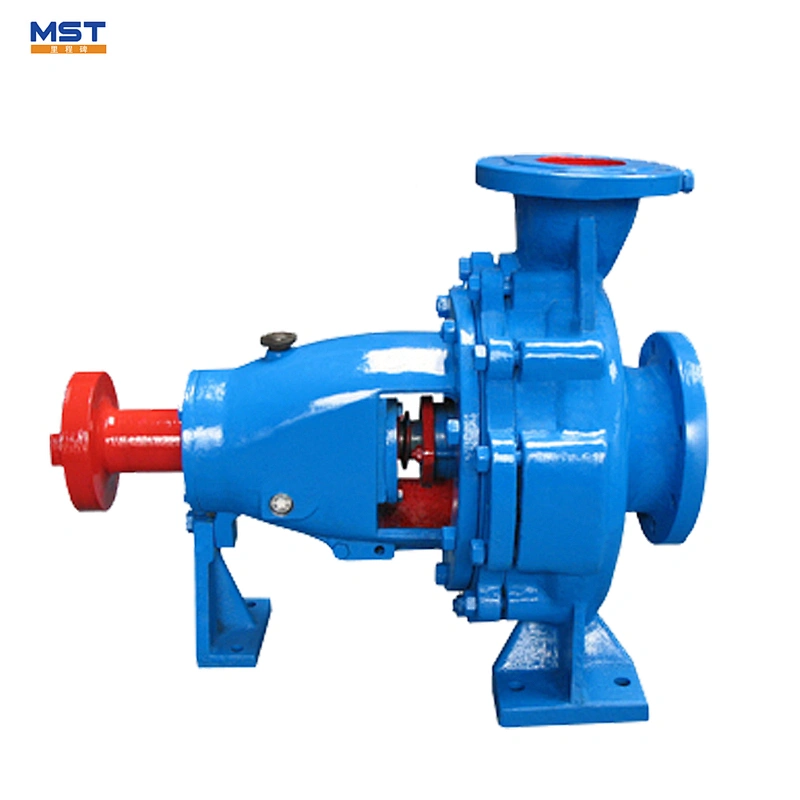

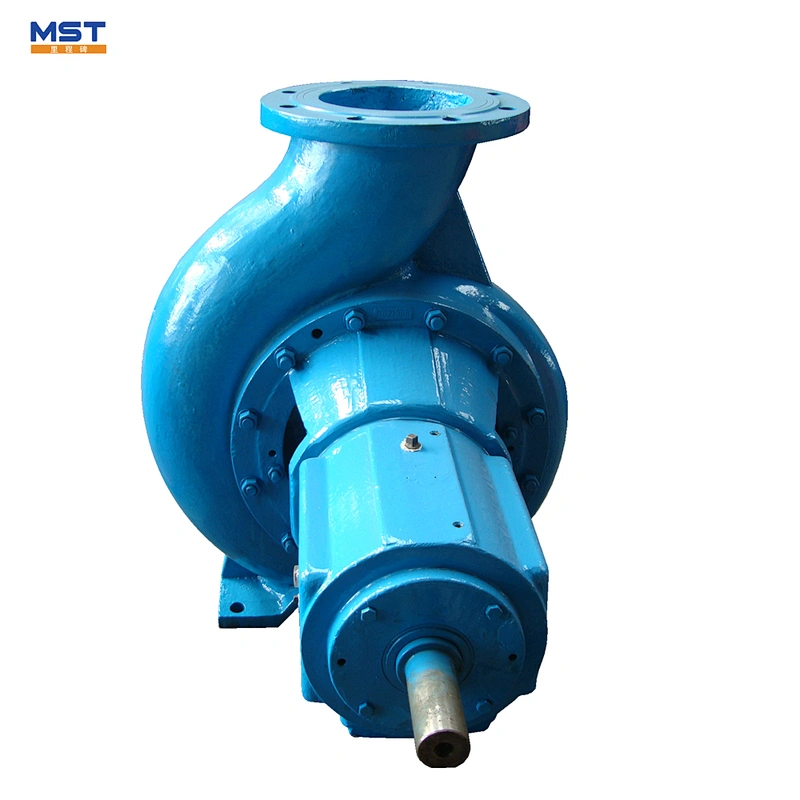

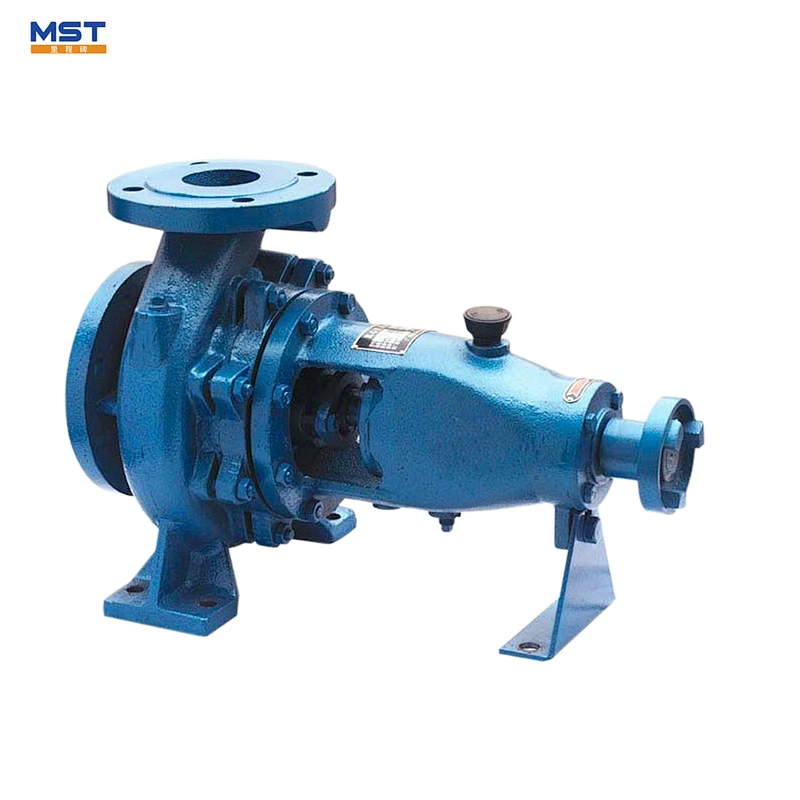

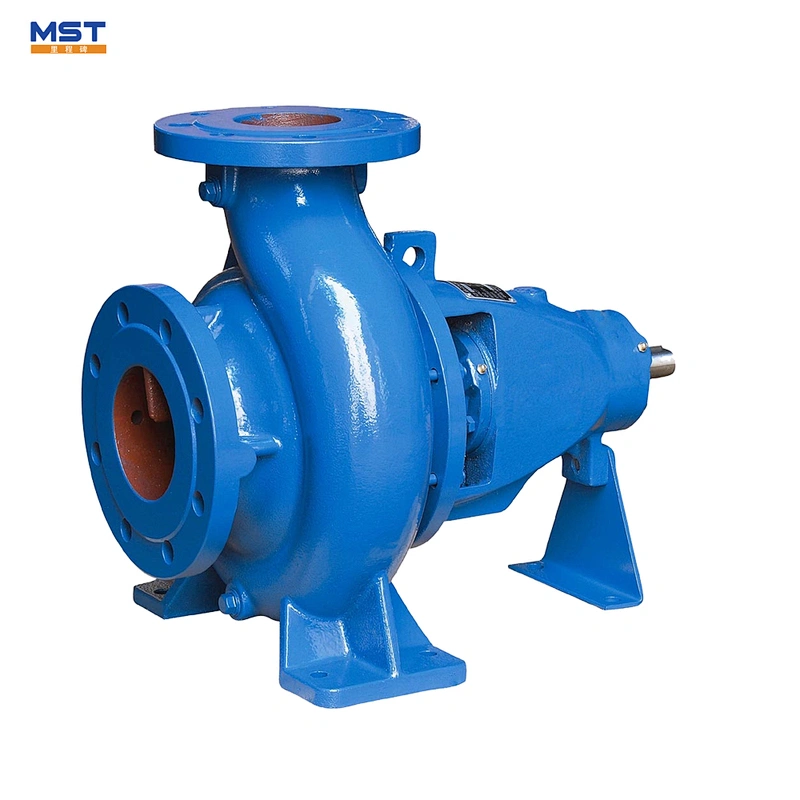

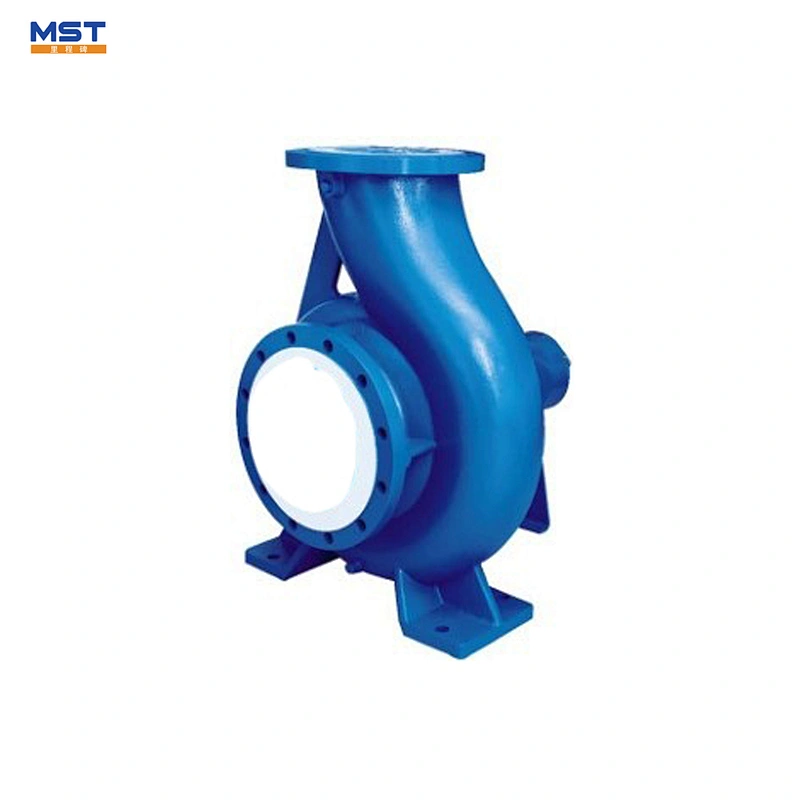

Detailed Images
Item
Specification
Type
MIS80-50-250
Capacity
25m³/h
Head
20m
Speed
1450rpm
Inlet/outlet Dia.
80mm/50mm
Motor power
3kw
NPSHr
2.5m
Water Pump Spare parts
All of our IS centrifugal water pumps' spare parts are high quality and use world famous brand bearing and mechanical seal. The IS centrifugal water pumps are designed according to ISO international standards. We have many professional engineers and our own foundary.
Packing & Delivery
Packaging
Size
1270(L) * 610(W) * 525 (D)
Weight
230kg
Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
