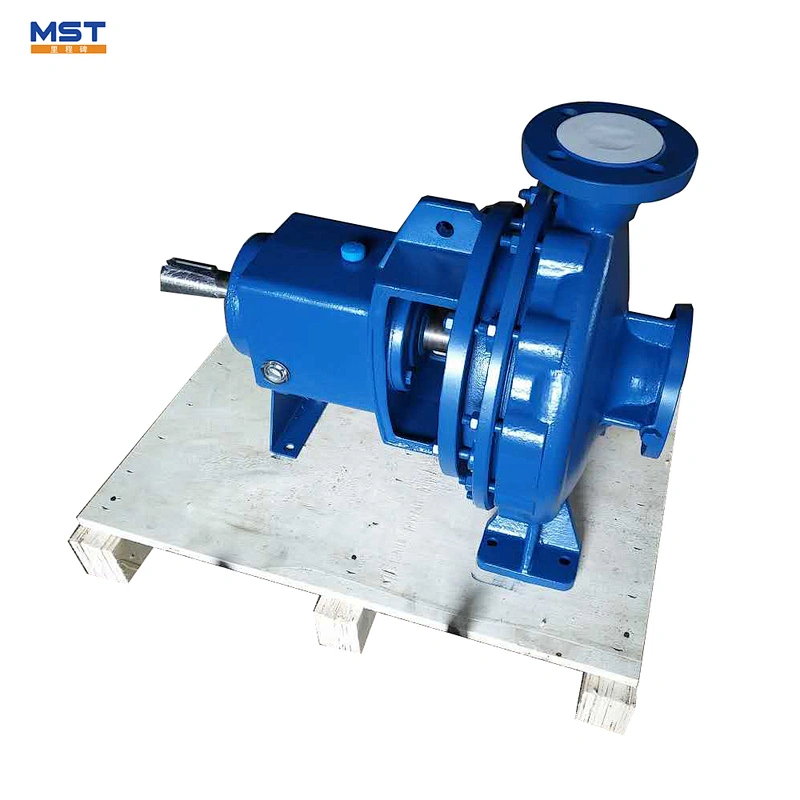

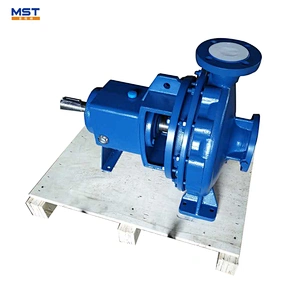

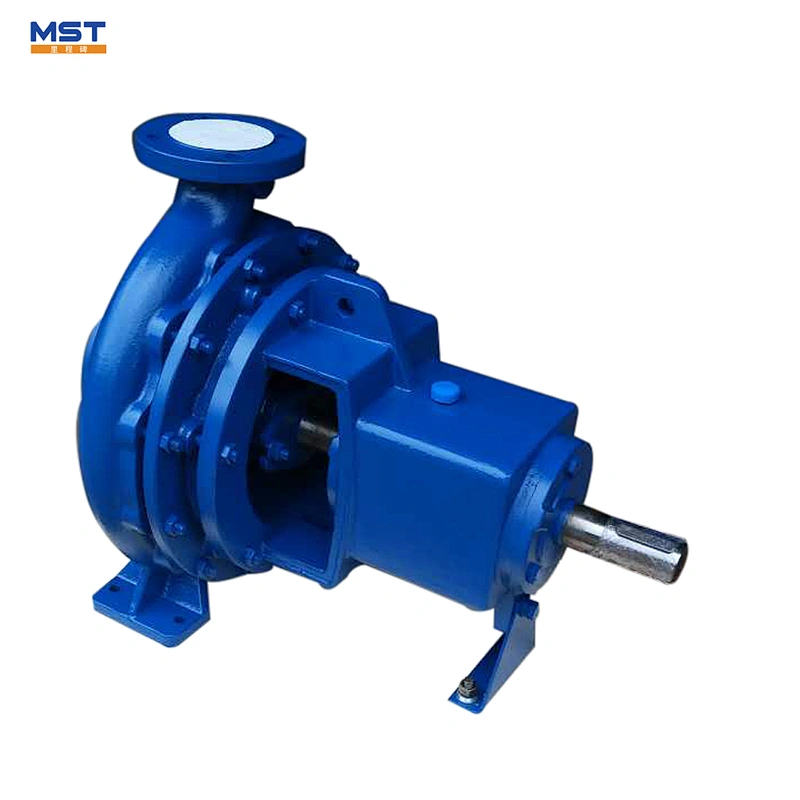

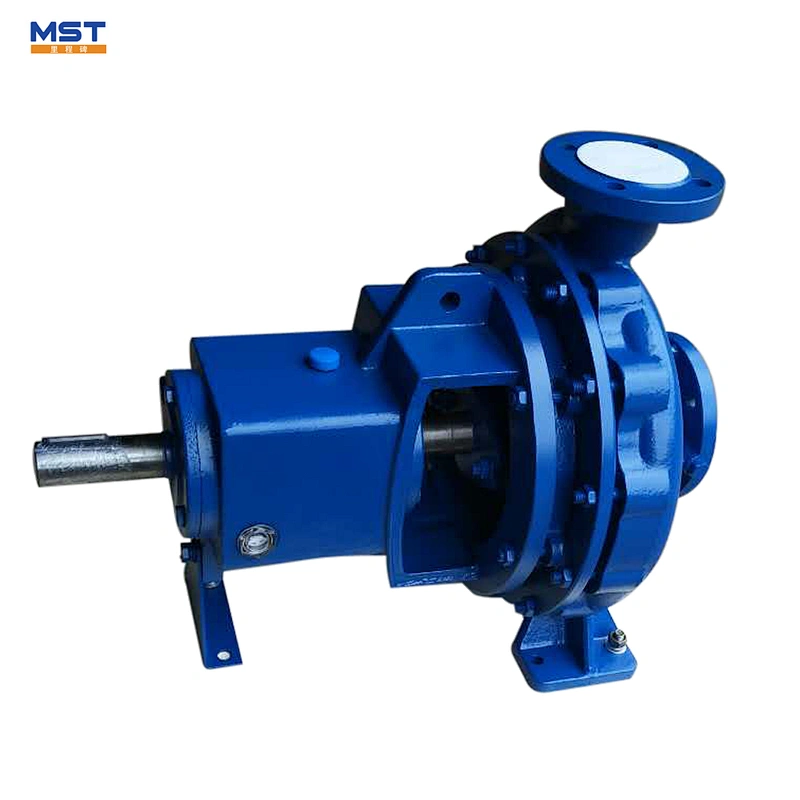

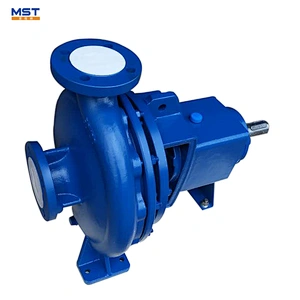

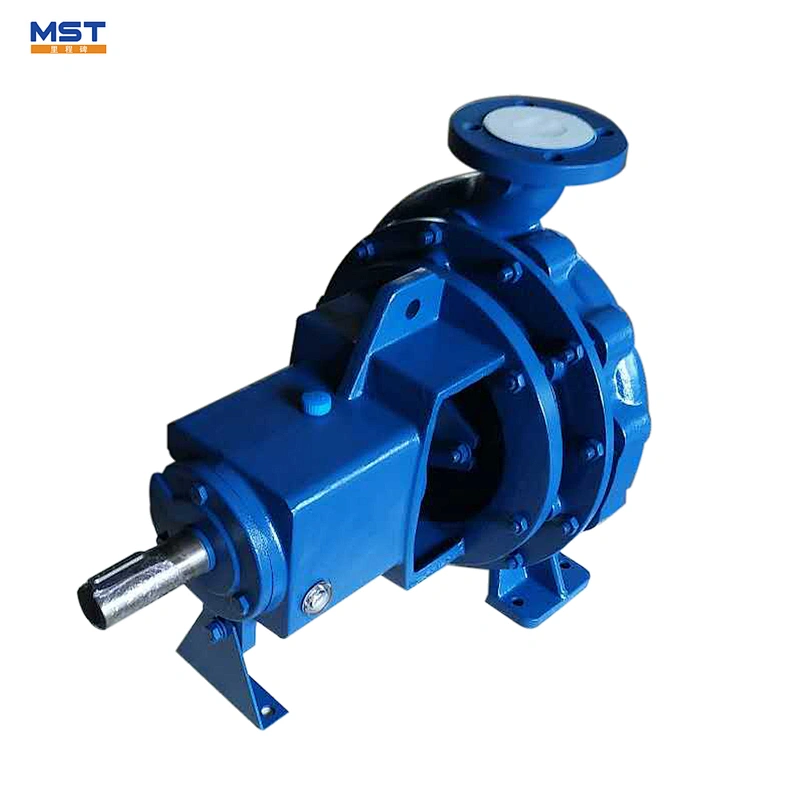

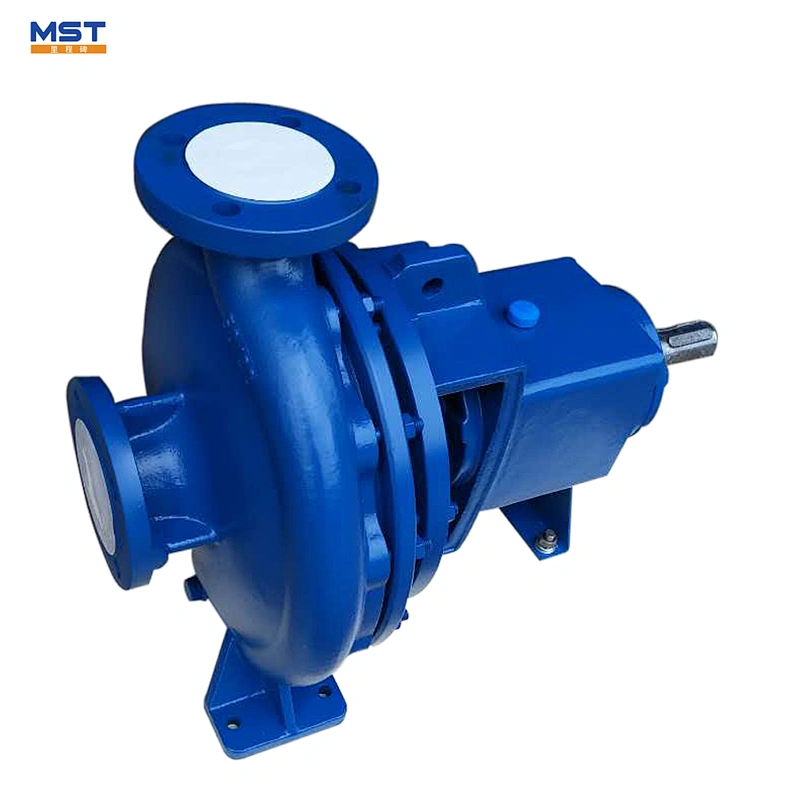

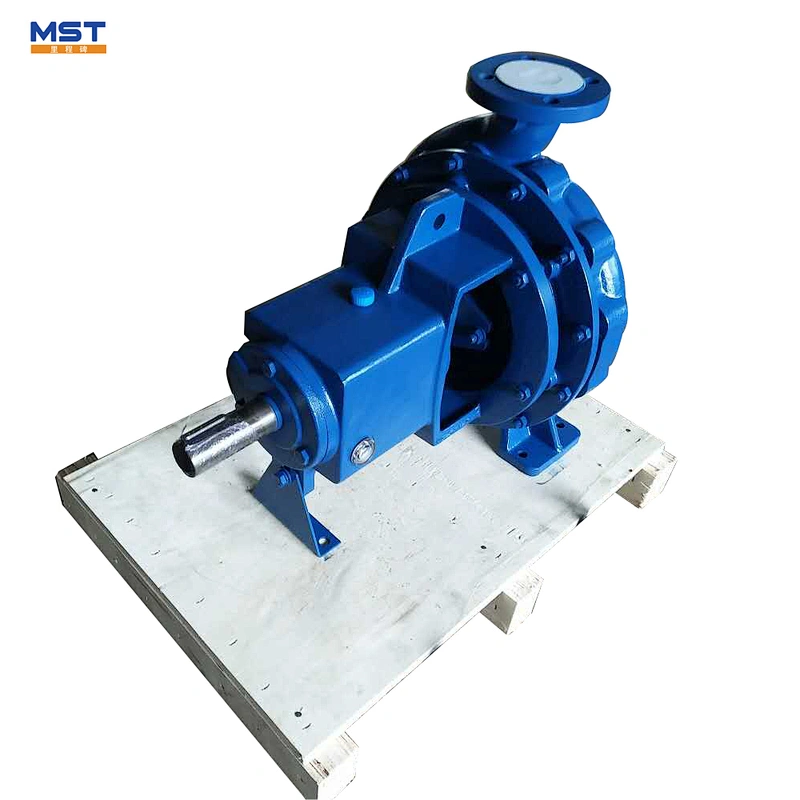

IS&ISR Single-stage Centrifugal Pump handle clean water and the liquid of which physical and chemical properties are similar to clean water. It is used for industrial and city clean water supply and drainage, irrigation, fire protection, long distance water supply, metallurgy, chemical, textile, china processing, pigment, paper making, etc.(IS:temperature not exceeding 80,ISR: temperature lessnot exceeding than 150)
Features
1.Choice of piston ring style labyrinth
2.Fully interchangeeable with the common brand reducing inventory hold requirements
3.A full range of mechanical seal adaptations available upon reques
4.Oil lubrications or packed grease
5.Painted to customer specifications upon request
Applications
1.Mining
2.Mineral sands
3.Power utilities
4.Oil and gas operations
5.water and sewage utilities
6.Construction and agriculture
Technical Parameter
1.Caliber: DN50-DN200mm
2.Capacity:3.5-460m3/hr
3. Head: 4-132m
4. Rotate speed: 2900 r/min; 1450 r/min
5.Work temperature:≤150°C
6.Viscosity:≤150mm2/s
7.Pressure:≤1.6Mpa
8.Motor power:0.55-110Kw
Performance Range
Performance Data Table
| Model | Flow | Lift head | Rotation speed | Motor power | Diameter(mm) | Diameter(mm) |
| (m3/h) | (m) | (r/min) | (kw) | Suction | Outlet | |
| IS50-32-125 | 12.5 | 20 | 2900 | 2.2 | 50 | 32 |
| 6.3 | 5 | 1450 | 0.55 | 50 | 32 | |
| IS50-32-160 | 12.5 | 32 | 2900 | 3 | 50 | 32 |
| 6.3 | 8 | 1450 | 0.55 | 50 | 32 | |
| IS50-32-200 | 12.5 | 50 | 2900 | 5.5 | 50 | 32 |
| 6.3 | 12.5 | 1450 | 0.75 | 50 | 32 | |
| IS50-32-250 | 12.5 | 80 | 2900 | 11 | 50 | 32 |
| 6.3 | 20 | 1450 | 1.5 | 50 | 32 | |
| IS65-50-125 | 25 | 20 | 2900 | 3 | 65 | 50 |
| 12.5 | 5 | 1450 | 0.55 | 65 | 50 | |
| IS65-50-160 | 25 | 32 | 2900 | 5.5 | 65 | 50 |
| 12.5 | 8 | 1450 | 0.75 | 65 | 50 |
