Japanese centrifugal 3-phase water pumps 800 gpm

Japanese centrifugal 3-phase water pumps 800 gpm

Model NO.: IS
Price:: USD 356.00-2996.00 / set
Delivery: FOB
Minimum order quantity: 1 set
Supply Ability: 6000 set / Year
Country of Origin: Tianjin/ Shanghai/ Qingdao/ Shenzhen/ As customer required
Stock Time: Within 30 working days Day

Quantity:

Product Description
Basic Information

Product Description

Japanese centrifugal 3-phase water pumps 800 gpm

IS&ISR Single-stage Centrifugal Pump handle clean water and the liquid of which physical and chemical properties are similar to clean water. It is used for industrial and city clean water supply and drainage, irrigation, fire protection, long distance water supply, metallurgy, chemical, textile, china processing, pigment, paper making, etc.(IS:temperature not exceeding 80,ISR: temperature lessnot exceeding than 150)

Features

1.Choice of piston ring style labyrinth

2.Fully interchangeeable with the common brand reducing inventory hold requirements

3.A full range of mechanical seal adaptations available upon request

4.Oil lubrications or packed grease

5.Painted to customer specifications upon request

Applications

1.Mining

2.Mineral sands

3.Power utilities

4.Oil and gas operations

5.water and sewage utilities

6.Construction and agriculture

Performance Curves

Structure

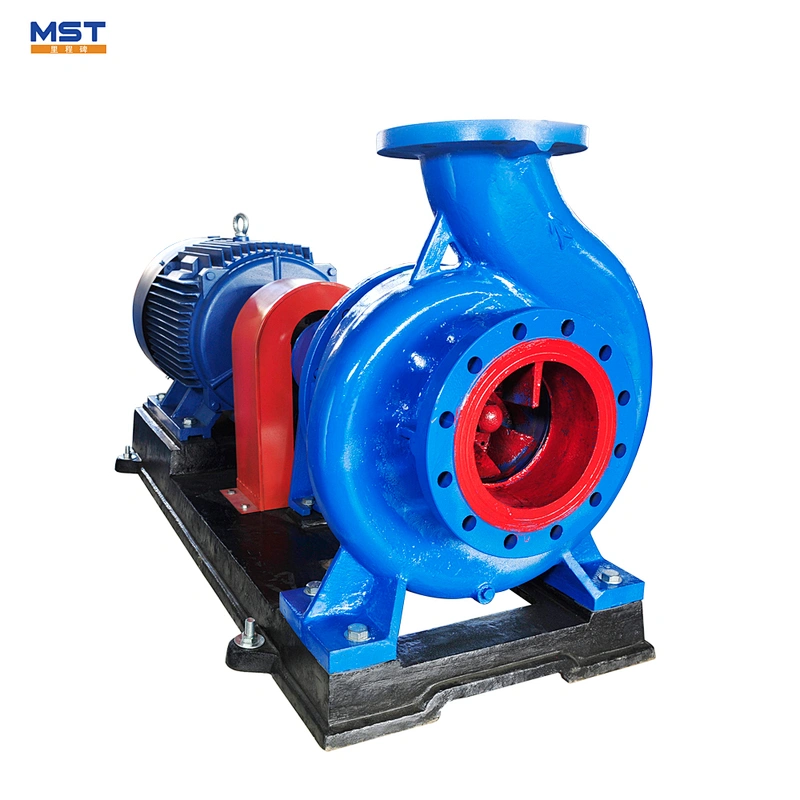

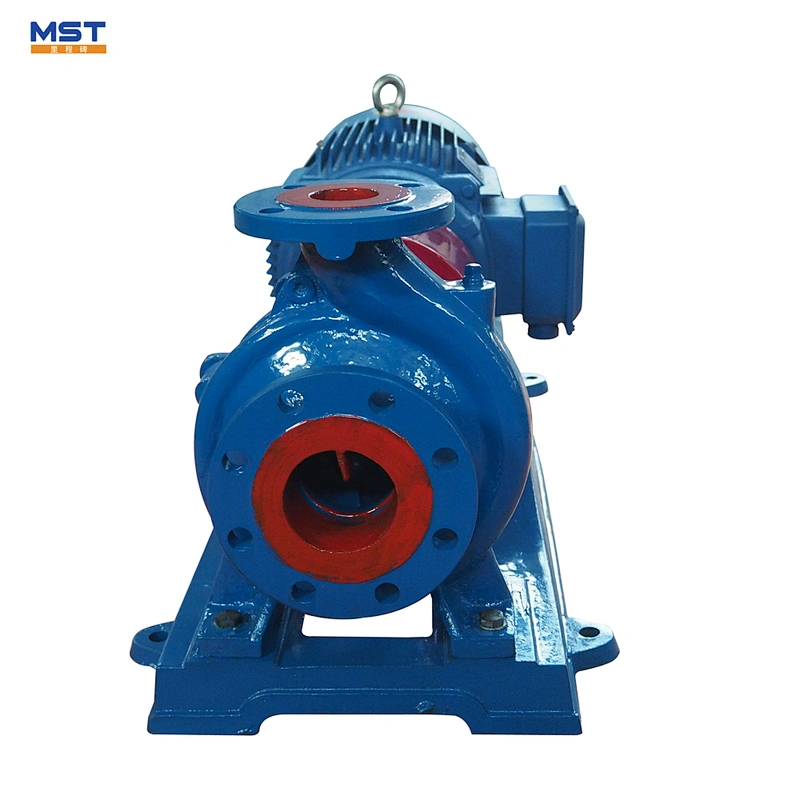

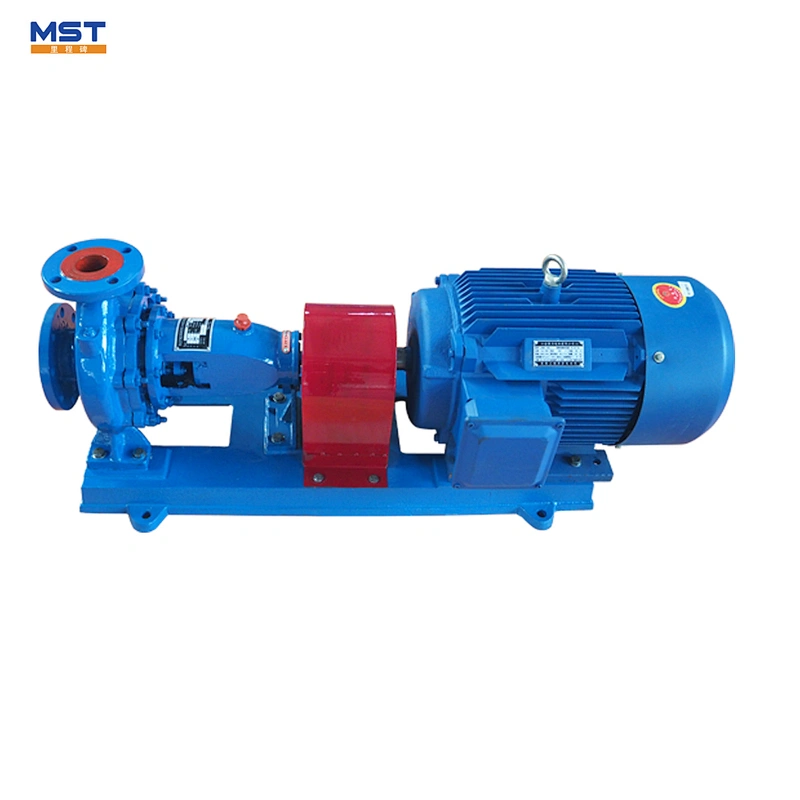

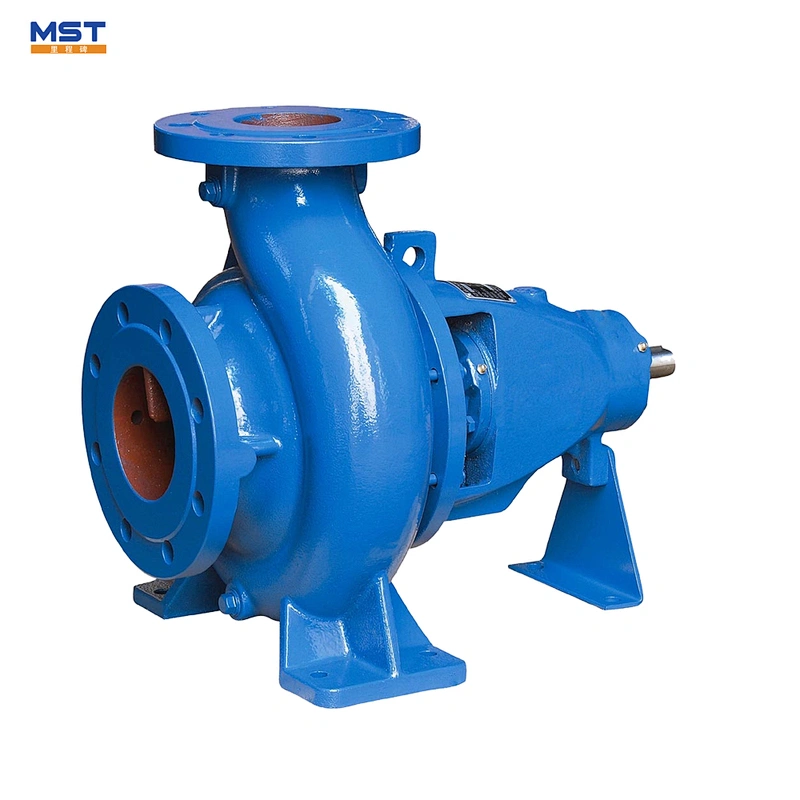

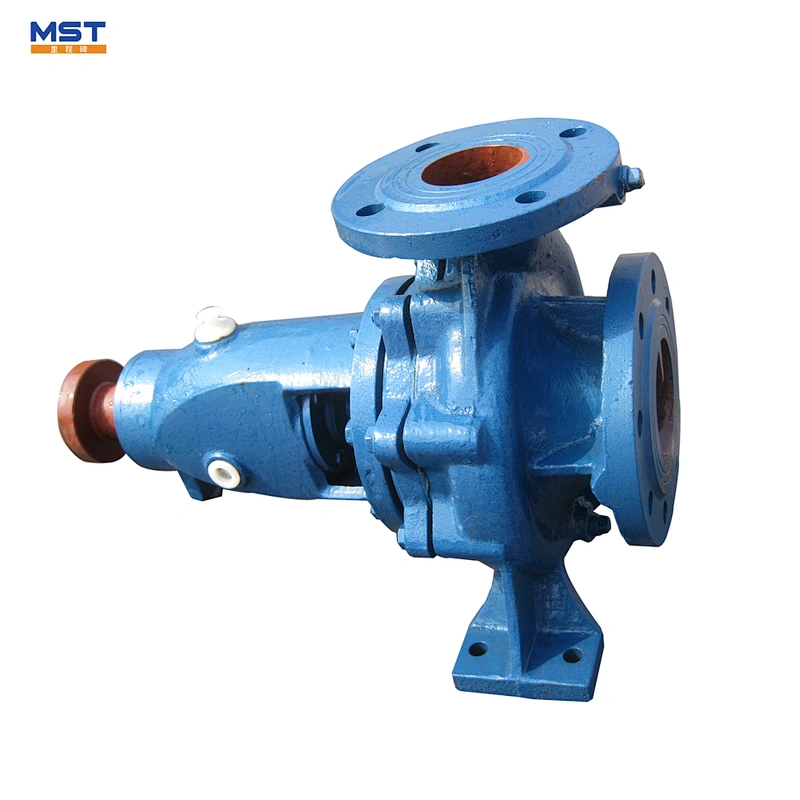

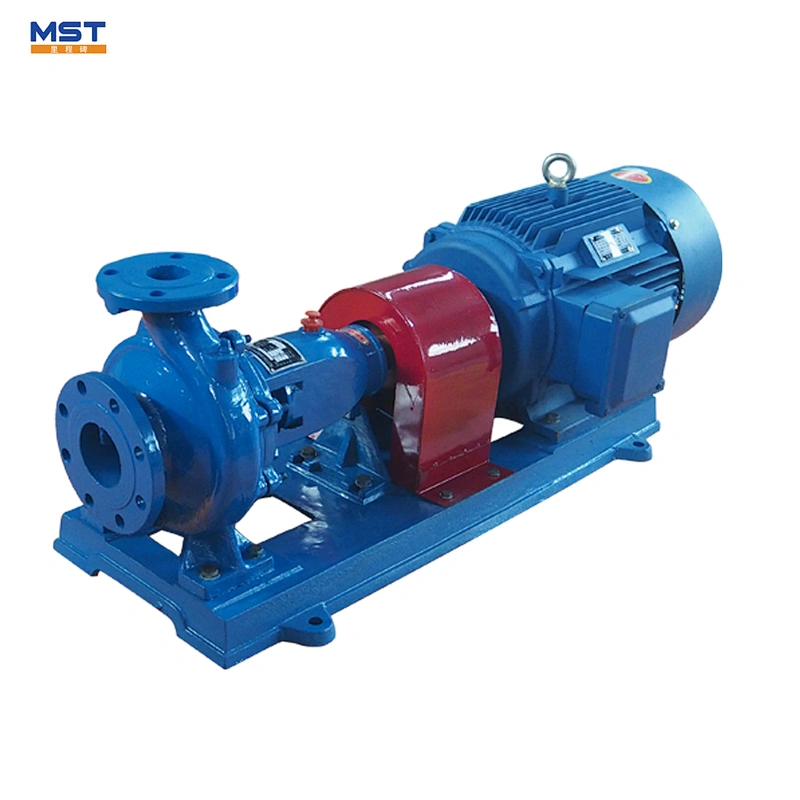

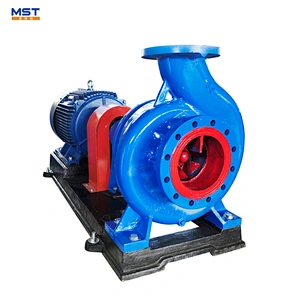

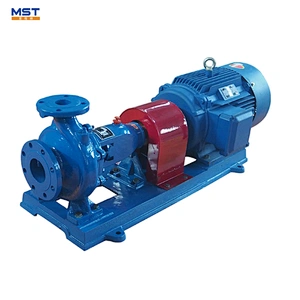

Pump Image

Performance Data Table

Model	Flow	Lift head	Rotation speed	Motor power	Diameter(mm)	Diameter(mm)
	(m3/h)	(m)	(r/min)	(kw)	Suction	Outlet
IS50-32-125	12.5	20	2900	2.2	50	32
	6.3	5	1450	0.55	50	32
IS50-32-160	12.5	32	2900	3	50	32
	6.3	8	1450	0.55	50	32
IS50-32-200	12.5	50	2900	5.5	50	32
	6.3	12.5	1450	0.75	50	32
IS50-32-250	12.5	80	2900	11	50	32
	6.3	20	1450	1.5	50	32
IS65-50-125	25	20	2900	3	65	50
	12.5	5	1450	0.55	65	50
IS65-50-160	25	32	2900	5.5	65	50
	12.5	8	1450	0.75	65	50
IS65-40-200	25	50	2900	7.5	65	40
	12.5	12.5	1450	1.1	65	40
IS65-40-250	25	80	2900	15	65	40
	12.5	20	1450	2.2	65	40
IS65-40-315	25	125	2900	30	65	40
	12.5	32	1450	4	65	40
IS80-65-125	50	20	2900	5.5	80	65
	25	5	1450	0.75	80	65
IS80-65-160	50	32	2900	7.5	80	65
	25	8	1450	1.5	80	65
IS80-50-200	50	50	2900	15	80	50
	25	12.5	1450	2.2	80	50
IS80-50-250	50	80	2900	22	80	50
	25	20	1450	3	80	50
IS80-50-315	50	125	2900	37	80	50
	25	32	1450	5.5	80	50
IS100-80-125	100	20	2900	11	100	80
	50	5	1450	1.5	100	80
IS100-80-160	100	32	2900	15	100	80
	50	8	1450	2.2	100	80
IS100-65-200	100	50	2900	22	100	65
	50	12.5	1450	4	100	65
IS100-65-250	100	80	2900	37	100	65
	50	20	1450	5.5	100	65
IS100-65-315	100	125	2900	75	100	65
	50	32	1450	11	100	65
IS125-100-200	200	50	2900	45	125	100
	100	12.5	1450	7.5	125	100
IS125-100-250	200	80	2900	75	125	100
	100	20	1450	11	125	100
IS125-100-315	200	125	2900	110	125	100
	100	32	1450	15	125	100
IS125-100-400	100	50	1450	30	125	100
IS150-125-250	200	20	1450	18.5	150	125
IS150-125-315	200	32	1450	30	150	125
IS150-125-400	200	50	1450	45	150	125
IS200-150-250	400	20	1450	37	200	150
IS200-150-315	400	32	1450	55	200	150
IS200-150-400	400	50	1450	90	200	150
