Product Description

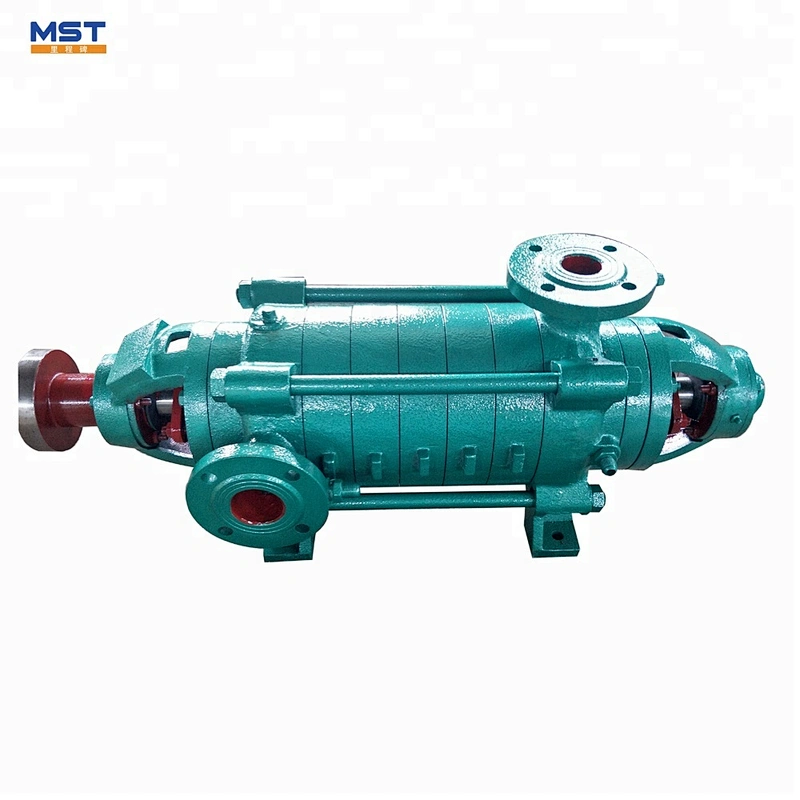

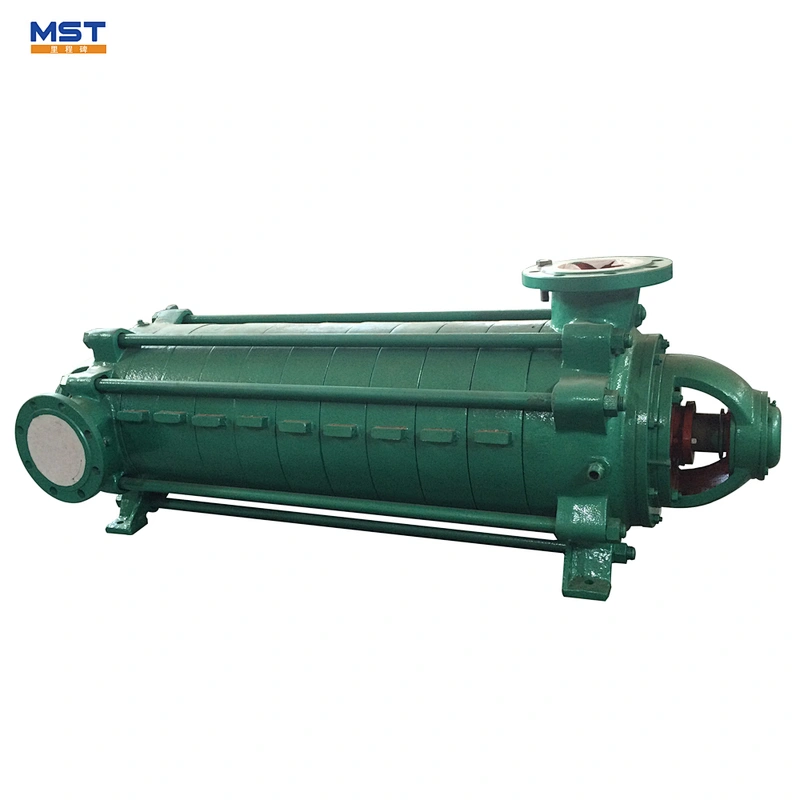

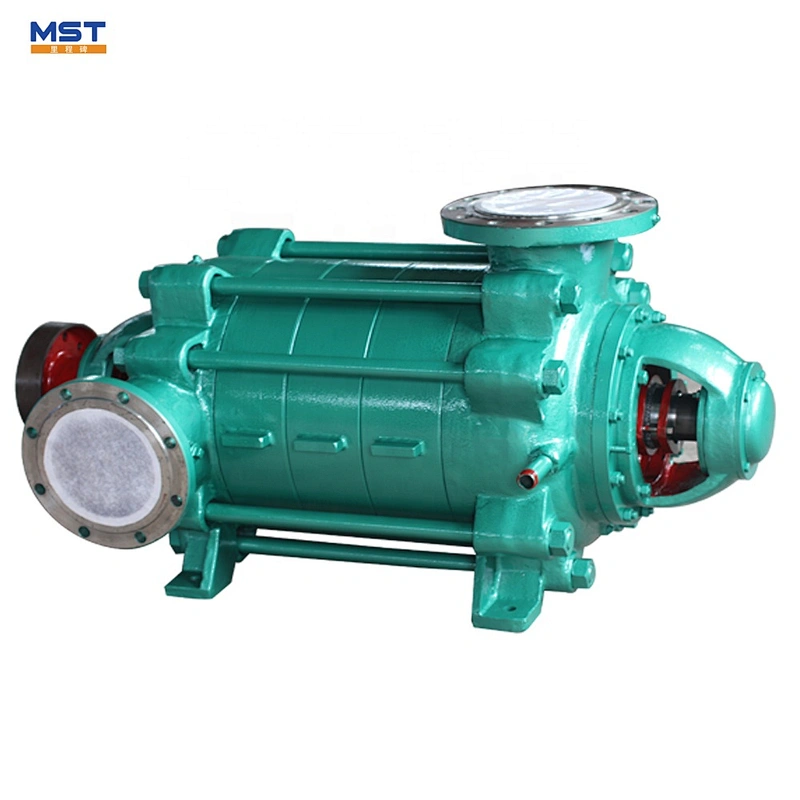

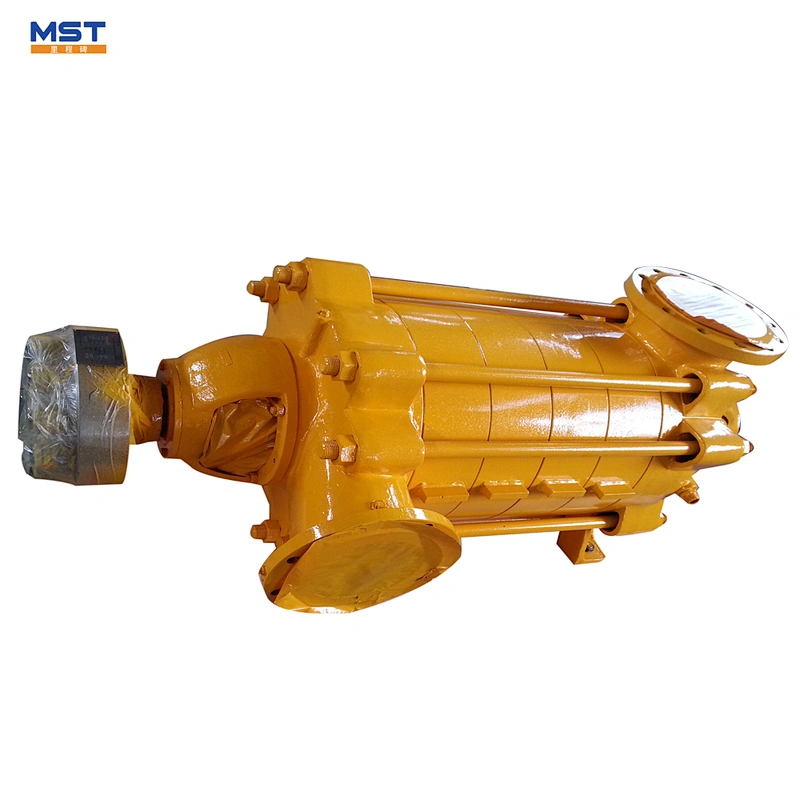

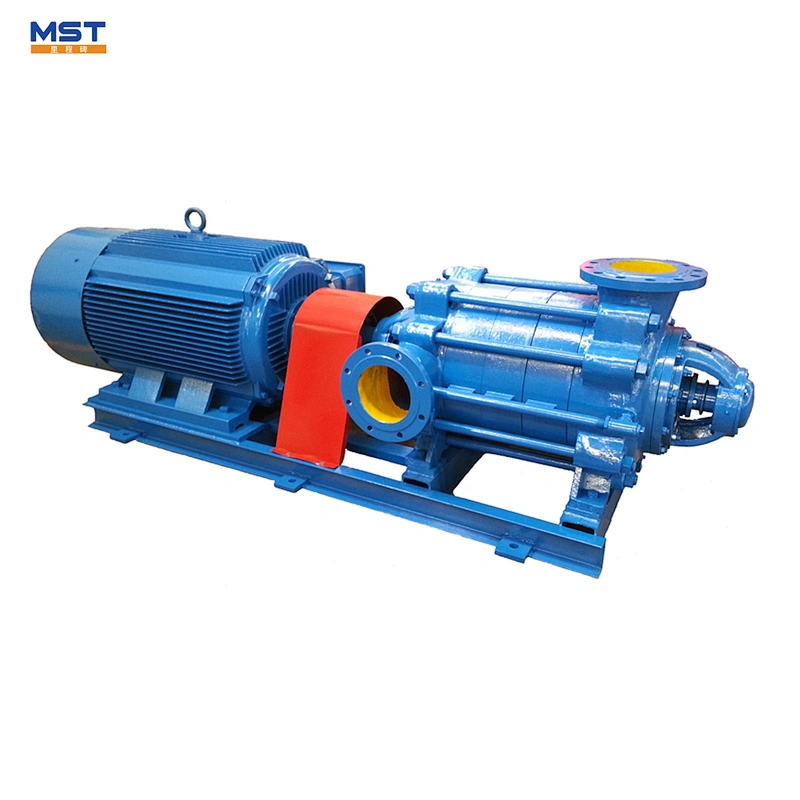

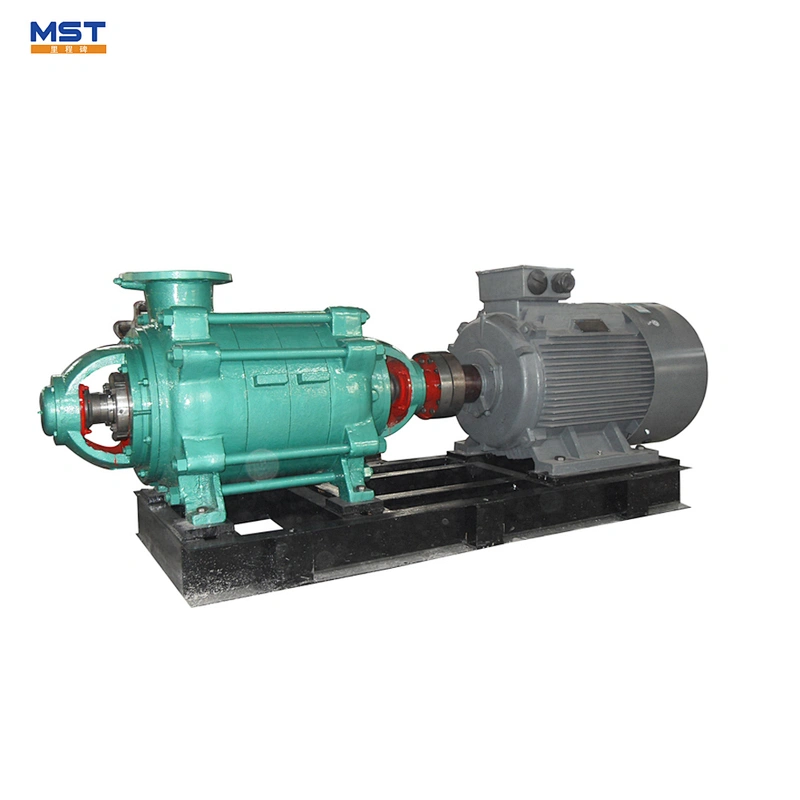

Electric Stainless Steel Horizontal Multistage Centrifugal Pump
D/DA is an energy-saving product series. Its performance parameters and technical data are higher. It is suitable for the circulation and pressurization of cold and warm clear water in high-pressure operation system, water supply under parallel operation of several pumps in civil construction, water supply for fire control, boiler, cooling water system and the delivery of various liquid.
Application:
- long distance water transferring
- boiling water feeding and transferring
- water system boosting
- agricultural irrigation
- mining water supply
- fire fighting
- offshore projects
Structure
![F~70`OM2H$XL5N%8X]W}C7M](http://sc02.alicdn.com/kf/HTB1vzG0HXXXXXcGXFXXq6xXFXXXZ/200953651/HTB1vzG0HXXXXXcGXFXXq6xXFXXXZ.jpg?imageMogr2/format/webp/auto-orient)
Performance Curve:
Technical Data
| Model | Capacity (m3/h) | Head (m) | Speed (rpm) | Motor Power (kw) | Impeller Dia (mm) |
| 6-25*4 | 6.3 | 100 | 2950 | 7.5 | 139 |
| 6-25*5 | 6.3 | 125 | 2950 | 7.5 | 139 |
| 6-50*4 | 6.3 | 200 | 2950 | 18.5 | 198 |
| 12-25*4 | 12.5 | 100 | 2950 | 11 | 146 |
| 6-80*3 | 6 | 240 | 2950 | 18.5 | 235 |
| 12-80*4 | 12.5 | 320 | 2950 | 45 | 235 |
| 25-30*3 | 25 | 90 | 2950 | 15 | 160 |
| 46-30*5 | 46 | 150 | 2950 | 37 | 162 |
| 85-67*4 | 85 | 268 | 2950 | 110 | 235 |
| 120-50*5 | 120 | 250 | 2950 | 132 | 213 |
| 150-30*8 | 150 | 240 | 2950 | 160 | 172 |
| 150-100*6 | 150 | 600 | 2950 | 400 | 289 |
| 200-100*6 | 200 | 600 | 2950 | 560 | 290 |
| 280-65*6 | 280 | 390 | 1480 | 500 | 430 |
| 300-45*4 | 300 | 180 | 1480 | 200 | 360 |
| 150D30*6 | 155 | 180 | 1480 | 132 | 305 |
