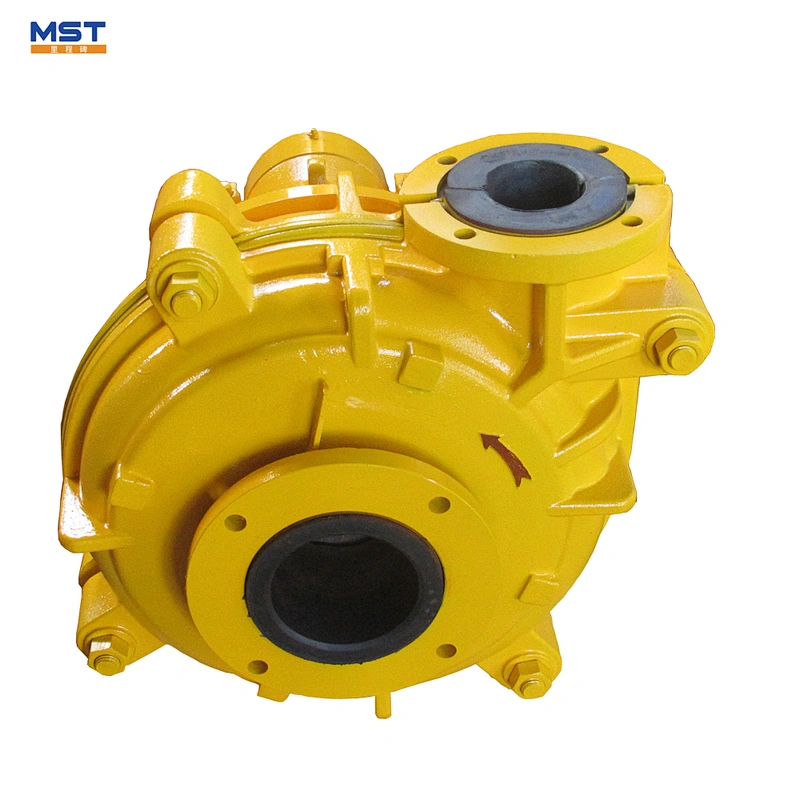

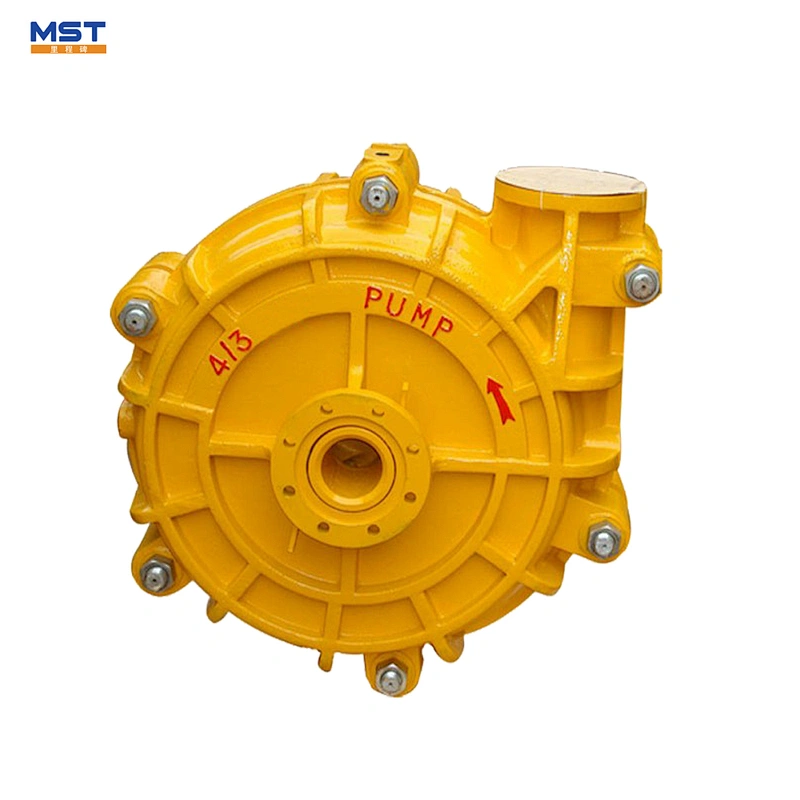

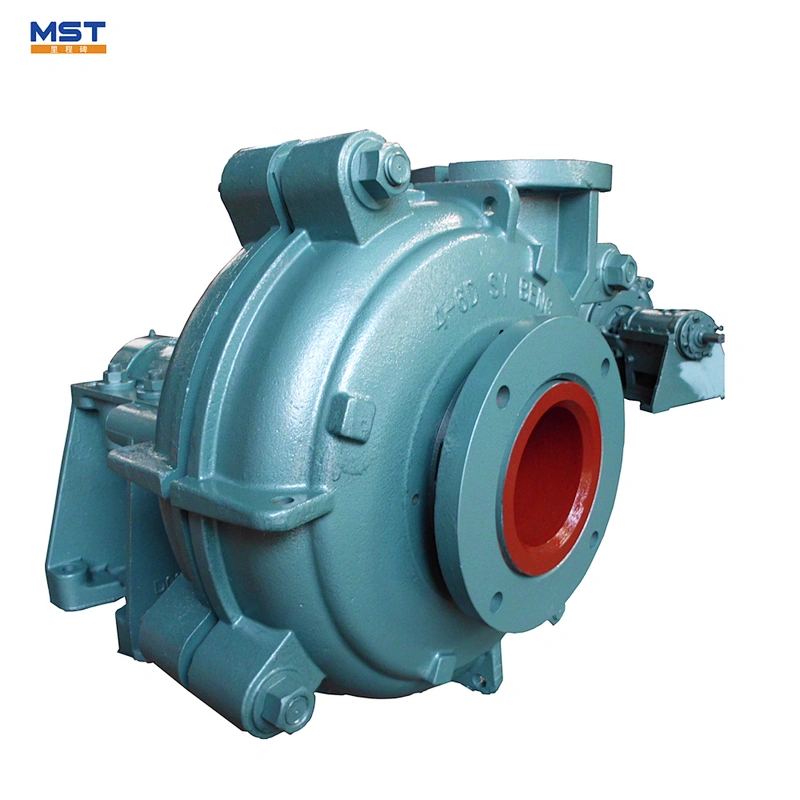

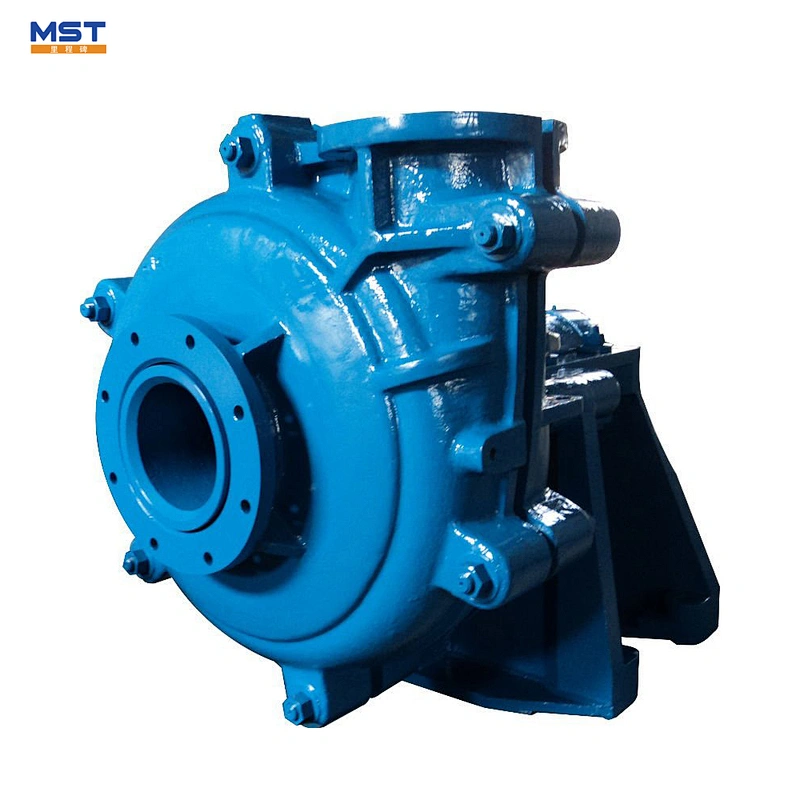

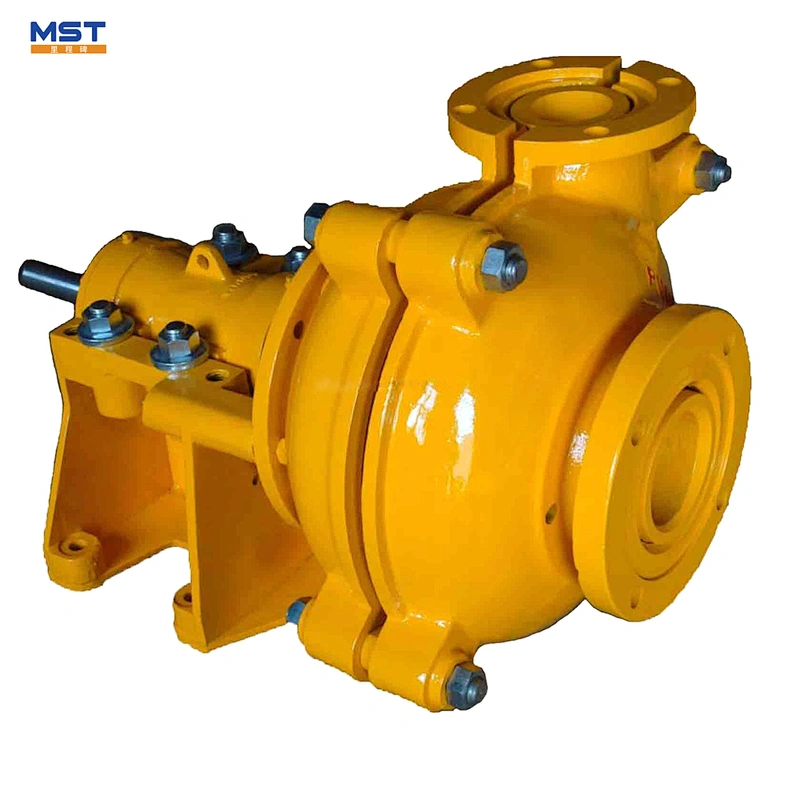

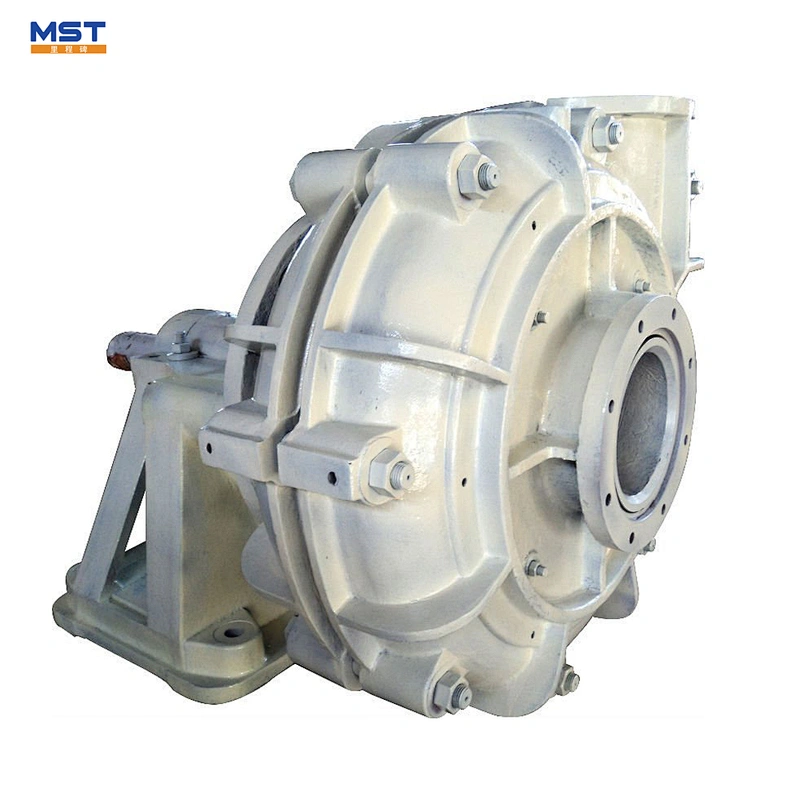

High viscosity oil sand crude oil pumps
TheMAH series slurry pump are robust state of the art slurry pumps that feature oil
or grease lubrication bearing assemblies and complete interchangeable with other major
brands. The MAH slurry pump can be supplied in either a packed gland version using expeller technology,
or mechanical seal system specifically designed for heavy duty slurry applications.
Features
- Choice of piston ring style labyrinth or other new style of water proof
- Fully interchangeable with the common brand reducing inventory hold requirements
- A full range of mechanical seal adaptations available upon request
- Oil lubrication or packed grease
- Painted to customer specifications upon request
A complete range of build specifications
- Rubber lined with rubber impeller
- Rubber lined with metal impeller
- All metal lined using white iron chrome alloys
Clear water performance
| Clear water performance of MAH | |||||||||||
| Type | Max. power | Capacity | Head | Speed | Max. Eff | NPSH | IMPELLER | Max. particle size | Weight (KG) | ||
| Quantity of vanes | Diameter (mm) | ||||||||||
| kw | (m³/h) | (l/s) | (m) | (r/min) | % | (m) | mm | ||||
| MAH1.5/1 | 15 | 12-28 | 3.5-8 | 6-65 | 1200-3800 | 40 | 2-4 | 5 | 150 | 14 | 90 |
| MAH2/1.5 | 15 | 32-72 | 9-20 | 6-58 | 1200-3200 | 45 | 3.5-8 | 5 | 185 | 19 | 105 |
| MAH3/2 | 30 | 39-86 | 11-24 | 12-64 | 1300-2700 | 55 | 4-6 | 5 | 215 | 25 | 190 |
| MAH4/3 | 30 | 86-198 | 24-55 | 9-52 | 1000-2200 | 71 | 4-6 | 5 | 245 | 28 | 260 |
| MAH4/3 | 60 | 86-198 | 24-55 | 9-52 | 1000-2200 | 71 | 4-6 | 5 | 245 | 28 | 360 |
| MAH6/4 | 60 | 162-360 | 45-100 | 12-56 | 800-1500 | 68 | 5-8 | 5 | 365 | 44 | 625 |
| G6/4 | 60 | 36-244 | 10-68 | 7-51 | 600-1400 | 50 | 2.5-3.5 | 3 | 378 | 82 | |
| MAH6/4(E) | 120 | 162-360 | 45-100 | 12-56 | 800-1500 | 68 | 5-8 | 5 | 365 | 44 | 728 |
| MAH8/6 | 120 | 360-830 | 100-230 | 10-61 | 500-1140 | 72 | 2-9 | 5 | 510 | 63 | 1470 |
| G8/6(E) | 120 | 133-576 | 37-160 | 10-48 | 800-1400 | 60 | 3-4.5 | 3 | 378 | 127 | |
| G10/8(S) | 560 | 216-930 | 60-258 | 11-44 | 500-940 | 65 | 3-7.5 | 3 | 533 | 178 | |
| MAH10/8 | 260 | 612-1368 | 170-380 | 11-61 | 400-850 | 71 | 4-10 | 5 | 685 | 76 | 3800 |
| MAH12/10 | 560 | 936-1980 | 260-550 | 7-68 | 400-750 | 82 | 6 | 5 | 760 | 86 | 4320 |
| MAH14/12 | 560 | 1260-2772 | 350-770 | 13-63 | 300-600 | 77 | 3-10 | 5 | 965 | 90 | 6400 |
Curves of MAH series
Other pumps
Who we are?
- 20 years experience of manufacture with 5 years oversea service.
- Advanced equipment with qualified engineers.
- Large foundry to control excellent quality
