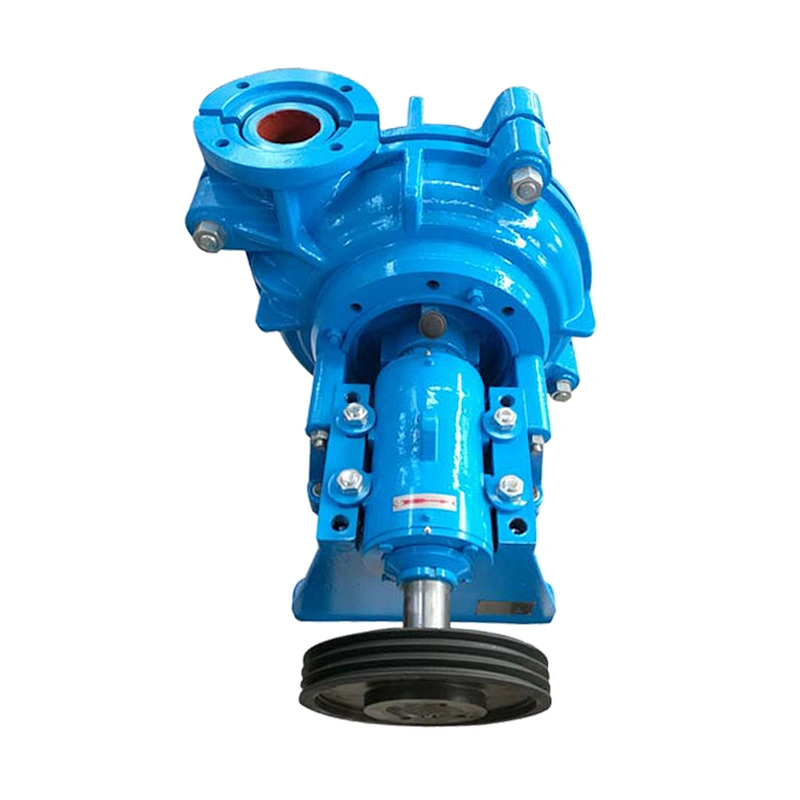

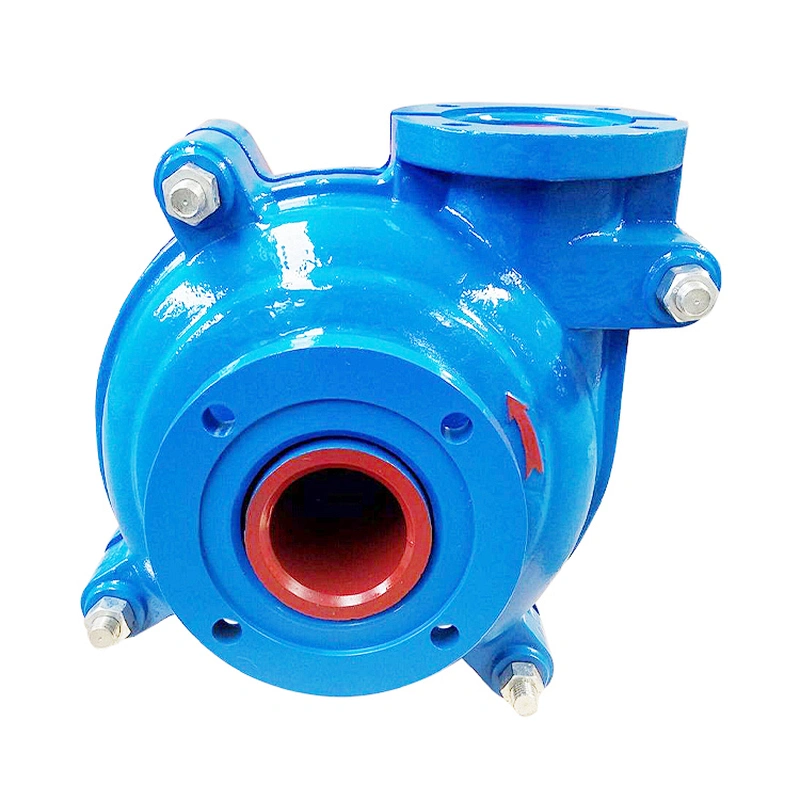

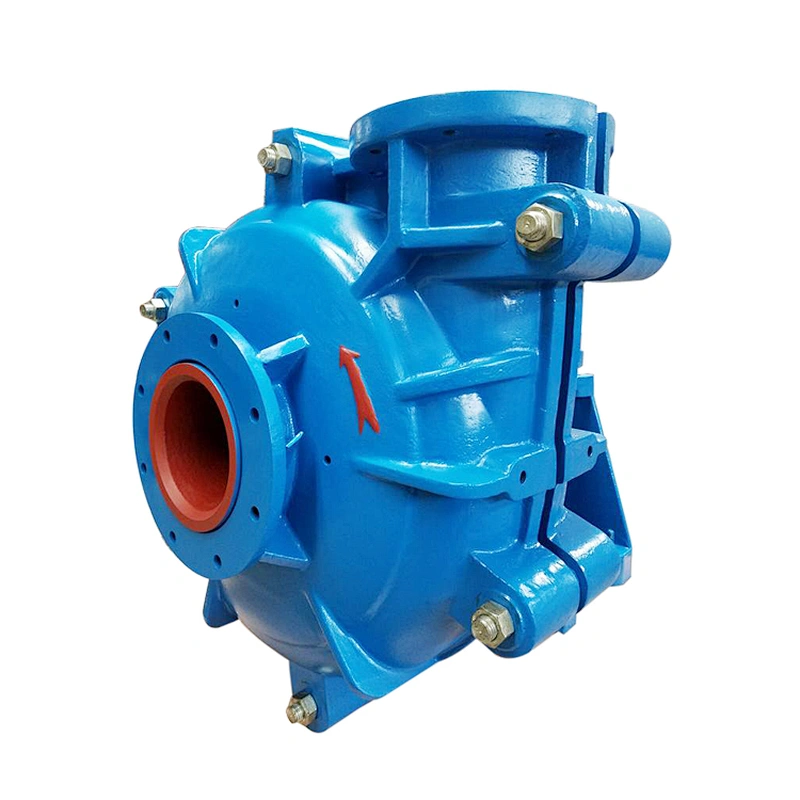

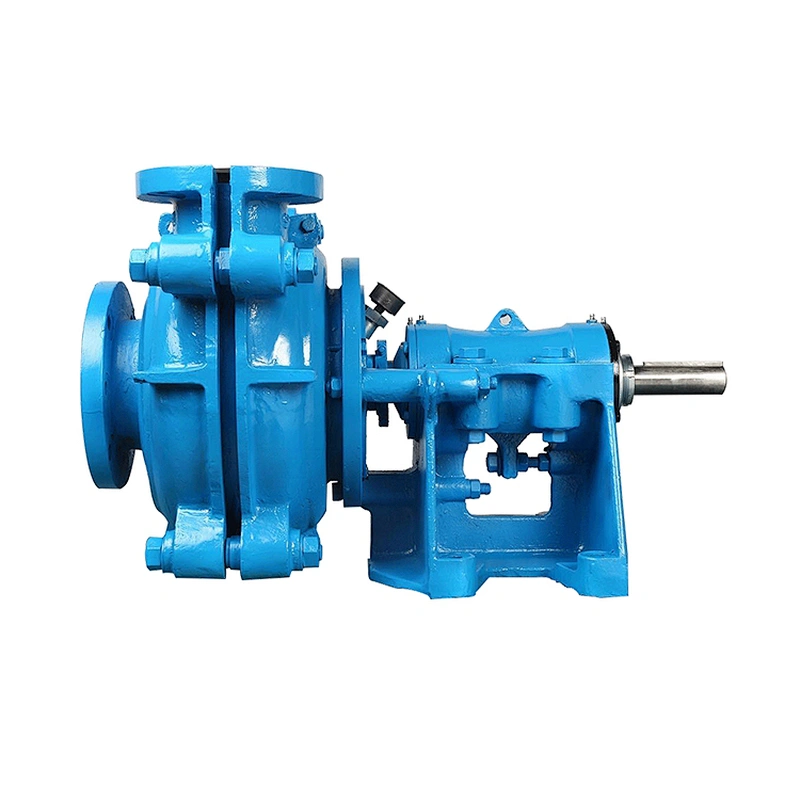

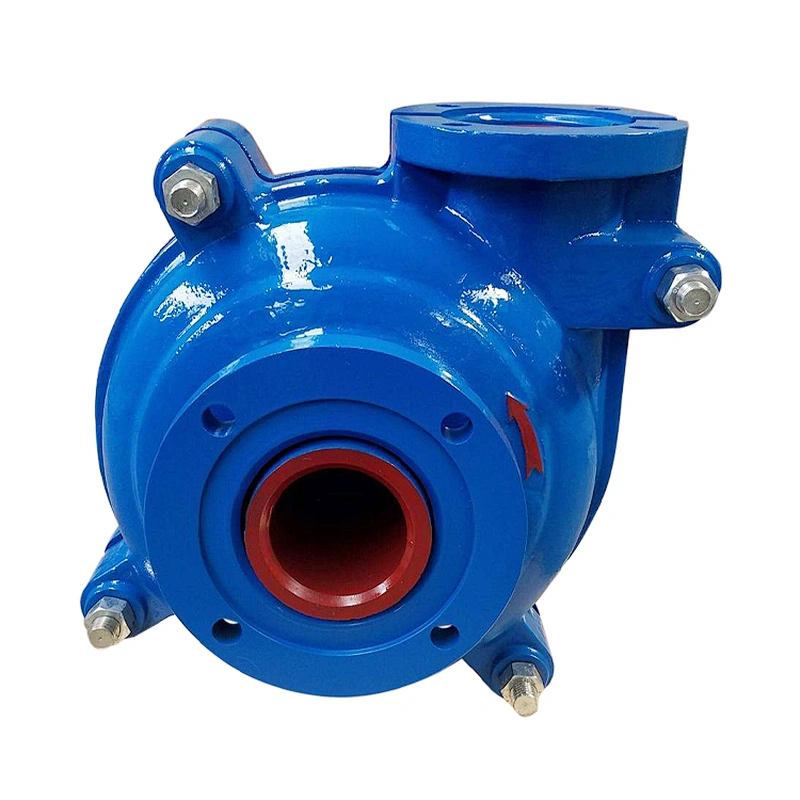

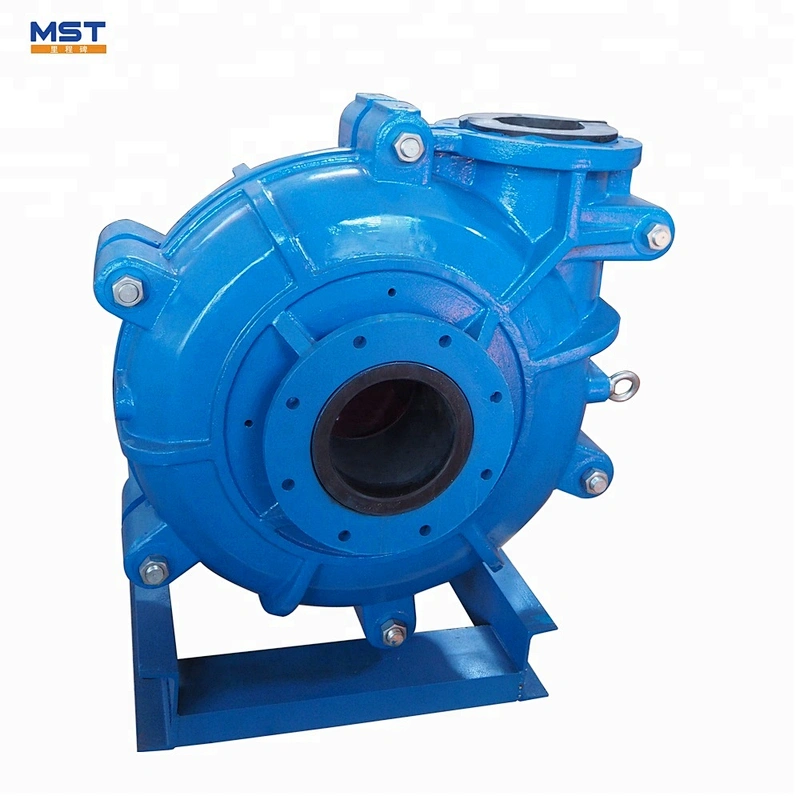

Industry centrifugal horizontal gland packing slurry pump
Milestone MAH series slurry pumps are heavy duty horizontal slurry pumps designed to handle abrasive and high density slurries in mining and heavy industry.
MAH high density slurry pumps are available in sizes ranging from 1 inch to 18 inch discharge and feature high efficiency performance capable of flow rates from 10.8 to 6500 m³/hour and heads up to 125 meters for high head models.
All our slurry pumps are designed to be 100% fully interchangeable with the most common slurry pump used by the mining industry.
Pump Features
1) Bearing assembly- large diameter shaft with short overhang contributes to long bearing life.
2) Liners – easily replaceable liners are bolted, not glued to the casing for positive maintenance.
3) Casing – casing halves of cast or ductile iron provide high operating pressure capabilities.

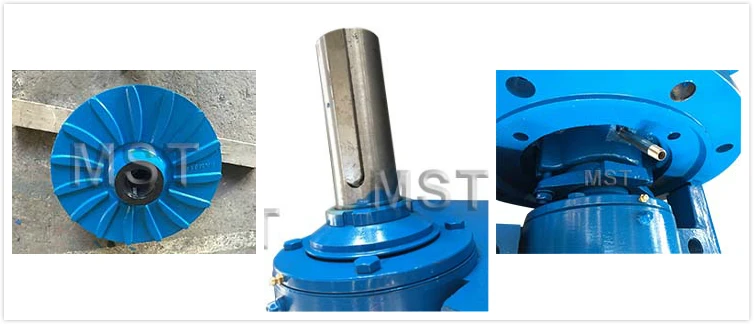

4) Impeller – front and rear shrouds have pump out vanes that reduce recirculation and seal contamination.
5) Throat bush – wear is reduced and maintenance simplified by the use of tapered.
| No. | Name | No. | Name |
| 1 | Round nut | 12 | Impeller |
| 2 | Labyrinth | 13 | Volute |
| 3 | Bearing | 14 | Cover plate |
| 4 | End cover | 15 | Intake joint |
| 5 | Shaft sleeve | 16 | Expeller |
| 6 | Oil cup | 17 | Packing |
| 7 | Discharge joint | 18 | Lantern ring |
| 8 | Frame plate | 19 | Gland assembly |
| 9 | Oil cup seat | 20 | Frame |
| 10 | Expeller ring | 21 | Grease retainer |
| 11 | FPL insert | 22 | Shaft |
