Product Description

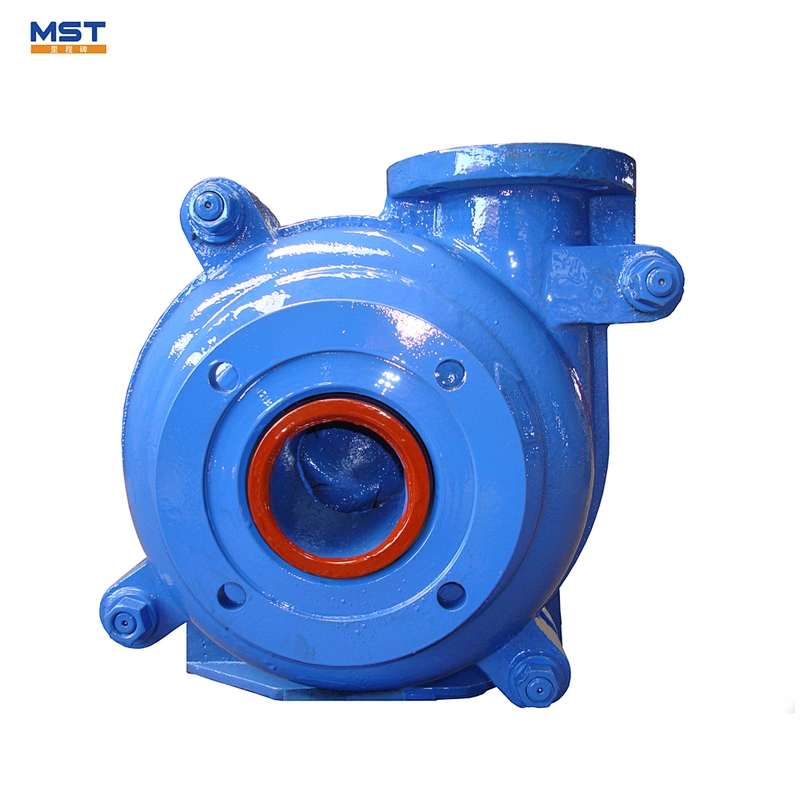

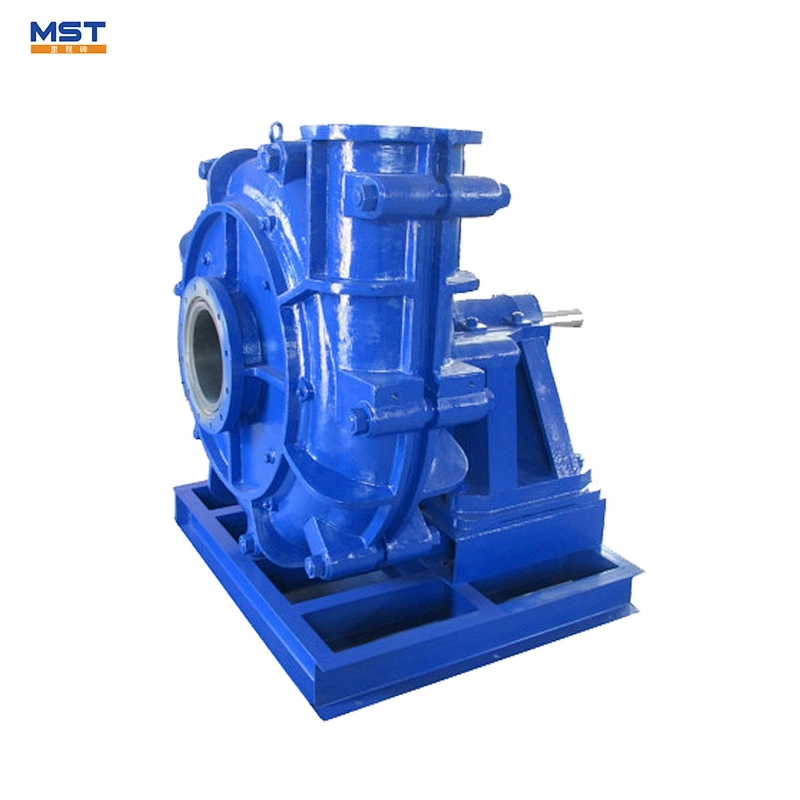

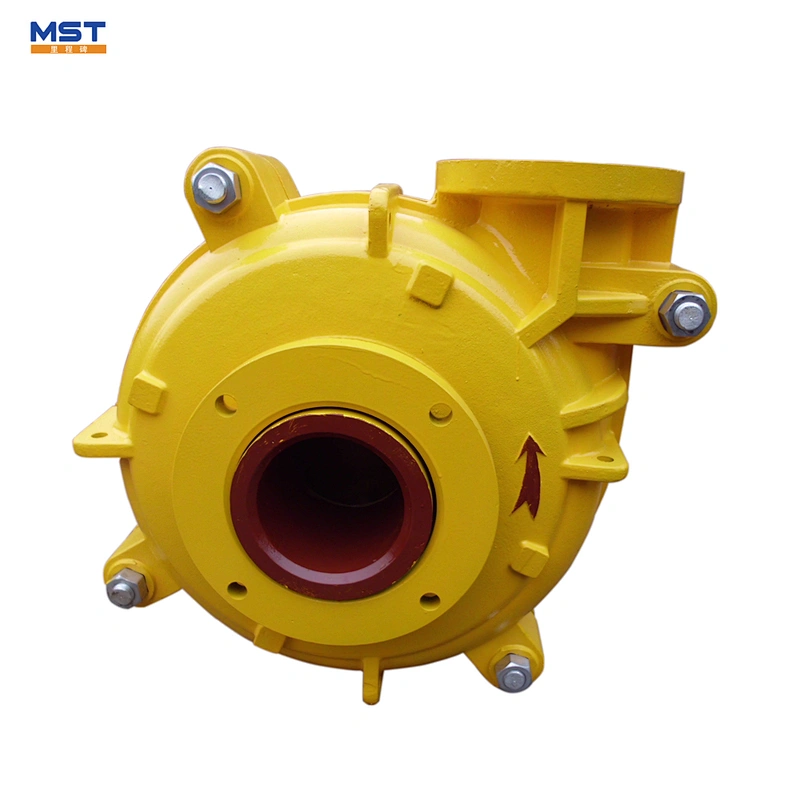

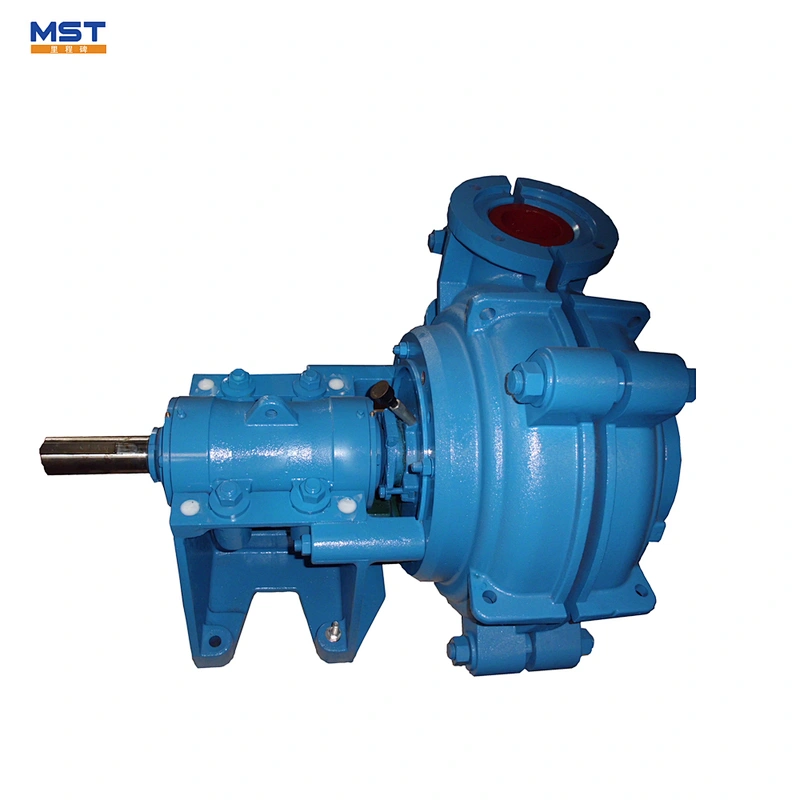

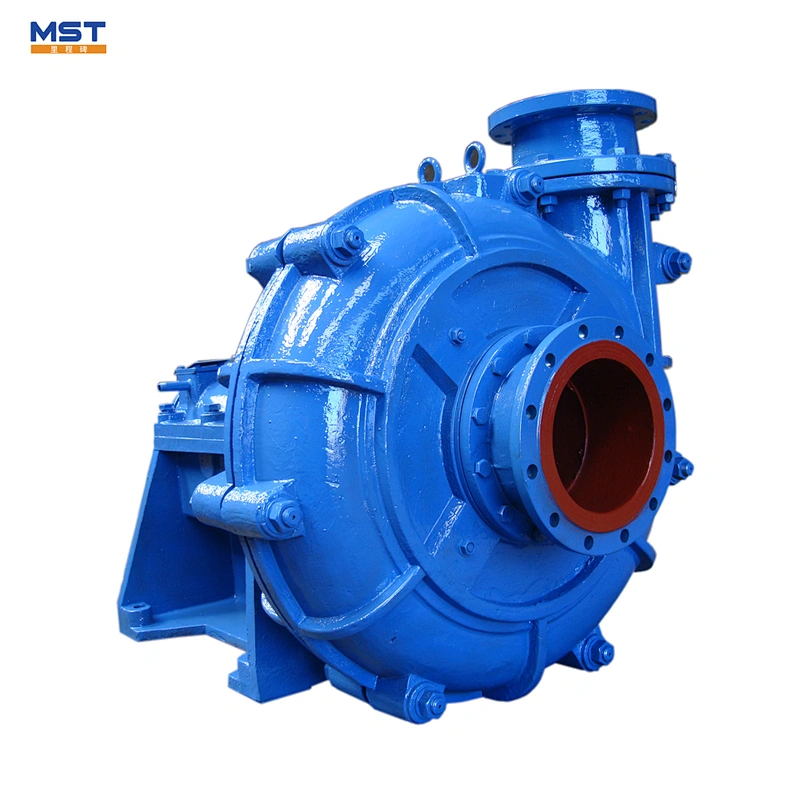

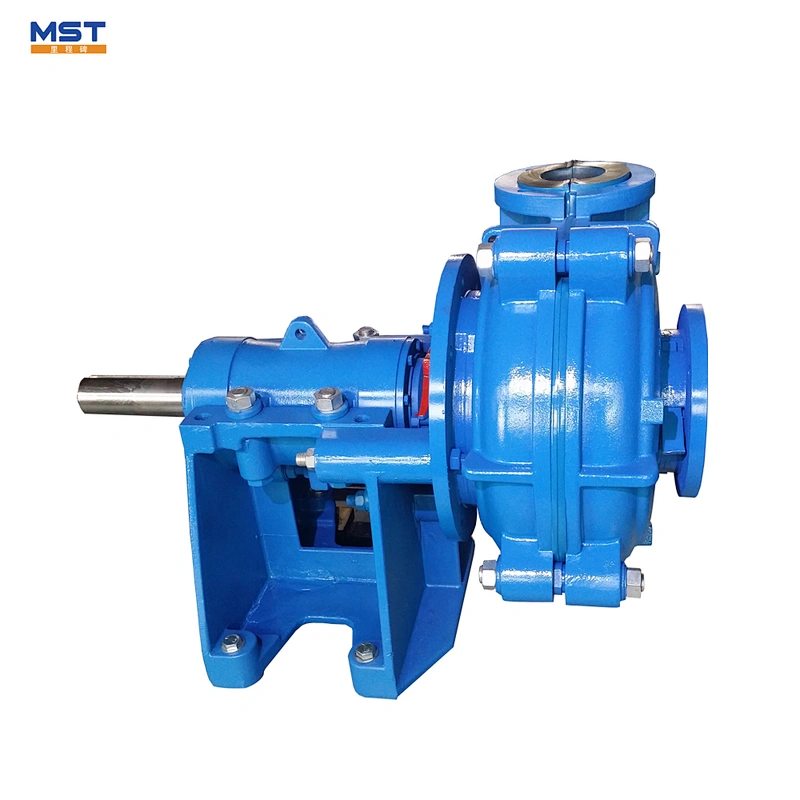

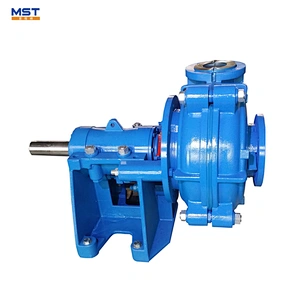

Heavy Duty Industrial Mining Slurry Water Pump
TheMS-HS slurry pump series are robust state of the art slurry pumps that feature oil or grease lubrication bearing assemblies and complete interchangeable with other major brands. The HScan be supplied in either a packed gland version using expeller technology, or mechanical seal system specifically designed for heavy duty slurry applications.
Features
- Choice of piston ring style labyrinth or other new style of water proof
- Fully interchangeable with the common brand reducing inventory hold requirements
- A full range of mechanical seal adaptations available upon request
- Oil lubrication or packed grease
- Painted to customer specifications upon request
A complete range of build specifications
- Rubber lined with rubber impeller
- Rubber lined with metal impeller
- All metal lined using white iron chrome alloys
- Urethane lined with optional urethane impeller for special applications
Clear water performance
| Clear water performance of MS-HS | |||||||||||
| Type | Max. power | Capacity | Head | Speed | Max. Eff | NPSH | IMPELLER | Max. particle size | Weight (KG) | ||
| Quantity of vanes | Diameter (mm) | ||||||||||
| kw | (m³/h) | (l/s) | (m) | (r/min) | % | (m) | mm | ||||
| AH1.5/1-HS | 15 | 12-28 | 3.5-8 | 6-65 | 1200-3800 | 40 | 2-4 | 5 | 150 | 14 | 90 |
| AH2/1.5-HS | 15 | 32-72 | 9-20 | 6-58 | 1200-3200 | 45 | 3.5-8 | 5 | 185 | 19 | 105 |
| AH3/2-HS | 30 | 39-86 | 11-24 | 12-64 | 1300-2700 | 55 | 4-6 | 5 | 215 | 25 | 190 |
| AH4/3-HS | 30 | 86-198 | 24-55 | 9-52 | 1000-2200 | 71 | 4-6 | 5 | 245 | 28 | 260 |
| AH4/3-HS(D) | 60 | 86-198 | 24-55 | 9-52 | 1000-2200 | 71 | 4-6 | 5 | 245 | 28 | 360 |
| AH6/4-HS | 60 | 162-360 | 45-100 | 12-56 | 800-1500 | 68 | 5-8 | 5 | 365 | 44 | 625 |
| G6/4-HS(D) | 60 | 36-244 | 10-68 | 7-51 | 600-1400 | 50 | 2.5-3.5 | 3 | 378 | 82 | |
| AH6/4-HS(E) | 120 | 162-360 | 45-100 | 12-56 | 800-1500 | 68 | 5-8 | 5 | 365 | 44 | 728 |
| AH8/6-HS | 120 | 360-830 | 100-230 | 10-61 | 500-1140 | 72 | 2-9 | 5 | 510 | 63 | 1470 |
| G8/6-HS(E) | 120 | 133-576 | 37-160 | 10-48 | 800-1400 | 60 | 3-4.5 | 3 | 378 | 127 | |
| G10/8-HS(S) | 560 | 216-930 | 60-258 | 11-44 | 500-940 | 65 | 3-7.5 | 3 | 533 | 178 | |
| AH10/8-HS | 260 | 612-1368 | 170-380 | 11-61 | 400-850 | 71 | 4-10 | 5 | 685 | 76 | 3800 |
| AH12/10-HS | 560 | 936-1980 | 260-550 | 7-68 | 400-750 | 82 | 6 | 5 | 760 | 86 | 4320 |
| AH14/12-HS | 560 | 1260-2772 | 350-770 | 13-63 | 300-600 | 77 | 3-10 | 5 | 965 | 90 | 6400 |
