Dewatering Industrial mud jack pump

Quantity:

Product Description

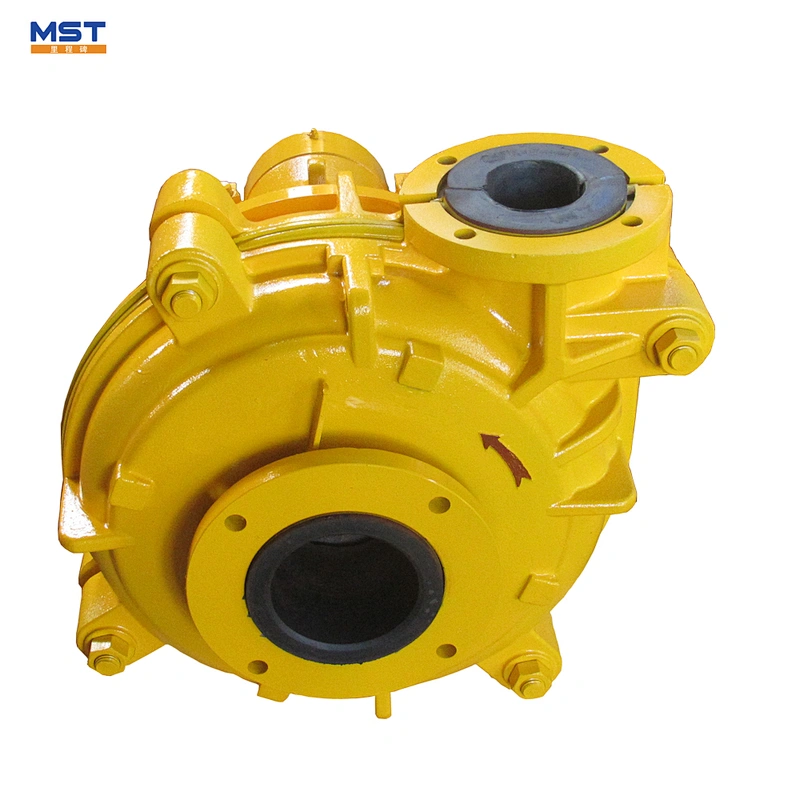

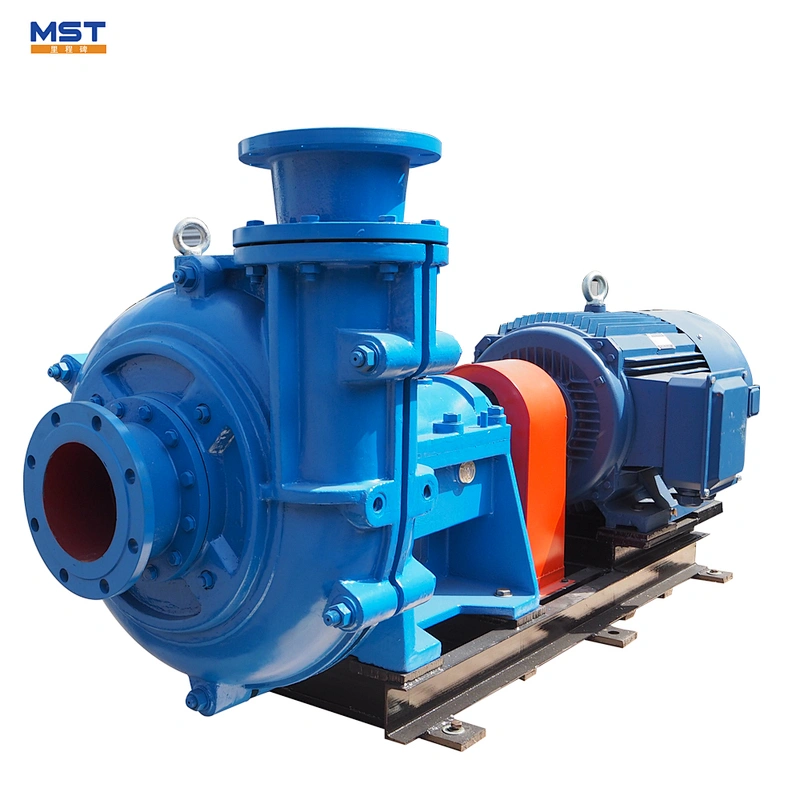

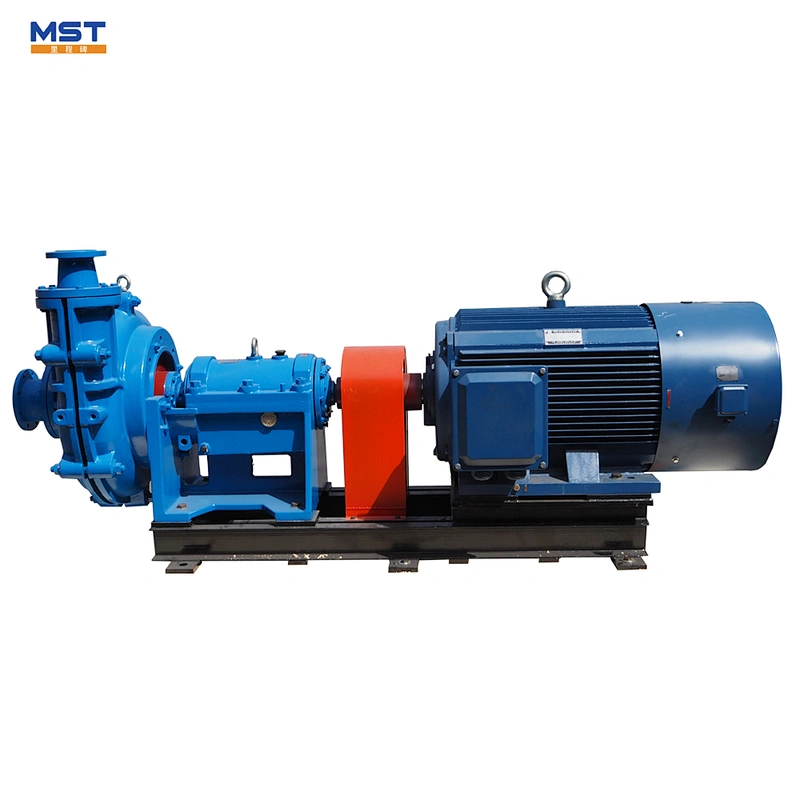

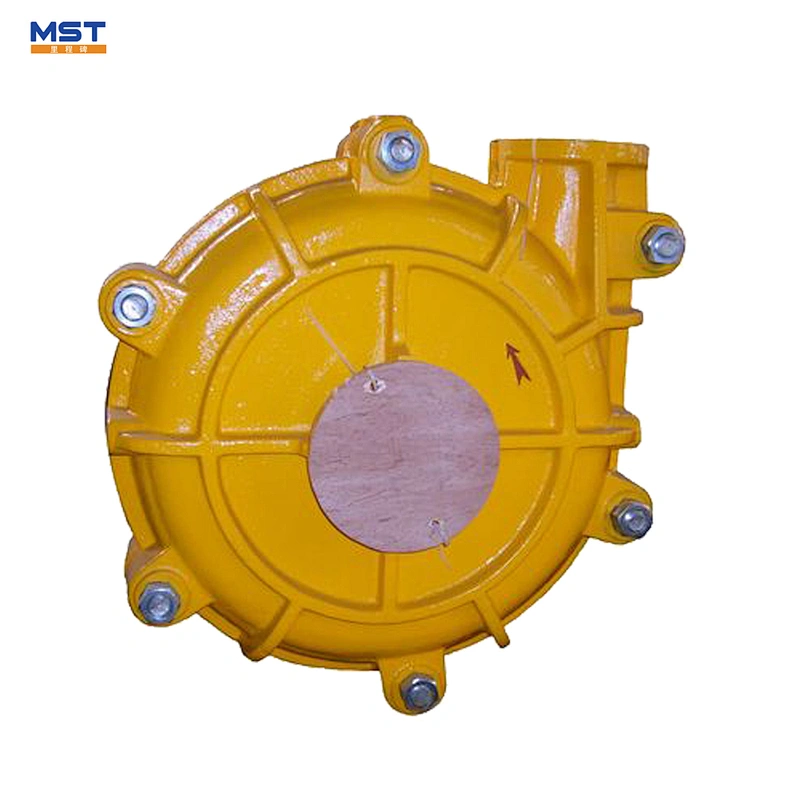

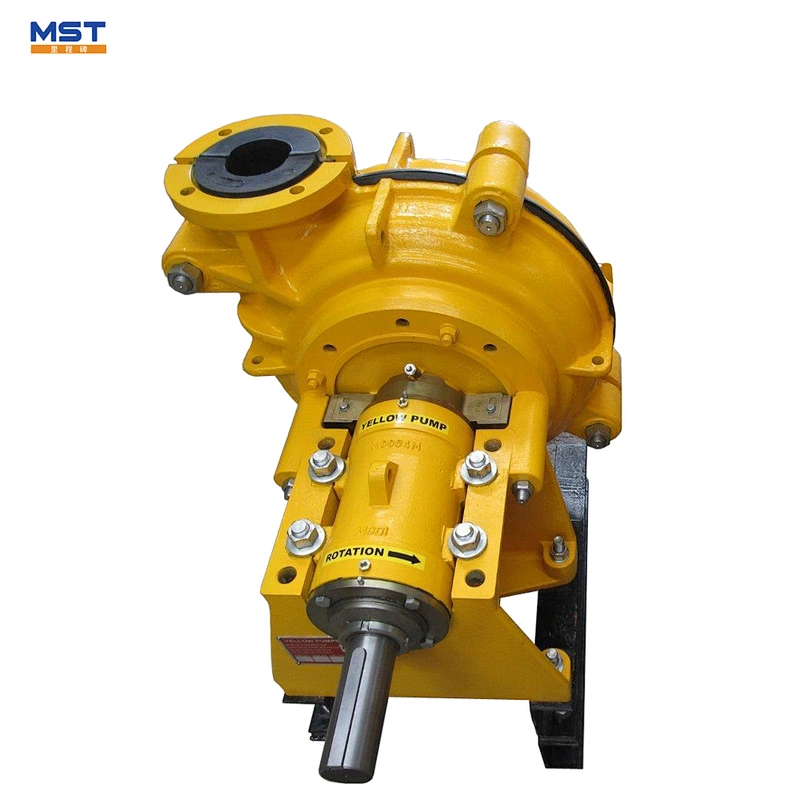

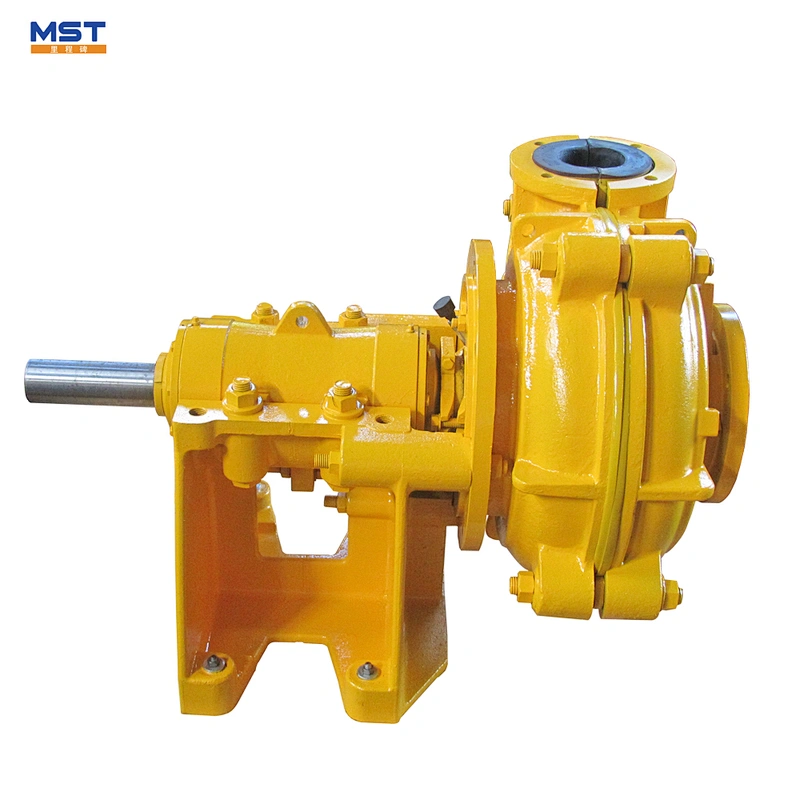

Dewatering Industrial mud jack pump

The MS-HS series slurry pump are robust state of the art slurry pumps that feature oil

or grease lubrication bearing assemblies and complete interchangeable with other major

brands. The HS can be supplied in either a packed gland version using expeller technology,

or mechanical seal system specifically designed for heavy duty slurry applications.

Features

Choice of piston ring style labyrinth or other new style of water proof
Fully interchangeable with the common brand reducing inventory hold requirements
A full range of mechanical seal adaptations available upon request
Oil lubrication or packed grease
Painted to customer specifications upon request

A complete range of build specifications

Clear water performance

Clear water performance of MS-HS
Type	Max. power	Capacity		Head	Speed	Max. Eff	NPSH	IMPELLER		Max. particle size	Weight (KG)
	Max. power	Capacity		Head	Speed	Max. Eff	NPSH	Quantity of vanes	Diameter (mm)	Max. particle size
	kw	(m³/h)	(l/s)	(m)	(r/min)	%	(m)	Quantity of vanes	Diameter (mm)	mm
AH1.5/1-HS	15	12-28	3.5-8	6-65	1200-3800	40	2-4	5	150	14	90
AH2/1.5-HS	15	32-72	9-20	6-58	1200-3200	45	3.5-8	5	185	19	105
AH3/2-HS	30	39-86	11-24	12-64	1300-2700	55	4-6	5	215	25	190
AH4/3-HS	30	86-198	24-55	9-52	1000-2200	71	4-6	5	245	28	260
AH4/3-HS(D)	60	86-198	24-55	9-52	1000-2200	71	4-6	5	245	28	360
AH6/4-HS	60	162-360	45-100	12-56	800-1500	68	5-8	5	365	44	625
G6/4-HS(D)	60	36-244	10-68	7-51	600-1400	50	2.5-3.5	3	378	82
AH6/4-HS(E)	120	162-360	45-100	12-56	800-1500	68	5-8	5	365	44	728
AH8/6-HS	120	360-830	100-230	10-61	500-1140	72	2-9	5	510	63	1470
G8/6-HS(E)	120	133-576	37-160	10-48	800-1400	60	3-4.5	3	378	127
G10/8-HS(S)	560	216-930	60-258	11-44	500-940	65	3-7.5	3	533	178
AH10/8-HS	260	612-1368	170-380	11-61	400-850	71	4-10	5	685	76	3800
AH12/10-HS	560	936-1980	260-550	7-68	400-750	82	6	5	760	86	4320
AH14/12-HS	560	1260-2772	350-770	13-63	300-600	77	3-10	5	965	90	6400
