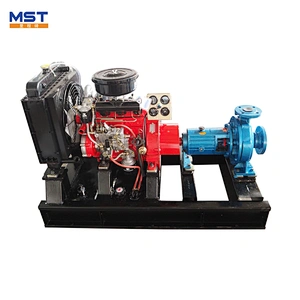

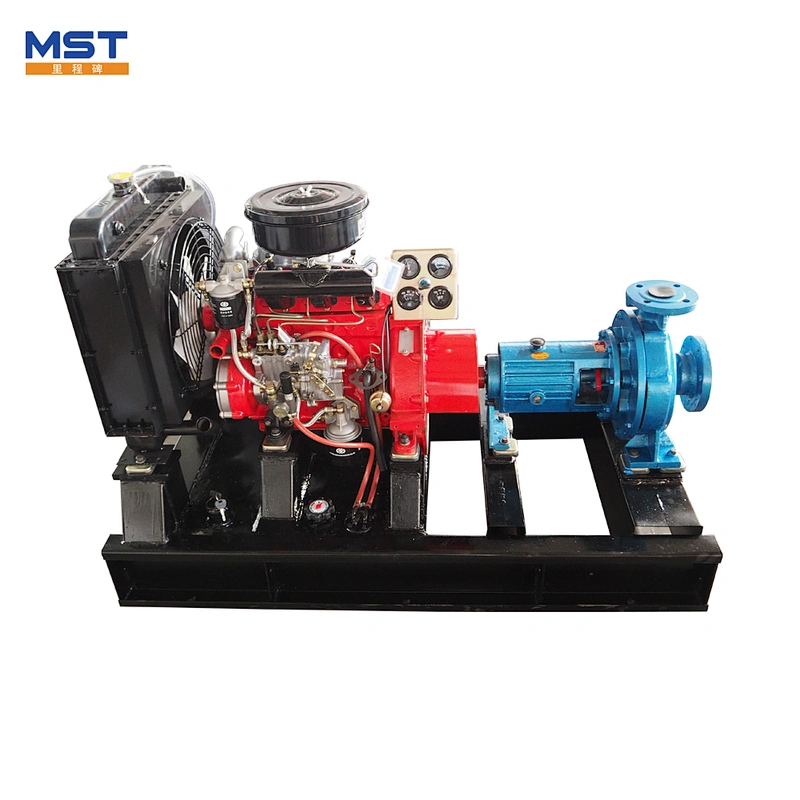

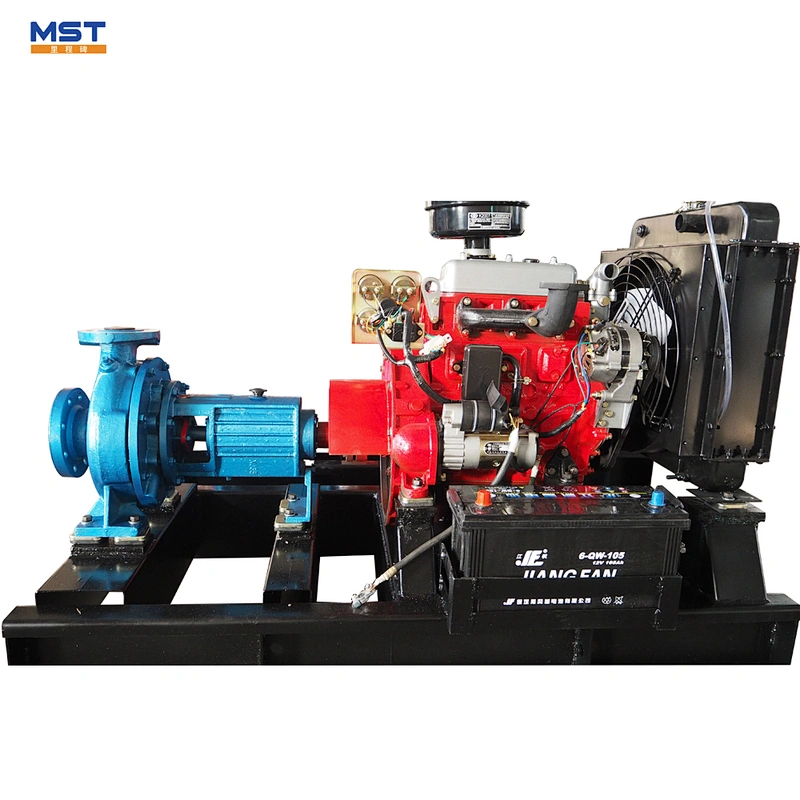

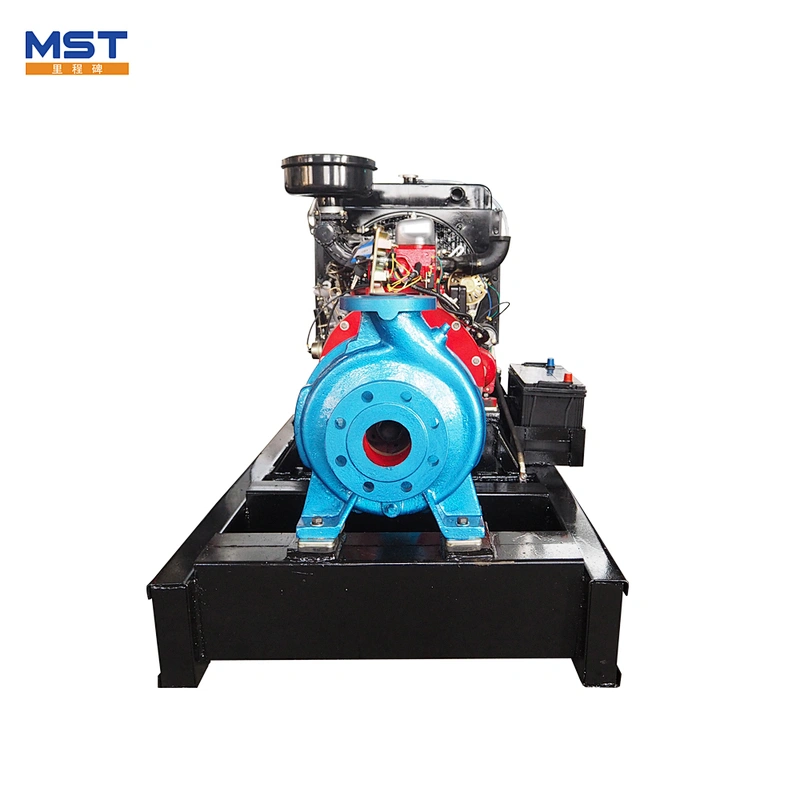

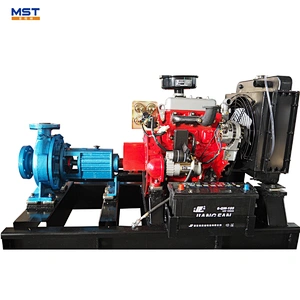

5hp diesel engine water pump
Our different series of Irrigation water pump driven by diesel engine:
New products diesel driven fire pump handle clean water and the liquid of which physical and chemical properties are similar to clean water. It is used for industrial and city clean water supply and drainage, irrigation, fire protection, long distance water supply, metallurgy, chemical, textile, china processing, pigment, paper making, etc.(IS:temperature not exceeding 80 degree celcius ,ISR: temperature lessnot exceeding than 150degree celcius)
Techanical data
1. Caliber: DN50-DN200mm
2. Capacity: 3.5-460m3/hr
3. Head: 4-132m
4. Rotate speed: 2900 r/min; 1450 r/min
5. Work temperature: ≤150°C
6. Viscosity: ≤150mm2/s
7. Pressure: ≤1.6Mpa
8. Motor power: 0.55-110Kw
Construction drawing
S type New products diesel driven fire pump is a single-stage double-suction horizontal split centrifugal pump. S series split casing pumps designed for high volume water transfer in a wide range of applications.
Technical Data
| Pump outlet: | 80-800mm |
| Capacity: | 65-11600m3/h |
| Head: | 7-200m |
| Max working pressure: | 25 bar |
| Temperature: | Max105℃ |
| Max solids content: | 80mg/L |
Conatruction drawing
D/DG series New products diesel driven fire pump is multistage section centrifugal pump. This series pumps have the feature of high head and great energy. It can deliver heat water, oil, corrosive or wearable medium by changing the material, seal or adding cooling systems.
Technical data
Discharge Nozzle Range | DN65 up to 200mm |
| Capacity: | 3.75~840 cmh |
| Head: | 19~680m |
| Frequency: | 50hz/60hz |
| Operating temperature: | 10 ℃~120℃ |
| Pressure: | ≤0.6MPa |
Construction drawing
Diesel engines
| Engine model | famous brand |
| rated power(KW) | 10-1200 |
| rated speed(r/min) | 1500/3000 |
| cylinder number | 2/4/6/8/12 |
| starting method | electric |
| cooling method | water cooled |
| speed mode | mechanical(electric optional) |
| control panel | display: water&oil temperature,oil pressure,speed |
Packaging & Shipping
Our factory
Milestone Engineering & Manufacturing Co., Ltd is Professional in water pumps,slurry pumps and many other kinds pumps. We have formed a complete system of pump design,develop,manufactur and maintenance. The pumps are widely used in papermaking, pro-environment, construction, mining, metallurgy and other industries. We also manufacturer Pumps Spare Parts include:Pump casing,impeller,expeller,volute liner,back plate,throat bush etc.
