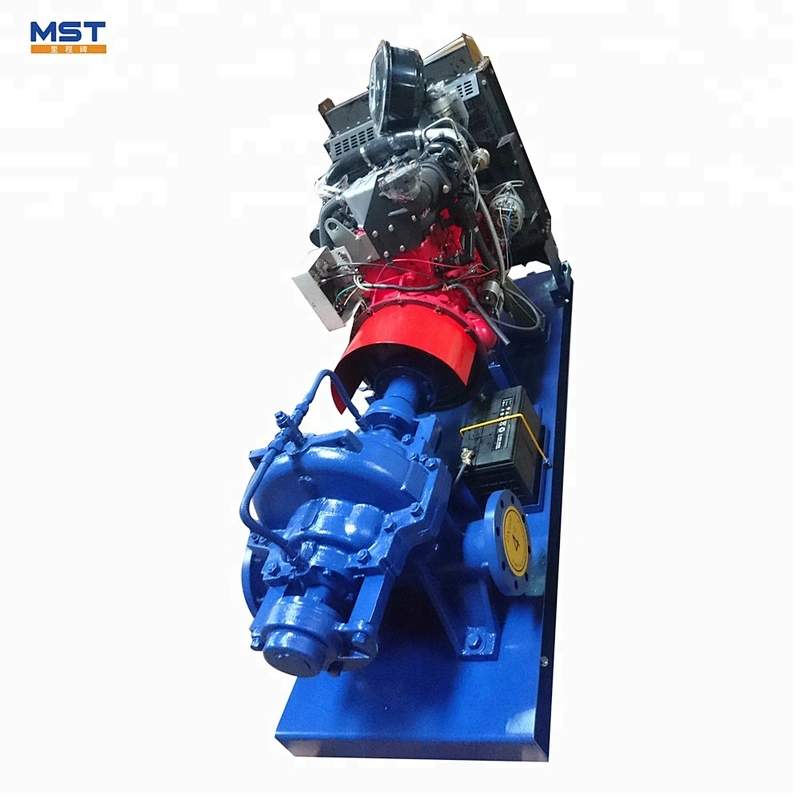

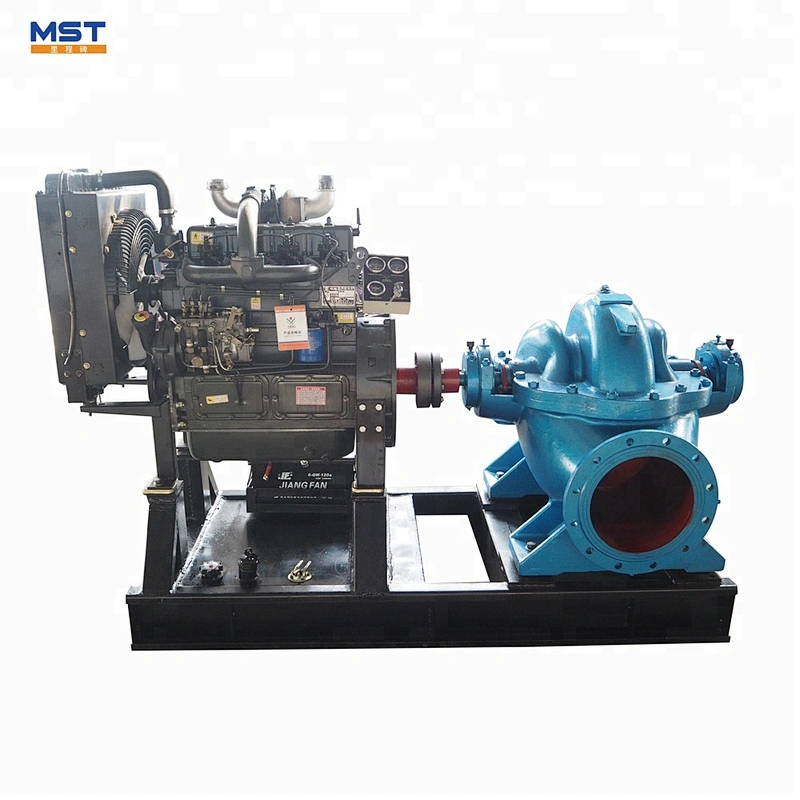

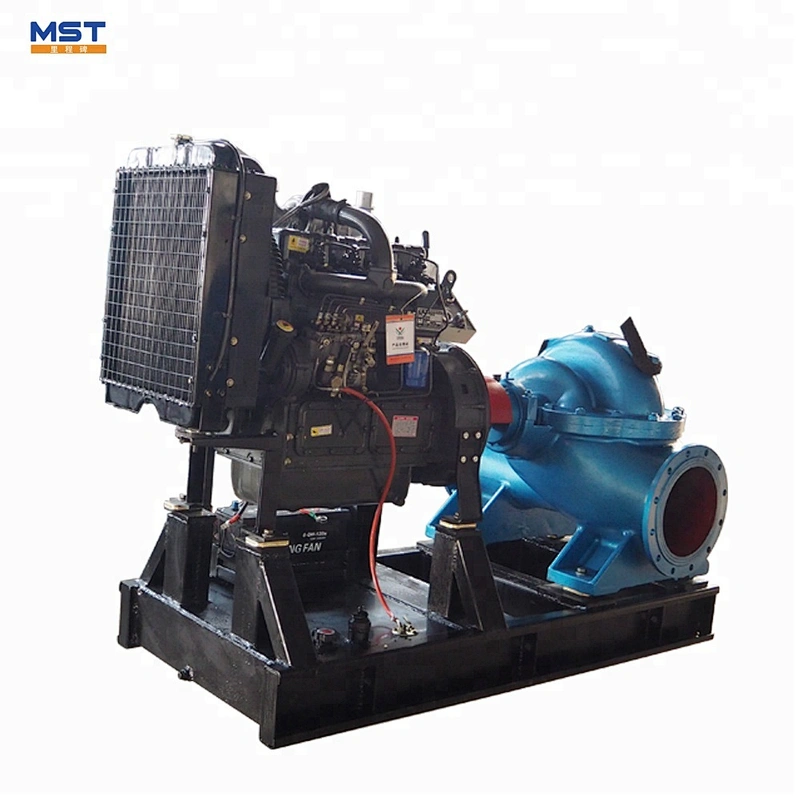

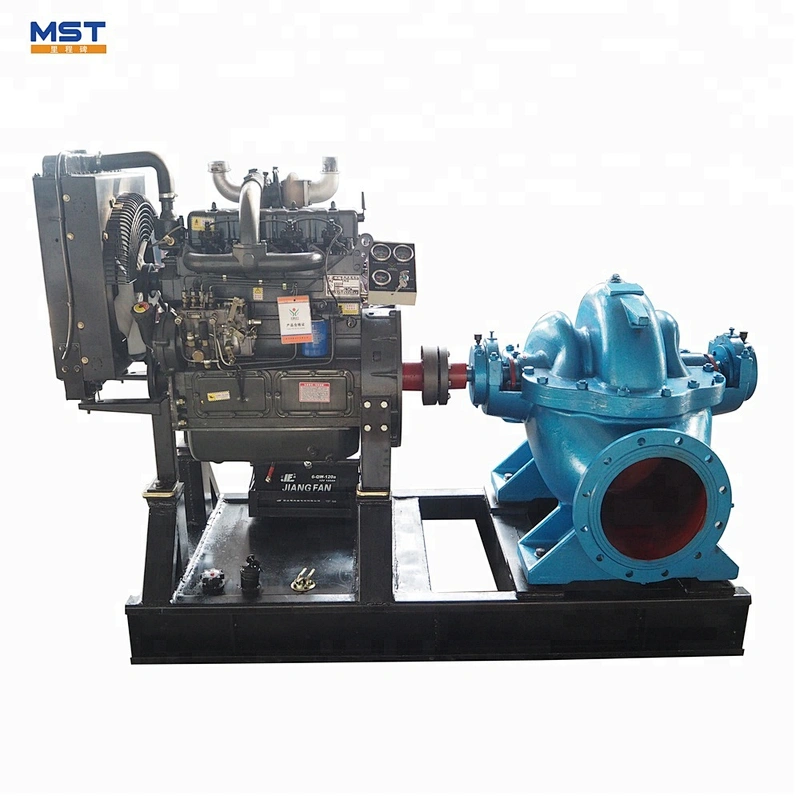

Centrifugal water pump 20hp with diesel engine
Pump specifications
Centrifugal water pump 20hp with diesel engine
| Model: | MIS |
| Inlet/outlet: | 50~200mm(2inch~8inch) |
| Pump connection: | Coupling |
| Flow: | 6.3~400m³/h |
| Head: | 5~125m |
| Rated speed: | 2900rpm and 1450rpm |
| Pump type: | Horizontal centrifugal pump |
| Shaft seal: | Gland packing and mechanical seal |
| Impeller type: | Closed |
| Pump color: | As customer required |
| Material: | Cast iron or as customer required |
Pump Features
Centrifugal water pump 20hp with diesel engine
1.Choice of piston ring style labyrinth
2.Fully interchangeeable with the common brand reducing inventory hold requirements
3.A full range of mechanical seal adaptations available upon request
4.Oil lubrications or packed grease
5.Painted to customer specifications upon request
Performance curves
Diesel engine
Closed type impeller centrifugal 3 inch diesel water pump
Dimension drawing
Pump onsite
Our company
Milestone on Exhibitions
