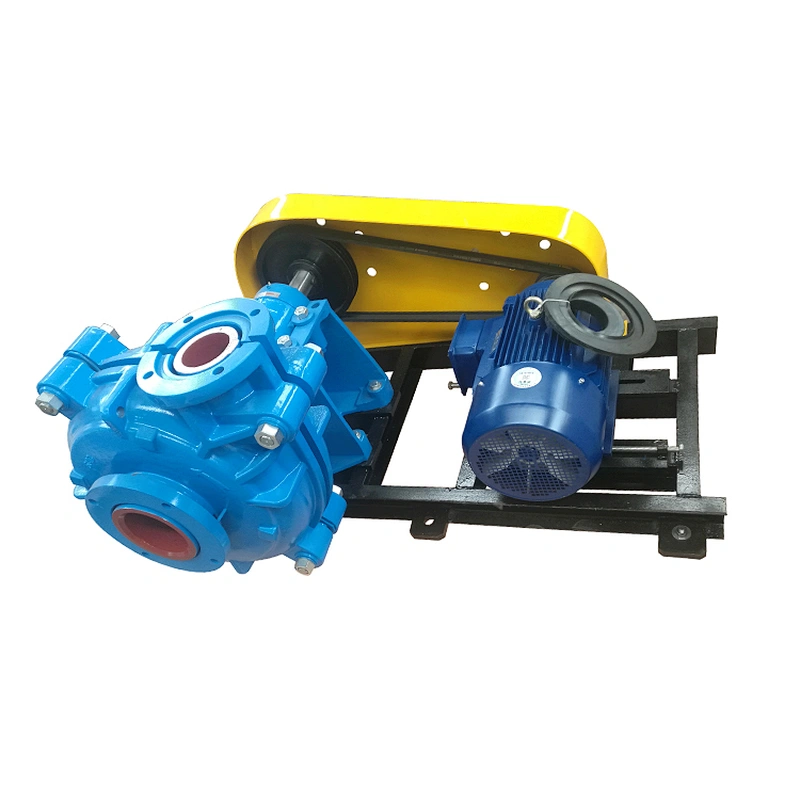

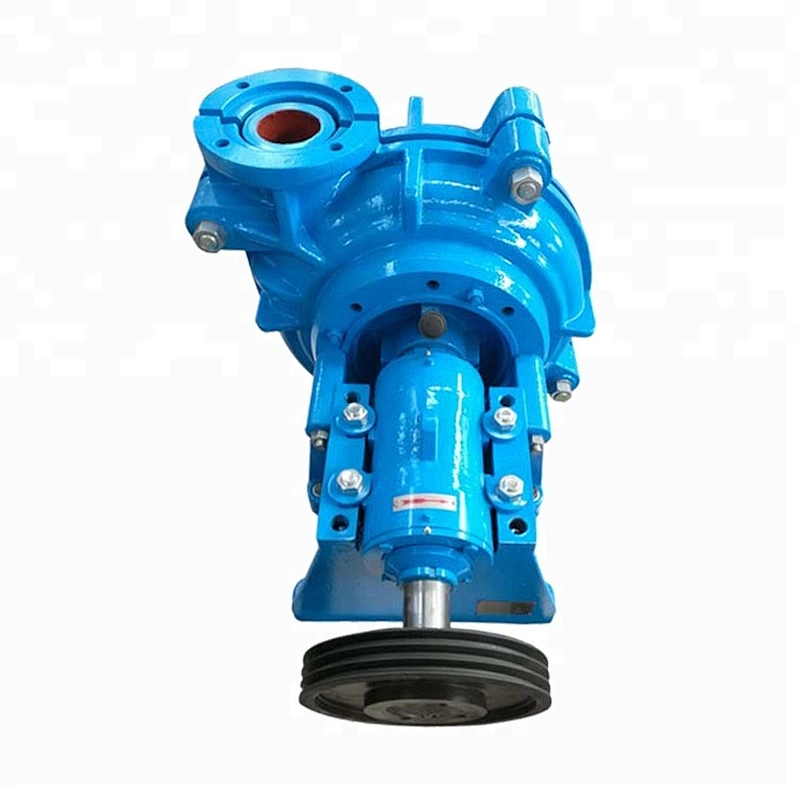

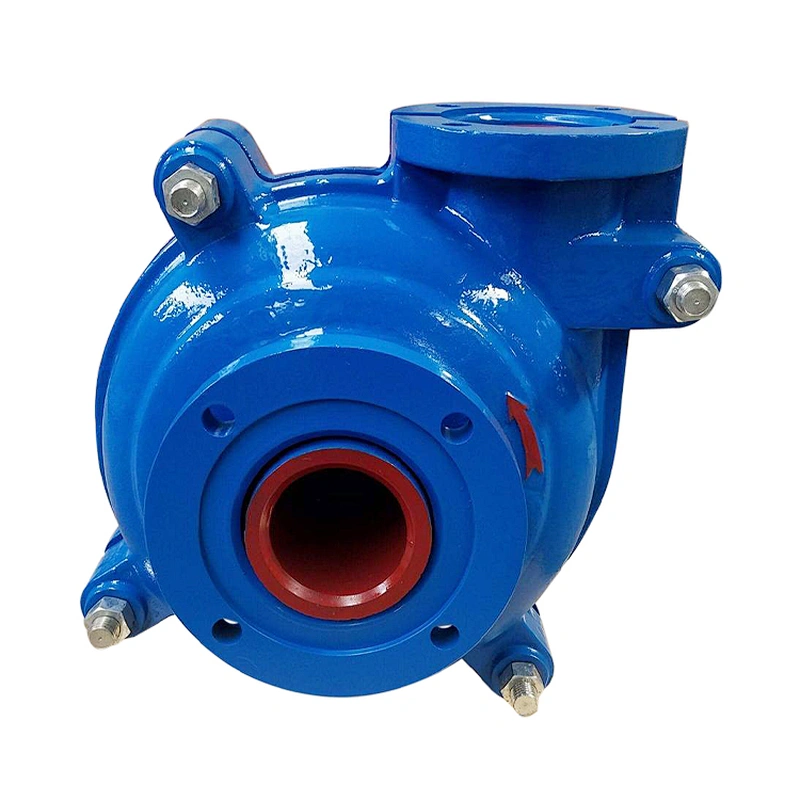

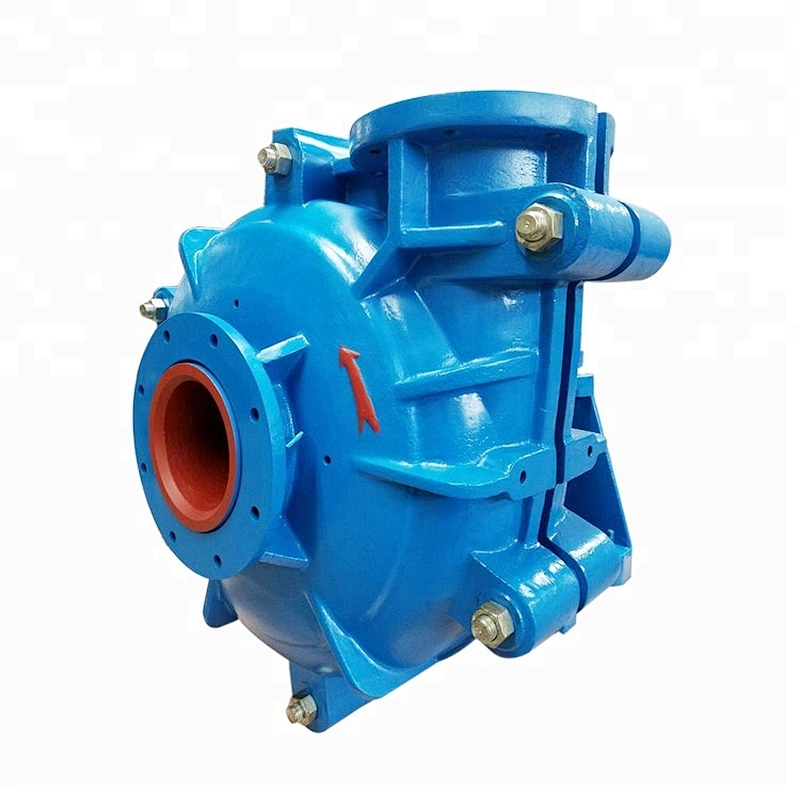

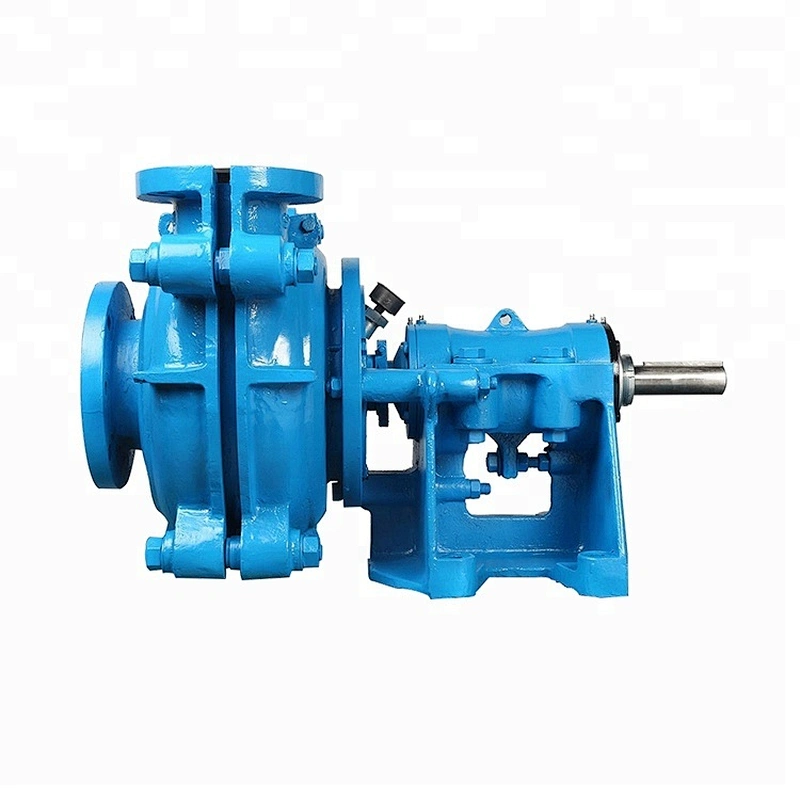

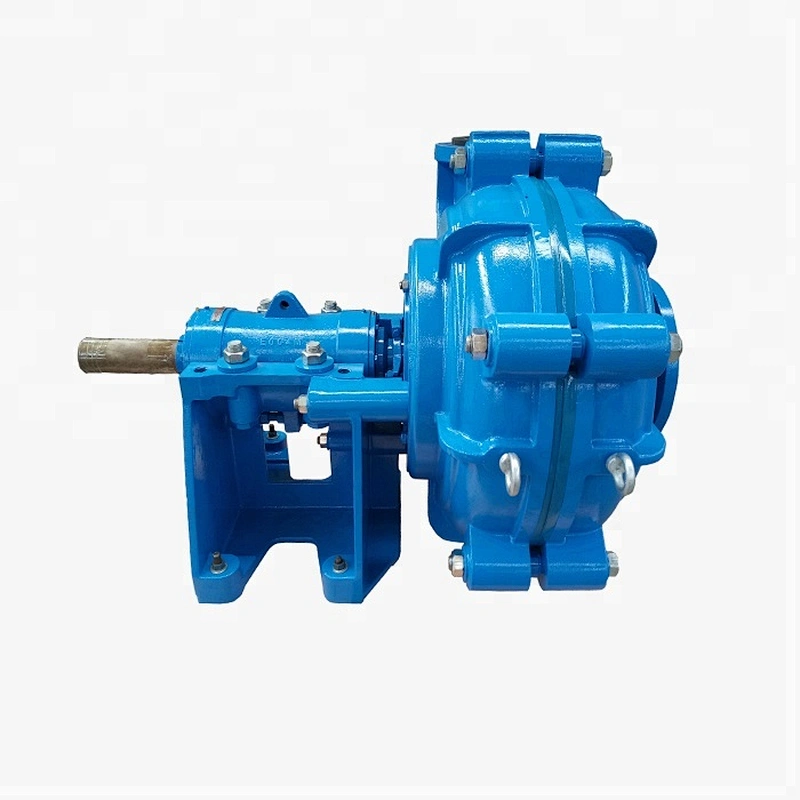

Horizontal centrifugal sludge pump
Product overview
The MAH series Easy maintance portable horizontal sludge pump are robust state of the art slurry pumps that feature oil or grease lubrication bearing assemblies and complete interchangeable with other major brands. The MAH series Easy maintance portable horizontal sludge pump can be supplied in either a packed gland version using expeller technology, or mechanical seal system specifically designed for heavy duty slurry applications.
Basic performance
| Type | Max. power | Capacity | Head | Speed | Max.Eff | NPSH | Impeller Dia. | Max.particle size |
| (kw) | (m³/h) | (m) | (r/min) | (%) | (m) | (mm) | (mm) | |
| MAH1.5-1 | 15 | 12-28 | 6-65 | 1200-3800 | 40 | 2-4 | 150 | 14 |
| MAH2-1.5 | 15 | 32-72 | 6-58 | 1200-3200 | 45 | 3.5-8 | 185 | 19 |
| MAH3-2 | 30 | 39-86 | 12-64 | 1300-2700 | 55 | 4-6 | 215 | 25 |
| MAH4-3 | 60 | 86-198 | 9-52 | 1000-2200 | 71 | 4-5 | 245 | 28 |
| MAH6-4 | 120 | 162-360 | 12-56 | 800-1500 | 68 | 5-8 | 365 | 44 |
| MAH8-6 | 120 | 360-830 | 10-61 | 500-1140 | 72 | 2-9 | 510 | 63 |
| MAH10-8 | 260 | 612-1368 | 11-61 | 400-850 | 71 | 4-10 | 685 | 76 |
| MAH12-10 | 560 | 936-1980 | 7-68 | 400-750 | 82 | 1-5 | 760 | 86 |
| MAH14-12 | 560 | 1260-2772 | 13-63 | 300-600 | 77 | 3-10 | 965 | 90 |
Pump Advantage
1, Standard parts are fully interchangeable with the most common slurry pump design in the mining industry.
2, Excellent hydraulic performance, high efficiency and low abrasive rate.
3,Wear liners and impellers are easily replaced when required by simply removing the front cover plate bolts and sliding off the front cover.
4, Optional external clean water lubrication is available as an option to suit applications where product lubrication is not viable.
5, A range of mechanical seals are available to replace the packed gland shaft seal.
A complete range of build specifications
- Rubber lined with rubber impeller
- Rubber lined with metal impeller
- All metal lined using white iron chrome alloys
- Urethane lined with optional urethane impeller for special applications
Performance Curves
Pump & Spare Pumps For Reference
Applications
Who we are?
- 20 years experience of manufacture with 5 years oversea service.
- Advanced equipment with qualified engineers.
- Large foundry to control excellent quality.
