MSP Vertical Slurry Mining Water Industry Sump Pumps
The MSP/MSPR heavy duty cantilever sump pump is designed for applications requiring greater reliability and durability than conventional vertical process pumps can offer. The heavy duty cantilever design makes the MSP/MSPR sump pump ideally suited for heavy continuous handling of abrasive and corrosive liquids and slurries whilst submerged in sumps or pits.
MSP/MSPR sump pumps offer you
Reliability
-by design.
Low Spares costs
-from longer wear life.
Lower Energy costs
-from maintained efficiency.
After Sales Support
-second to none.
World class manufacturing
Underlying our product capability is our introduction of the latest CAD CAM techniques and the implementation of lean manufacturing principles, keeping us at the forefront of manufacturing technology, delivering direct customer benefits.
Material Components of Vertical Sump Pumps
Description | Standard Material | Material Options |
Shaft | 4140 Mild Steel | Available on request1 |
Bearing Housing | Cast Iron |
|
Column | Mild Steel |
|
Upper Strainer | Cast Iron | Rubber |
Lower Strainer | Cast Iron |
|
Back | White Iron |
|
Pump Casing | White Iron | Rubber Lined White Iron |
Impeller | White Iron | Rubber |
Discharge Pipe | Mild Steel | Rubber Lined Mild Steel Composite |
Adoption Plate | Mild Steel |
|
1.Options construction materials and coating are available to suit a wide range of applications and installations. Contract our slurry pumping specialists to discuss your applications and particular material requirements.
Performance Curves
Selection Chart
Metal MSP Vertical Slurry Pump
Type | Outlet Dia. (mm) | Bearing Frame | Max Power (KW) | Max Particle Size (mm) | Pumping Depth (mm) | No. of Vanes | Impeller Dia. (mm) |
MSP-40P | 40 | P | 15 | 12 | 900*1200 | 5 | 188 |
MSP-65Q | 65 | Q | 30 | 15 | 900*1200*1500 | 5 | 280 |
MSP-100R | 100 | R | 75 | 32 | 1200*1500*2100 | 5 | 370 |
MSP-150S | 150 | S | 110 | 45 | 1500*1800*2100 | 5 | 450 |
Rubber MSP Vertical Slurry Pump
Type | Outlet Dia. (mm) | Bearing Frame | Max Power (KW) | Max Particle Size (mm) | Pumping Depth (mm) | No. of Vanes | Impeller Dia. (mm) |
MSP-40PR | 40 | P | 15 | 12 | 900*1200 | 5 | 188-195 |
MSP-65QR | 65 | Q | 30 | 15 | 900*1200*1500 | 5 | 280-290 |
MSP-100RR | 100 | R | 75 | 40 | 1200*1500*2100 | 5 | 370 |
MSP-150SR | 150 | S | 110 | 45 | 1500*1800*2100 | 5 | 450 |

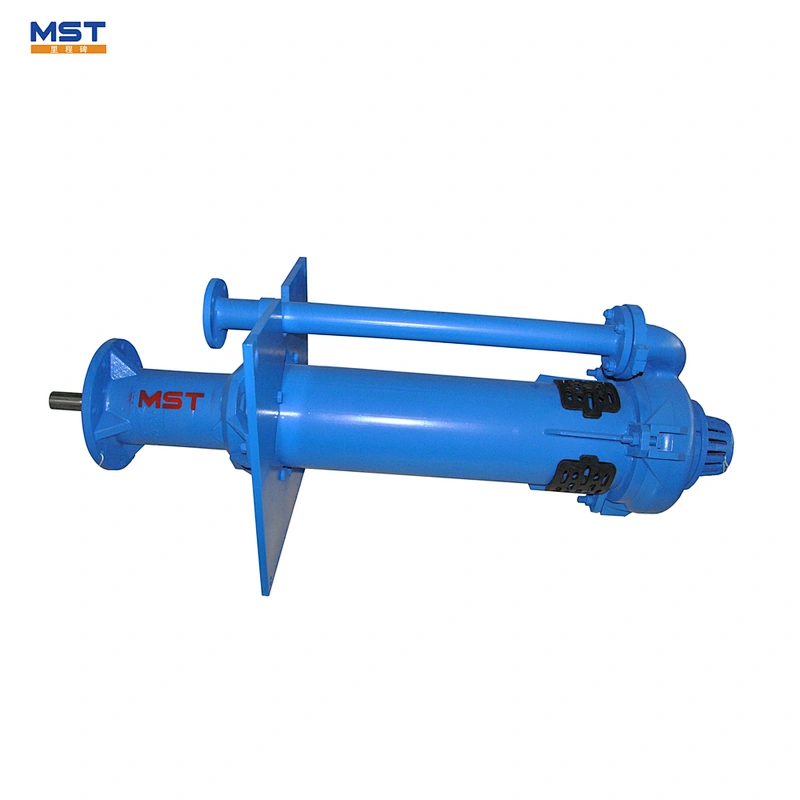

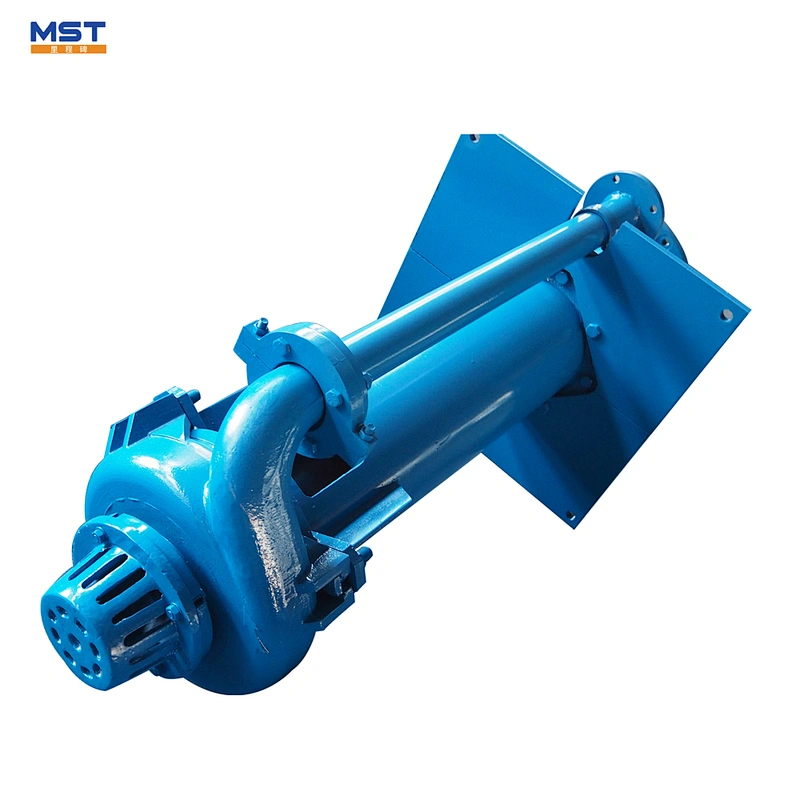

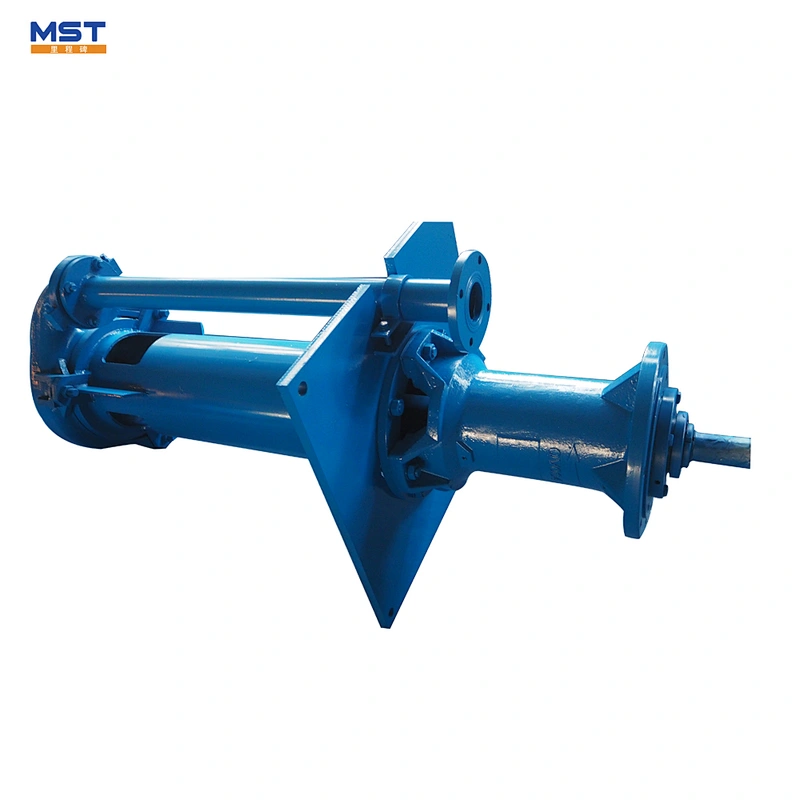

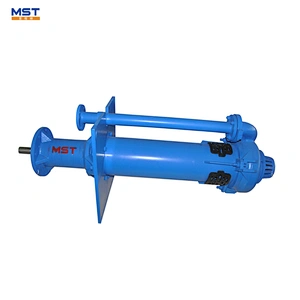

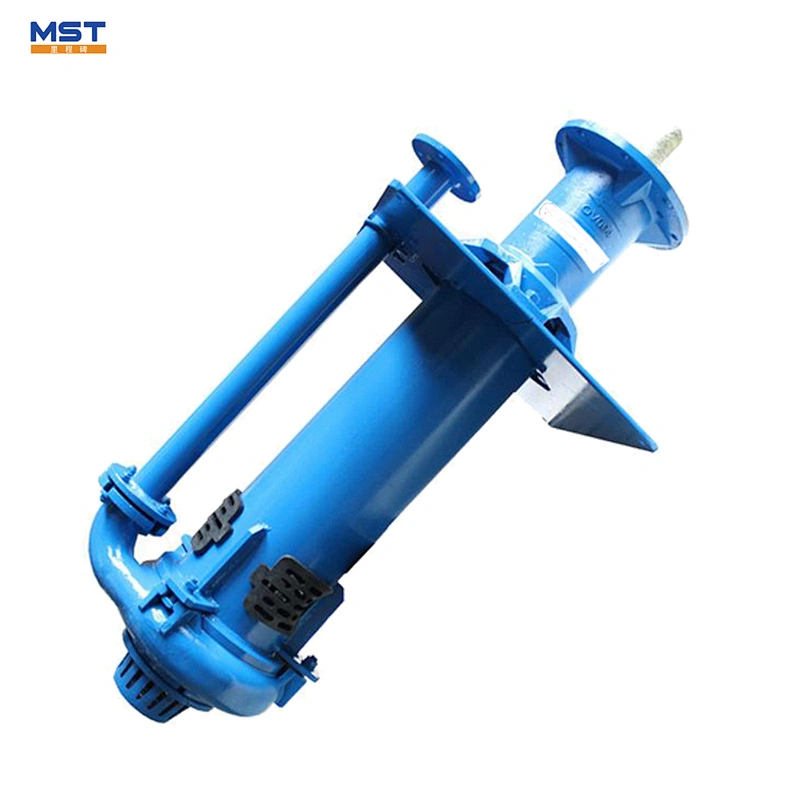

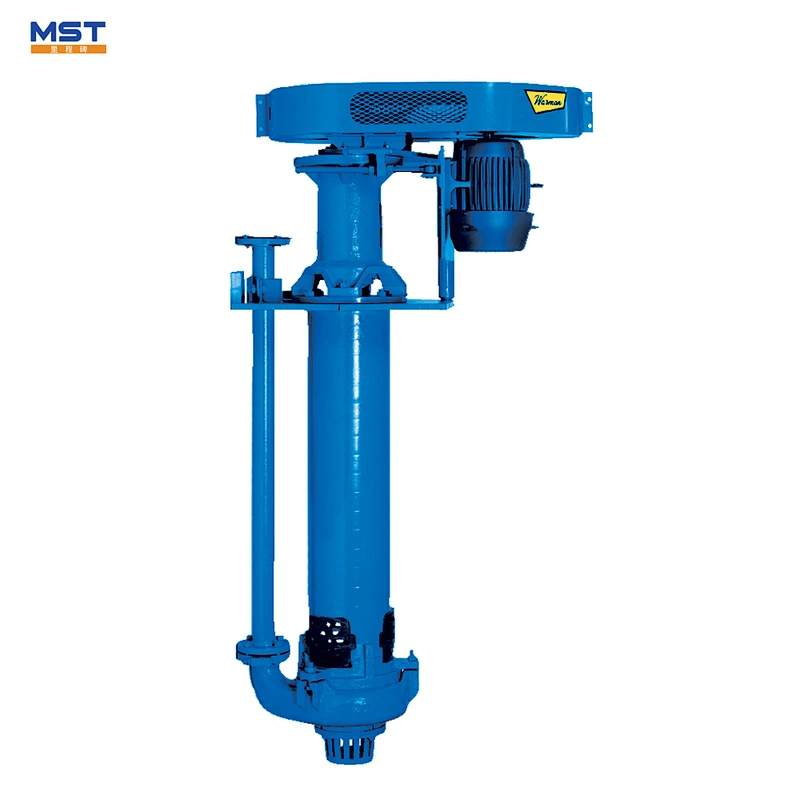

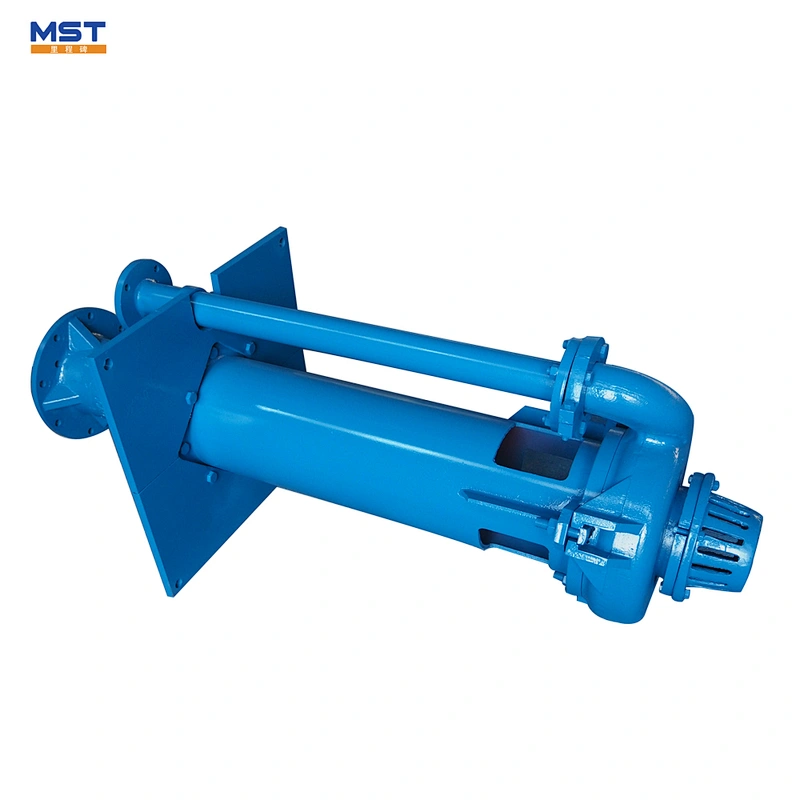

Vertical Sump Pump Images
