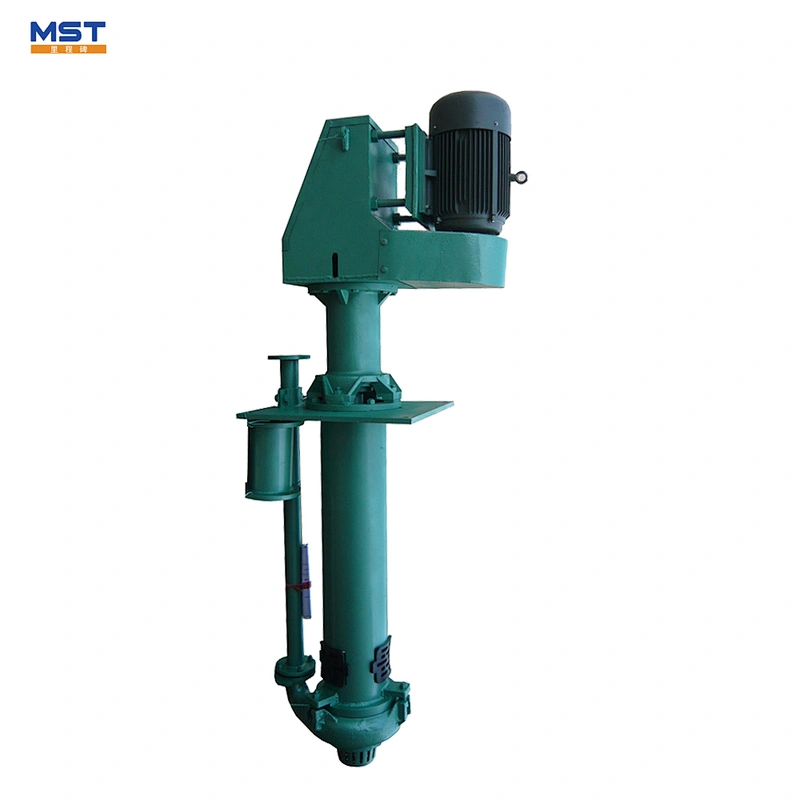

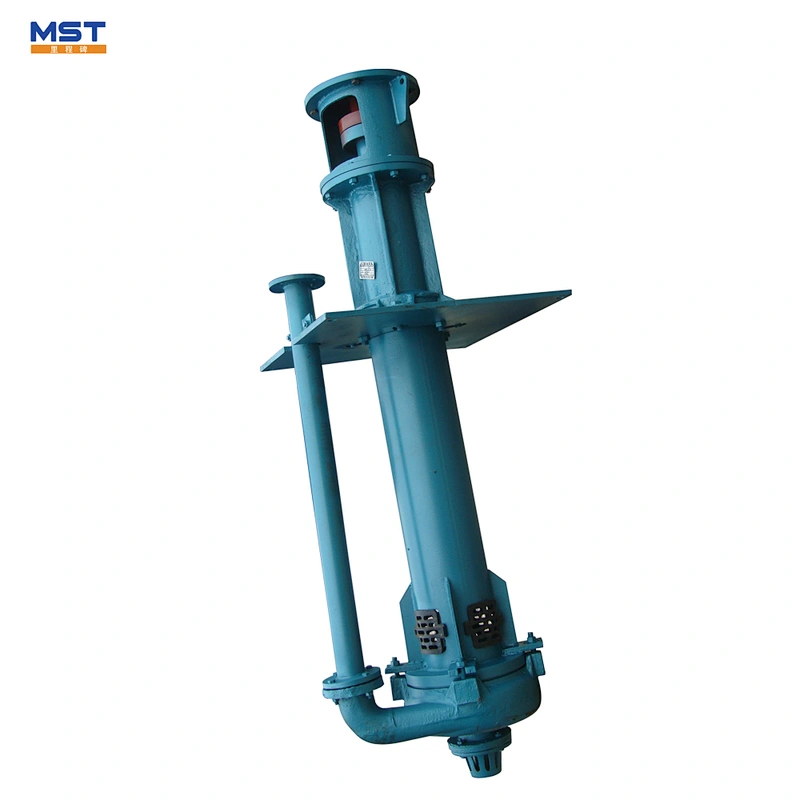

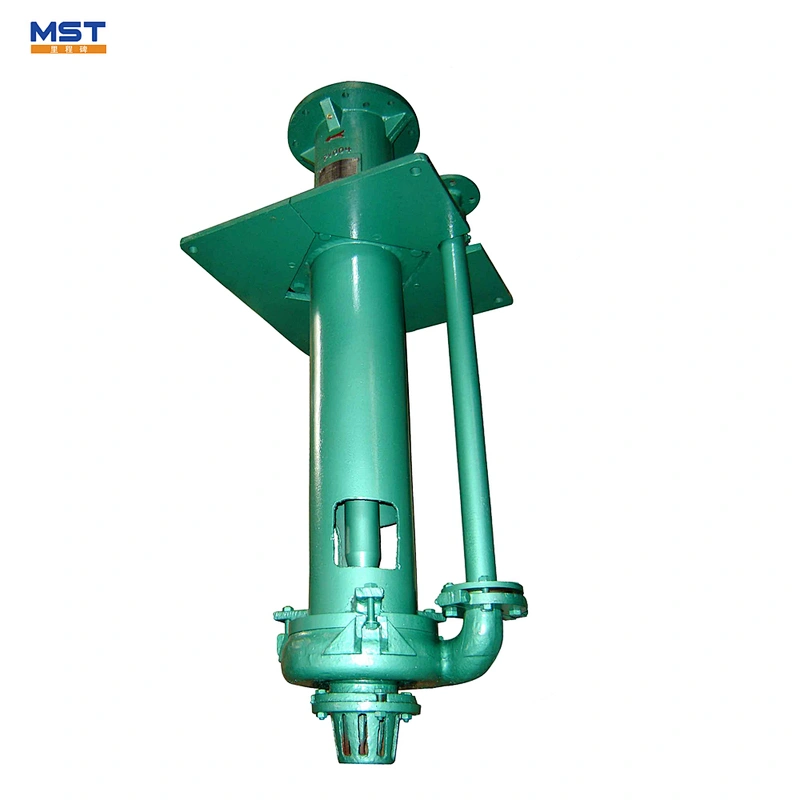

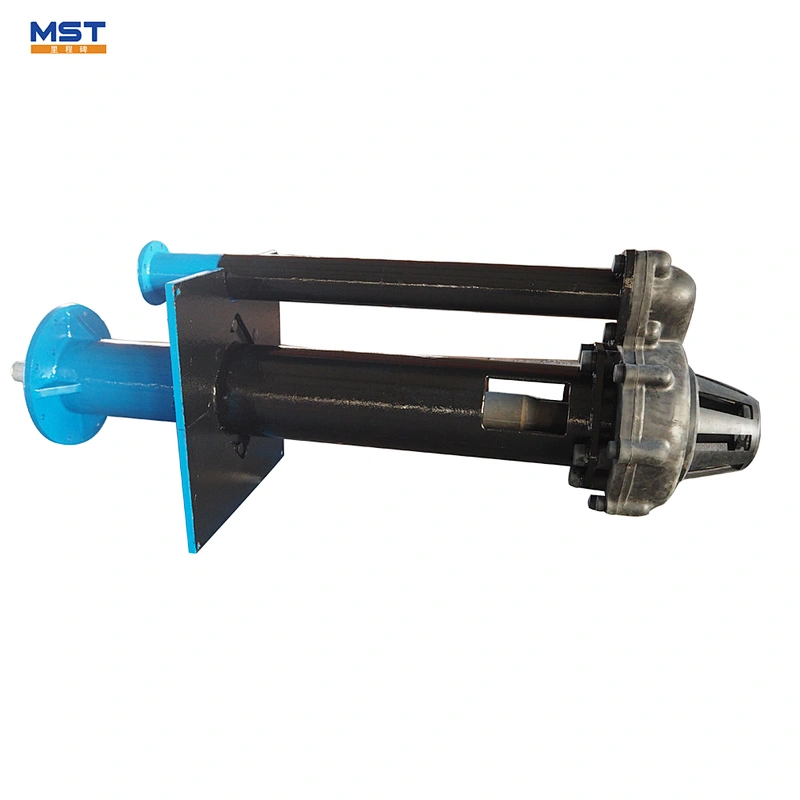

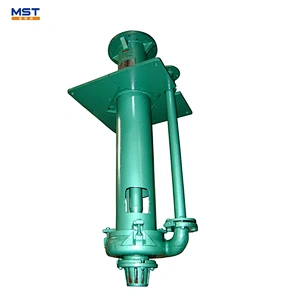

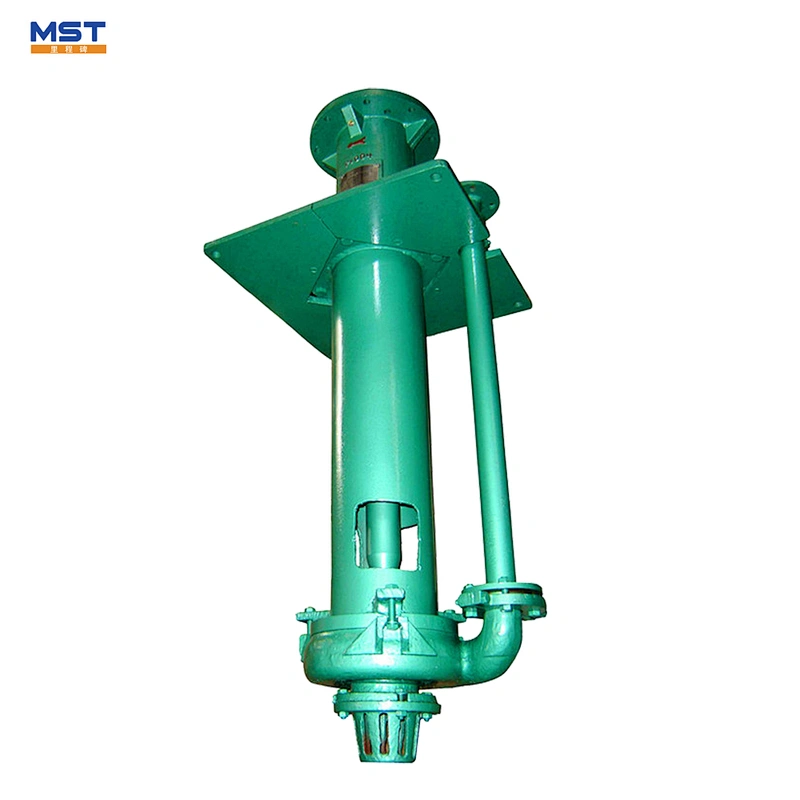

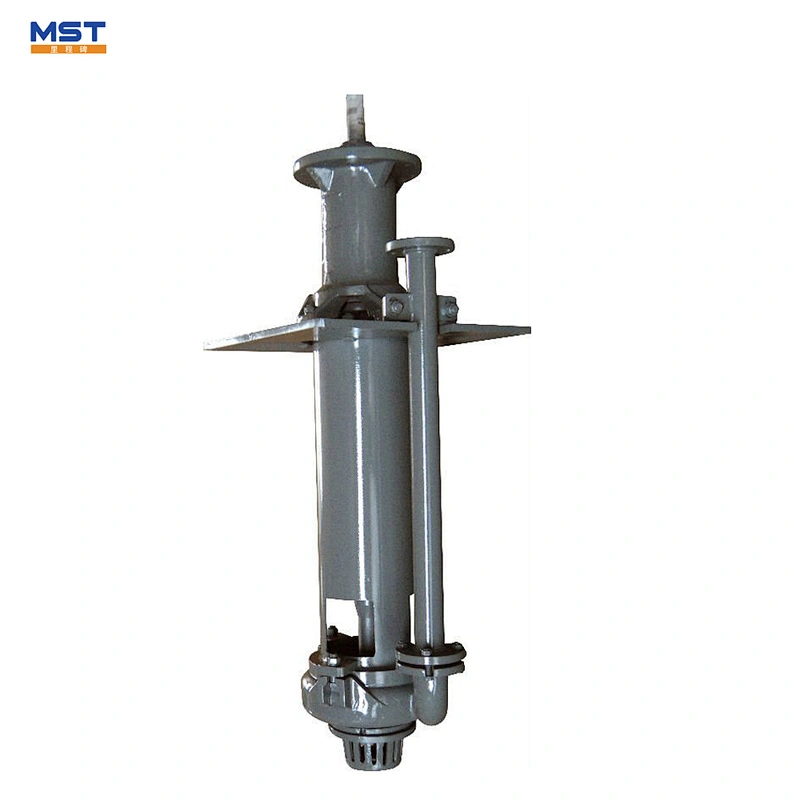

SP submersible vertical slurry pump
The MSP/MSPR heavy duty cantilever sump pump is designed for applications requiring greater reliability and durability than conventional vertical process pumps can offer. The heavy duty cantilever design makes the MSP/MSPR sump pump ideally suited for heavy continuous handling of abrasive and corrosive liquids and slurries whilst submerged in sumps or pits.
MSP/MSPR sump pumps offer you
Reliability
-by design.
Low Spares costs
-from longer wear life.
Lower Energy costs
-from maintained efficiency.
After Sales Support
-second to none.
Structure
Underlying our product capability is our introduction of the latest CAD CAM techniques and the implementation of lean manufacturing principles, keeping us at the forefront of manufacturing technology, delivering direct customer benefits.
Performance Curve
Spare Parts
Pump Image
SELECTION CHART
Metal MSP Vertical Slurry Pump
Type | Outlet Dia. (mm) | Bearing Frame | Max Power (KW) | Max Particle Size (mm) | Pumping Depth (mm) | No. of Vanes | Impeller Dia. (mm) |
MSP-40P | 40 | P | 15 | 12 | 900*1200 | 5 | 188 |
MSP-65Q | 65 | Q | 30 | 15 | 900*1200*1500 | 5 | 280 |
MSP-100R | 100 | R | 75 | 32 | 1200*1500*2100 | 5 | 370 |
MSP-150S | 150 | S | 110 | 45 | 1500*1800*2100 | 5 | 450 |
Rubber MSP Vertical Slurry Pump
Type | Outlet Dia. (mm) | Bearing Frame | Max Power (KW) | Max Particle Size (mm) | Pumping Depth (mm) | No. of Vanes | Impeller Dia. (mm) |
MSP-40PR | 40 | P | 15 | 12 | 900*1200 | 5 | 188-195 |
MSP-65QR | 65 | Q | 30 | 15 | 900*1200*1500 | 5 | 280-290 |
MSP-100RR | 100 | R | 75 | 40 | 1200*1500*2100 | 5 | 370 |
MSP-150SR | 150 | S | 110 | 45 | 1500*1800*2100 | 5 | 450 |
