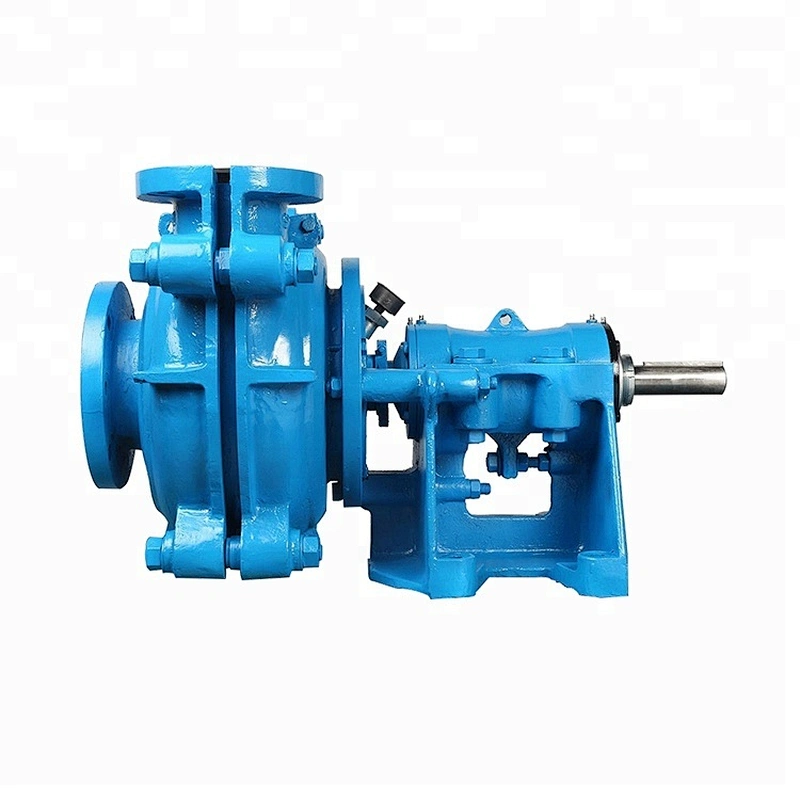

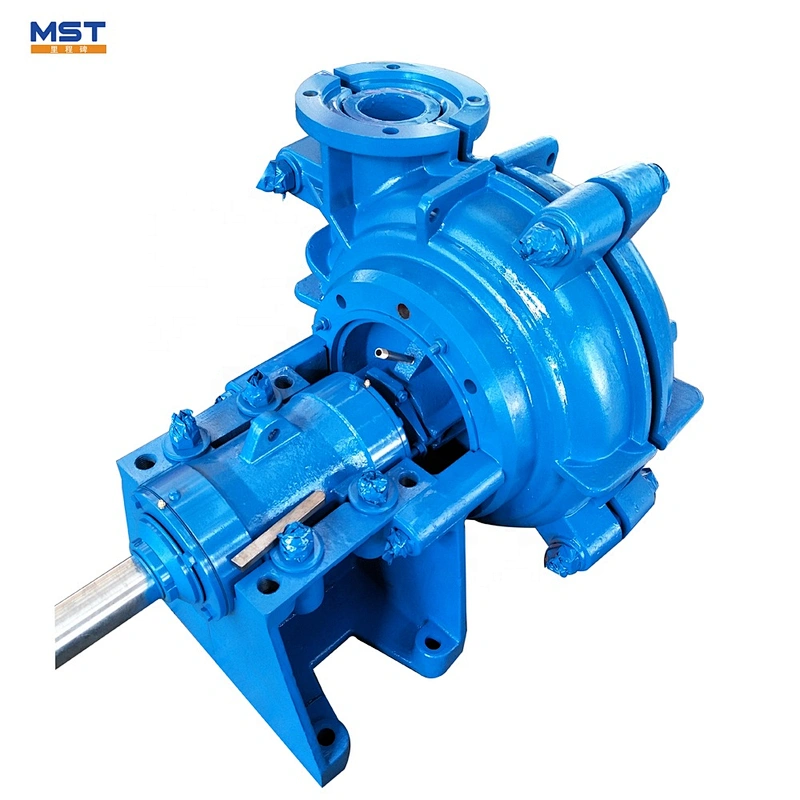

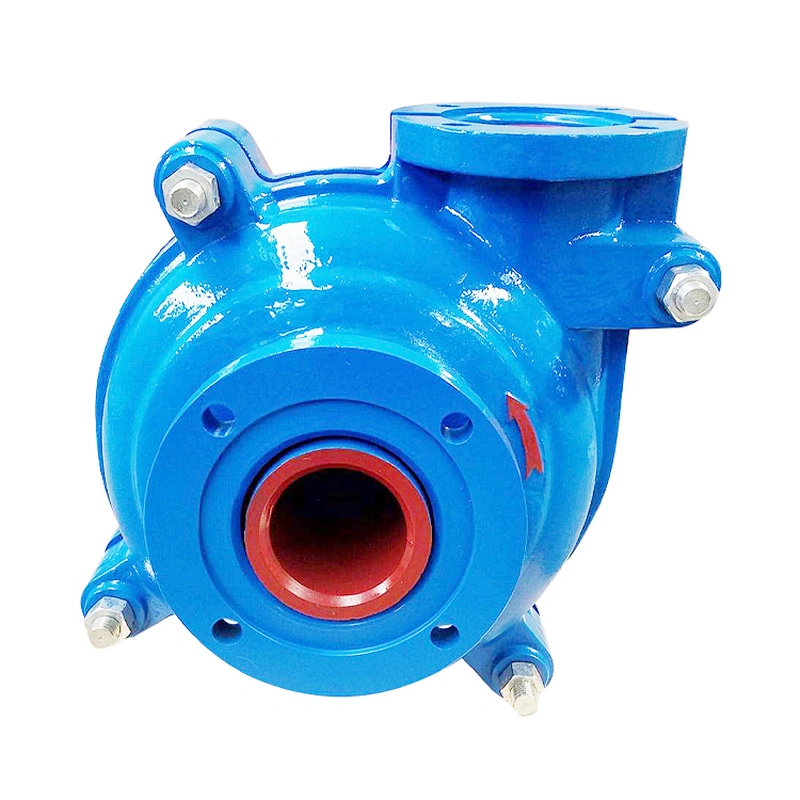

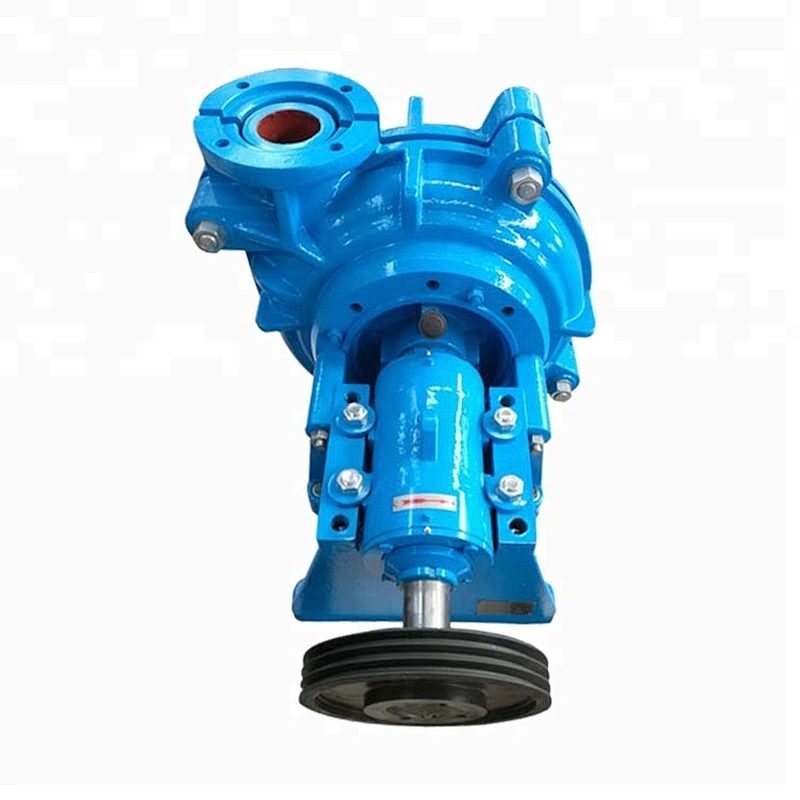

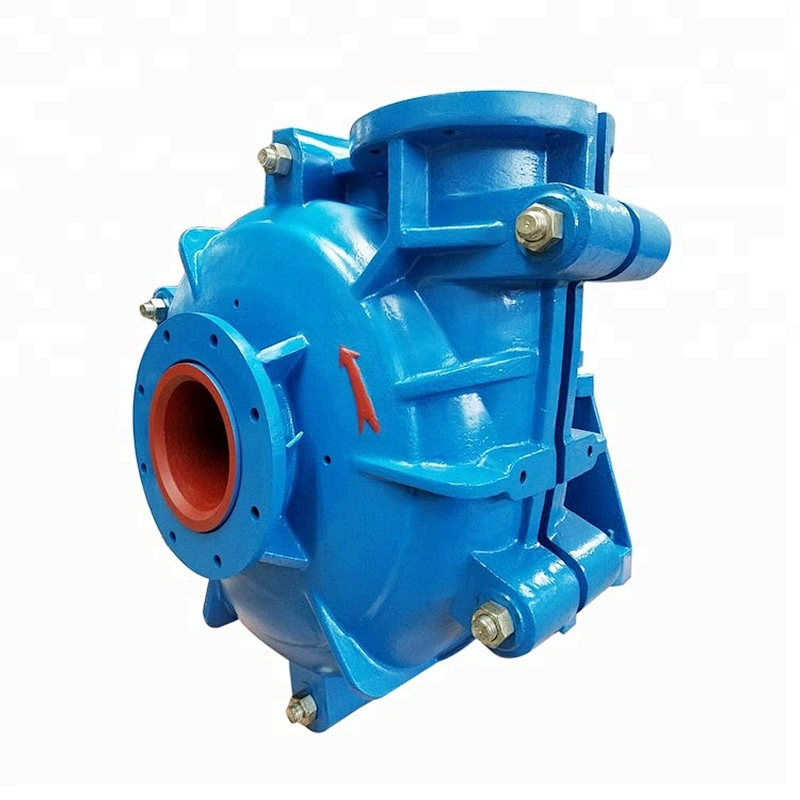

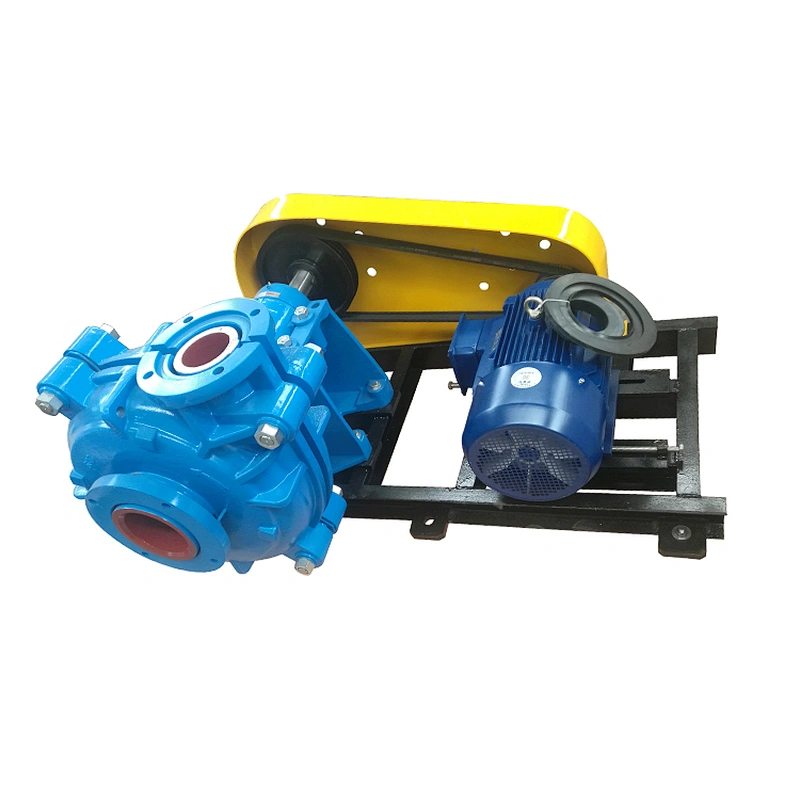

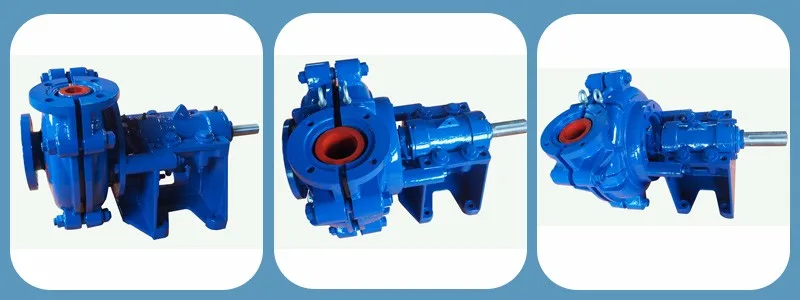

Wear abrasive gold mining tailings transfer centrifugal slurry water pump
Features
- Choice of piston ring style labyrinth or other new style of water proof
- Fully interchangeable with the common brand reducing inventory hold requirements
- A full range of mechanical seal adaptations available upon request
- Oil lubrication or packed grease
- Painted tn customer specifications upon request
A complete range of build specifications
- Rubber lined with rubber impeller
- Rubber lined with metal impeller
- All metal lined using white iron chrome alloys
- Urethane lined with optional urethane impeller for special applications
Clear water performance
| MAH Clean Water Performance | ||||||
| Type | Allowable Mating Max.Power | Flow | Head | Efficiency | NPSH | Interrupted by the maximum particle |
| kw | m3/h | m | % | m | mm | |
| 1.5x1B-MAH | 15 | 3.6-21 | 5-69 | 40 | 2-5.5 | 16 |
| 2x1.5B-MAH | 15 | 32-72 | 6-58 | 45 | 3.5-8 | 19 |
| 3x2C-MAH | 30 | 39-86 | 12-64 | 55 | 4-6 | 25 |
| 4x3D-MAH | 60 | 86-198 | 9-52 | 71 | 4-6 | 28 |
| 6x4D-MAH | 60 | 162-360 | 12-56 | 68 | 5-8 | 44 |
| 8x6E-MAH | 120 | 360-830 | 10-61 | 72 | 2-9 | 63 |
| 10x8ST-MAH | 260 | 612-1368 | 11-61 | 71 | 4-10 | 76 |
Performance Curves
Applications
Who we are
20years experience of manufacture with 5years oversea service.
- Advanced equipment with qualified engineers.
- Large foundry to control excellent quality.
MST at Expo
Q:What is your product range?
A:centrifugal pump and conveyor belt.Centrifugal pump includes slurry pump,gravel pump,clean water pump,sewage pump,chemical pump,self-priming pump and diesel engine pump .Conveyor belts includes sidewall conveyor belt,flat conveyor belt and heat resistant conveyor belt.
Q:What’s is your MOQ,payment term and lead time?
A:MOQ for centrifugal pump is 1 set ,MOQ for conveyor belt is 100cbm.Pyment Term:T/T,L/C,Western Union,Paypal and Trade Assurance.Lead Time:in general 7 working days for slurry pump,15working days for water .
Q:What information should I let you know if I want to get a quotation?
A:Pump capacity,pump head,medium temperature,pump material,quantity,if possible,please also provide the pump model you are using now.price will be calculated as per the pump model,if not ,we will recommend relevant product for reference.
Q:If I put a bigger motor on my pump,will it pump more?
A:No.The anount of water and the pressure(head)that a centrifugal pump produces is related to the rotational speed,impeller diameter and size of the impeller vanes.
Q:Do you impact the finished product?
A:Yes,each batch of production and finished product will be quality checked strictly before delivering ,testing report or video can be sent to clients for reference.
Q:How do you ship the finished product?
A:By sea.By air.By international express.
