Electric Driven Sump Slurry Pump
1. Product introducation of electric driven sump slurry pump
This electric driven sump pump is designed for applications requiring greater reliability and durability than conventional vertical process pumps can offer. The heavy duty cantilever design makes the MSP/MSPR sump pump ideally suited for heavy continuous handling of abrasive and corrosive liquids and slurries whilst submerged in sumps or pits.
2.Products specification of the electric driven sump slurry pump
MSP Clean Water Performance | |||||
Type | Allowable Mating Max.Power | Flow | Head | Efficiency | Interrupted by the maximum particle |
kw | m3/h | m | % | mm | |
MSP40PV | 15 | 19-43 | 4-28 | 40 | 12 |
MSP65QV | 30 | 24-87 | 5-31 | 58 | 15 |
MSP100RV | 75 | 54-289 | 5-35 | 56 | 32 |
MSP150SV | 110 | 108-480 | 8-40 | 52 | 45 |

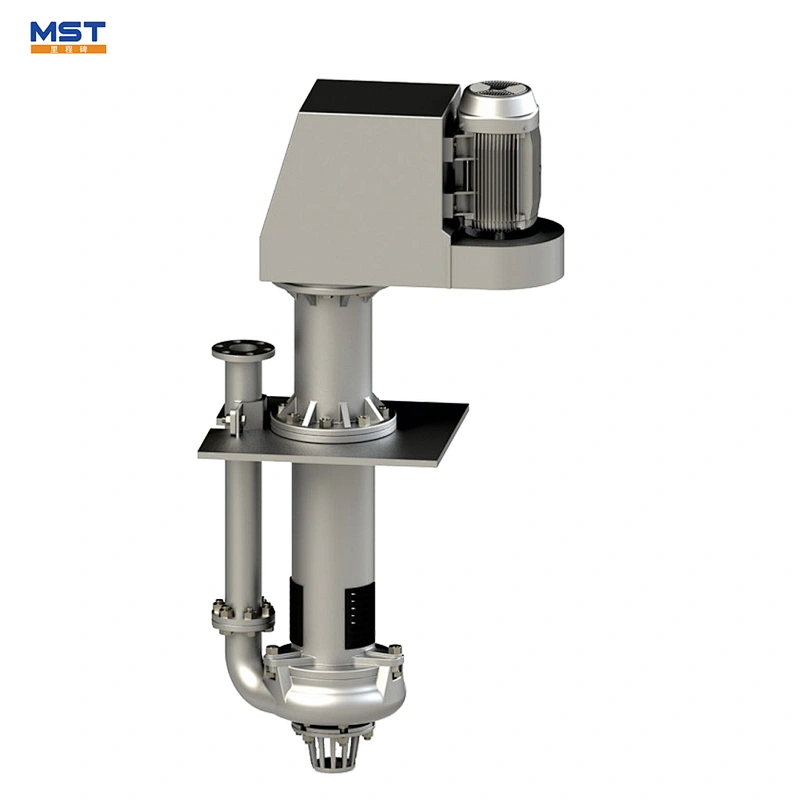

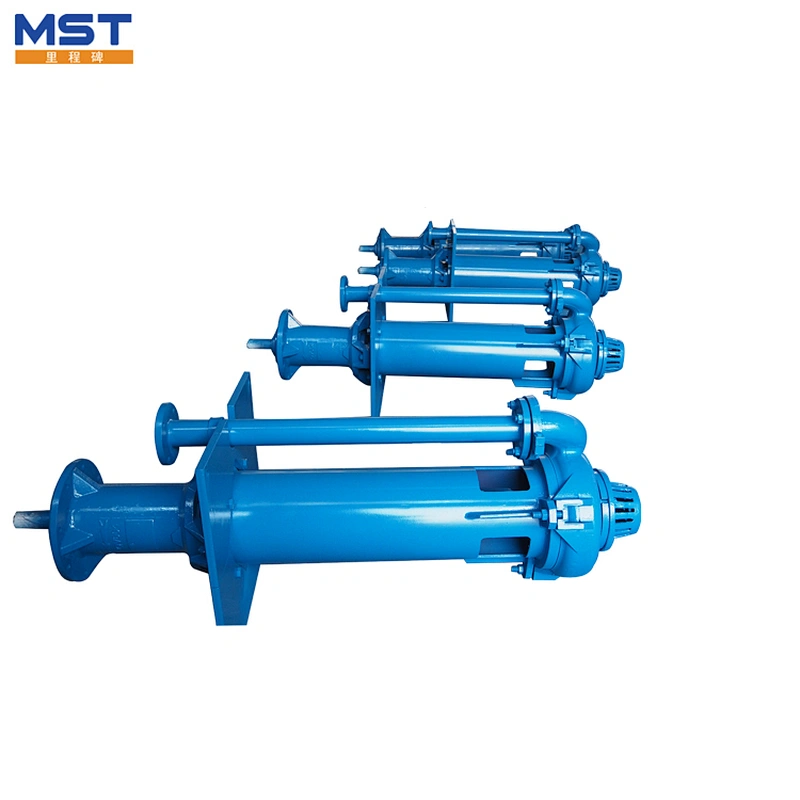

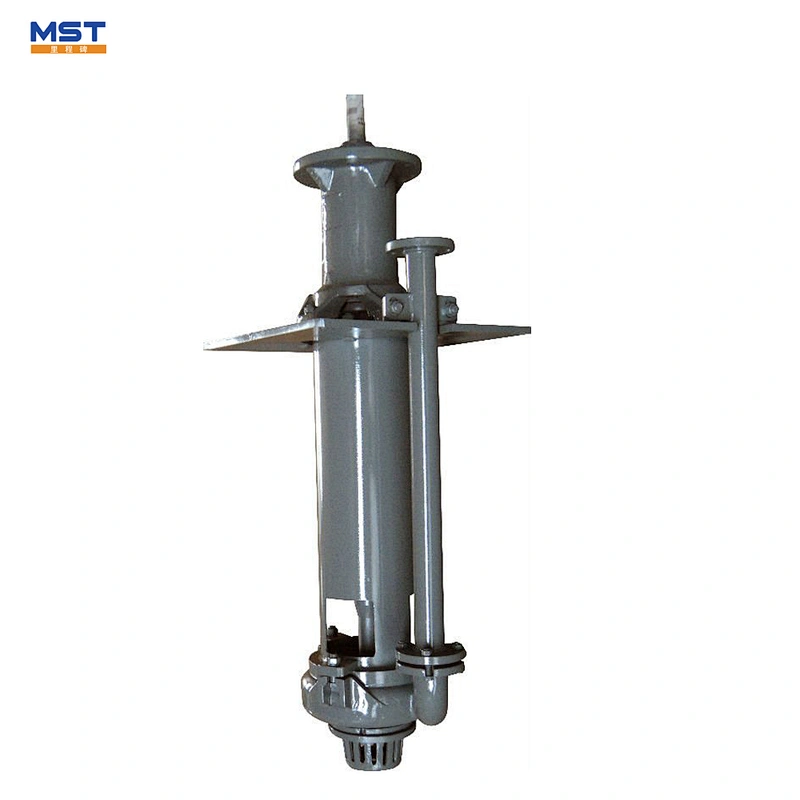

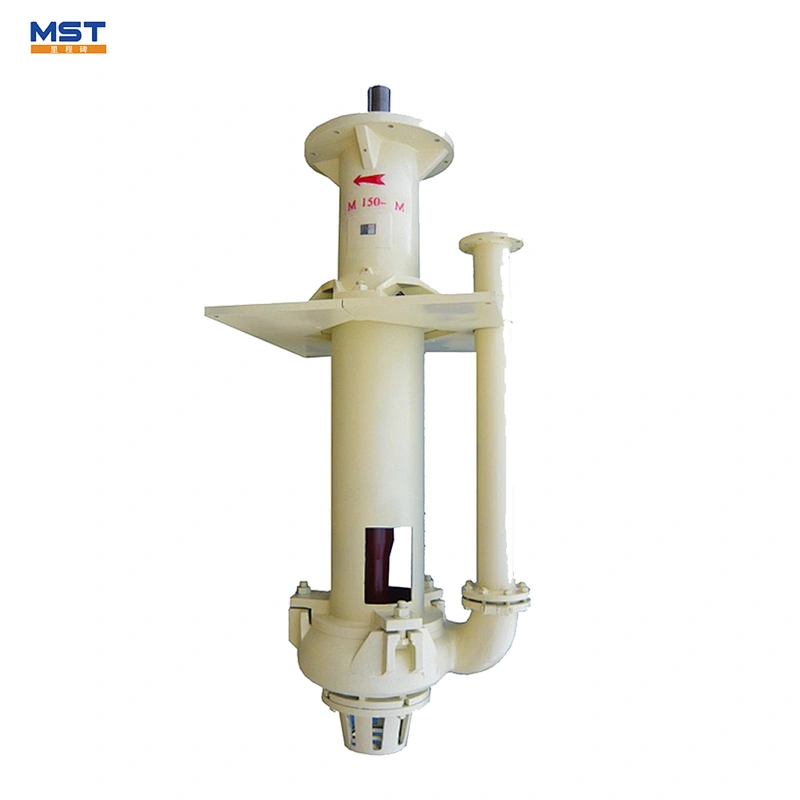

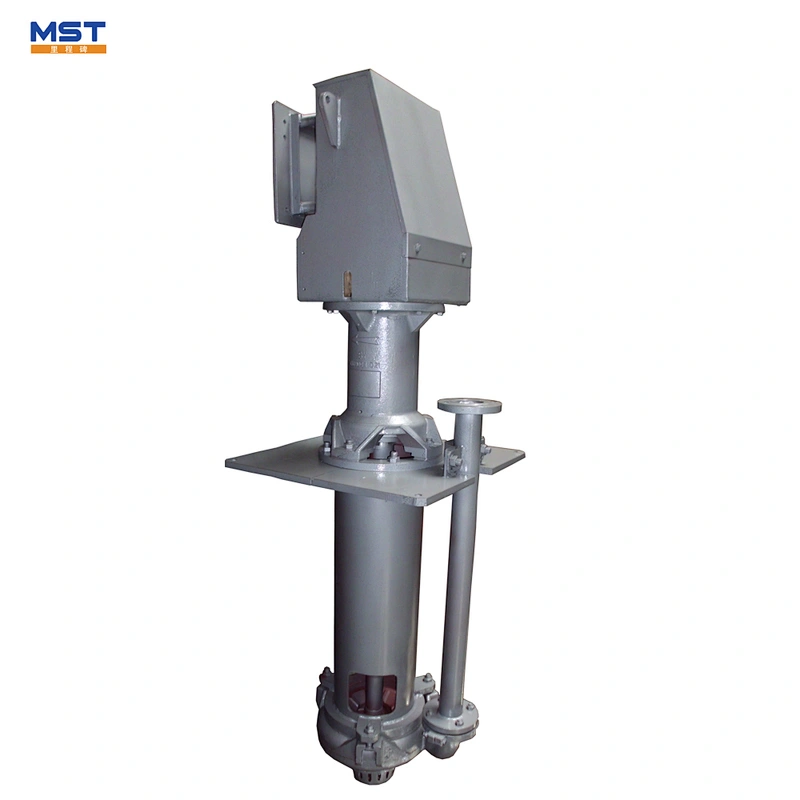

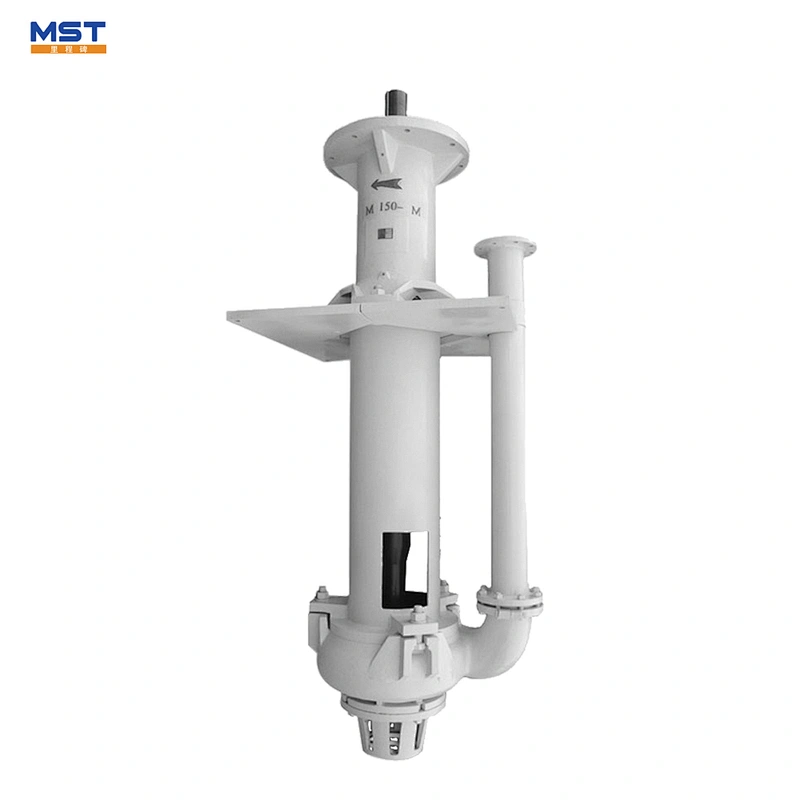

3.Details of electric driven sump slurry pump
4.Product Feature and application of theelectric driven sump slurry pump
Application:
The electric driven sump slurry pump is widely used in municipal engineering, buildings, industrial sewage discharge, and sewage treatment in environmental protection to deliver wastewater, rainwater containing solid particles and fiber.
Feature:
1.flow passage components:this type of pump use wear resistant metal, impeller choose wear resistant metal or rubber.
2.Bearing components:we use grease lubrication. According to slag slurry pool liquid height, can choose different lengths of pump shaft or suction pipe.
5.Product Performance curve of electric driven sump slurry pump
- Mining
- Civil Construction
- Industry
- Coal Preperation
- Mineral Processing
- Chemical Precessing
Who we are:
- 20 years experience of manufacture with 5 years oversea service.
- Advanced equipment with qualified engineers.
- Large foundry to control excellent quality.
