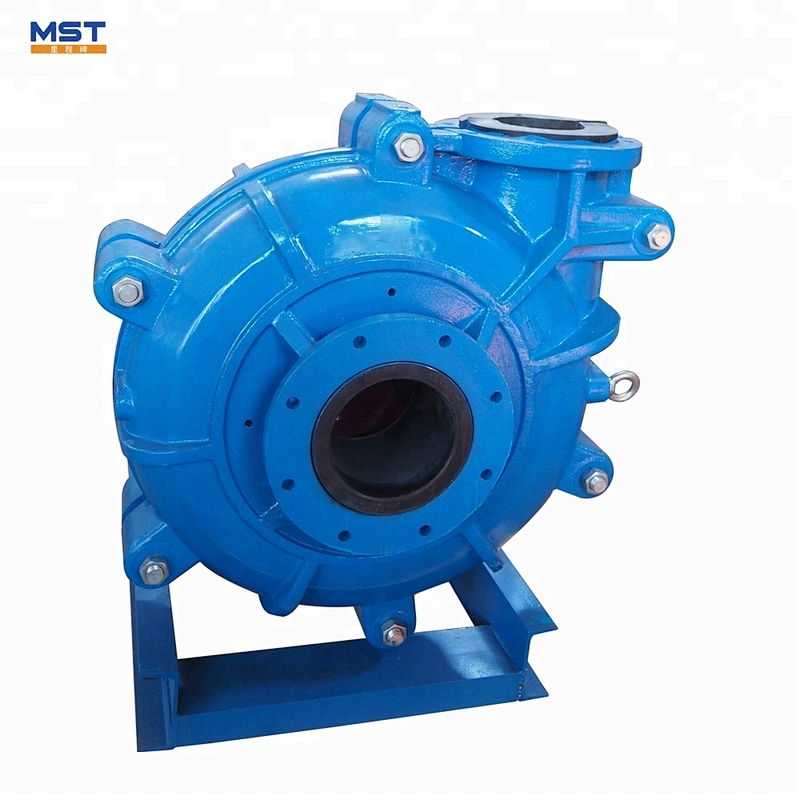

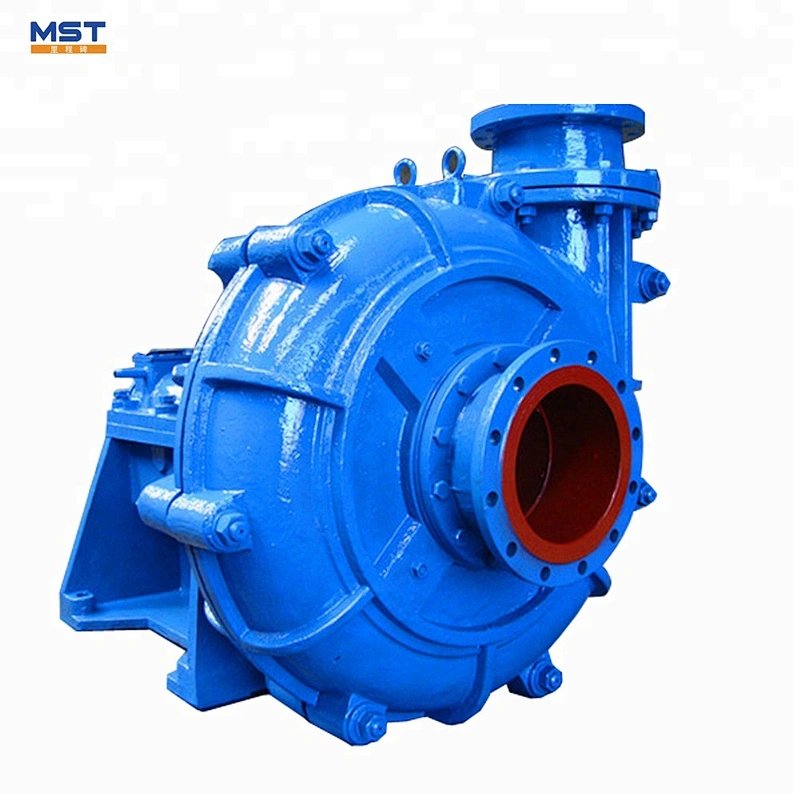

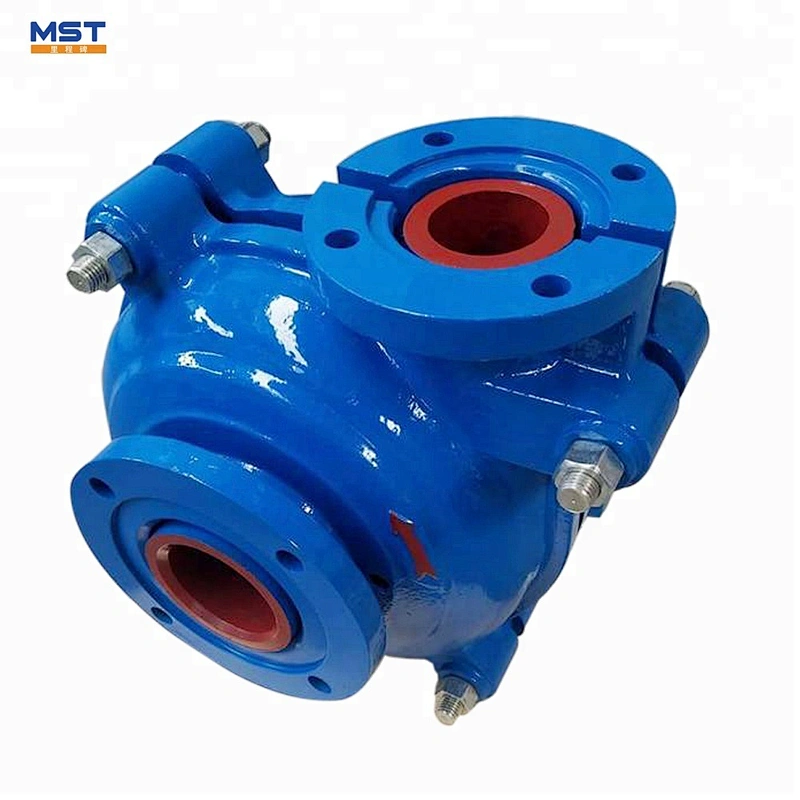

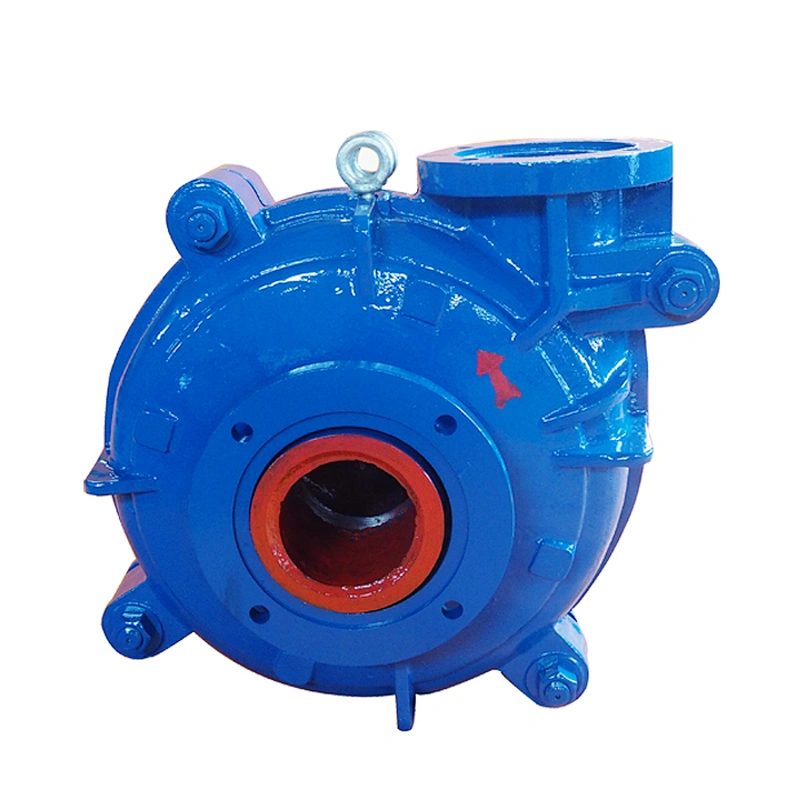

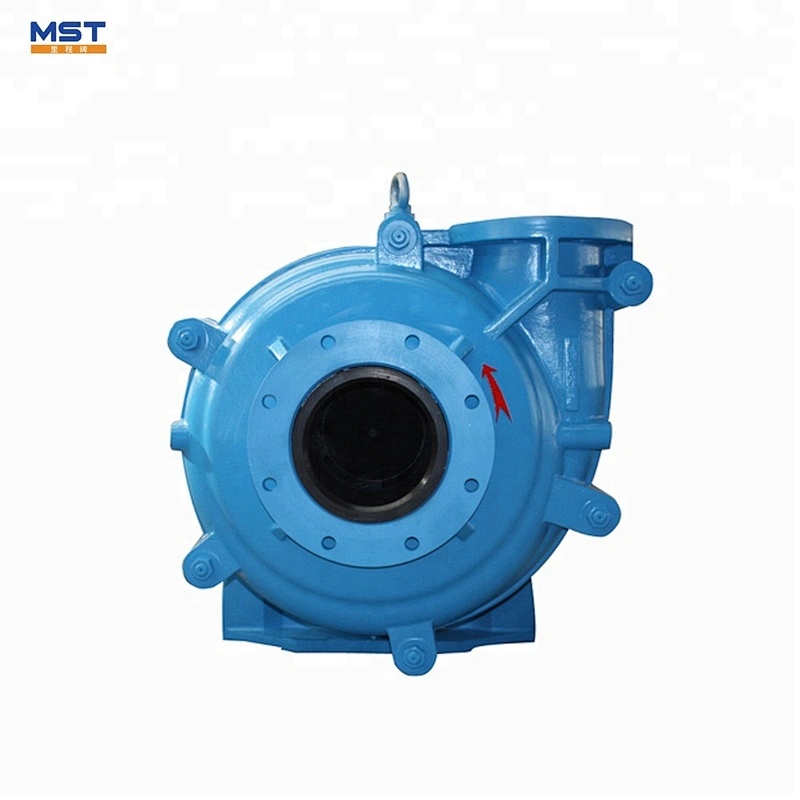

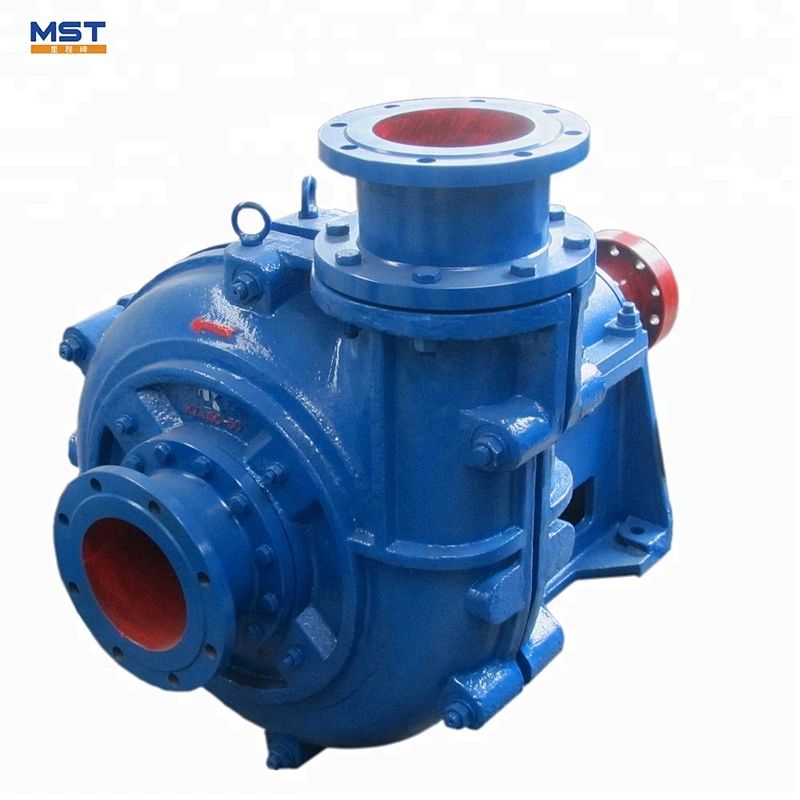

Horizontal filter sand suction slurry pump for sale
Milestone MAH series slurry pumps are heavy duty horizontal slurry pumps designed to handle abrasive and high density slurries in mining and heavy industry.
MAH high density slurry pumps are available in sizes ranging from 1 inch to 18 inch discharge and feature high efficiency performance capable of flow rates from 10.8 to 6500 m³/hour and heads up to 125 meters for high head models.
All our slurry pumps are designed to be 100% fully interchangeable with the most common slurry pump used by the mining industry.
| No. | Name | No. | Name |
| 1 | Round nut | 12 | Impeller |
| 2 | Labyrinth | 13 | Volute |
| 3 | Bearing | 14 | Cover plate |
| 4 | End cover | 15 | Intake joint |
| 5 | Shaft sleeve | 16 | Expeller |
| 6 | Oil cup | 17 | Packing |
| 7 | Discharge joint | 18 | Lantern ring |
| 8 | Frame plate | 19 | Gland assembly |
| 9 | Oil cup seat | 20 | Frame |
| 10 | Expeller ring | 21 | Grease retainer |
| 11 | FPL insert | 22 | Shaft |
Horizontal filter sand suction slurry pump performance curve
| MAH Clean Water Performance | ||||||
| Type | Allowable Mating Max.Power | Flow | Head | Efficiency | NPSH | Interrupted by the maximum particle |
| kw | m3/h | m | % | m | mm | |
| 1.5x1B-MAH | 15 | 3.6-21 | 5-69 | 40 | 2-5.5 | 16 |
| 2x1.5B-MAH | 15 | 32-72 | 6-58 | 45 | 3.5-8 | 19 |
| 3x2C-MAH | 30 | 39-86 | 12-64 | 55 | 4-6 | 25 |
| 4x3D-MAH | 60 | 86-198 | 9-52 | 71 | 4-6 | 28 |
| 6x4D-MAH | 60 | 162-360 | 12-56 | 68 | 5-8 | 44 |
| 8x6E-MAH | 120 | 360-830 | 10-61 | 72 | 2-9 | 63 |
| 10x8ST-MAH | 260 | 612-1368 | 11-61 | 71 | 4-10 | 76 |
Who we are?
- 20 years experience of manufacture with 5 years oversea service.
- Professional Sand pump and service.
- Advanced equipment with qualified engineers.
- Large foundry to control excellent quality.
small horizontal dry sand filter suction sludge dredge slurry pump for salesmall horizontal dry sand filter suction sludge dredge slurry pump for salesmall horizontal dry sand filter suction sludge dredge slurry pump for sale
