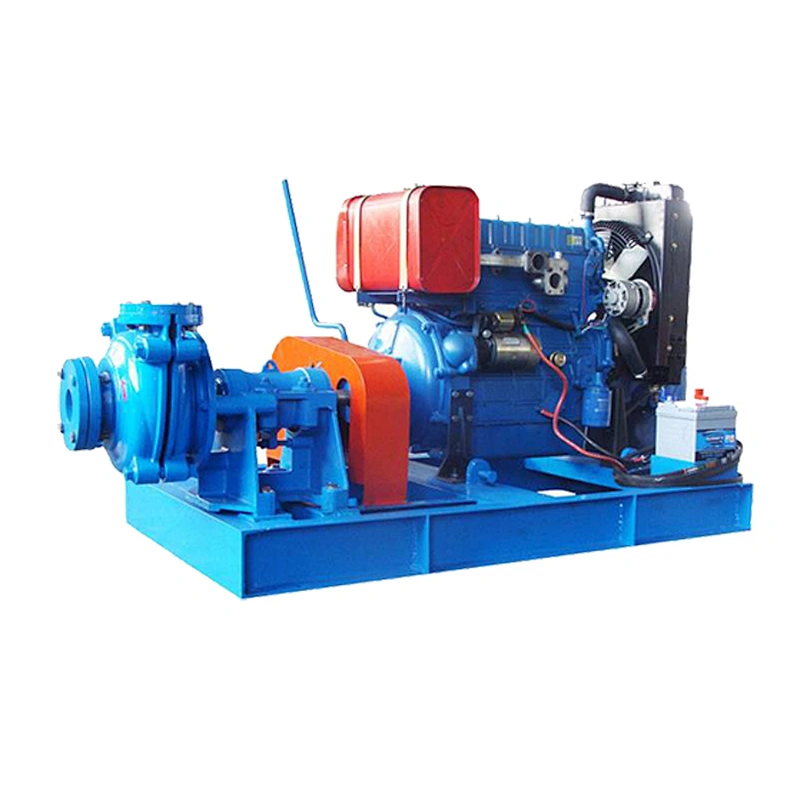

Heavy duty diesel mining water pump

Model NO.: MAH/MAHR
Price:: USD 755.00-16899.00 / set
Delivery: FOB
Minimum order quantity: 1 set
Supply Ability: 800 set / Quarterly
Country of Origin: Tianjin/ Qingdao/ Shanghai/Guangzhou/As customer required

Quantity:

Product Description
Basic Information

Heavy duty diesel mining water pump

Product Description

Heavy duty diesel mining water pump

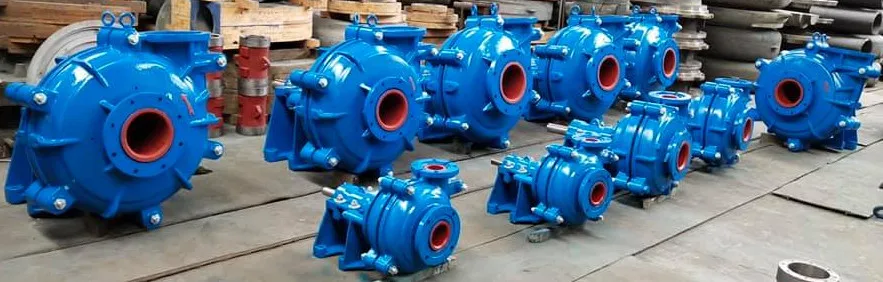

The MAH/MAHR 6 inch dredge pump 4 inch slurry pump are robust state of the art slurry pumps that feature oil or grease lubrication bearing assemblies and complete interchangeable with other major brands. The MAH can be supplied in either a packed gland version using expeller technology, or mechanical seal system specifically designed for heavy duty slurry applications.

Features

Feature of MAH series slurry pump

1>Choice of piston ring style labyrinth or other new style of water proof

2>Fully interchangeable with the common brand reducing inventory hold requirements

3>A full range of mechanical seal adaptations available upon request

4>Oil lubrication or packed grease

5>Painted tn customer specifications upon request

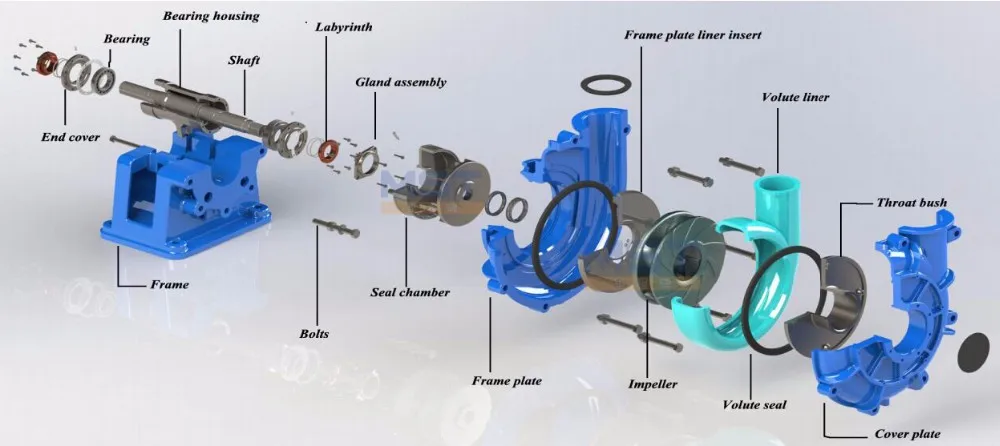

Structure of MAH series slurry pump

Performance Curve

Slurry Pump Clean Water Performance

Construction material for Slurry Pump

Rubber Pump			Metal Pump
No.	Part Description	Material Specification	No.	PartDescription	MaterialSpecification
1	Base	Cast Iron	1	Base	Cast Iron
2	Shaft	4140 High Tensile Steel*	2	Shaft 4140	High Tensile Steel*
3	Bearing Assembly	Timken (Cast Iron Body)	3	Bearing Assembly	Timken (Cast Iron Body)
4	Shaft Sleeve	420 Stainless Steel	4	Shaft Sleeve	420 Stainless Steel
5	Pump Casing	Cast Iron	5	Pump Casing	Cast Iron
6	Frame Plate	Liner Insert Rubber	6	Frame Plate	Liner 27% Chrome White Iron
7	Cover Plate	Liner Rubber	7	Volute Liner	27% Chrome White Iron
8	Impeller	Rubber Coated High Tensile Steel	8	Impeller 27%	Chrome White Iron
9	Throat Bush	Rubber	9	Throat Bush	27% Chrome White Iron
10	Cover Plate	Cast Iron	10	Joint Rings	Rubber
11	Stuffing Box	Cast Iron	11	Cover Plate	Cast Iron
12	Expeller	27% Chrome White Iron	12	Stuffing Box	Cast Iron
13	Expeller	Ring Natural Rubber	13	Expeller 27%	Chrome White Iron
14	Bolts	Zinc Plated Steel	14	Expeller Ring	Natural Rubber
15	O-rings	Nitrile Rubber	15	Bolts	Zinc Plated Steel
16	Seals	Rubber	16	O-rings	Nitrile Rubber
			17	Seals	Rubber
