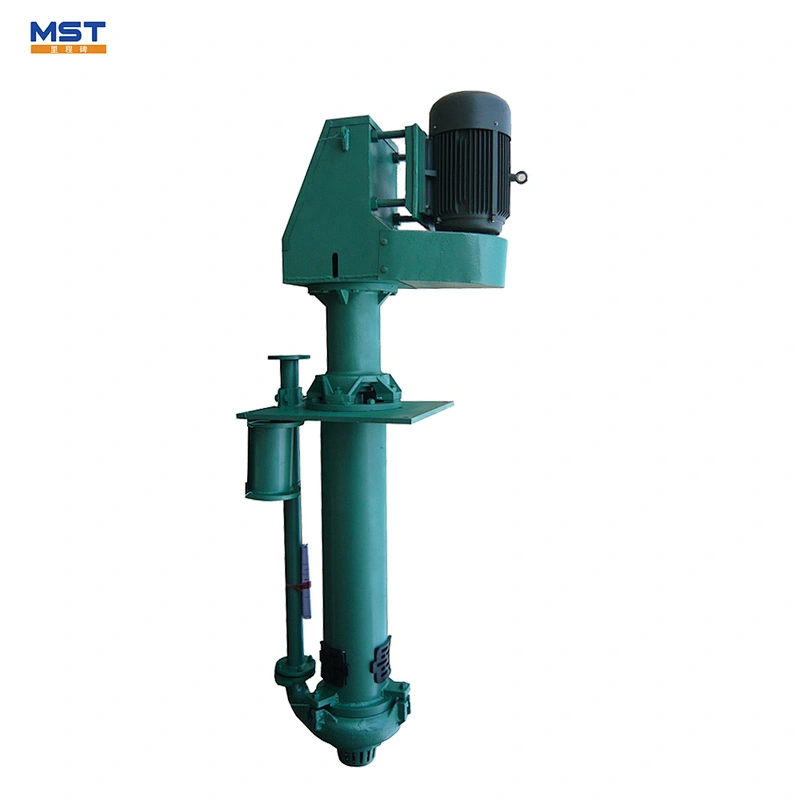

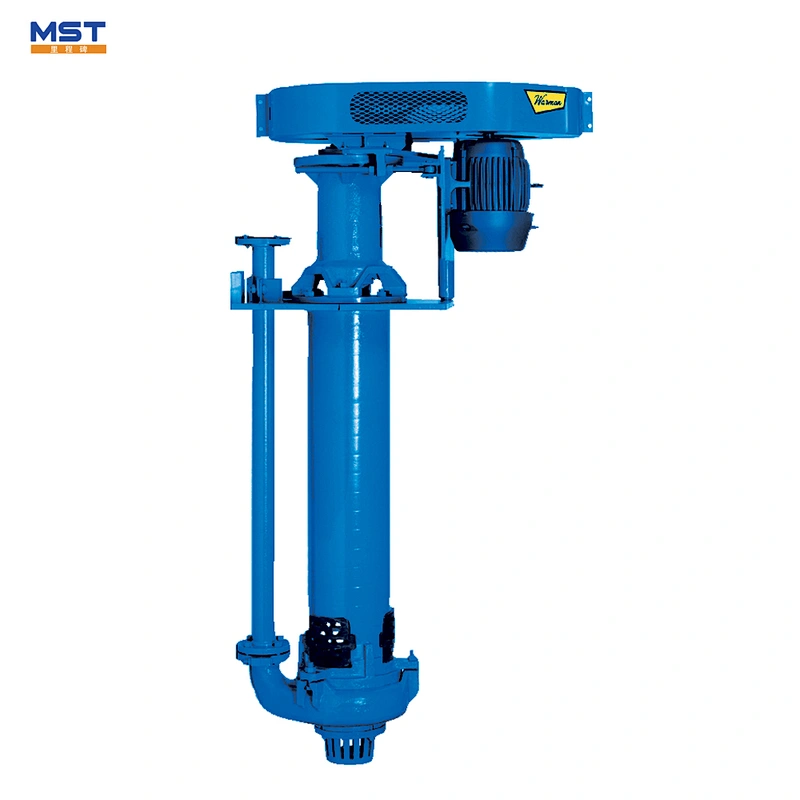

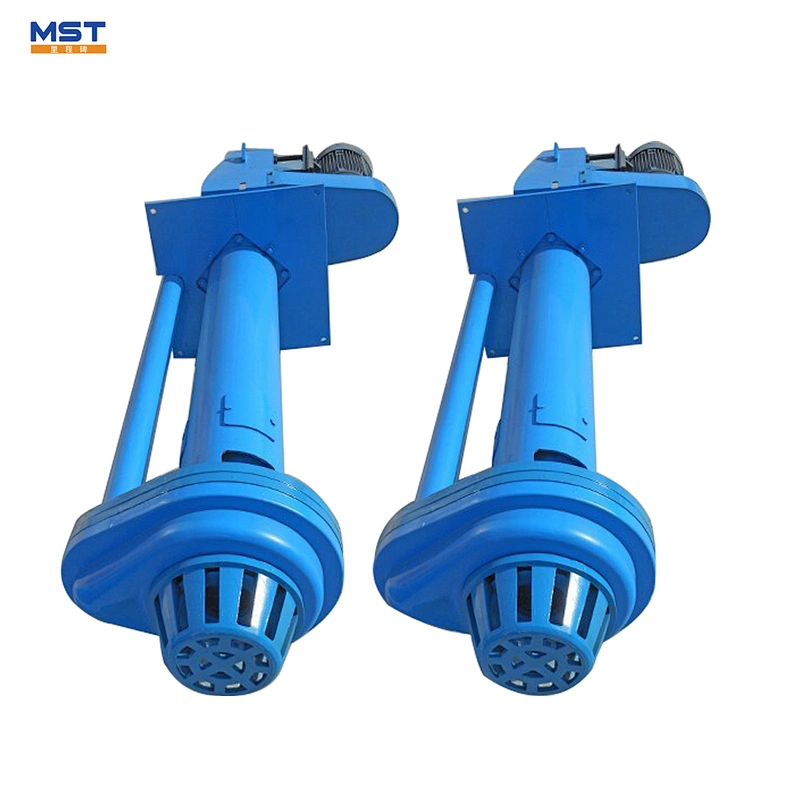

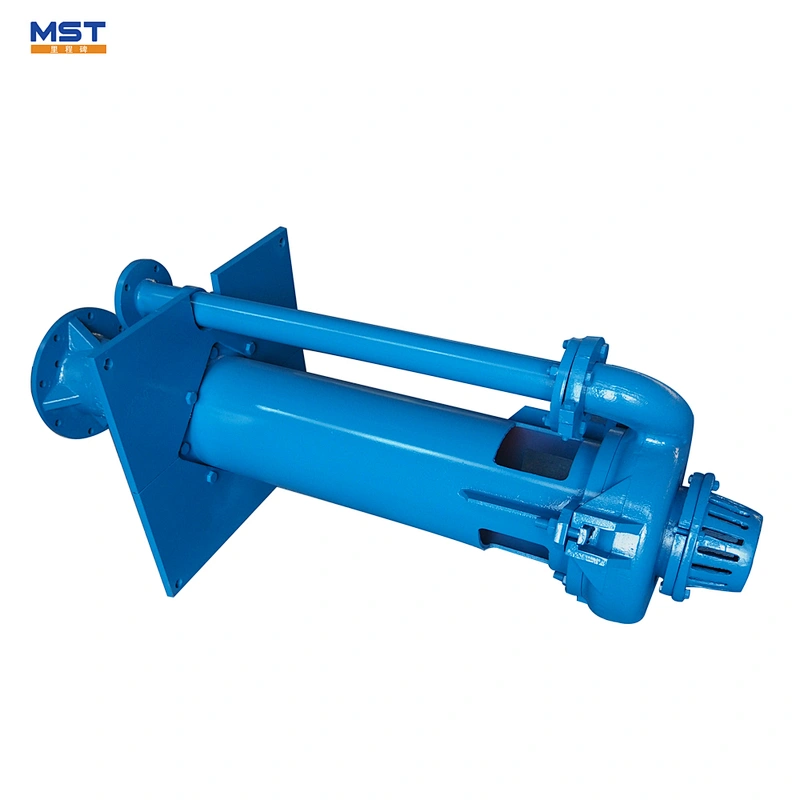

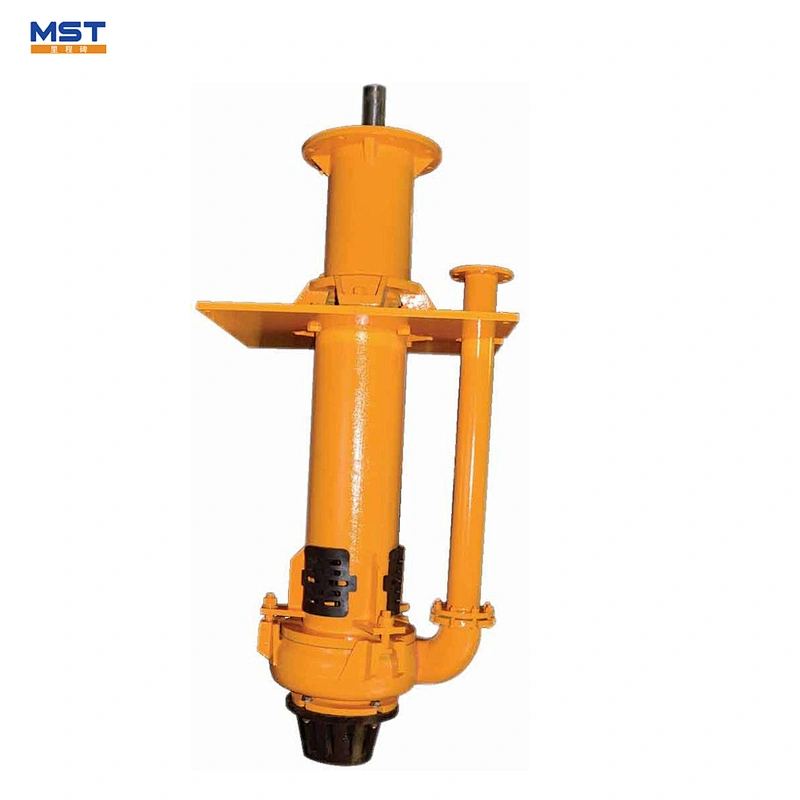

High flow rate mini open impeller vertical sump slurry pump
High flow rate mini open impeller vertical sump slurry pump is designed for applications requiring greater reliability and durability.
The bearing assembly allows the pump to operate in the “snore” condition without damage to the bearings.
High flow rate mini open impeller vertical sump slurry pump is designed for handling abrasive slurries and corrosive fluids by using either elastomer or alloy lined
wet ends components. The pump is suitable for mining, chemical treatment, waste water treatment, gravel and general process application.
Pump Features:
- The wear parts are made of high-chrome alloy of abrasion resistance .
- High efficiency and energy efficiency .
- Light weight and long service life time .
- Rational construction and reliable operation.
- Lower noise and vibration of the pump translates into improved hydraulic efficiency.
Performance data
Technical Data:
| Flowrate | 4.8-350l/s |
| Max. Head | 40m |
| Max.Working Pressure | 400kPa |
| Max. Solid Size | 50mm |
| Discharge | 40-250mm |
| Impeller Diameter | 188-610mm |
| Motor Size | 3-150kW |
| Operating Speed | 350-2200rpm |
Pump Performance Curves:
Material of Construction:
Applications:
Transfer of abrasive large particles and high density slurries from sumps and apits in:
- Mining
- Civil Construction
- Industry
- Coal Preperation
- Mineral Processing
- Chemical Precessing
Spare parts:
Packaging & Shipping:
Company Information
Who we are:
- 20 years experience of manufacture with 5 years oversea service.
- Advanced equipment with qualified engineers.
- Large foundry to control excellent quality.
Scene of Pump Exhibition
