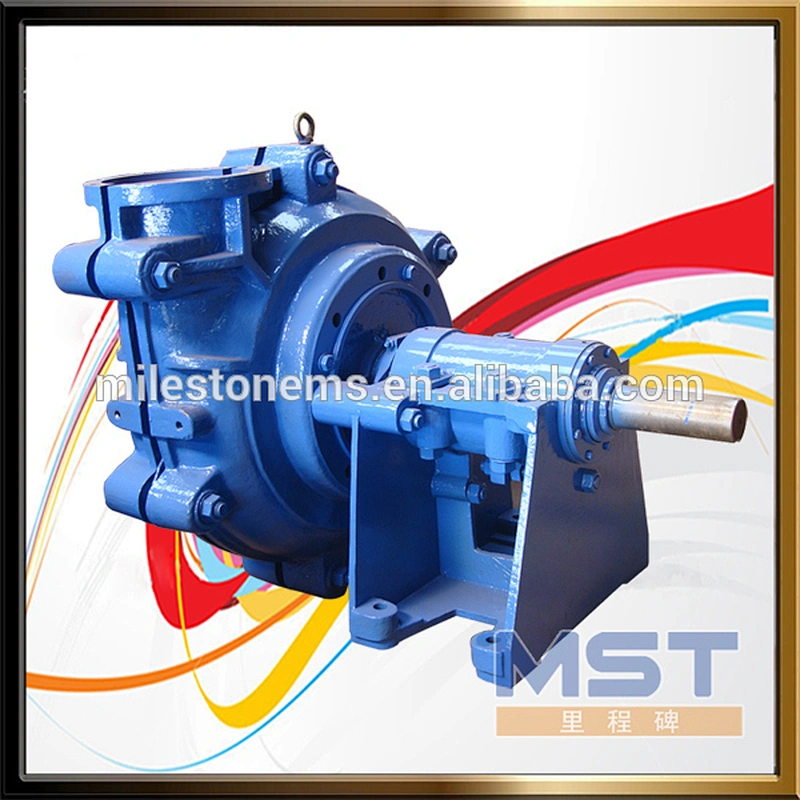

Electric mining sewage application small sludge pump
TheMAH Electric mining sewage application small sludge pump are robust state of the art slurry pumps that feature oil
or grease lubrication bearing assemblies and complete interchangeable with other major
brands. The High Head Centrifugal Horizontal Slurry Pump can be supplied in either a packed gland version using expeller technology,
or mechanical seal system specifically designed for heavy duty slurry applications.
Features of Electric mining sewage application small sludge pump
- Choice of piston ring style labyrinth or other new style of water proof
- Fully interchangeable with the common brand reducing inventory hold requirements
- A full range of mechanical seal adaptations available upon request
- Oil lubrication or packed grease
- Painted to customer specifications upon request
A complete range of build specifications
- Rubber lined with rubber impeller
- Rubber lined with metal impeller
- All metal lined using white iron chrome alloys
Clear water performance for Electric mining sewage application small sludge pump
| Clear water performance of MAH | |||||||||||
| Type | Max. power | Capacity | Head | Speed | Max. Eff | NPSH | IMPELLER | Max. particle size | Weight (KG) | ||
| Quantity of vanes | Diameter (mm) | ||||||||||
| kw | (m³/h) | (l/s) | (m) | (r/min) | % | (m) | mm | ||||
| AH1.5/1-HS | 15 | 12-28 | 3.5-8 | 6-65 | 1200-3800 | 40 | 2-4 | 5 | 150 | 14 | 90 |
| AH2/1.5-HS | 15 | 32-72 | 9-20 | 6-58 | 1200-3200 | 45 | 3.5-8 | 5 | 185 | 19 | 105 |
| AH3/2-HS | 30 | 39-86 | 11-24 | 12-64 | 1300-2700 | 55 | 4-6 | 5 | 215 | 25 | 190 |
| AH4/3-HS | 30 | 86-198 | 24-55 | 9-52 | 1000-2200 | 71 | 4-6 | 5 | 245 | 28 | 260 |
| AH4/3-HS(D) | 60 | 86-198 | 24-55 | 9-52 | 1000-2200 | 71 | 4-6 | 5 | 245 | 28 | 360 |
| AH6/4-HS | 60 | 162-360 | 45-100 | 12-56 | 800-1500 | 68 | 5-8 | 5 | 365 | 44 | 625 |
| G6/4-HS(D) | 60 | 36-244 | 10-68 | 7-51 | 600-1400 | 50 | 2.5-3.5 | 3 | 378 | 82 | |
| AH6/4-HS(E) | 120 | 162-360 | 45-100 | 12-56 | 800-1500 | 68 | 5-8 | 5 | 365 | 44 | 728 |
| AH8/6-HS | 120 | 360-830 | 100-230 | 10-61 | 500-1140 | 72 | 2-9 | 5 | 510 | 63 | 1470 |
| G8/6-HS(E) | 120 | 133-576 | 37-160 | 10-48 | 800-1400 | 60 | 3-4.5 | 3 | 378 | 127 | |
| G10/8-HS(S) | 560 | 216-930 | 60-258 | 11-44 | 500-940 | 65 | 3-7.5 | 3 | 533 | 178 | |
| AH10/8-HS | 260 | 612-1368 | 170-380 | 11-61 | 400-850 | 71 | 4-10 | 5 | 685 | 76 | 3800 |
| AH12/10-HS | 560 | 936-1980 | 260-550 | 7-68 | 400-750 | 82 | 6 | 5 | 760 | 86 | 4320 |
| AH14/12-HS | 560 | 1260-2772 | 350-770 | 13-63 | 300-600 | 77 | 3-10 | 5 | 965 | 90 | 6400 |
Curves of Electric mining sewage application small sludge pump
Pump Parts
Electric mining sewage application small sludge pump Application
