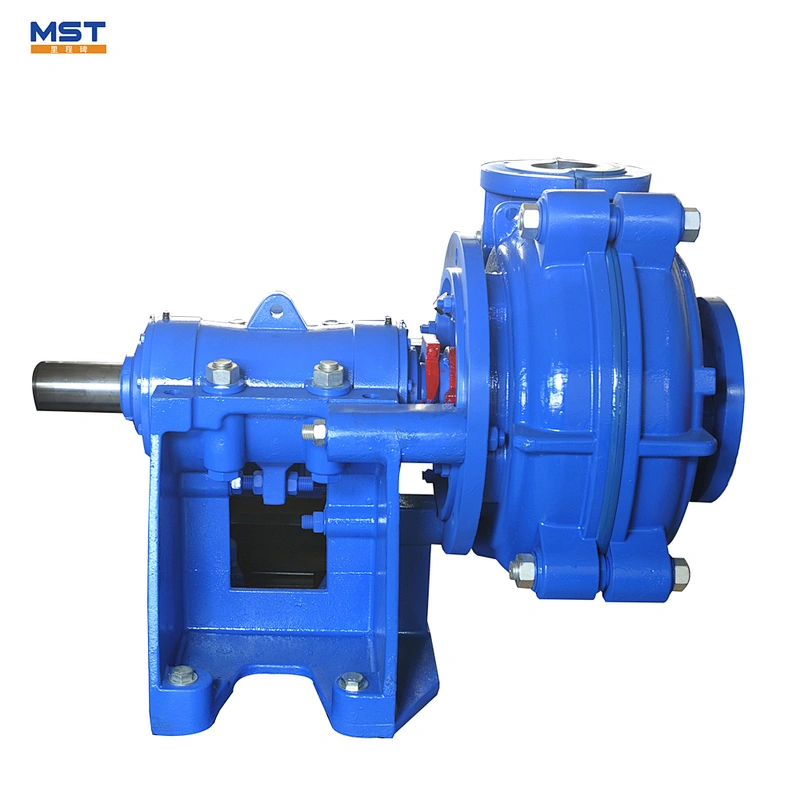

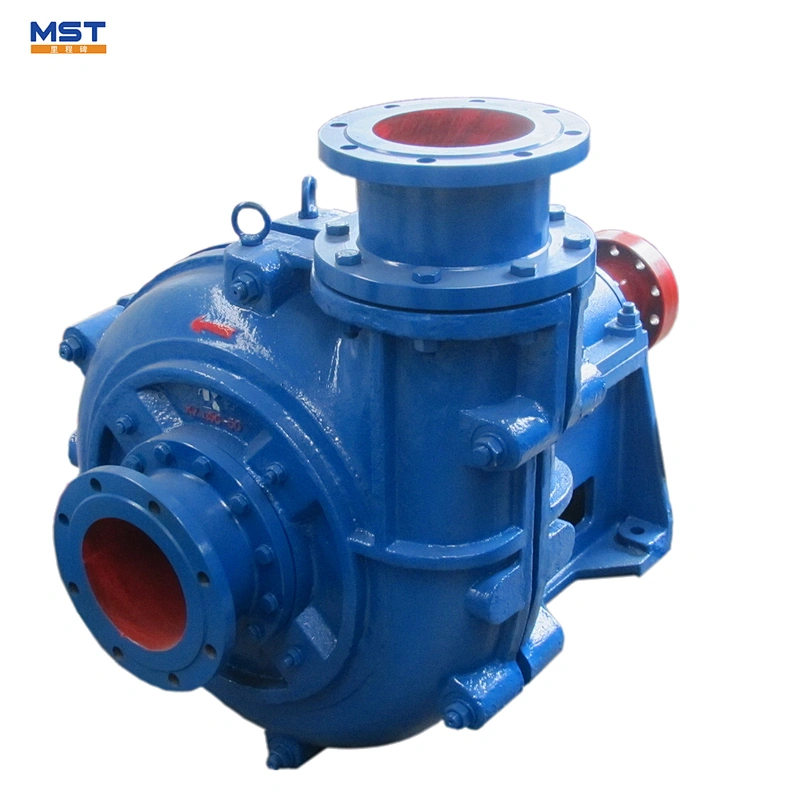

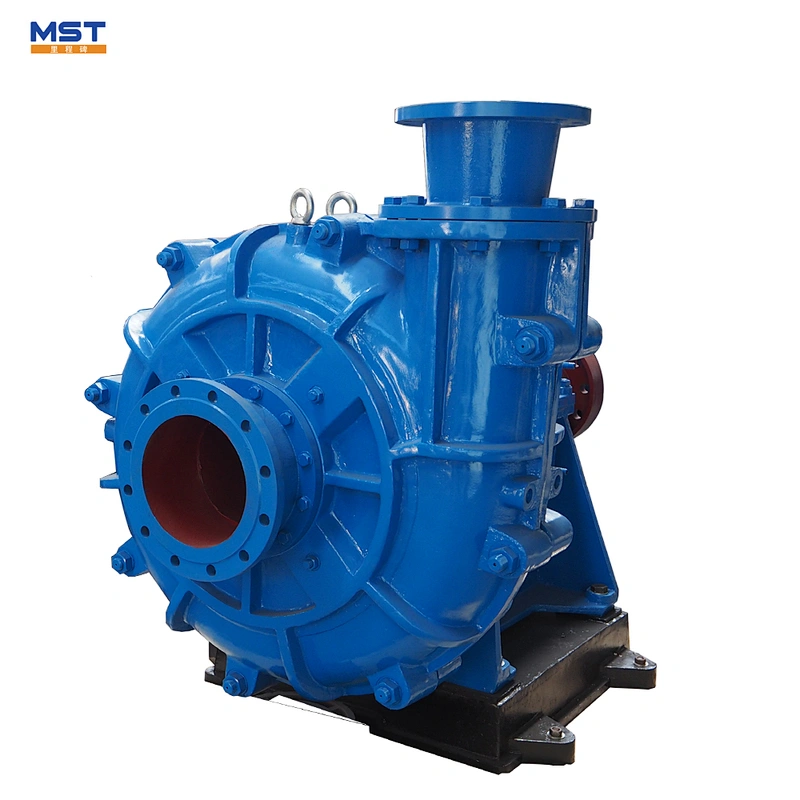

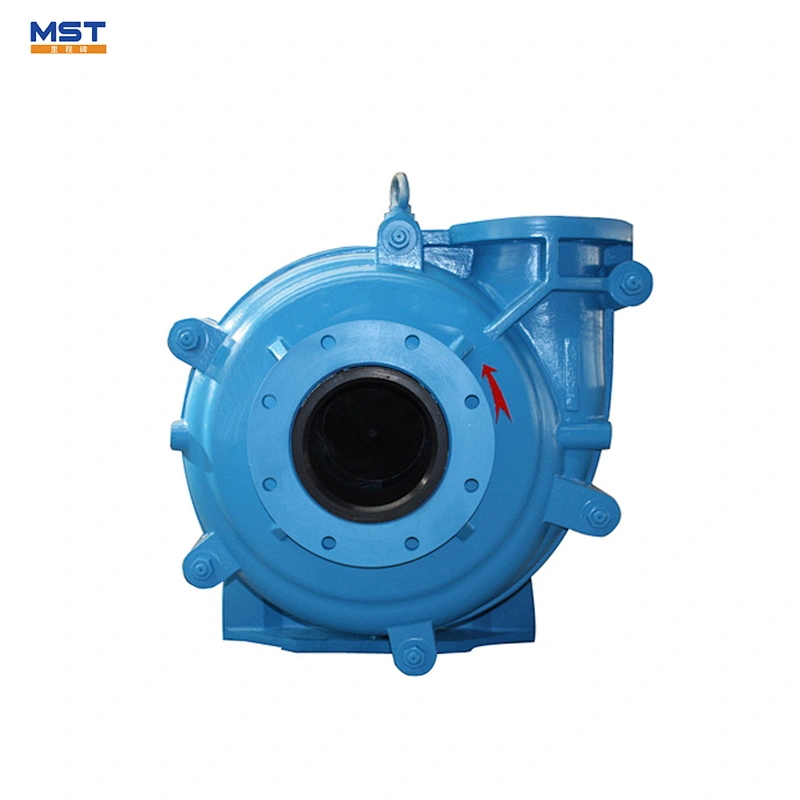

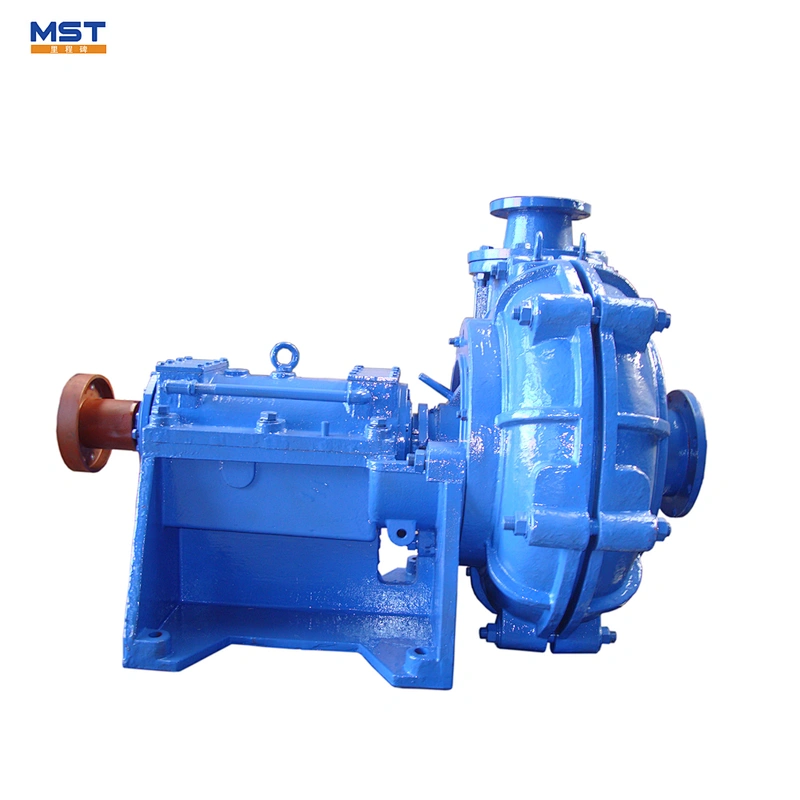

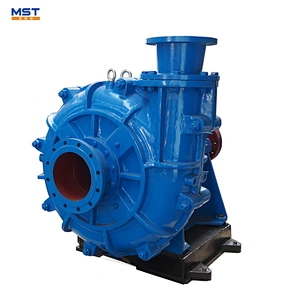

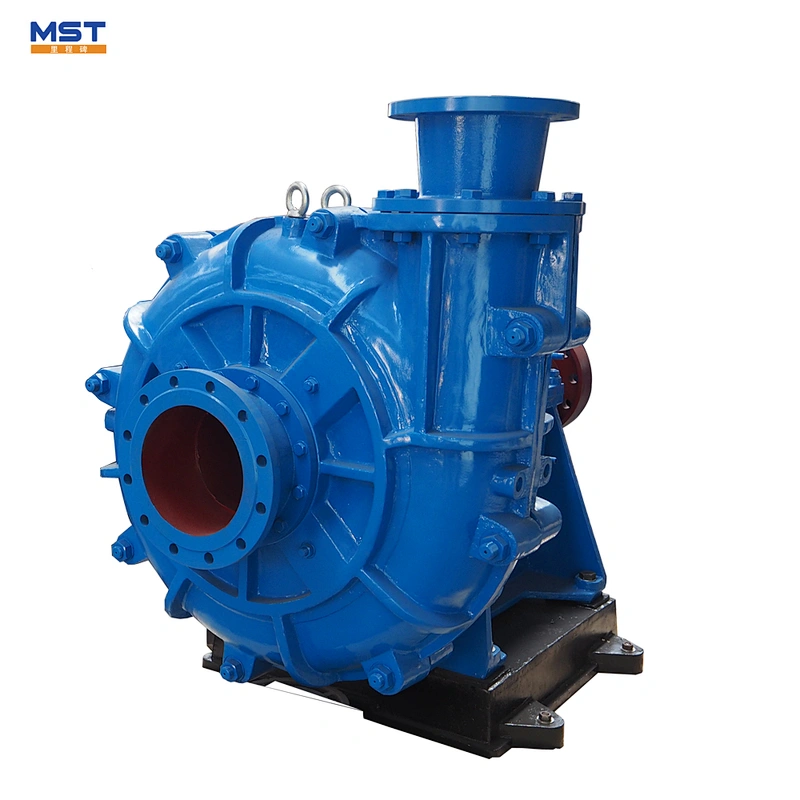

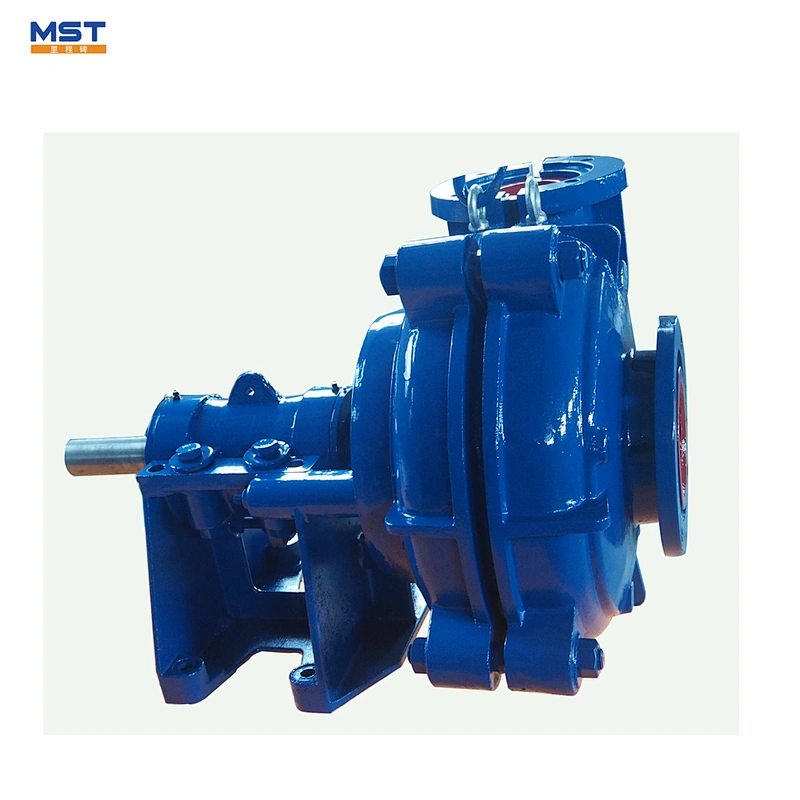

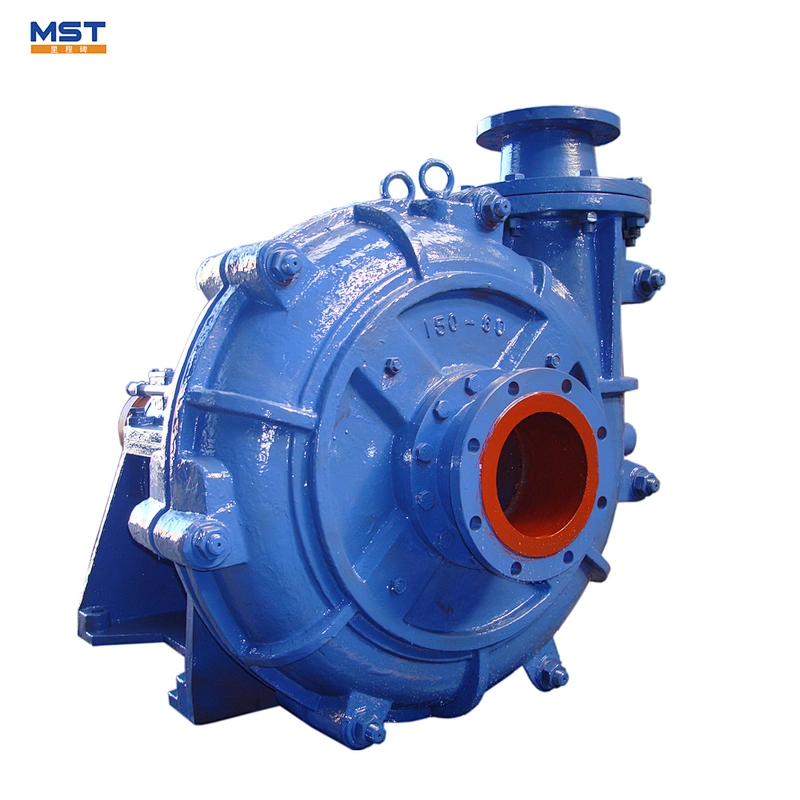

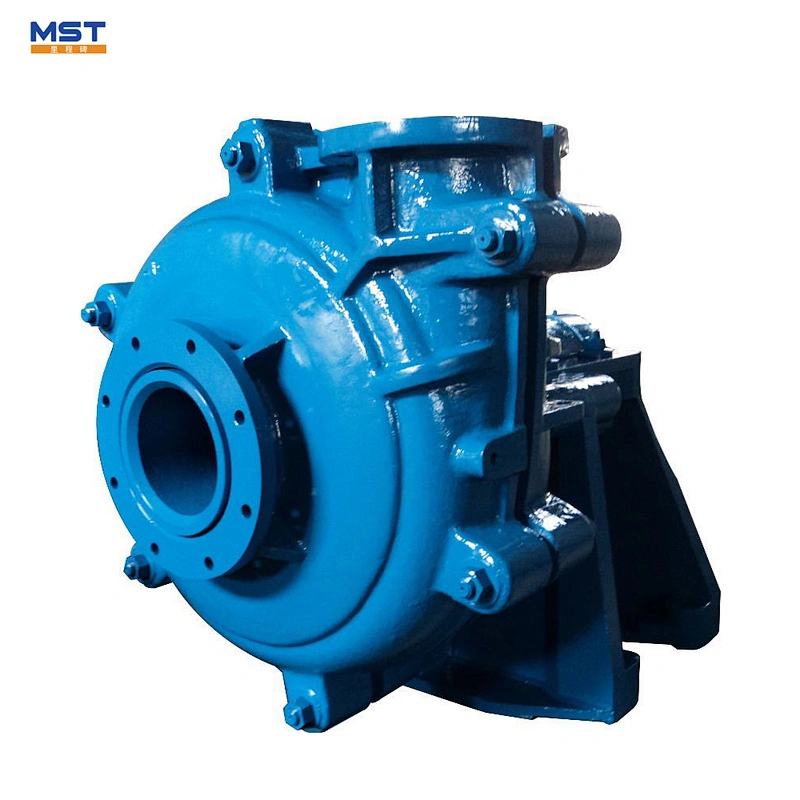

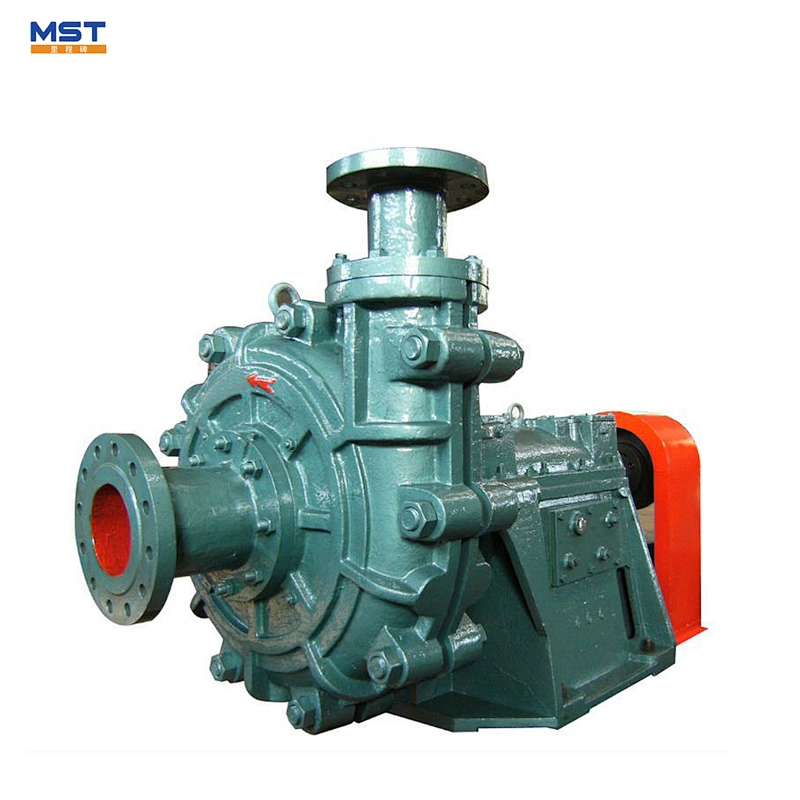

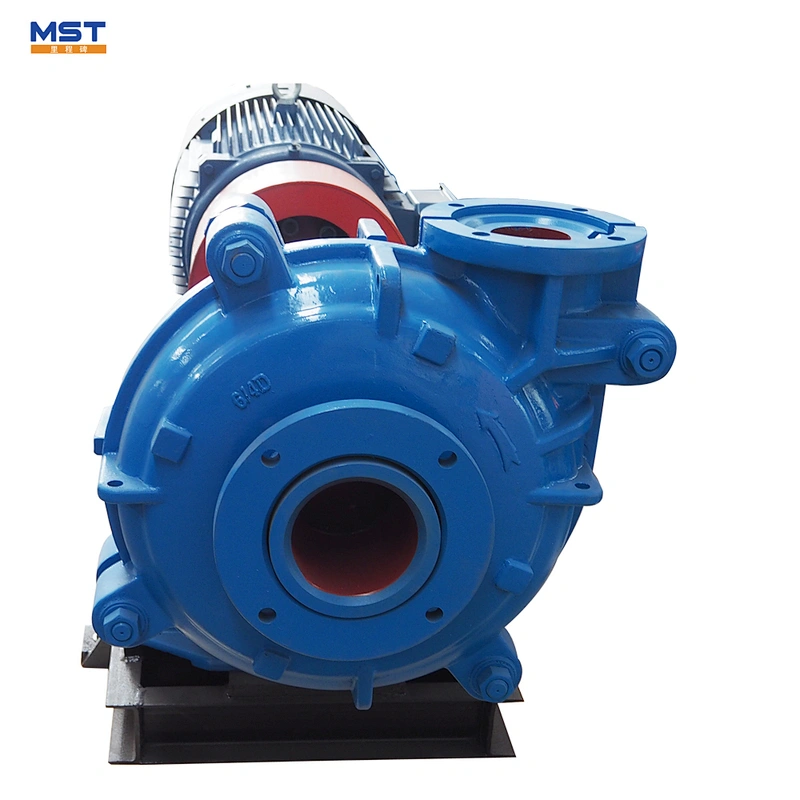

Horizontal mining spindle slurry pumps
Pump Description:
Horizontal mining spindle slurry pumps are cantilevered, horizontal, centrifugal pumps, the shaft seal adopts gland seal or centrifugal seal.The discharge can be positioned at intervals 45 degrees as request.It is widely used in the mining, metallurgy, power, chemistry, and construction industry. Small centrifugal cement slurry pump are designed for handling slurries with strong abrasiveness and high density, they can be operated in parallel.
Pump Features
- Choice of piston ring style labyrinth or other new style of water proof
- Fully interchangeable with the common brand reducing inventory hold requirements
- A full range of mechanical seal adaptations available upon request
- Oil lubrication or packed grease
- Painted tn customer specifications upon request
A complete range of build specifications
- Rubber lined with rubber impeller Rubber lined with metal impeller
- All metal lined using white iron chrome alloys
- Urethane lined with optional urethane impeller for special applications
Seal options:
Gland Seal-The most popular and economical seal option, flush water with certain pressure Inject In to packing to prevent slurry from leaking, gland seal is simple, easy to repair and cost less.
Expeller( Centrifugal or dynamic) seal - Rotating expeller generate negative force to prevent slurry from leaking. Use in applications likes suction pressure Is no more than 10% of discharge pressure, single stage pump; or the first stage of series pumps. Expeller seal need no flush water, do not dilute slurry, seal better than gland seal.
Mechanical Seal-Suit for high-seal applications such as chemical, food Industries that any other materials are forbidden to be mixed Into fluid. cost more and hard to fix.
Clear water performance
Performance Curves
Pump & Spare Pumps For Reference
Applications
Who we are?
- 20 years experience of manufacture with 5 years oversea service.
- Advanced equipment with qualified engineers.
- Large foundry to control excellent quality.
Why always me, because we do pump right!!!
