Deisel mini dredge slurry pump for sale
Product Description

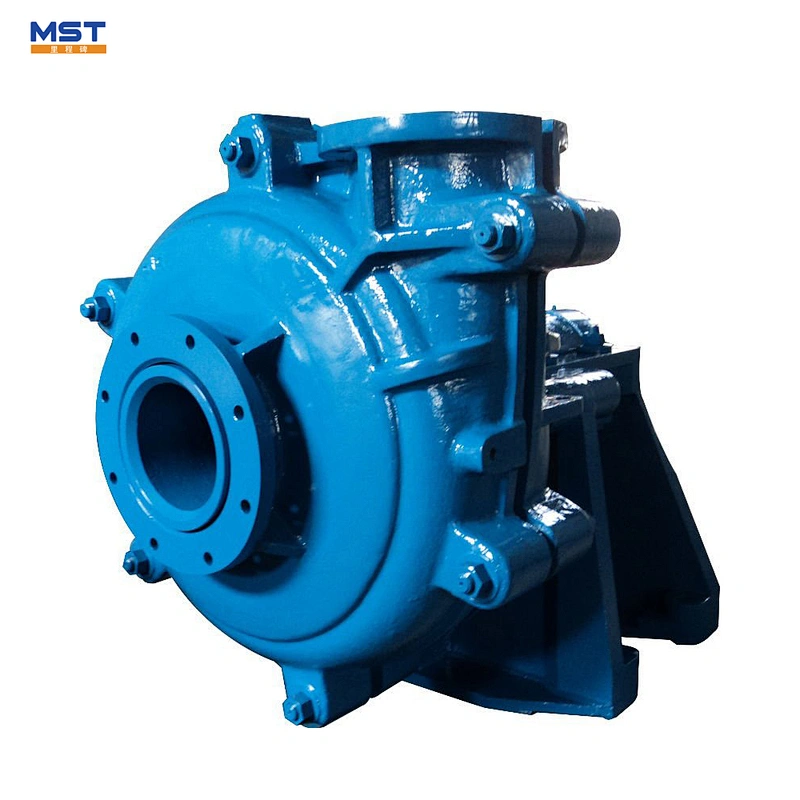

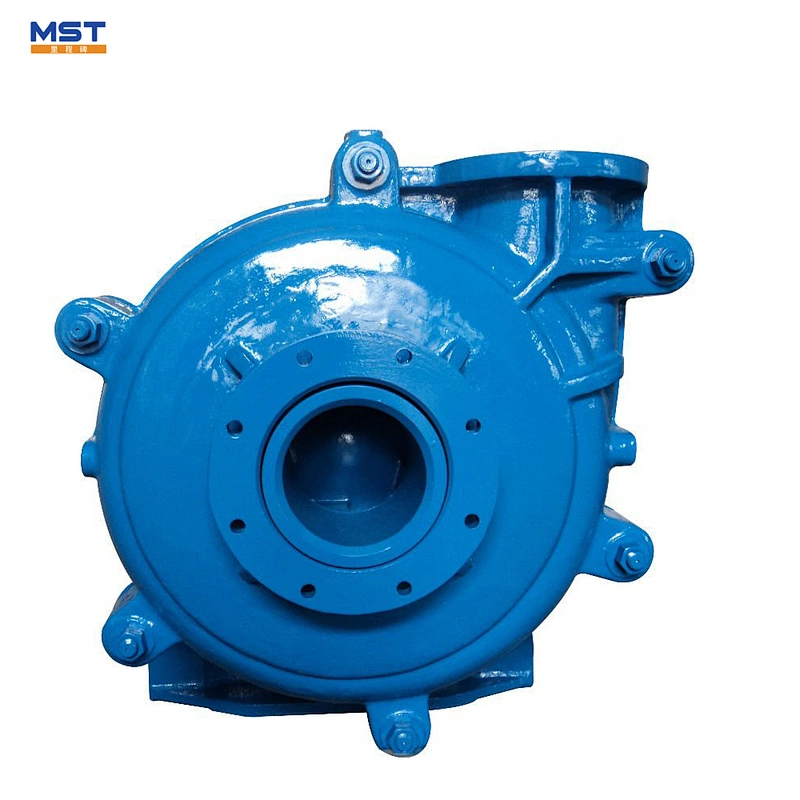

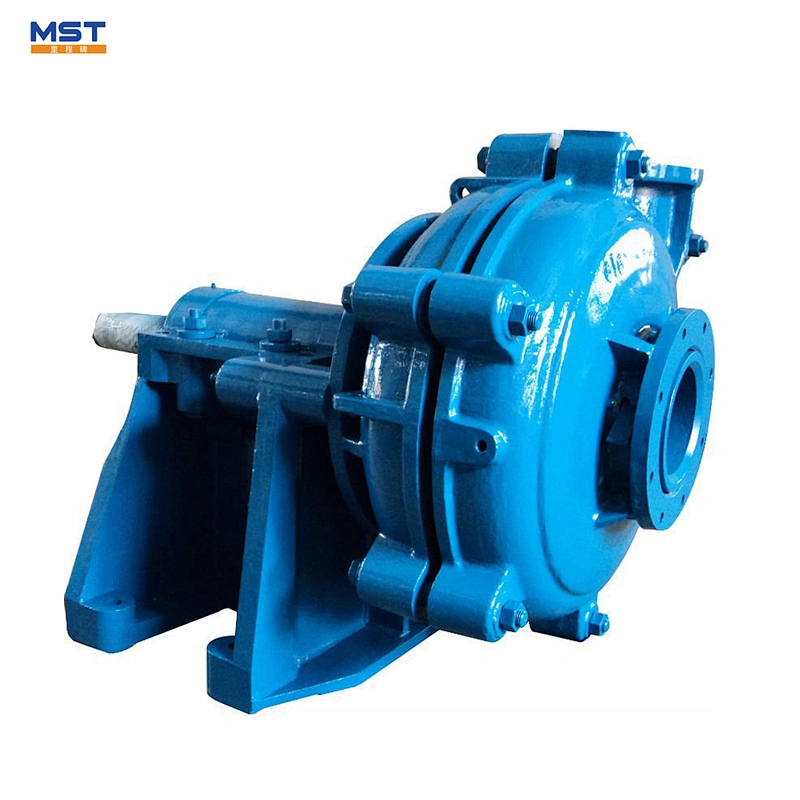

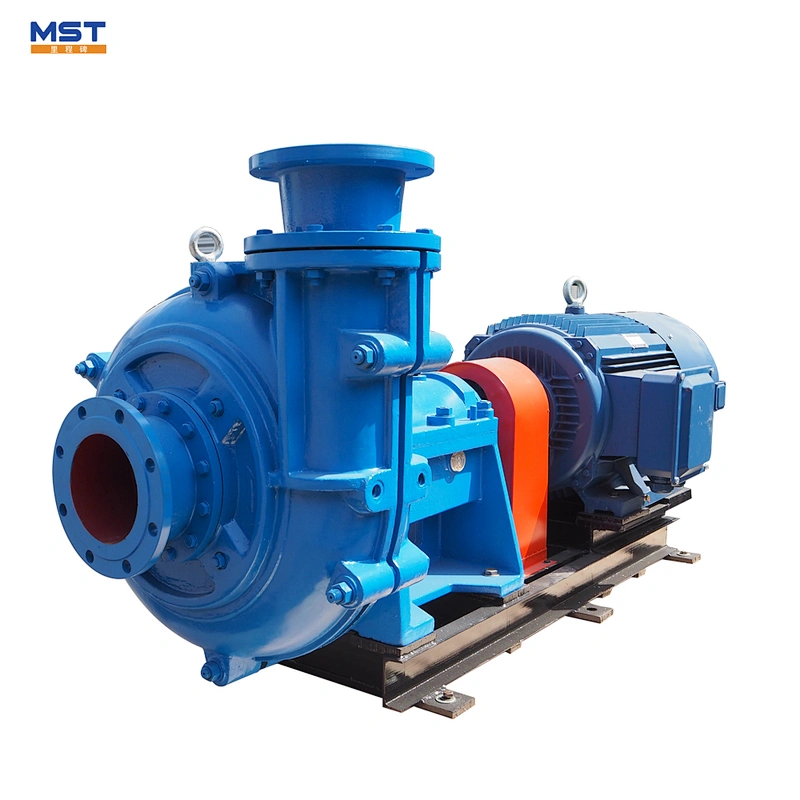

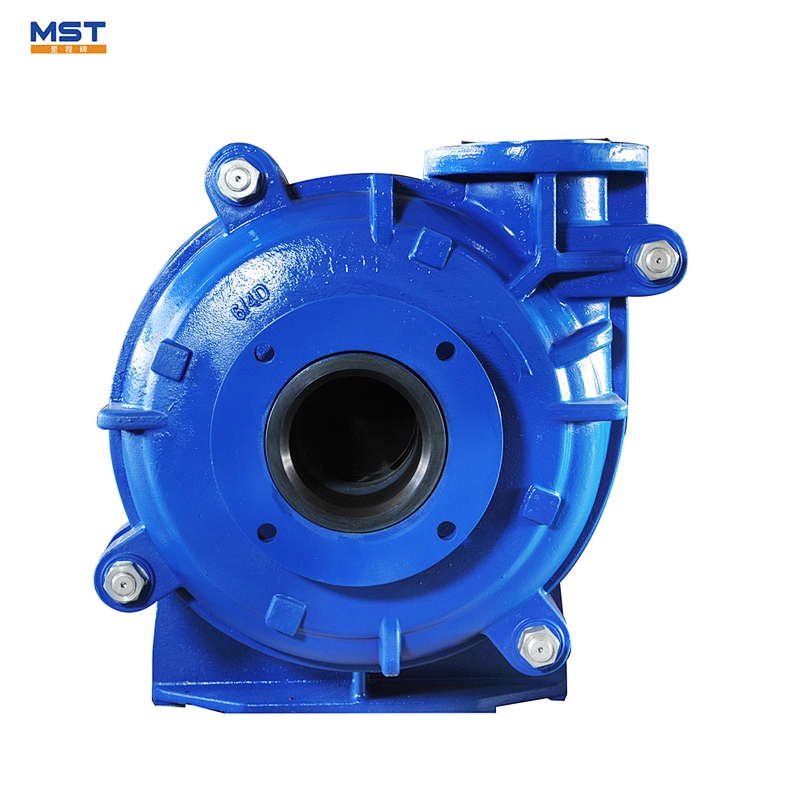

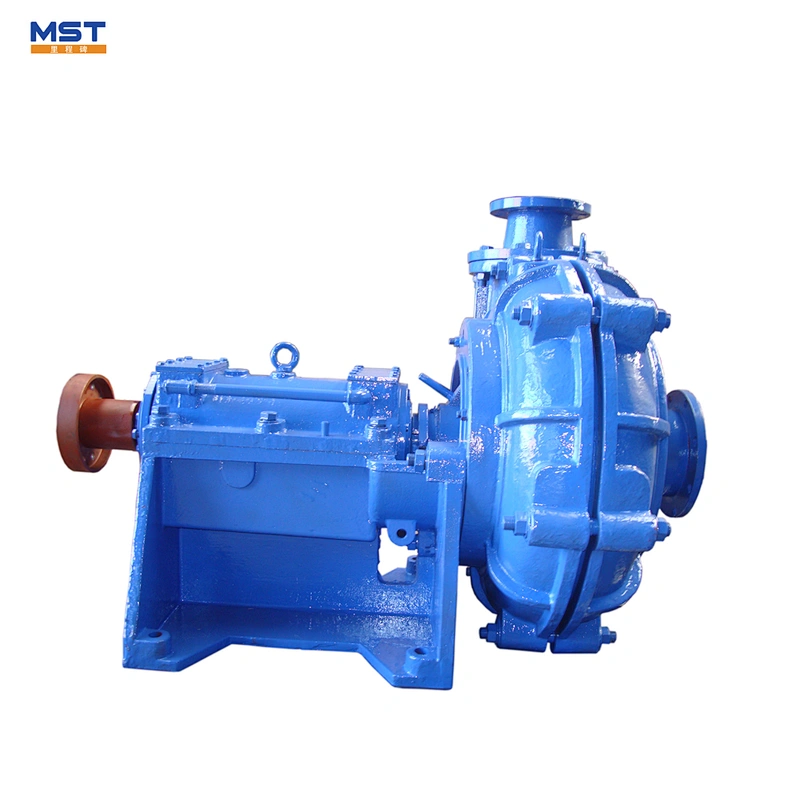

The MAH series slurry pumps are cantilevered, horizontal, centrifugal pumps, the shaft seal adopts gland seal or centrifugal seal.
The MAH series slurry pumps are robust state of the art slurry pumps that feature oil or grease lubrication bearing assemblies and complete interchangeable with other major brands.
The MAH slurry pumps are designed to transfer of abrasive and high density slurries in mining and heavy duty.
Technical Data
| Flowrate | 3-1500l/s |
| Max.Head | 118m |
| Max. Working Pressure | 1200kPa |
| Max. Solid Size | 75mm |
| Suction | 37.5-500mm |
| Discharge | 25-450mm |
| Impeller Diameter | 152-1370mm |
| Motor Sizes | 15-1200kW |
| Operating Speed | 200-3800rpm |
Pump Features
- Choice of piston ring style labyrinth or other new style of water proof
- Fully interchangeable with the common brand reducing inventory hold requirements
- A full range of mechanical seal adaptations available upon request
- Oil lubrication or packed grease
- Painted tn customer specifications upon request
Construction drawing
A complete range of build specifications
- Rubber lined with rubber impeller
- Rubber lined with metal impeller
- All metal lined using white iron chrome alloys
- Urethane lined with optional urethane impeller for special applications
Different Seal Arrangements
Performance data
Clear Water Performance Curves
Diesel engines
| Engine model | famous brand |
| rated power(KW) | 10-1200 |
| rated speed(r/min) | 1500/3000 |
| cylinder number | 2/4/6/8/12 |
| starting method | electric |
| cooling method | water cooled |
| speed mode | mechanical(electric optional) |
| control panel | display: water&oil temperature,oil pressure,speed |
Pump Applications
Company Information
Who we are:
- 20 years experience of manufacture with 5 years oversea service.
- Advanced equipment with qualified engineers.
- Large foundry to control excellent quality.
Milestones at pump exhibitions
