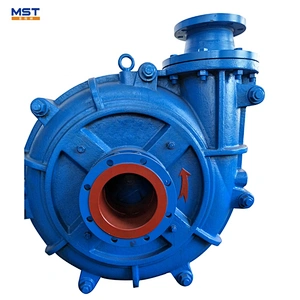

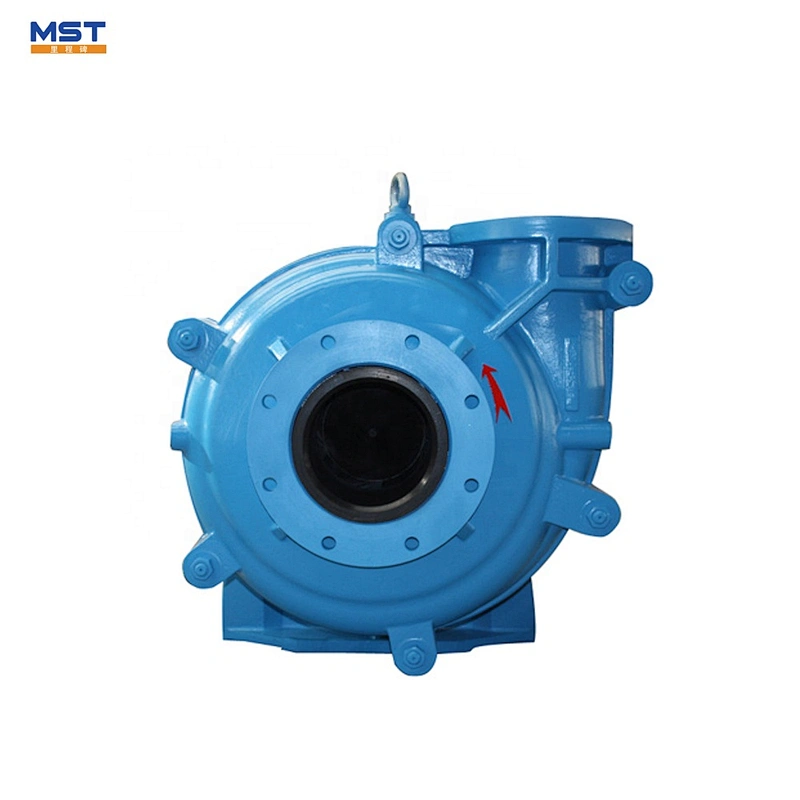

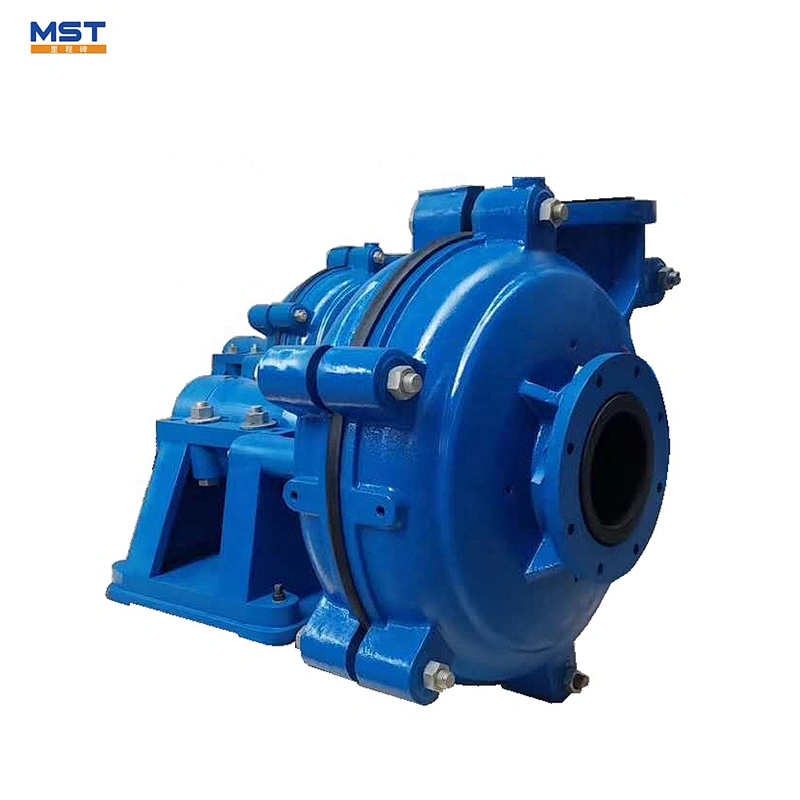

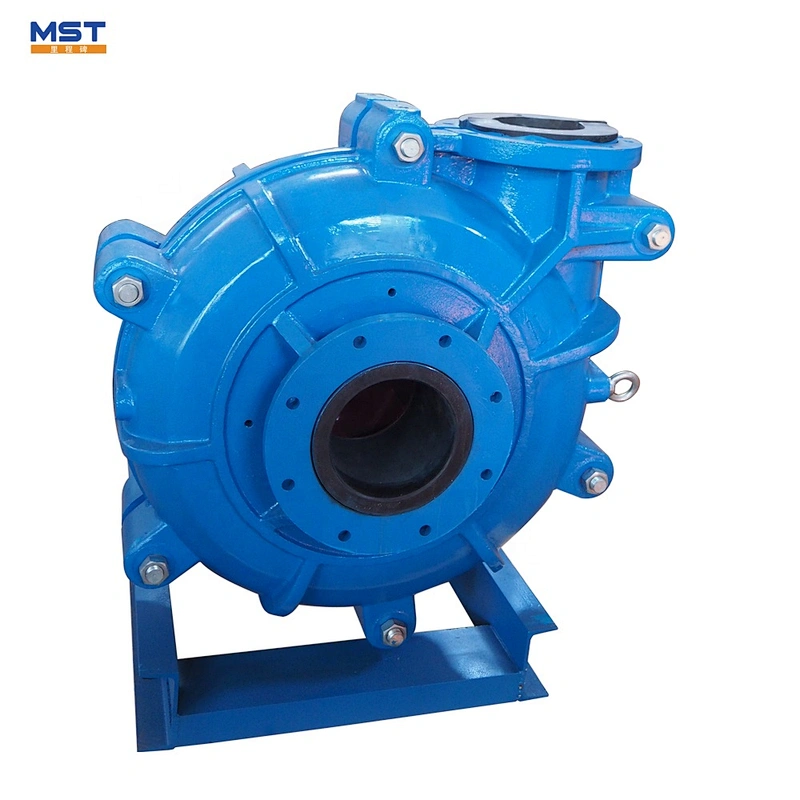

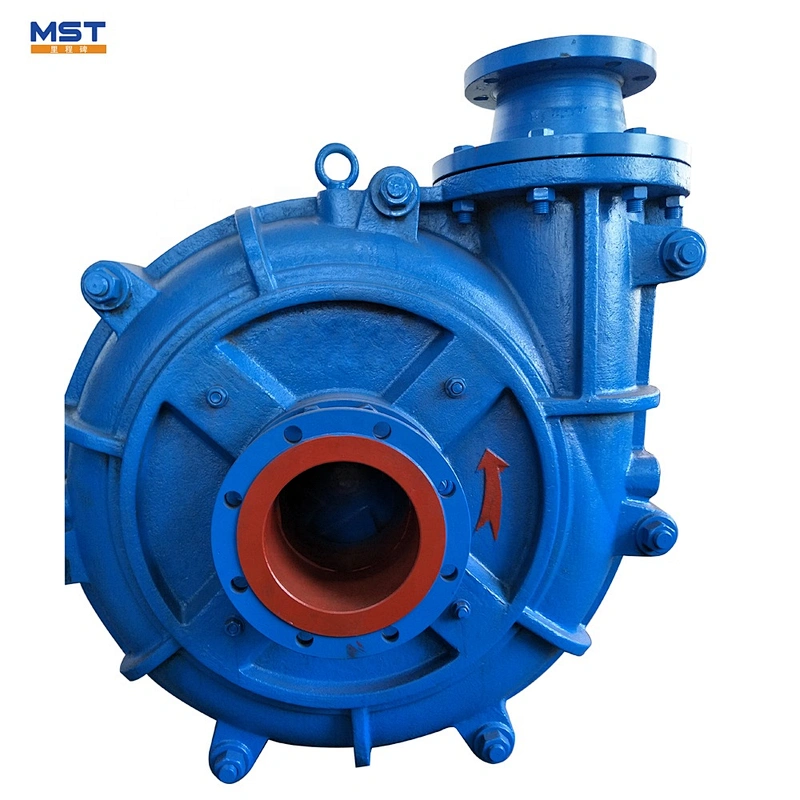

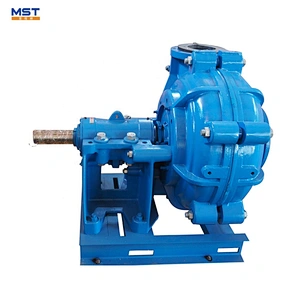

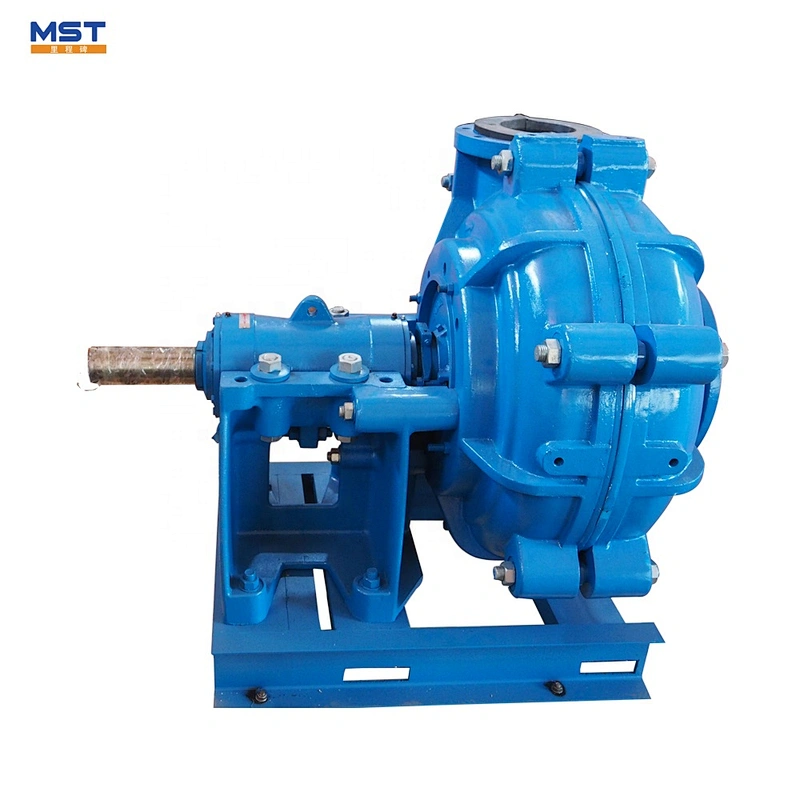

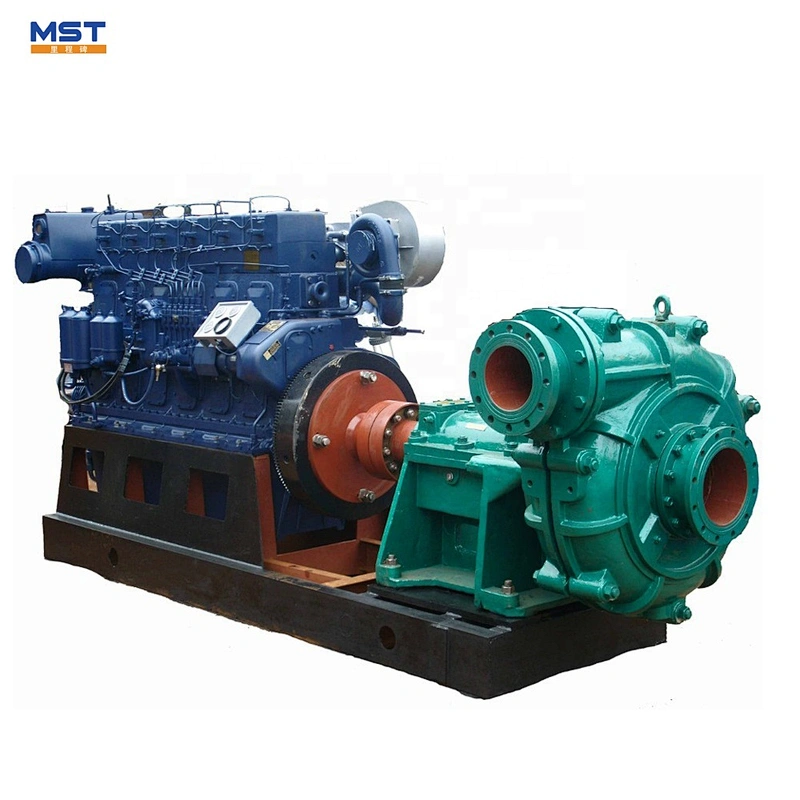

Cyclone used slurry recycle pump
TheMST MAH slurry pump series are robust state of the art slurry pumps that feature oil or grease lubrication bearing assemblies and completely interchangeable with other major brands. The HS can be supplied in either a packed gland version using expeller technology or mechanical seal system specifically designed for heavy-duty slurry applications.
Features
- Choice of piston ring style labyrinth or other new styles of waterproof
- Fully interchangeable with the common brand reducing inventory hold requirements
- A full range of mechanical seal adaptations available upon request
- Oil lubrication or packed grease
- Painted to customer specifications upon request
A complete range of build specifications
- Rubber lined with rubber impeller
- Rubber lined with metal impeller
- All metal lined using white iron chrome alloys
- Urethane lined with optional urethane impeller for special applications
Clear water performance
| Clear water performance of MS-HS | |||||||||||
| Type | Max. power | Capacity | Head | Speed | Max. Eff | NPSH | IMPELLER | Max. particle size | Weight (KG) | ||
| Quantity of vanes | Diameter (mm) | ||||||||||
| kw | (m³/h) | (l/s) | (m) | (r/min) | % | (m) | mm | ||||
| AH1.5/1-HS | 15 | 12-28 | 3.5-8 | 6-65 | 1200-3800 | 40 | 2-4 | 5 | 150 | 14 | 90 |
| AH2/1.5-HS | 15 | 32-72 | 9-20 | 6-58 | 1200-3200 | 45 | 3.5-8 | 5 | 185 | 19 | 105 |
| AH3/2-HS | 30 | 39-86 | 11-24 | 12-64 | 1300-2700 | 55 | 4-6 | 5 | 215 | 25 | 190 |
| AH4/3-HS | 30 | 86-198 | 24-55 | 9-52 | 1000-2200 | 71 | 4-6 | 5 | 245 | 28 | 260 |
| AH4/3-HS(D) | 60 | 86-198 | 24-55 | 9-52 | 1000-2200 | 71 | 4-6 | 5 | 245 | 28 | 360 |
| AH6/4-HS | 60 | 162-360 | 45-100 | 12-56 | 800-1500 | 68 | 5-8 | 5 | 365 | 44 | 625 |
| G6/4-HS(D) | 60 | 36-244 | 10-68 | 7-51 | 600-1400 | 50 | 2.5-3.5 | 3 | 378 | 82 | |
| AH6/4-HS(E) | 120 | 162-360 | 45-100 | 12-56 | 800-1500 | 68 | 5-8 | 5 | 365 | 44 | 728 |
| AH8/6-HS | 120 | 360-830 | 100-230 | 10-61 | 500-1140 | 72 | 2-9 | 5 | 510 | 63 | 1470 |
| G8/6-HS(E) | 120 | 133-576 | 37-160 | 10-48 | 800-1400 | 60 | 3-4.5 | 3 | 378 | 127 | |
| G10/8-HS(S) | 560 | 216-930 | 60-258 | 11-44 | 500-940 | 65 | 3-7.5 | 3 | 533 | 178 | |
| AH10/8-HS | 260 | 612-1368 | 170-380 | 11-61 | 400-850 | 71 | 4-10 | 5 | 685 | 76 | 3800 |
| AH12/10-HS | 560 | 936-1980 | 260-550 | 7-68 | 400-750 | 82 | 6 | 5 | 760 | 86 | 4320 |
| AH14/12-HS | 560 | 1260-2772 | 350-770 | 13-63 | 300-600 | 77 | 3-10 | 5 | 965 | 90 | 6400 |
Curves of HS series
Who we are?
- 20 years experience of manufacture with 5 years overseas service.
- Advanced equipment with qualified engineers.
- Large foundry to control excellent quality.
