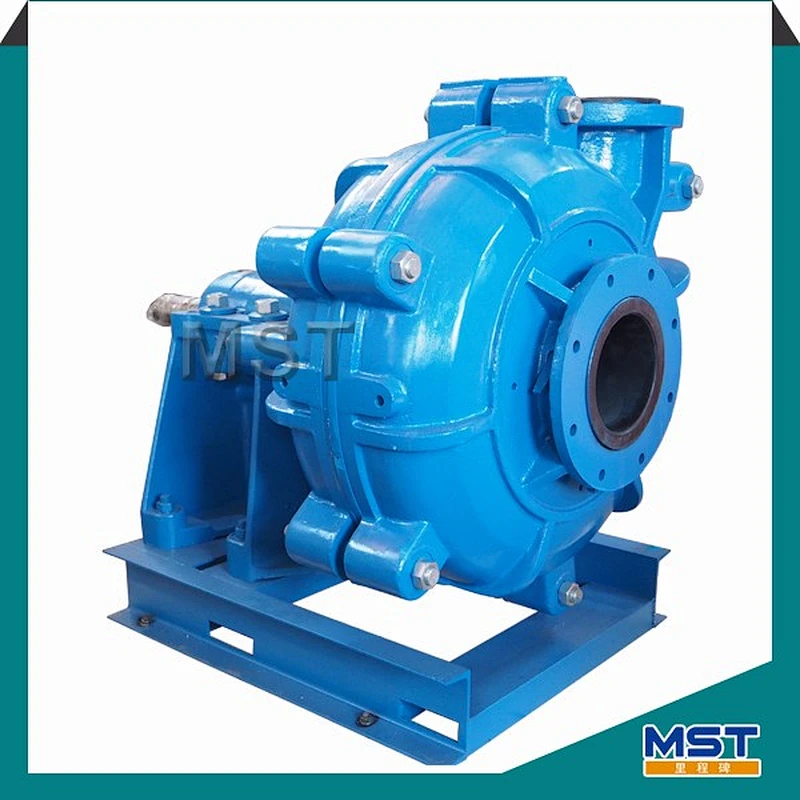

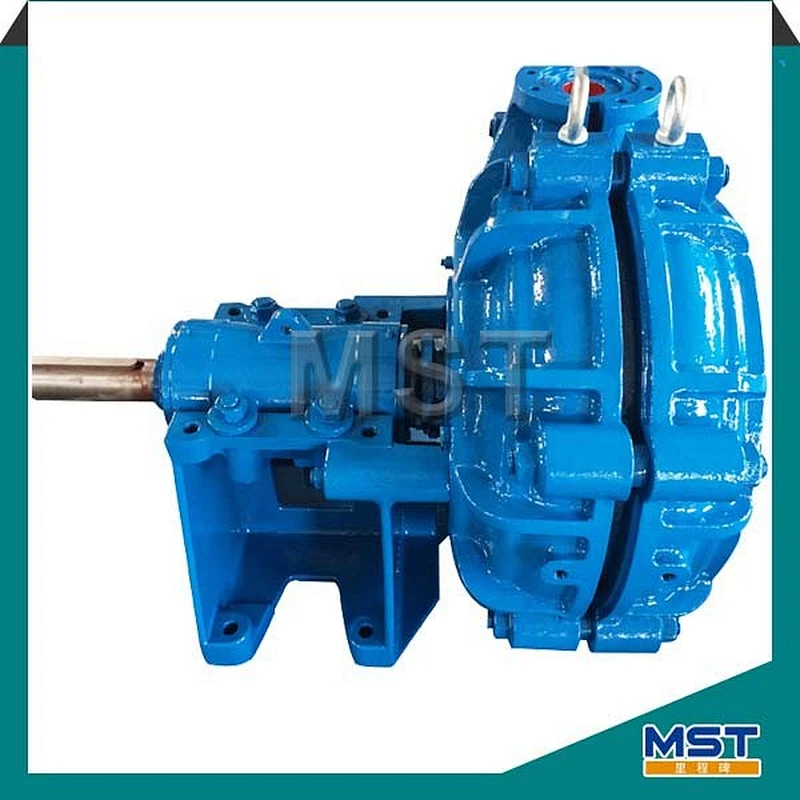

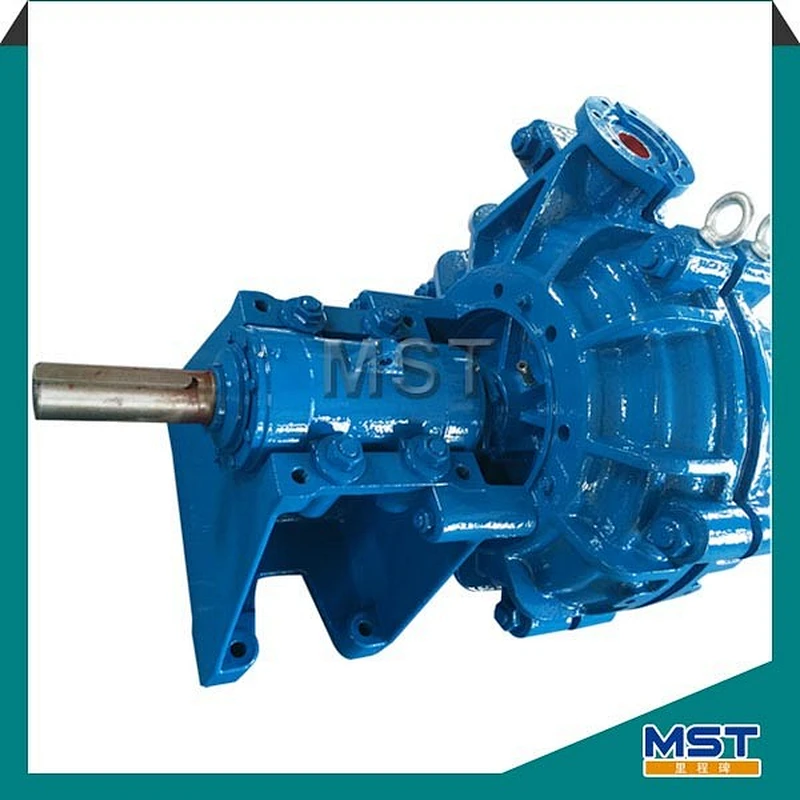

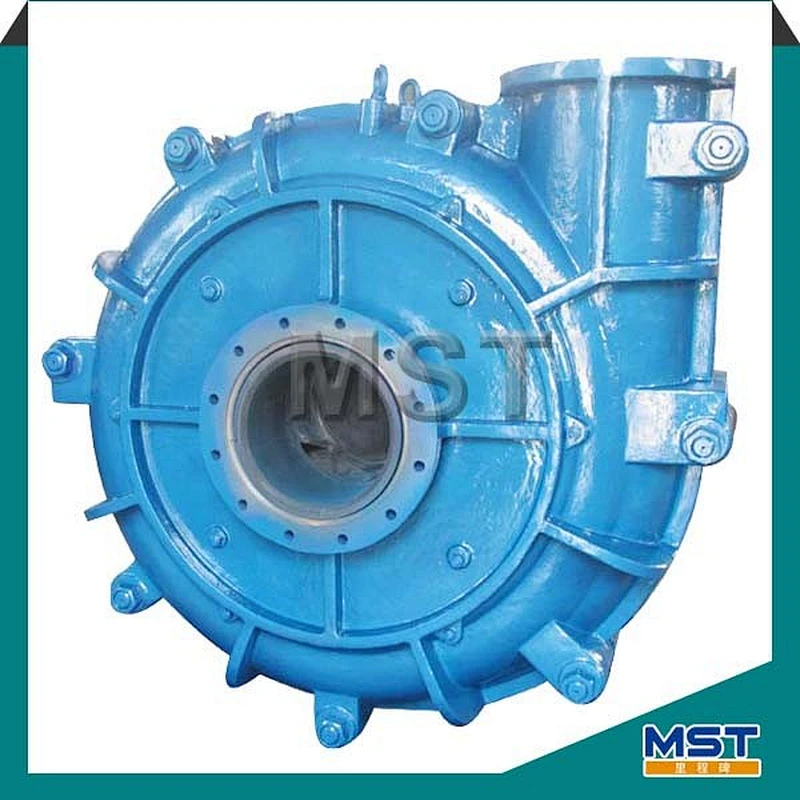

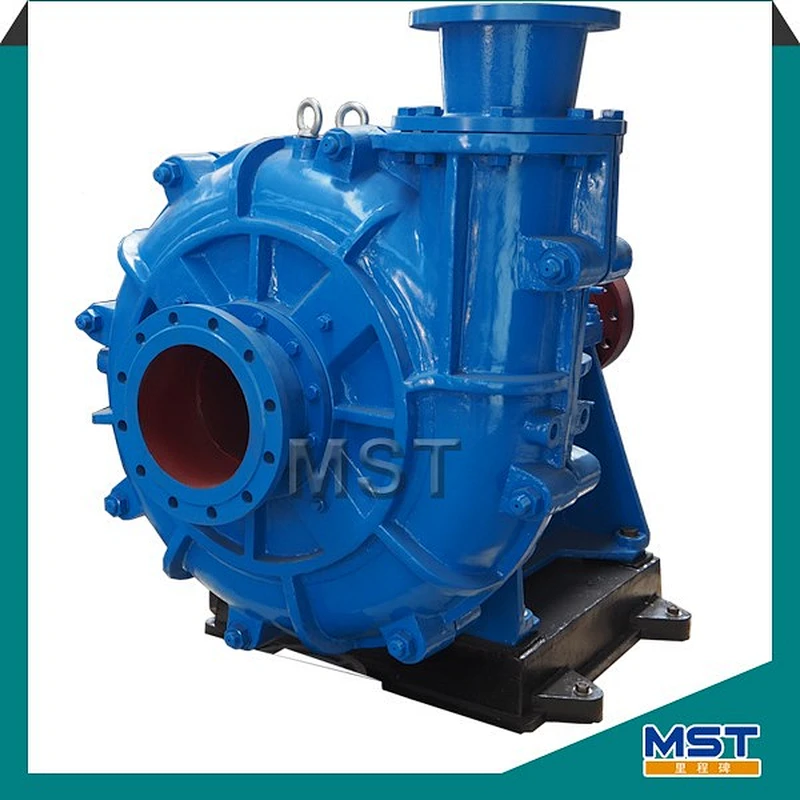

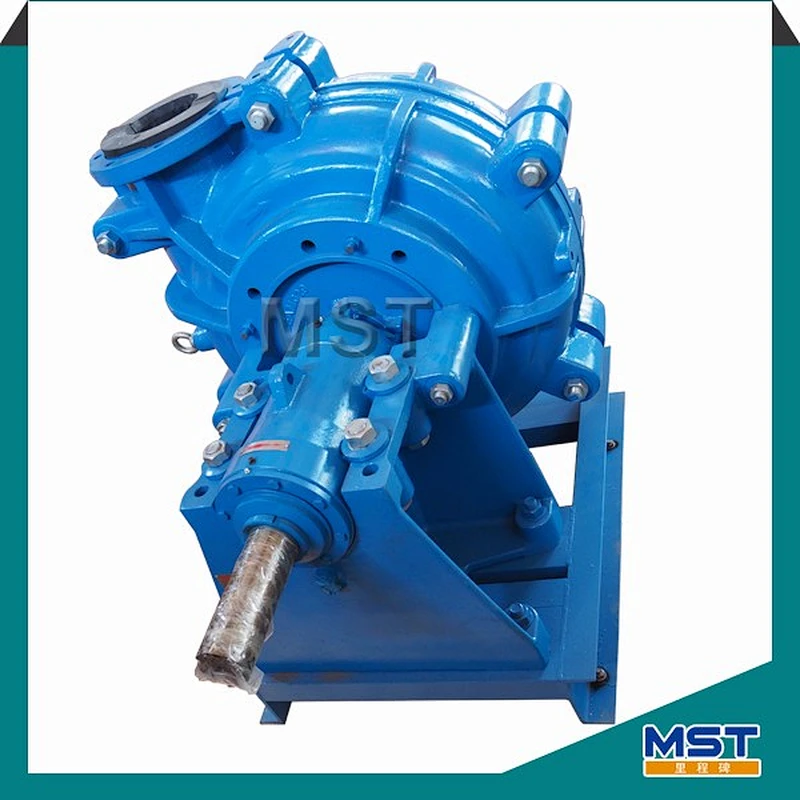

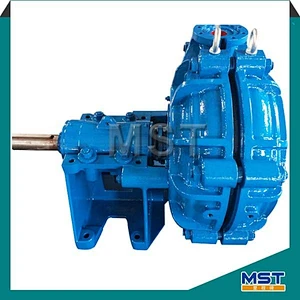

Centrifugal electric motor driven slurry pumps

Centrifugal electric motor driven slurry pumps

Model NO.: MAH
Price:: USD 755.00-2996.00 / set
Delivery: FOB
Minimum order quantity: 1 set
Supply Ability: 600 set / Quarterly
Country of Origin: Tianjin/ Qingdao/ Shanghai/Guangzhou/As customer required
Stock Time: Shipped in 7 days after payment Day

Quantity:

Product Description
Basic Information

Centrifugal electric motor driven slurry pumps

Product Description

Introduction

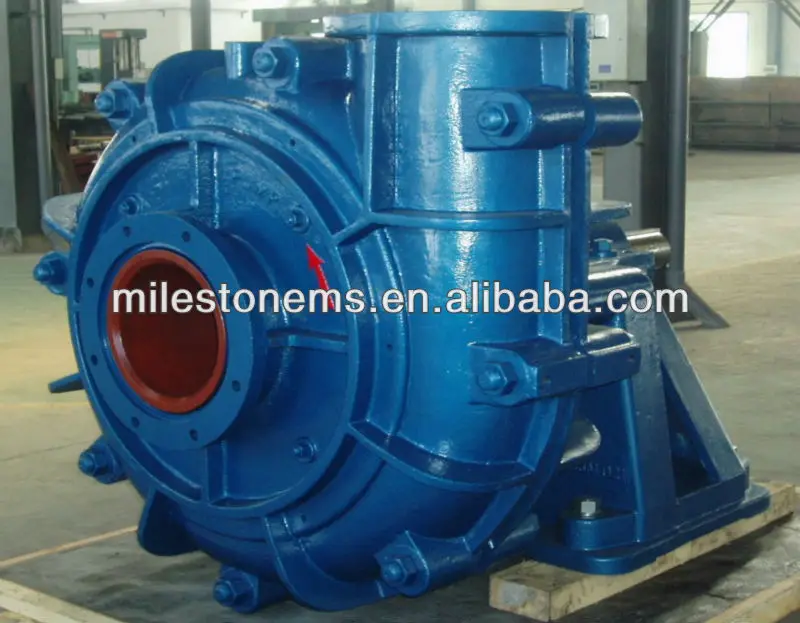

Milestone MAH series pumps are heavy duty horizontal metal lined slurry pumps designed to handle abrasive and high density slurries in mining and heavy industry.

All Milestone MAH slurry pumps are designed to be 100% fully interchangeable with the most common slurry pump.

slurry pump

Application

Coal
Coarse sand
Mineral sands
Fine tailings
Dredging
Pulp and paper
Ni acid slurry

Pump Feature

1>Choice of piston ring style labyrinth or other new style of water proof

2>Fully interchangeable with the common brand reducing inventory hold requirements

3>A full range of mechanical seal adaptations available upon request

4>Oil lubrication or packed grease

5>Painted tn customer specifications upon request

Pump Performance Ranges

Size range (discharge)
1” to 18”
25 mm to 450 mm
Capacities
to 22,000 gpm
to 6500 m3/hr
Heads
to 240 ft
to 125 m
Pressures
to 300 psi
to 2,020 kPa

Shaft Sealing

Pump Material

Rubber Pump			Metal Pump
No.	Part Description	Material Specification	No.	PartDescription	MaterialSpecification
1	Base	Cast Iron	1	Base	Cast Iron
2	Shaft	4140 High Tensile Steel*	2	Shaft 4140	High Tensile Steel*
3	Bearing Assembly	Timken (Cast Iron Body)	3	Bearing Assembly	Timken (Cast Iron Body)
4	Shaft Sleeve	420 Stainless Steel	4	Shaft Sleeve	420 Stainless Steel
5	Pump Casing	Cast Iron	5	Pump Casing	Cast Iron
6	Frame Plate	Liner Insert Rubber	6	Frame Plate	Liner 27% Chrome White Iron
7	Cover Plate	Liner Rubber	7	Volute Liner	27% Chrome White Iron
8	Impeller	Rubber Coated High Tensile Steel	8	Impeller 27%	Chrome White Iron
9	Throat Bush	Rubber	9	Throat Bush	27% Chrome White Iron
10	Cover Plate	Cast Iron	10	Joint Rings	Rubber
11	Stuffing Box	Cast Iron	11	Cover Plate	Cast Iron
12	Expeller	27% Chrome White Iron	12	Stuffing Box	Cast Iron
13	Expeller	Ring Natural Rubber	13	Expeller 27%	Chrome White Iron
14	Bolts	Zinc Plated Steel	14	Expeller Ring	Natural Rubber
15	O-rings	Nitrile Rubber	15	Bolts	Zinc Plated Steel
16	Seals	Rubber	16	O-rings	Nitrile Rubber
			17	Seals	Rubber
