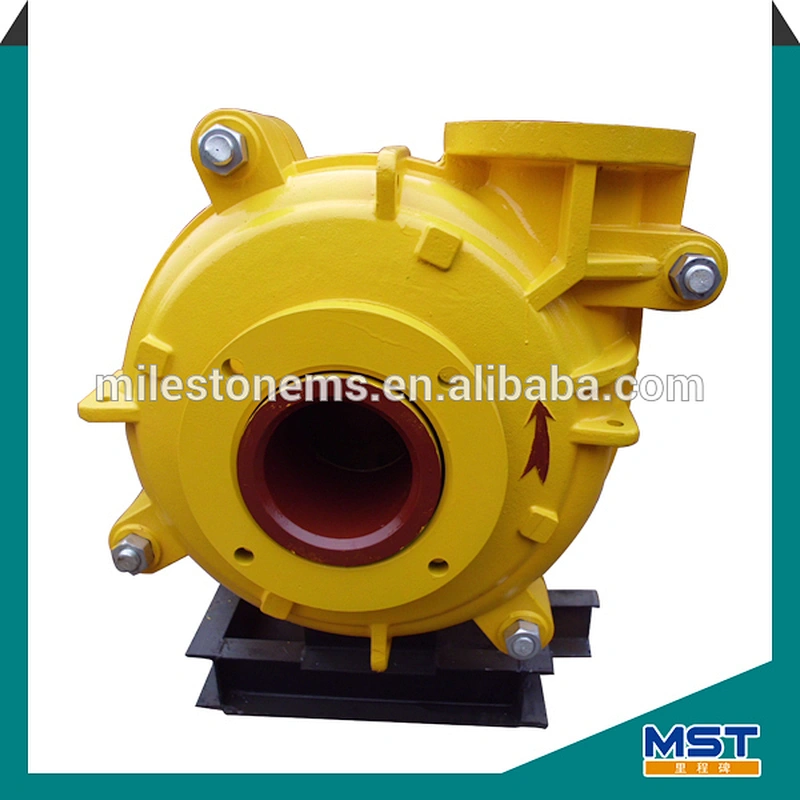

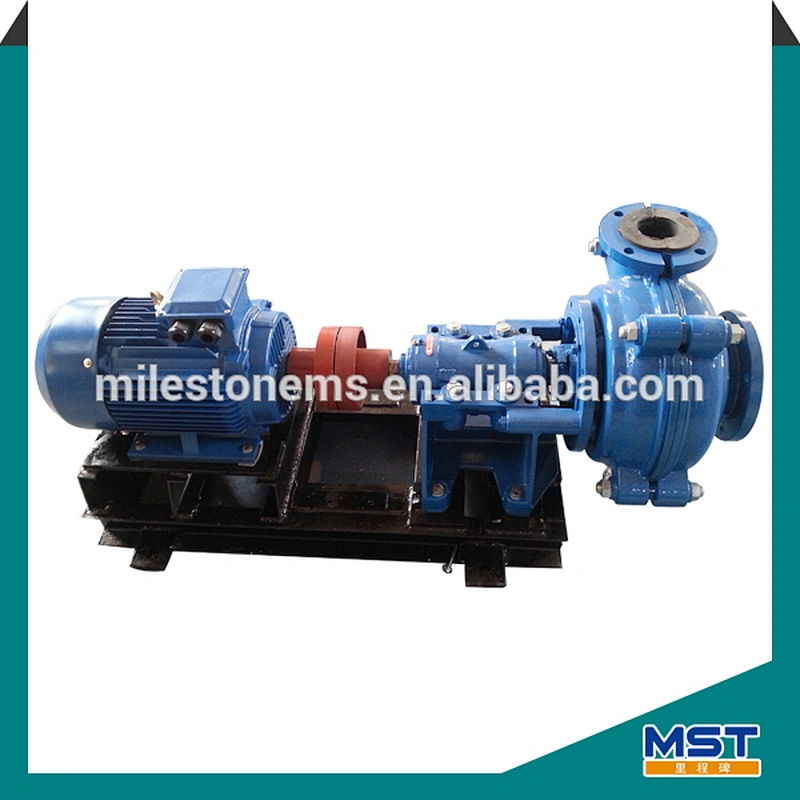

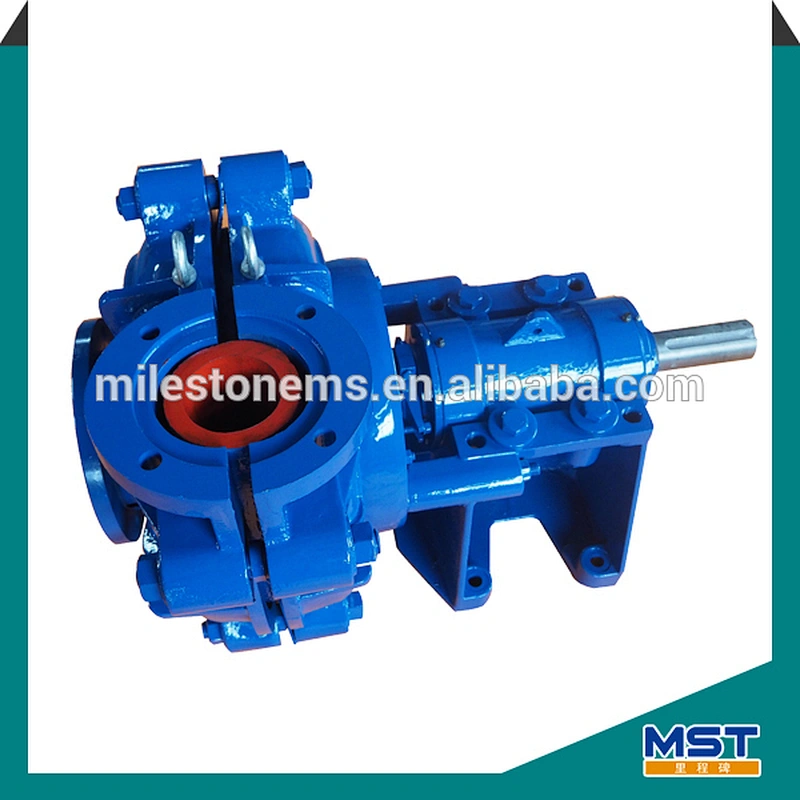

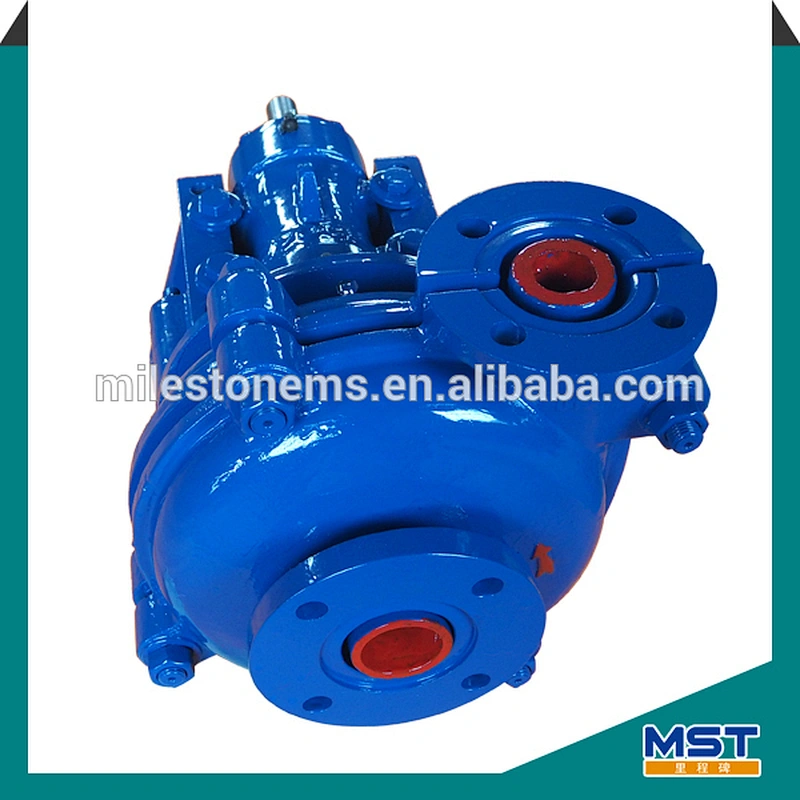

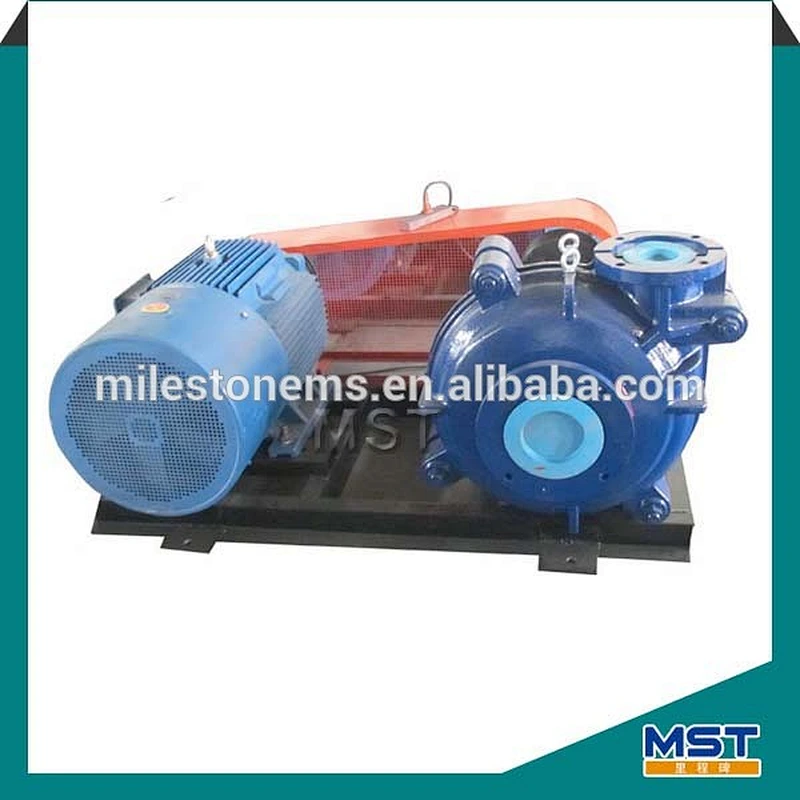

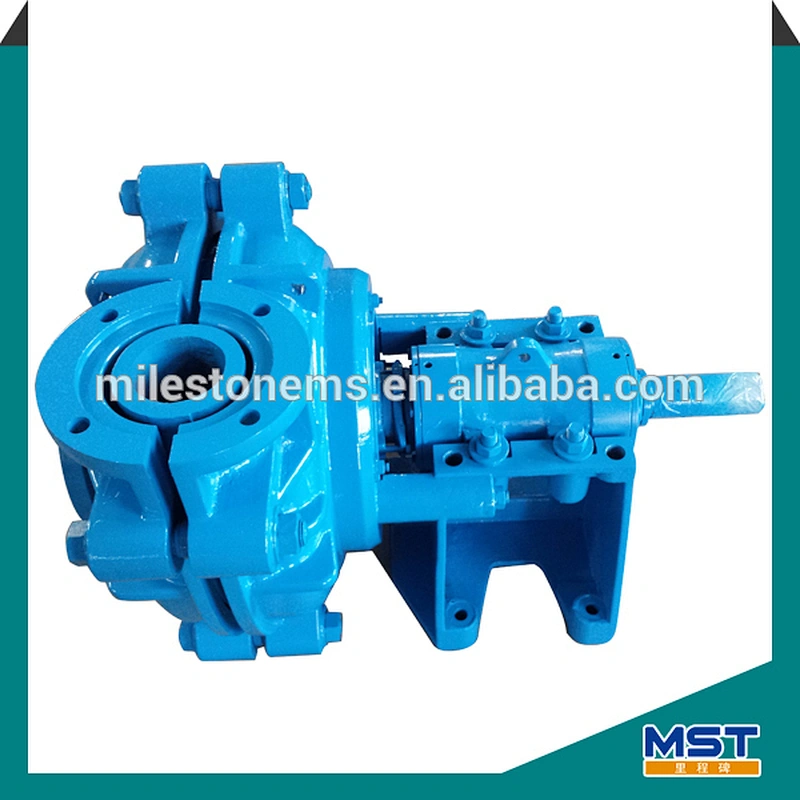

Electric slurry dewatering pump for mining
MAH Electric slurry dewatering pump for mining are widely used to transport corrosive/abrasive and high concentration slurry in many industries such as Gold, Silver, Iron ore, Tin, Steel, Coal, Titanium, Copper, Mineral sands, Lead and Zinc. Various other industries include Molybdenum, Electric Utilities, Oil Shale, Water & Sewage Utilities, Building areas, Sand & Gravel, Tobacco and Agriculture (hog, poultry, dairy manure) .
Design Features:
- Choice of piston ring style labyrinth or other new style of water proof
- Replaceable wear liner with low maintenance cost
- Sealing Flexibility Choice of packing, mechanical seals or dynamic seal
- Oil lubrication or packed grease
- Painted to customer specifications upon request
- Extra thick wet end components for extended wear life
A Complete Range of Build Specifications:
- Rubber lined with rubber impeller
- Rubber lined with metal impeller
- All metal lined using white iron chrome alloys
- Urethane lined with optional urethane impeller for special applications
Slurry Pump Model Specifications:
Model: 6 x 4 D - MAH
Annotation:
6: slurry pump inlet
4: slurry pump outlet
D: slurry pump frame type, including B, C, D, E, F, ST
MAH: Milestone metal lined slurry pump,
MAHR: Milestone rubber lined slurry pump
MHH: Milestone high head slurry pump
Model Specification:
| Slurry Pump Specification | ||||
| Model | Capacity | Head | Max. Power | Max.Particle Size |
| (m3/h) | (m) | (kw) | (mm) | |
| 1.5x1 B-MAH | 12-28 | 5-65 | 15 | 14 |
| 2x1.5 B-MAH | 32-72 | 6-58 | 15 | 19 |
| 3x2 C-MAH | 39-86 | 12-64 | 30 | 25 |
| 4x3 C-MAH | 86-198 | 9-52 | 30 | 28 |
| 6x4 D-MAH | 162-360 | 12-56 | 60 | 44 |
| 6x4 E-MAH | 162-360 | 12-56 | 120 | 44 |
| 8x6 E-MAH | 360-830 | 10-61 | 120 | 63 |
| 10x8 F-MAH | 612-1368 | 11-61 | 260 | 76 |
| 1.5x1 B-MAHR | 4-24 | 8-52 | 15 | 20 |
| 2x1.5 B-MAHR | 6-57 | 6-43 | 15 | 16 |
| 3x2 C-MAHR | 19-68 | 12-39 | 30 | 21 |
| 4x3 C-MAHR | 25-130 | 5-36 | 30 | 28 |
| 6x4 D-MAHR | 65-324 | 13-44 | 60 | 33 |
| 8x6 E-MAHR | 97-684 | 6-51 | 120 | 59 |
| 1.5x1 C-MHH | 6-30 | 35-87 | 30 | 16 |
| 3x2 D-MHH | 18-126 | 30-85 | 60 | 31 |
| 4x3 F-MHH | 28-273 | 20-125 | 120 | 38 |
Performance Curves
Pump & Spare Pumps For Reference
