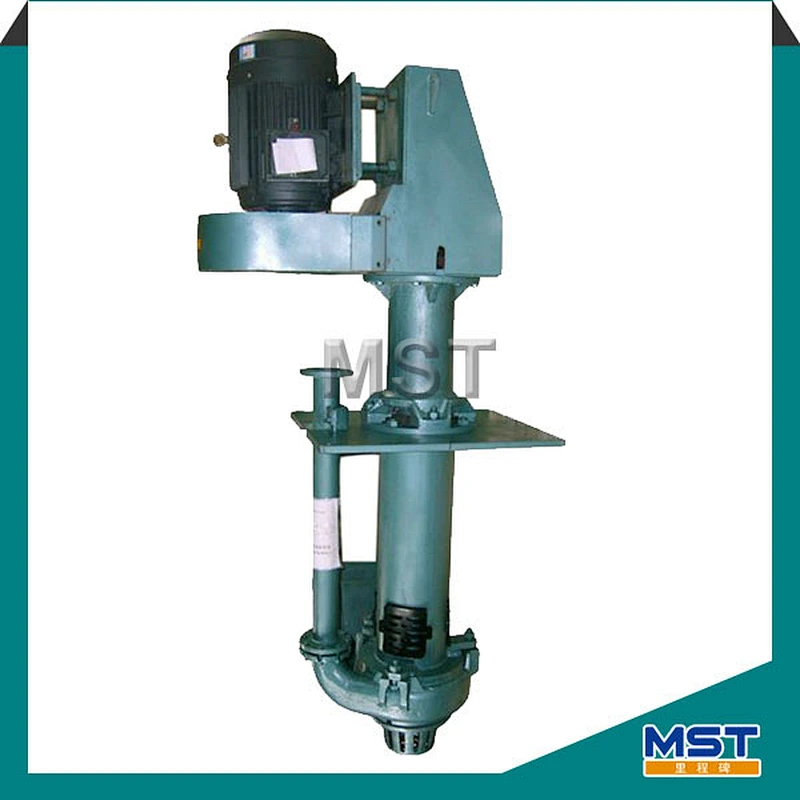

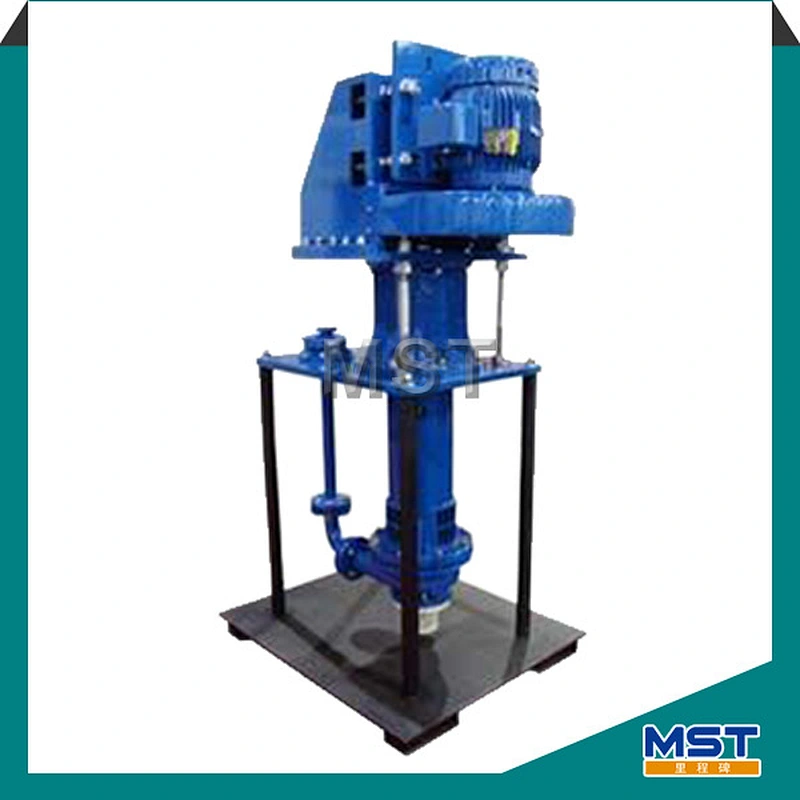

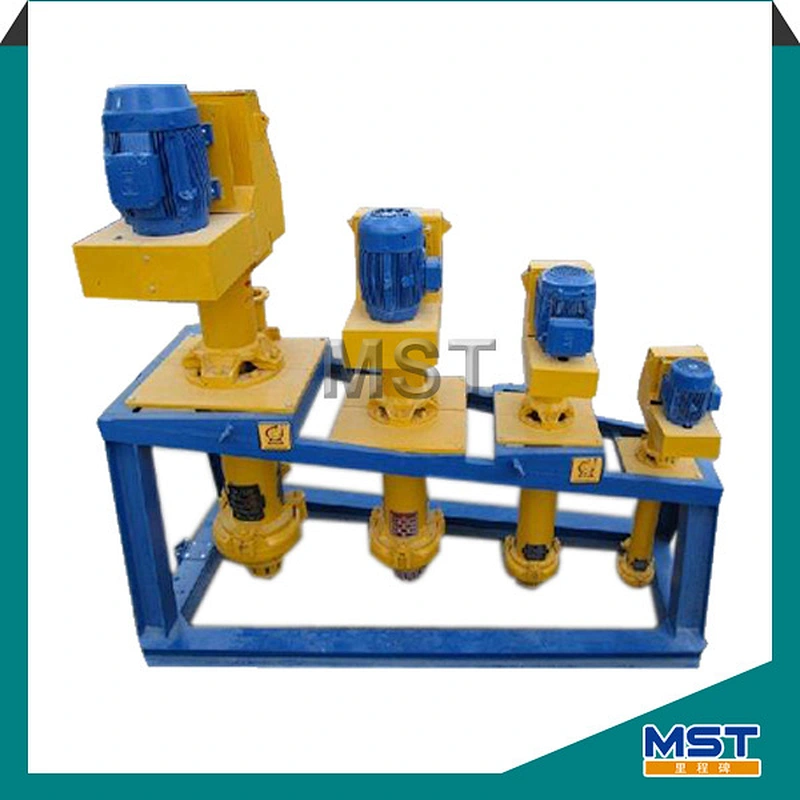

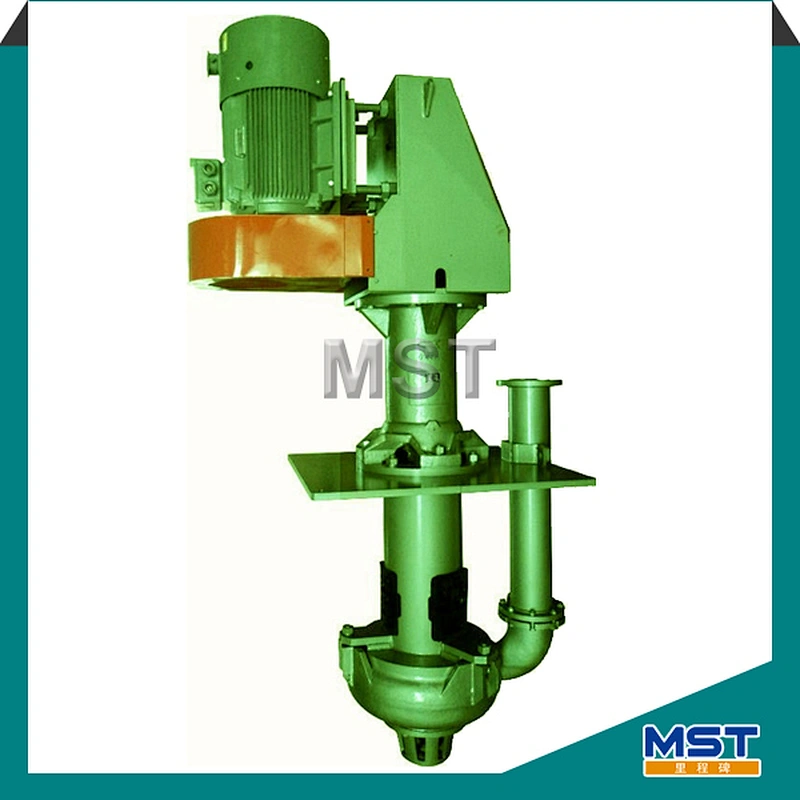

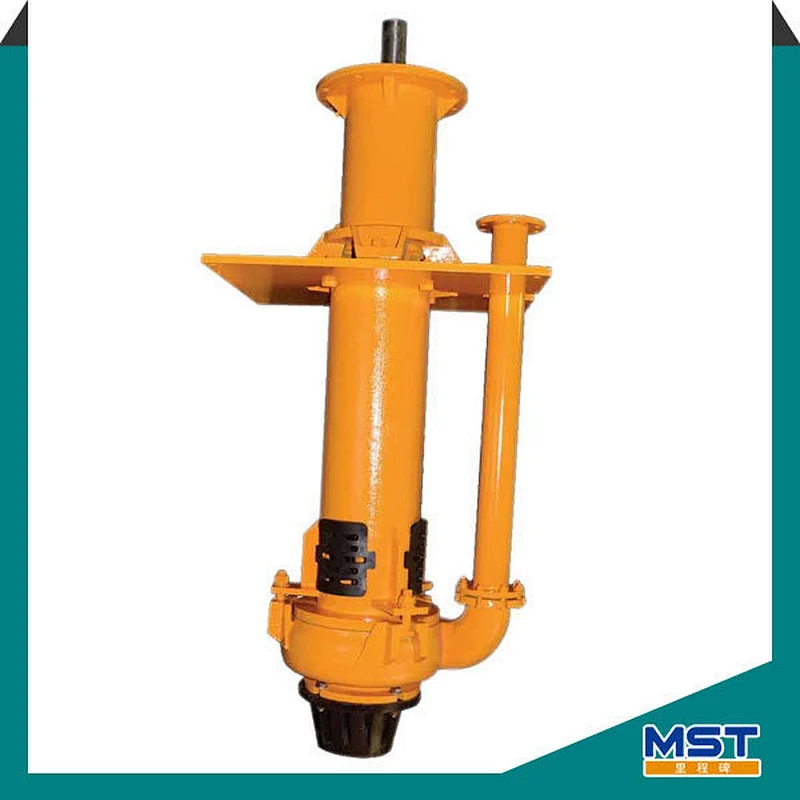

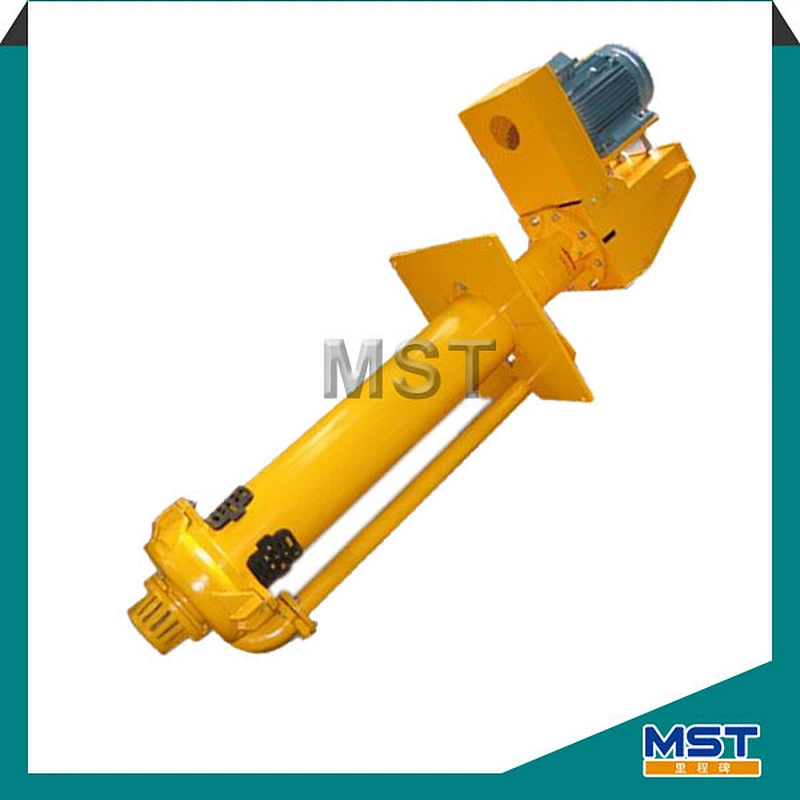

Vertical Inline Pump
Pump Description:
High efficiency electric submersible slurry pump is designed for applications requiring greater reliability and durability.
The bearing assembly allows the pump to operate in the “snore” condition without damage to the bearings.
It is designed for handling abrasive slurries and corrosive fluids by using either elastomer or alloy lined
wet ends components. The pump is suitable for mining, chemical treatment, waste water treatment, gravel and general process application.
Pump Features:
- The wear parts are made of high-chrome alloy of abrasion resistance .
- High efficiency and energy efficiency .
- Light weight and long service life time .
- Rational construction and reliable operation.
- Lower noise and vibration of the pump translates into improved hydraulic efficiency.
Technical Data:
| Flowrate | 4.8-350l/s |
| Max. Head | 40m |
| Max.Working Pressure | 400kPa |
| Max. Solid Size | 50mm |
| Discharge | 40-250mm |
| Impeller Diameter | 188-610mm |
| Motor Size | 3-150kW |
| Operating Speed | 350-2200rpm |
- Mining
- Civil Construction
- Industry
- Coal Preperation
- Mineral Processing
- Chemical Precessing
Who we are:
- 20 years experience of manufacture with 5 years oversea service.
- Advanced equipment with qualified engineers.
- Large foundry to control excellent quality.
Q:What is your product range?
A:centrifugal pump and conveyor belt.Centrifugal pump includes slurry pump,gravel pump,clean water pump,sewage pump,chemical pump,self-priming pump and diesel engine pump .Conveyor belts includes sidewall conveyor belt,flat conveyor belt and heat resistant conveyor belt.
Q:What’s is your MOQ,payment term and lead time?
A:MOQ for centrifugal pump is 1 set ,MOQ for conveyor belt is 100cbm.Pyment Term:T/T,L/C,Western Union,Paypal and Trade Assurance.Lead Time:in general 7 working days for slurry pump,15working days for water .
Q:What information should I let you know if I want to get a quotation?
A:Pump capacity,pump head,medium temperature,pump material,quantity,if possible,please also provide the pump model you are using now.price will be calculated as per the pump model,if not ,we will recommend relevant product for reference.
Q:If I put a bigger motor on my pump,will it pump more?
A:No.The anount of water and the pressure(head)that a centrifugal pump produces is related to the rotational speed,impeller diameter and size of the impeller vanes.
Q:Do you impact the finished product?
A:Yes,each batch of production and finished product will be quality checked strictly before delivering ,testing report or video can be sent to clients for reference.
Q:How do you ship the finished product?
A:By sea.By air.By international express.
