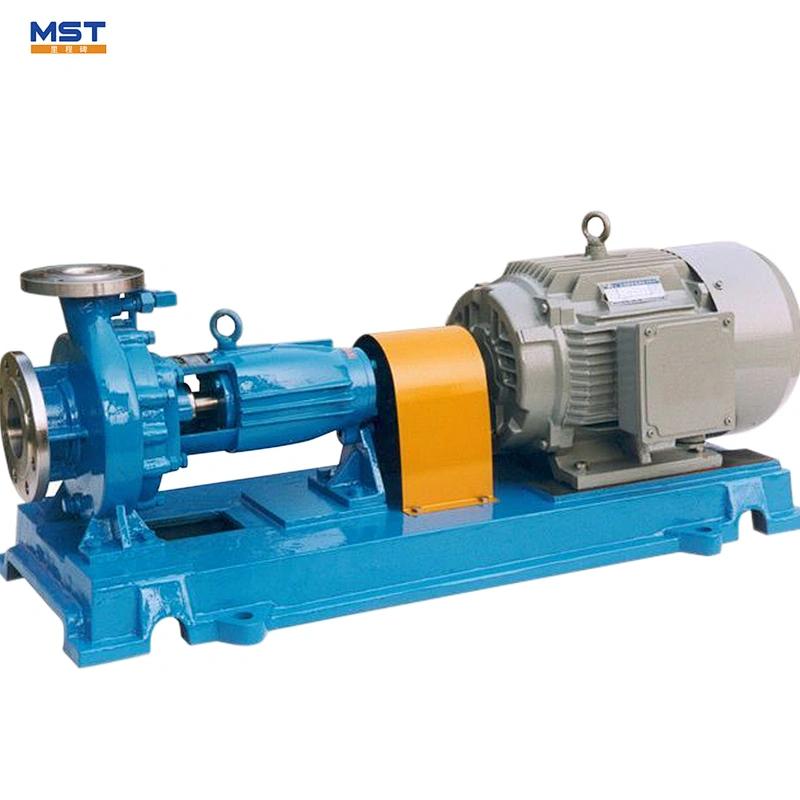

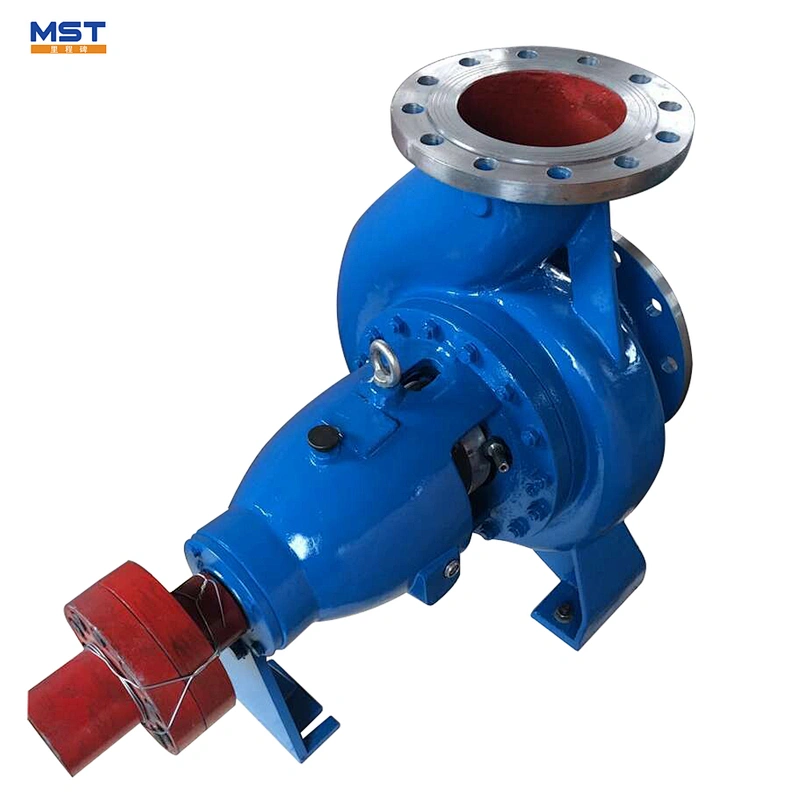

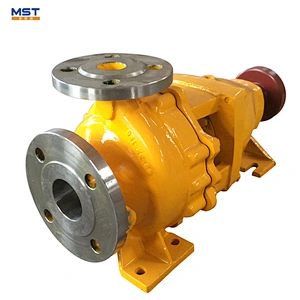

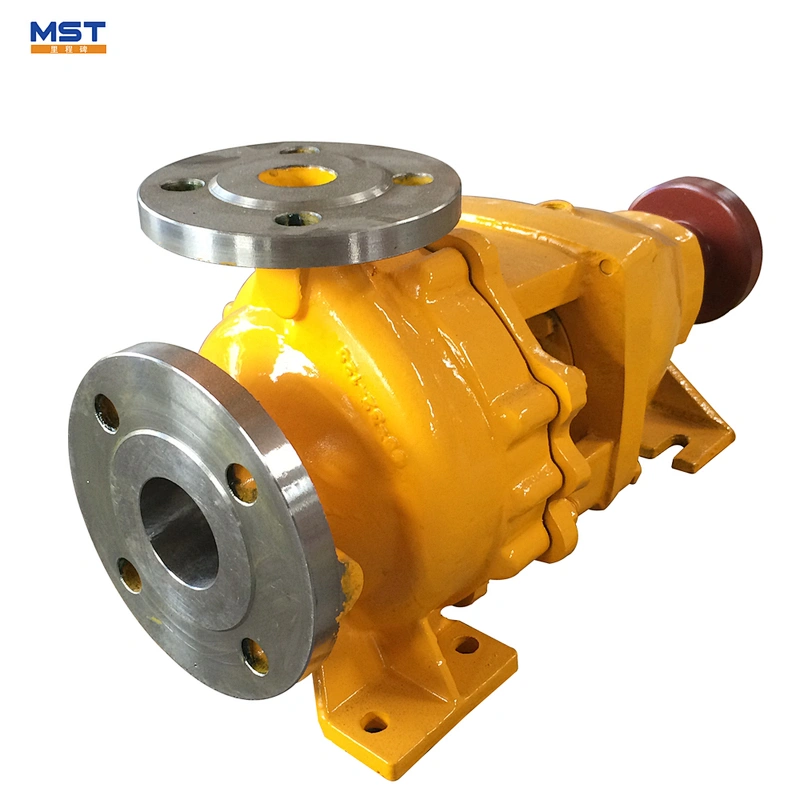

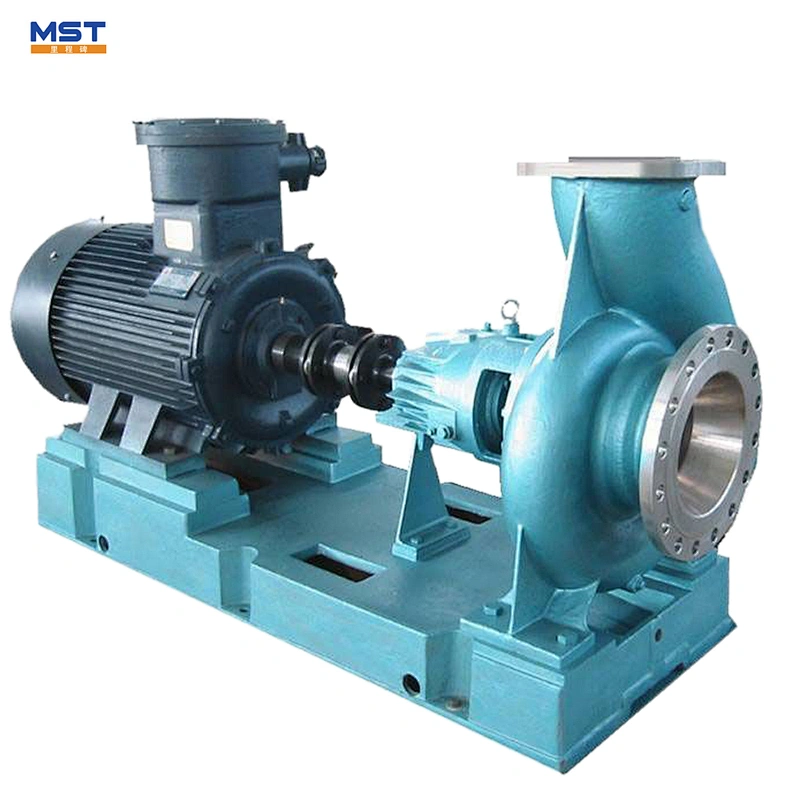

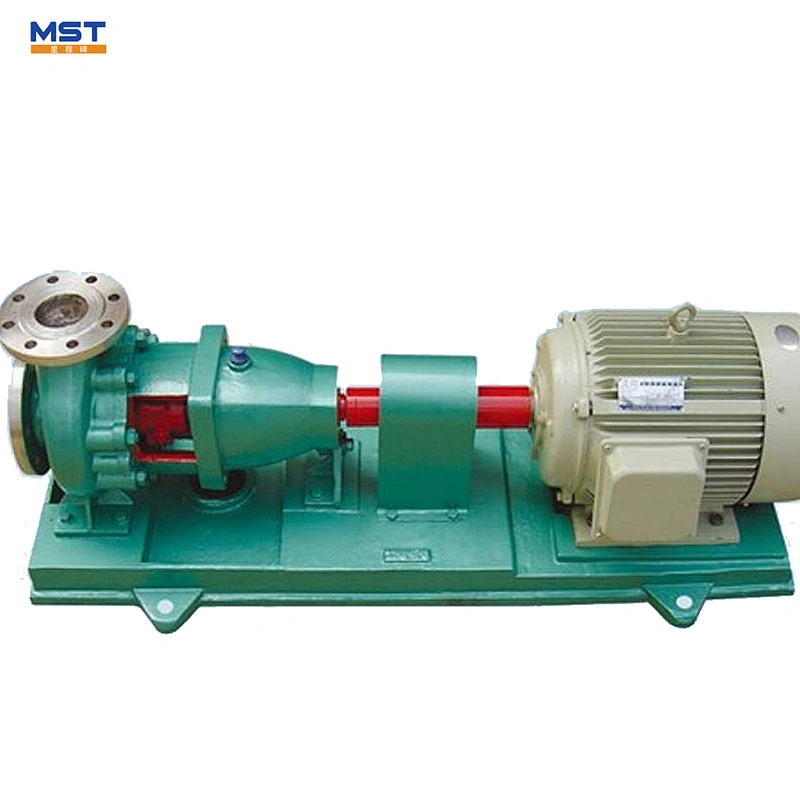

High quality centrifugal chemical water pump for boat
IH series High quality centrifugal chemical water pump for boat is single stage single suction centrifugal pump used to deliver corrosive liquid not containing solid particles and similar to water in viscidity. Horizontal End Suction Chemical Centrifugal Pump is suitable to professions and so on chemical industry, petroleum, metallurgy, electric power, papermaking, food, drugs manufacture, environmental protection, wastewater disposal and synthetic fiber uses in transporting each kind of corrosion or does not permit the pollution being similar in the water medium.
Pump features
1. Resistant to acid, alkali, wear and high temperature.
2. High mechanical strength, steady performance, good tightness.
3. Convenient operation and durable.
4. Be able to transport water that under the position it was installed. No need for filling liquid after the first time it was used.
Range of performance
Capacity: | 6.3~400m³/h |
| Head: | 5~125m |
| Speed: | 2900r/min and 1450r/min |
| Power of fitted motor: | 0.55~90kW |
| Inler diameter: | 50~200mm |
| The max working pressure: | 1.6MPa |
Performance curves
Applications
- Suitable for environment protection, construction, fire fighting, chemical pharmacy, printing, dyeing, brewage, power plant, electroplate, paper making, washing for mining and cooling for equipment.
- Application as sprayer equipped with beam nozzle that turning water into little drop irrigation for farm, garden, etc.
- It is suitable for clear water, sea water, acid or alkali chemical medium and slurry (viscosity≤100 centipoise, consistency of solid can not exceed 30% of total medium).
Who we are?
- 20 years experience of manufacture with 5 years oversea service.
- Advanced equipment with qualified engineers.
- Large foundry to control excellent quality.
Milestone in pump exhibitions
