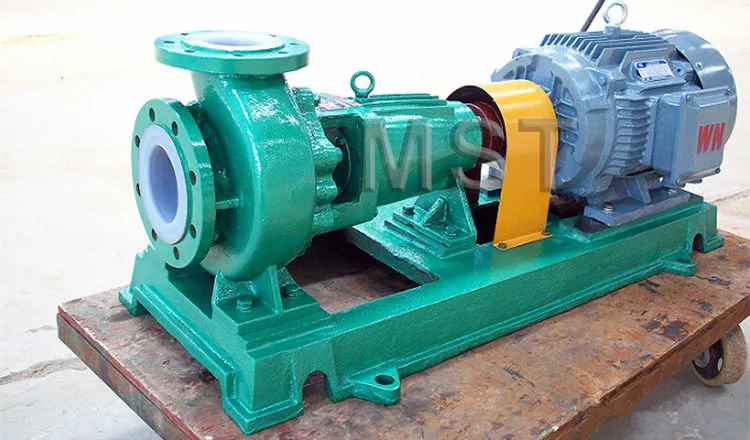

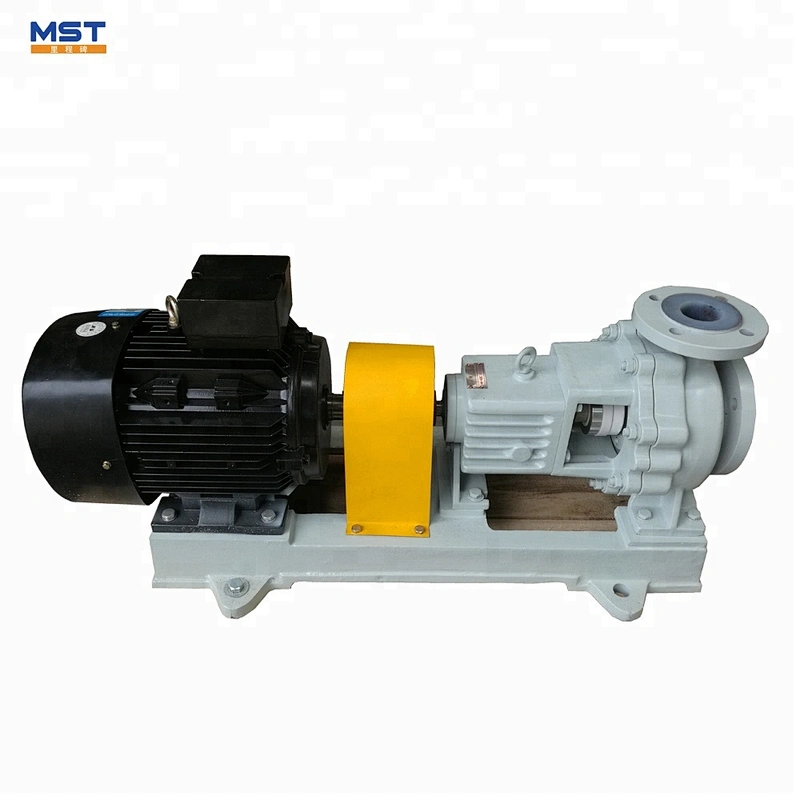

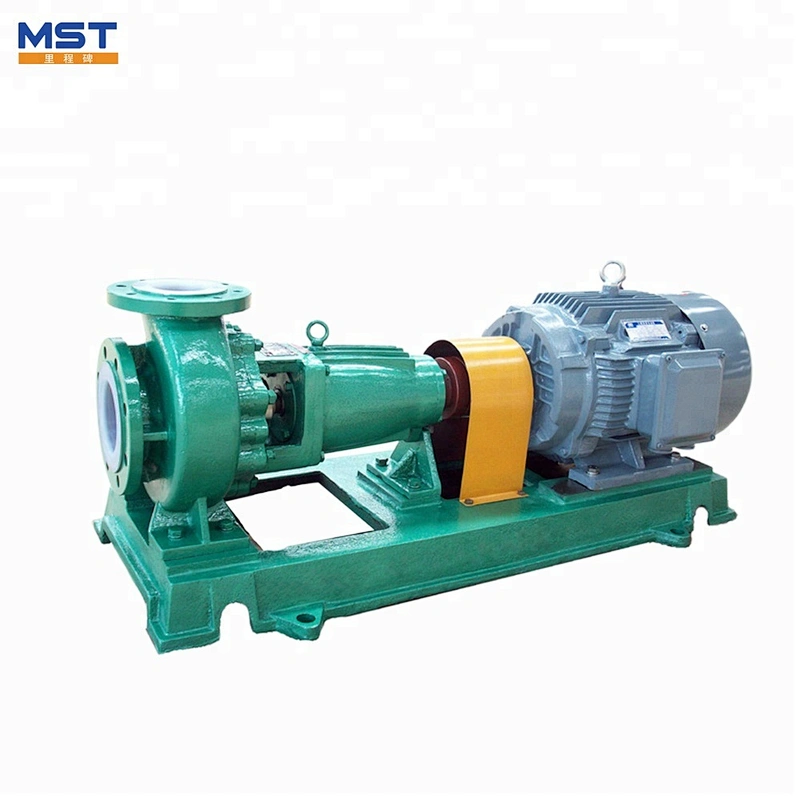

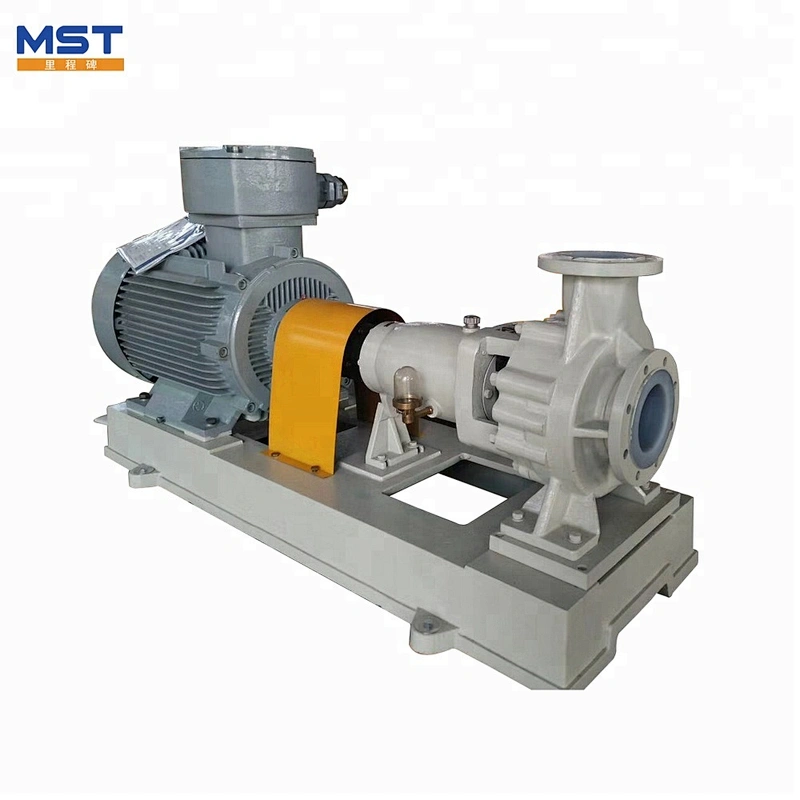

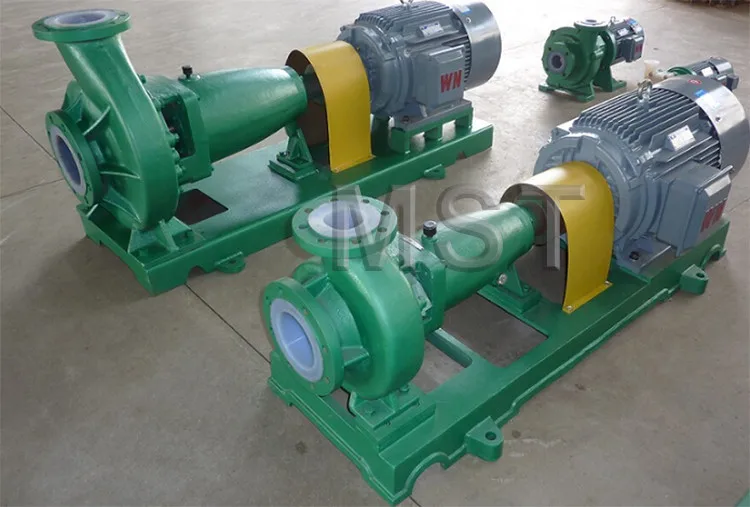

1. IHF horizontal end suction PVDF centrifugal chemical pumps for anti-corrosion acid alkali pump chemical concentrated sulfuric acid pump is with disposable sintering.
2. Working for highly corrosive mediums between -85°C~120°C (-121°F~248°F), such as arbitrary concentration of vitriol, muriatic acid, hydrofluoric acid, nitric acid, aqua regia, strong base, strong oxidant, organic solvent, reducing agent, etc.

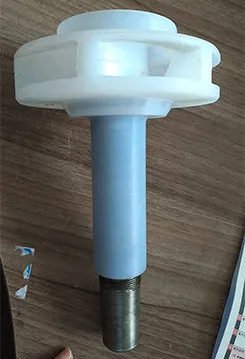

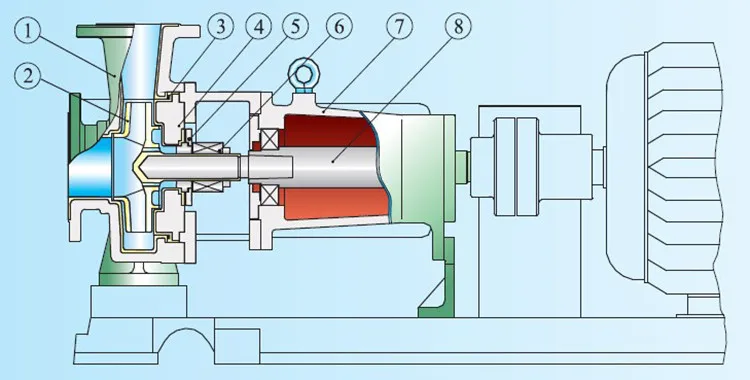

3. The casing is metal lined with PVDF, FEP, PFA, etc. Cover, impeller and shaft sleeve is metal insert with fluorine plastic jacket, inlet & outlet is strengthened with cast steel. All wet parts of pump are made of fluorine plastic.
4. Pump is widely used in chemistry, pharmacy, petroleum, metallurgy, smelting, electricity, electroplating, dye, farm chemical, papermaking, food, spinning or other industries.
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
