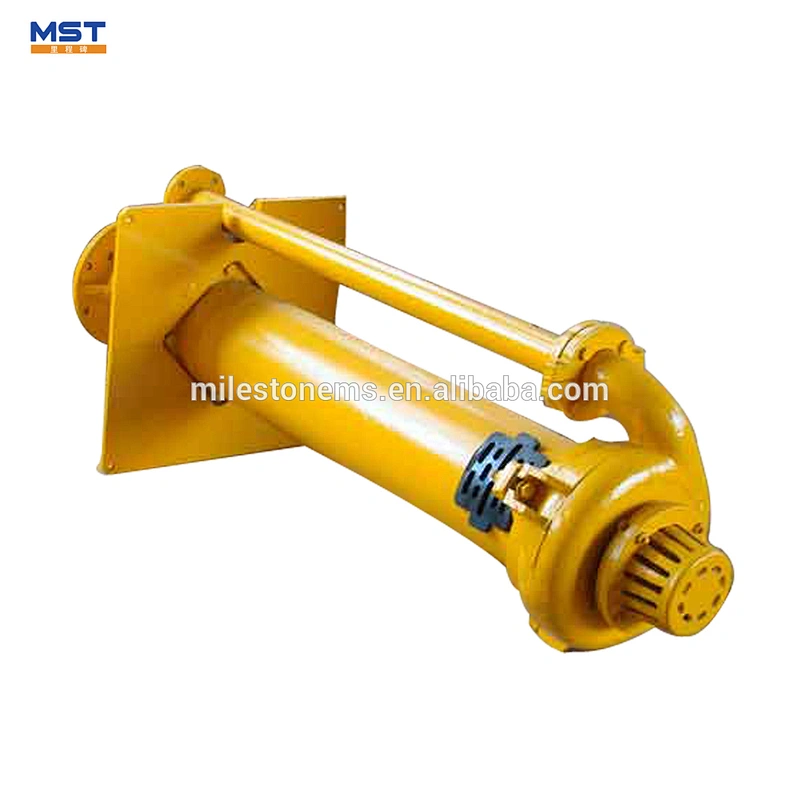

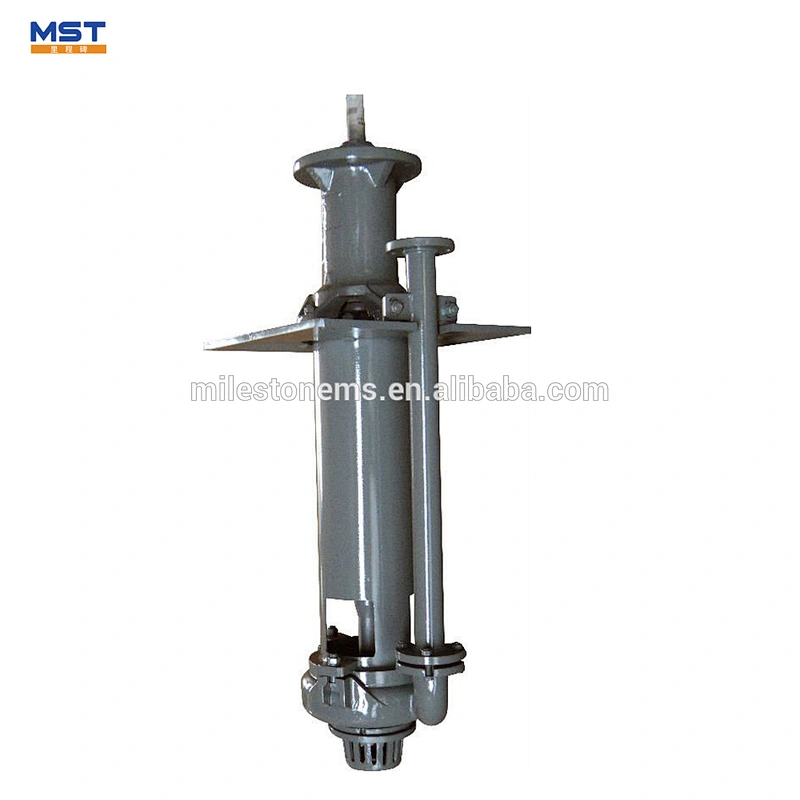

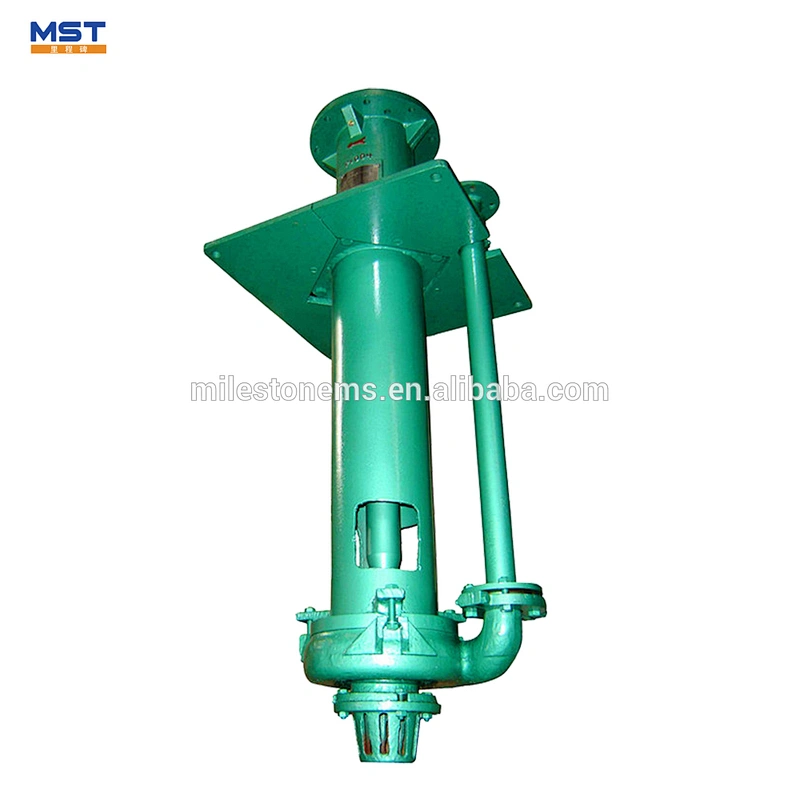

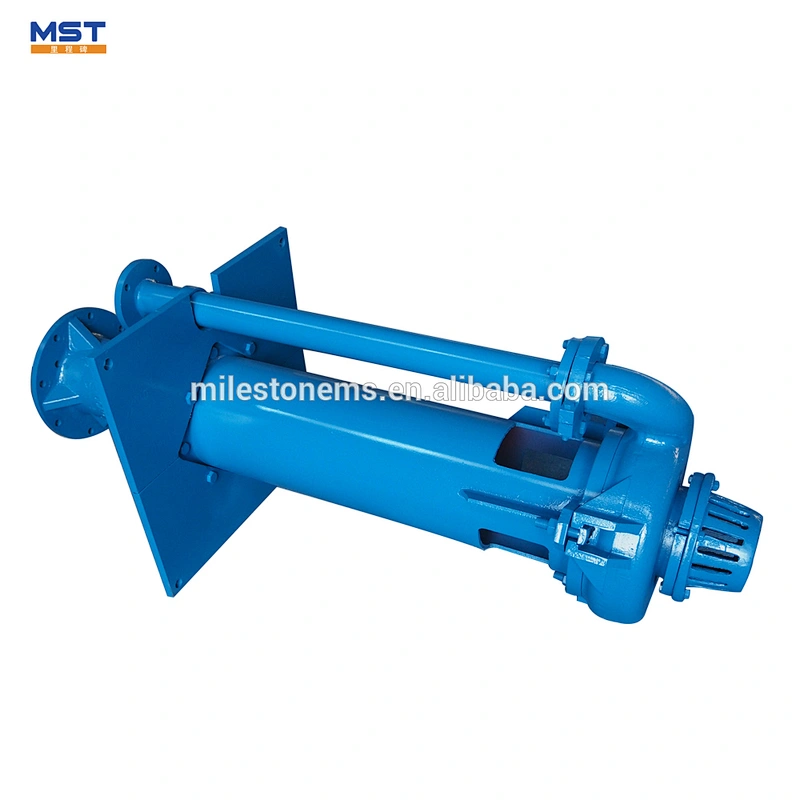

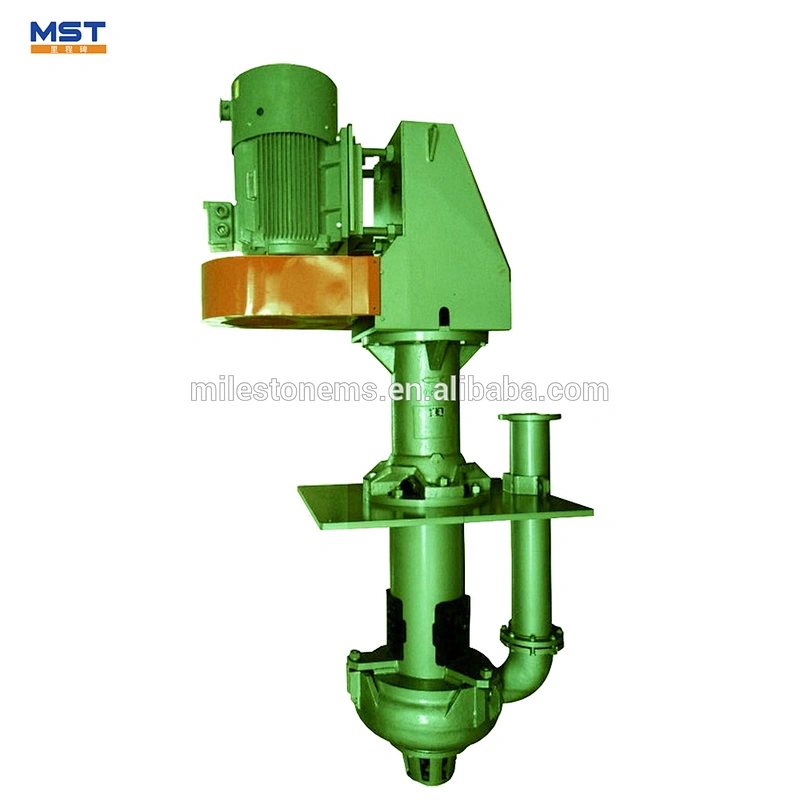

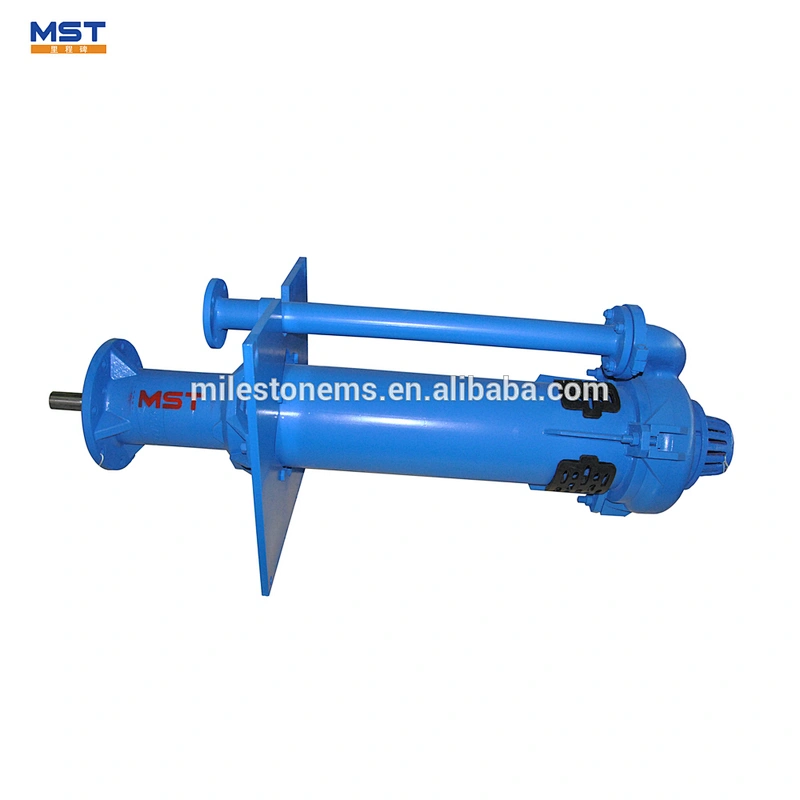

Mining vertical inline sewage centrifugal pump
The MSP/MSPR centrifugal sewage water vertical lift pump is designed for applications requiring greater reliability and durability than conventional vertical process pumps can offer. The heavy duty cantilever design makes the MSP/MSPR sump pump ideally suited for heavy continuous handling of abrasive and corrosive liquids and slurries whilst submerged in sumps or pits.
MSP/MSPR centrifugal sewage water vertical lift pump offer you:
ü Reliability
-by design.
ü Low Spares costs
-from longer wear life.
ü Lower Energy costs
-from maintained efficiency.
ü After Sales Support
-second to none.

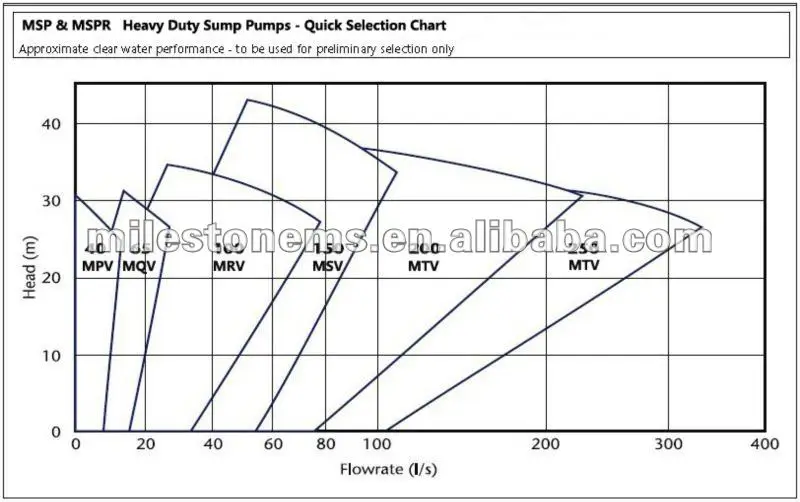

Quick selection chart
Techical data of centrifugal sewage water vertical lift pump
| Clean Water Performance of MST-Vertical Pump | ||||||||
| Model | Capacity | Head | Outlet | Max. Power | Max. Particle | Pumping Depth | No. of Vanes | Impeller Dia. |
| l/s | m | mm | kw | mm | mm | mm | ||
| MSP40PR | 1-13 | 5-24 | 40 | 15 | 12 | 900*1200 | 5 | 188-195 |
| MSP40P | 1.5-12.5 | 4-39 | 40 | 15 | 12 | 900*1200 | 5 | 188 |
| MSP65QR | 3-37 | 4-27 | 65 | 30 | 15 | 900*1200*1500 | 5 | 280-290 |
| MSP65Q | 3-33 | 5-32 | 65 | 30 | 15 | 900*1200*1500 | 5 | 280 |
| MSP100RR | 5-90 | 7-38 | 100 | 75 | 40 | 1200*1500*2100 | 5 | 370 |
| MSP100R | 4-90 | 4-37 | 100 | 75 | 32 | 1200*1500*2100 | 5 | 370 |
| MSP150SP | 8-158 | 6-36 | 150 | 110 | 45 | 1500*1800*2100 | 5 | 450 |
| MSP150S | 9-180 | 6-37 | 150 | 110 | 45-100 | 1500*1800*2100 | 5 | 450 |
Package Information
| Product | centrifugal sewage water vertical lift pump | ||||
| Capacity | 500 sets for 6 months | ||||
| Lead-time | within 10 working days for 3sets received advance payment | ||||
| Package | packaged by Plywood Case/composite material box | ||||
World class manufacturing
Underlying our product capability is our introduction of the latest CAD CAM techniques and the implementation of lean manufacturing principles, keeping us at the forefront of manufacturing technology, delivering direct customer benefits.
We use our specialist slurry knowledge and experience from around the world to deliver reliable products and service solutions.
Who we are?
- 20 years experience of manufacture with 5 years oversea service.
- Advanced equipment with qualified engineers.
- Large foundry to control excellent quality.
