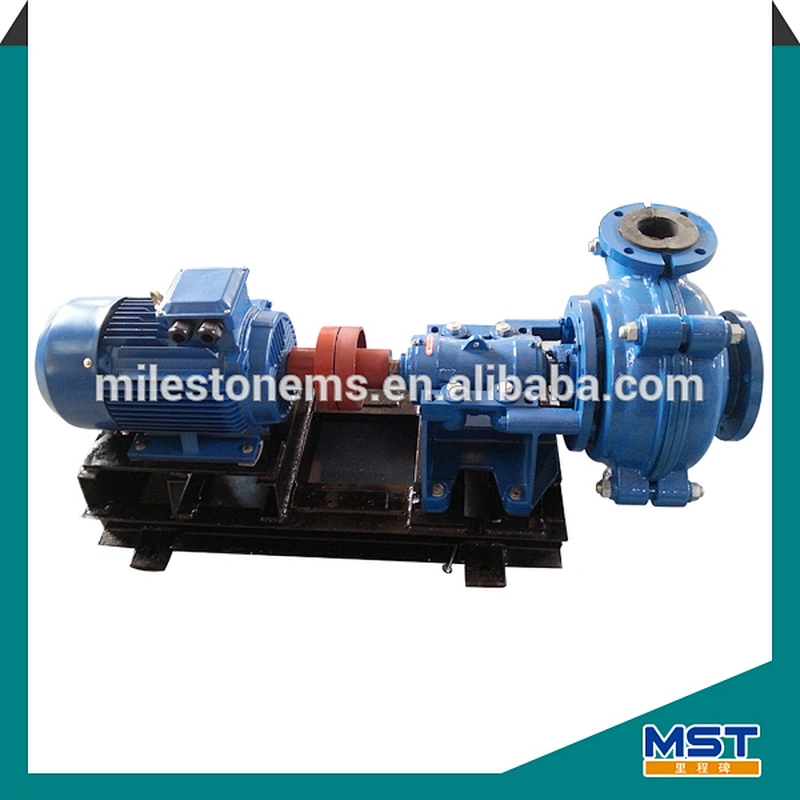

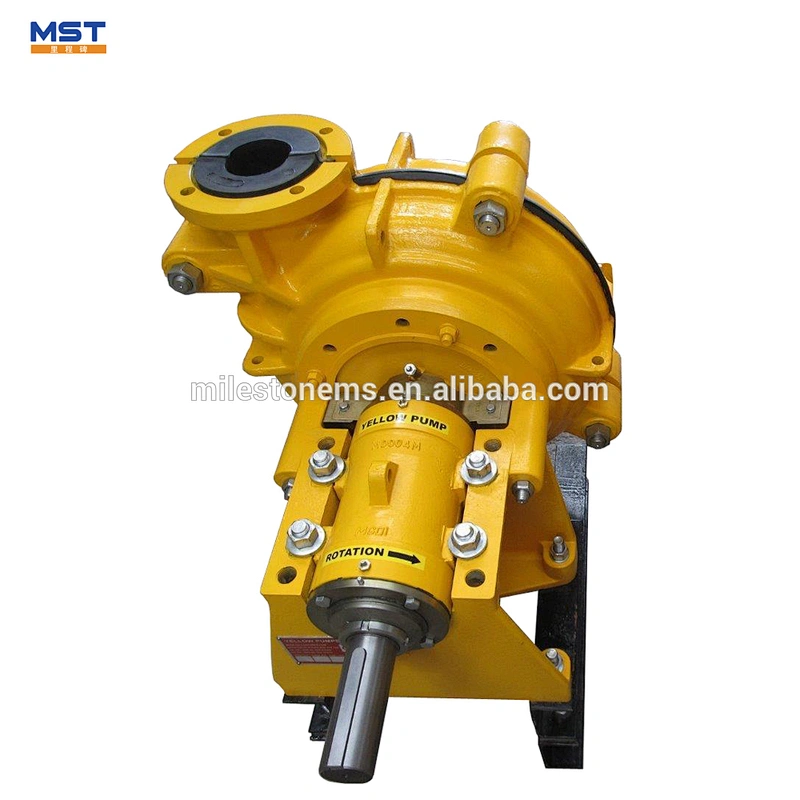

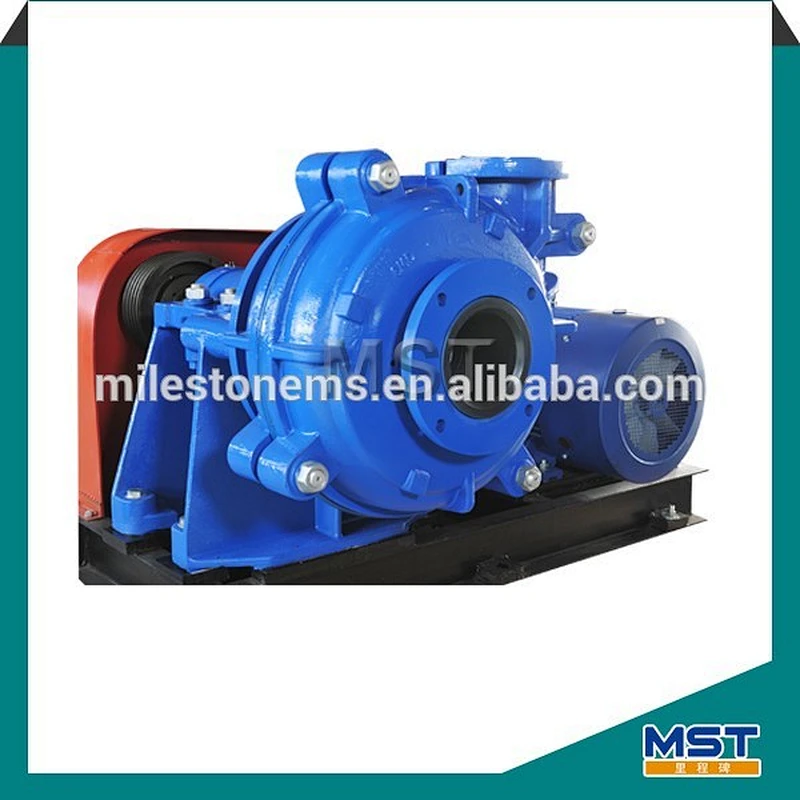

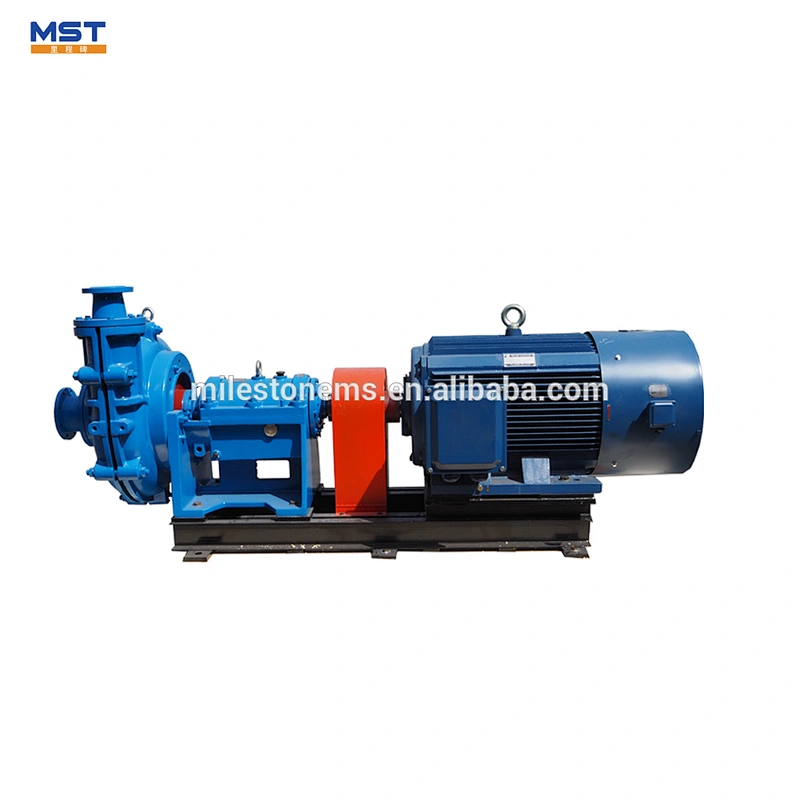

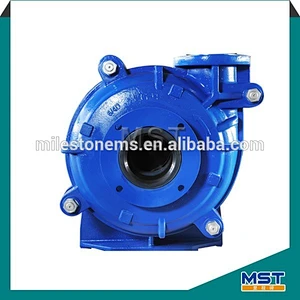

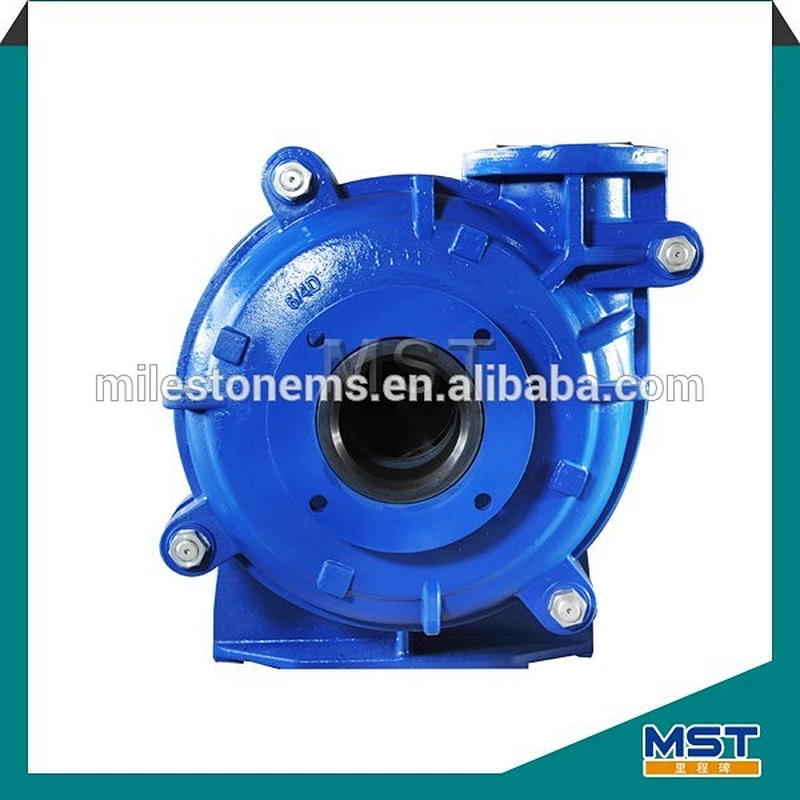

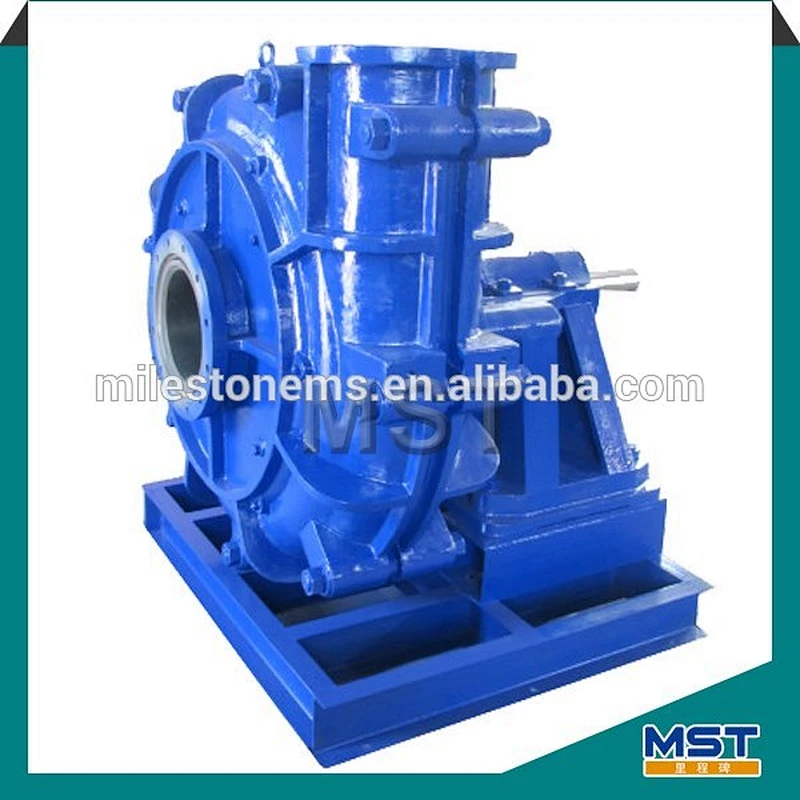

low flow electric vortex centrifugal pump
TheMST-MAH low flow electric vortex centrifugal pump series are heavy duty horizontal slurry pumps designed to handle the transfer of abraisive and high density slurries in mining and heavy industry. It is robust state of the art slurry pumps that feature oil or grease lubrication bearing assemblies and complete interchangeable with the most common slurry pump footprints used by the mining industry.
Features
- Choice of piston ring style labyrinth or other new style of water proof
- Fully interchangeable with the common brand reducing inventory hold requirements
- A full range of mechanical seal adaptations available upon request
- Oil lubrication or packed grease
- Painted to customer specifications upon request
A complete range of build specifications
- Rubber lined with rubber impeller
- Rubber lined with metal impeller
- All metal lined using white iron chrome alloys
- Urethane lined with optional urethane impeller for special applications
Performance Curves of low flow electric vortex centrifugal pump
Clean Water Performance of MST-MAH
| Clear water performance of MST-MAH | |||||||||||
| Type | Max. power | Capacity | Head | Speed | Max. Eff | NPSH | IMPELLER | Max. particle size | Weight (KG) | ||
| Quantity of vanes | Diameter (mm) | ||||||||||
| kw | (m³/h) | (l/s) | (m) | (r/min) | % | (m) | mm | ||||
| MAH1.5/1 | 15 | 12-28 | 3.5-8 | 6-65 | 1200-3800 | 40 | 2-4 | 5 | 150 | 14 | 90 |
| MAH2/1.5 | 15 | 32-72 | 9-20 | 6-58 | 1200-3200 | 45 | 3.5-8 | 5 | 185 | 19 | 105 |
| MAH3/2 | 30 | 39-86 | 11-24 | 12-64 | 1300-2700 | 55 | 4-6 | 5 | 215 | 25 | 190 |
| MAH4/3 | 30 | 86-198 | 24-55 | 9-52 | 1000-2200 | 71 | 4-6 | 5 | 245 | 28 | 260 |
| MAH4/3 | 60 | 86-198 | 24-55 | 9-52 | 1000-2200 | 71 | 4-6 | 5 | 245 | 28 | 360 |
| MAH6/4 | 60 | 162-360 | 45-100 | 12-56 | 800-1500 | 68 | 5-8 | 5 | 365 | 44 | 625 |
| MAH6/4 | 120 | 162-360 | 45-100 | 12-56 | 800-1500 | 68 | 5-8 | 5 | 365 | 44 | 728 |
| MAH8/6 | 120 | 360-830 | 100-230 | 10-61 | 500-1140 | 72 | 2-9 | 5 | 510 | 63 | 1470 |
| MAH10/8 | 260 | 612-1368 | 170-380 | 11-61 | 400-850 | 71 | 4-10 | 5 | 685 | 76 | 3800 |
| MAH12/10 | 560 | 936-1980 | 260-550 | 7-68 | 400-750 | 82 | 1-5 | 5 | 760 | 86 | 4320 |
| MAH14/12 | 560 | 1260-2772 | 350-770 | 13-63 | 300-600 | 77 | 3-10 | 5 | 965 | 90 | 6400 |
Who we are?
- 20 years experience of manufacture with 5 years oversea service.
- Advanced equipment with qualified engineers.
- Large foundry to control excellent quality.
Why always me, because we do pump right!!
