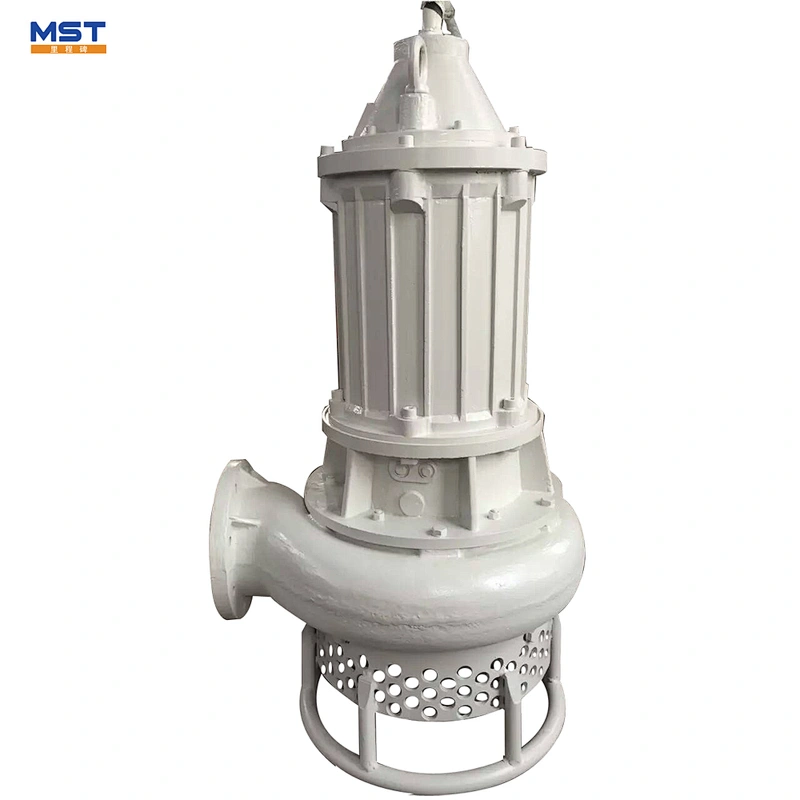

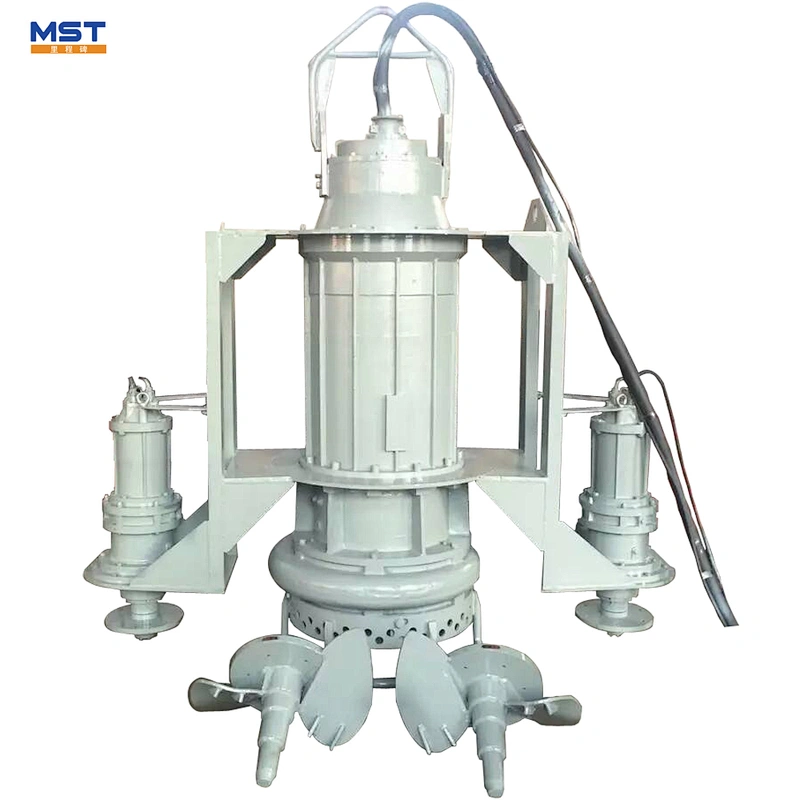

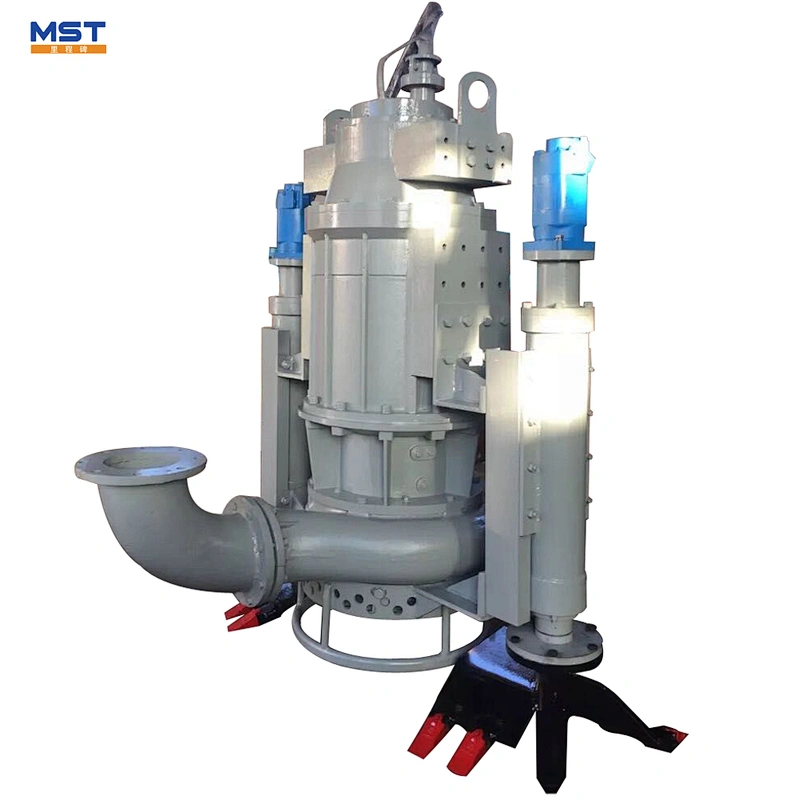

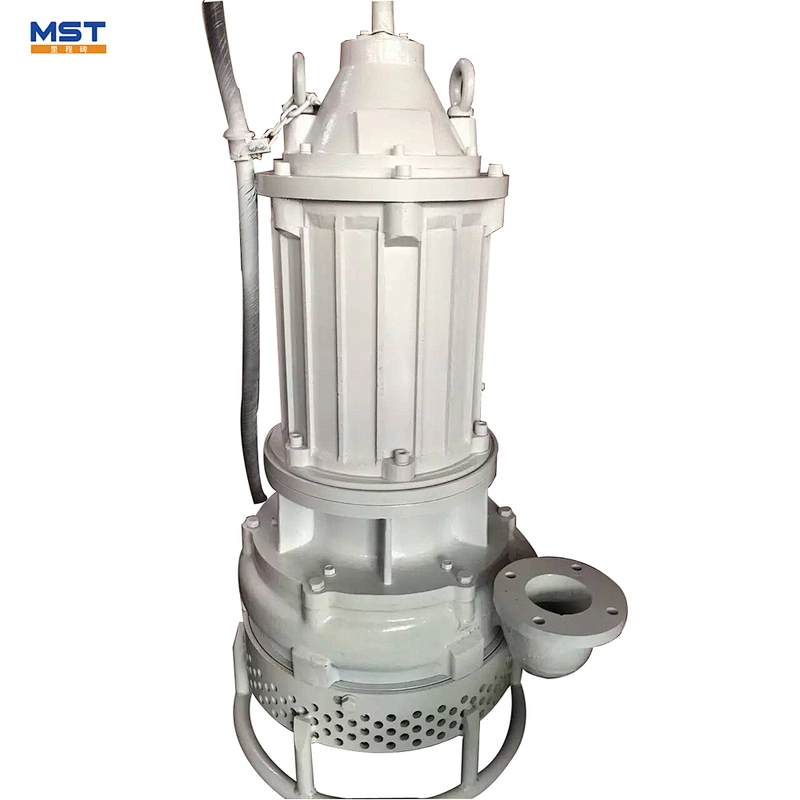

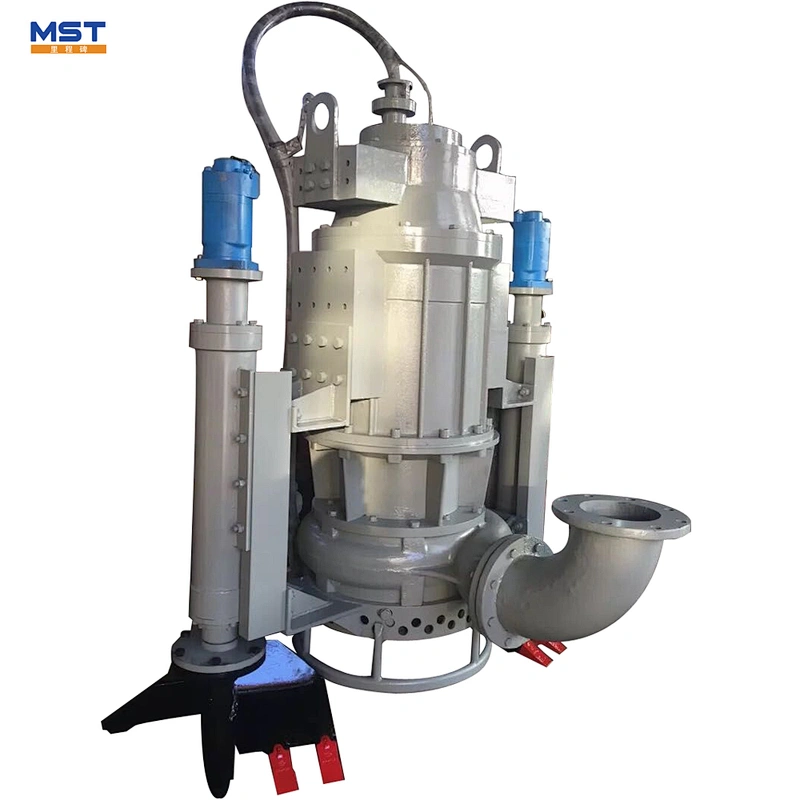

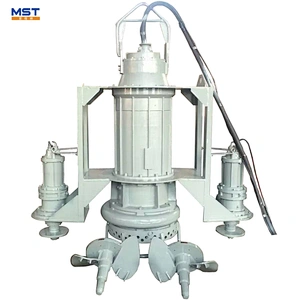

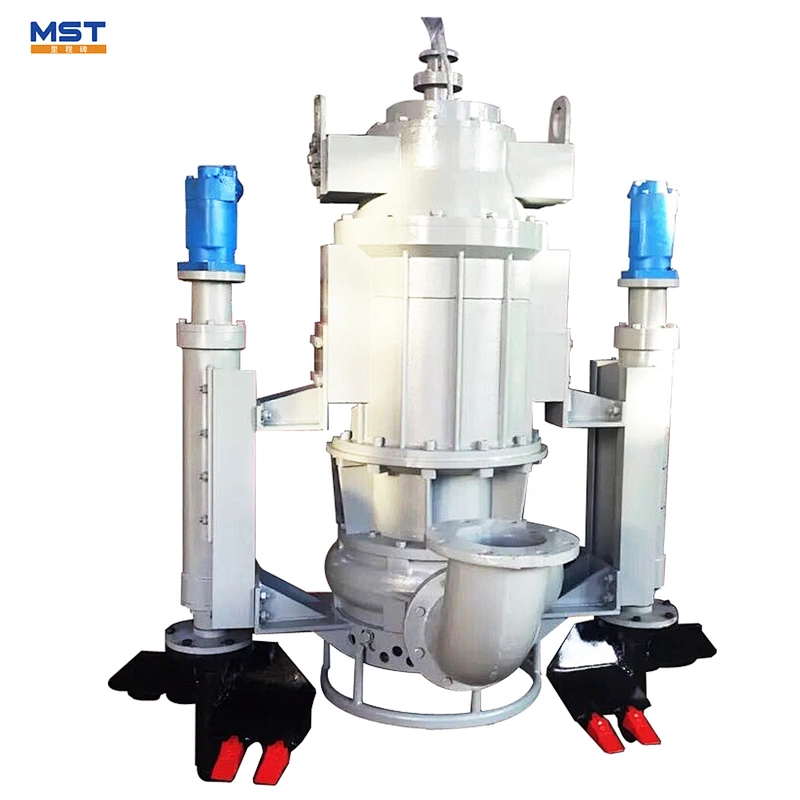

Milestone SS Slurry Pumps are electro submersible centrifugal pumps designed for pumping abrasive and high density slurries in mining, heavy industry, civil construction and municipal applications.
SPECIFICATIONS FOR SS SUBMERSIBLE SLURRY PUMP
Material
Casing
Cr27
Impeller
Cr27
Shaft
2Cr13
Main performance parameters
Capacity
m3/h
23--2400
Head
m
10--64
Outlet Dia.
mm
80--400
Motor
Voltage
V
380/460/220
Frequency
HZ
50/60
Speed
rpm
1460/980
Main Features
1)27% chrome white iron impeller, integral agitator, volute and replaceable back plate.
2) Low speed electro submersible motor provides reliable continuous operation.
3) External cooling options available for high temperature applications.
4) Wide range of protective coatings and paint options available.
5) Heavy duty cast iron motor construction.
Detailed Images
Agitator Impeller
Material:A05
A robust agitator can be fitted to the suction eye allowing the pump to agitate high concentrations of solids.
Agitator
The agitator are installed in the pump to breaks down and re-suspends settled or compacted solids, allowing them to easily transfer a very high percentage of solids to water.
Machine Parts
Name: Back Plate; Impeller Material: A05 27% chrome white iron impeller, integral agitator, volute and replaceable back plate are highly wear-resisting and could be a long working life.
