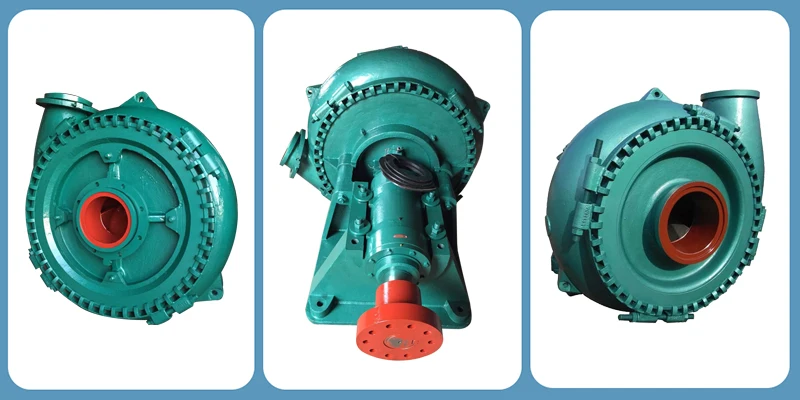

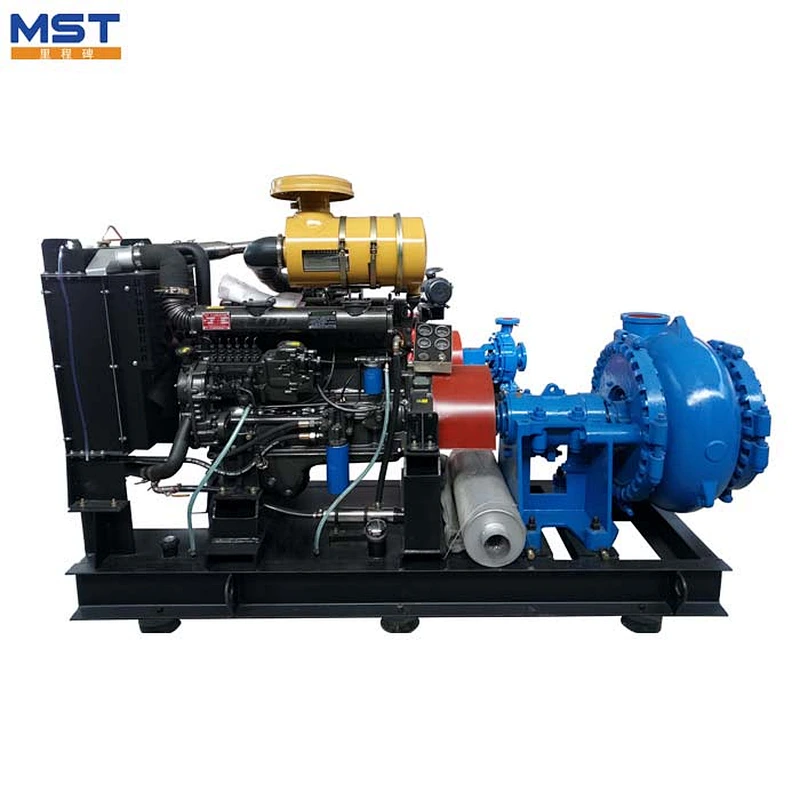

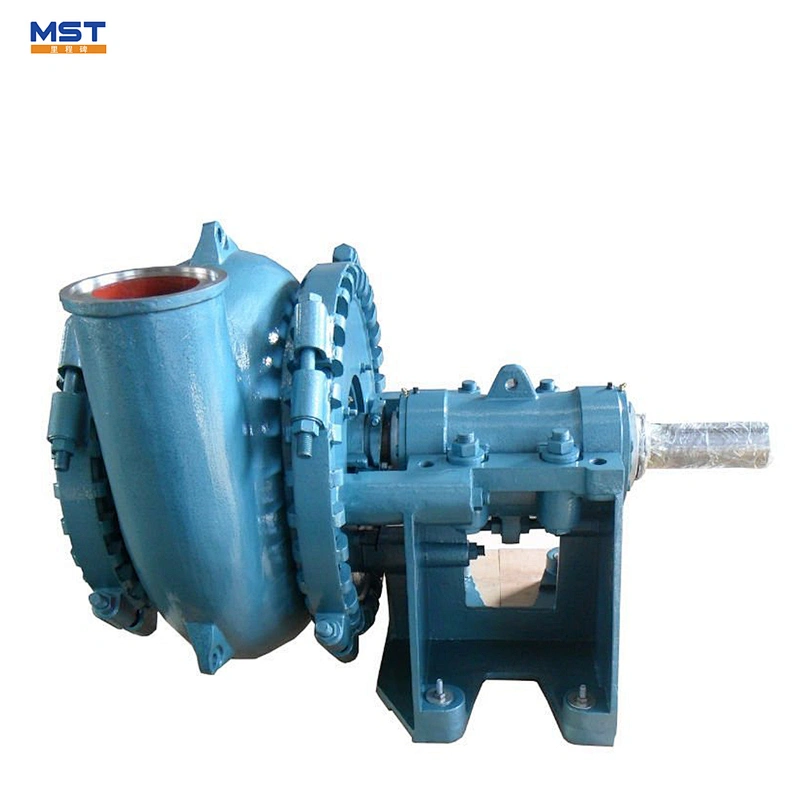

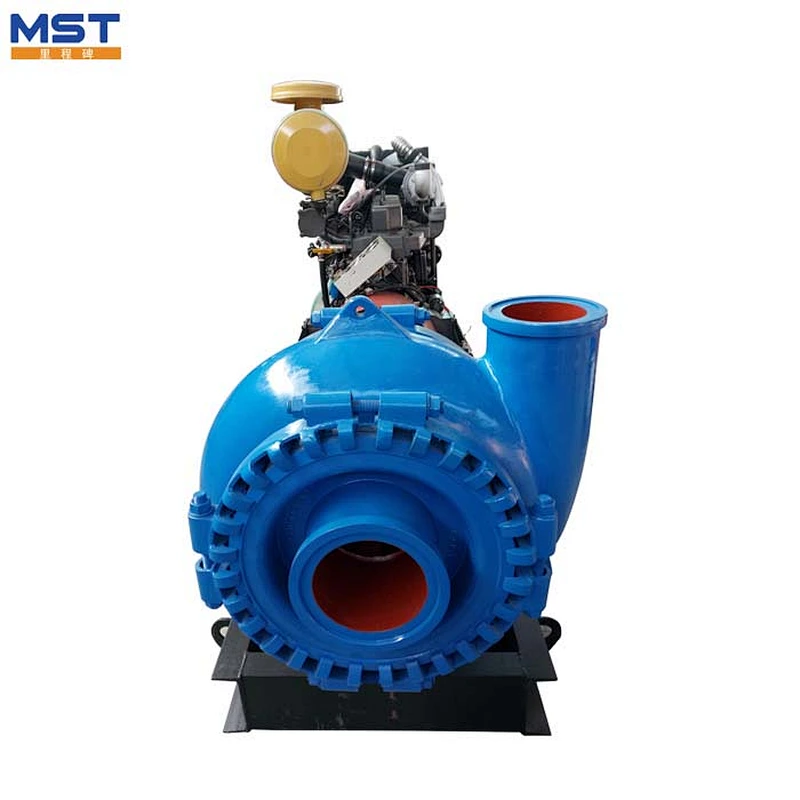

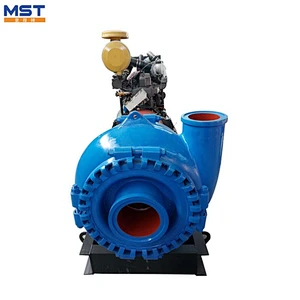

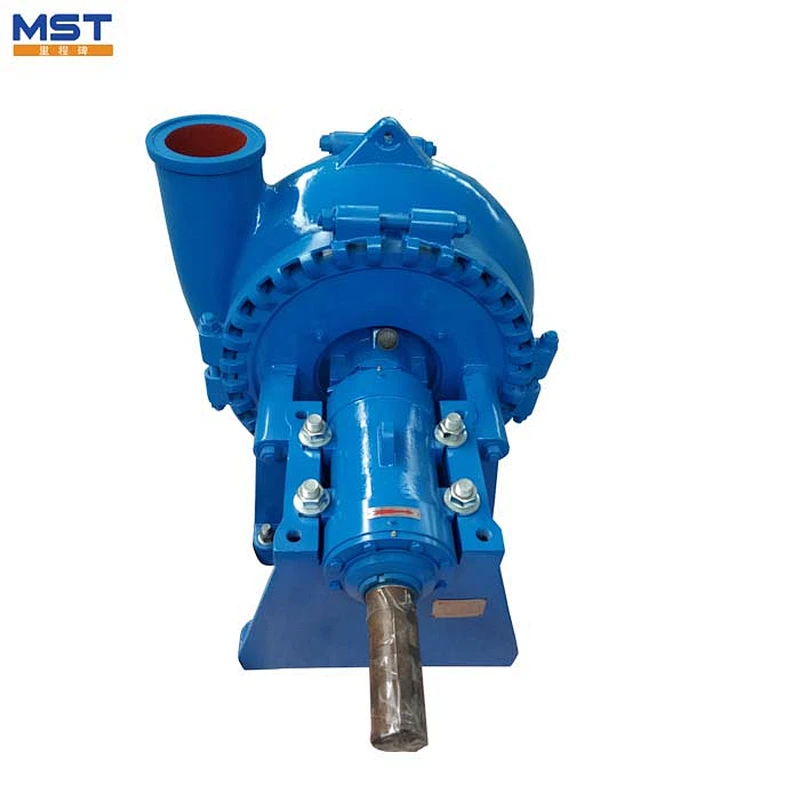

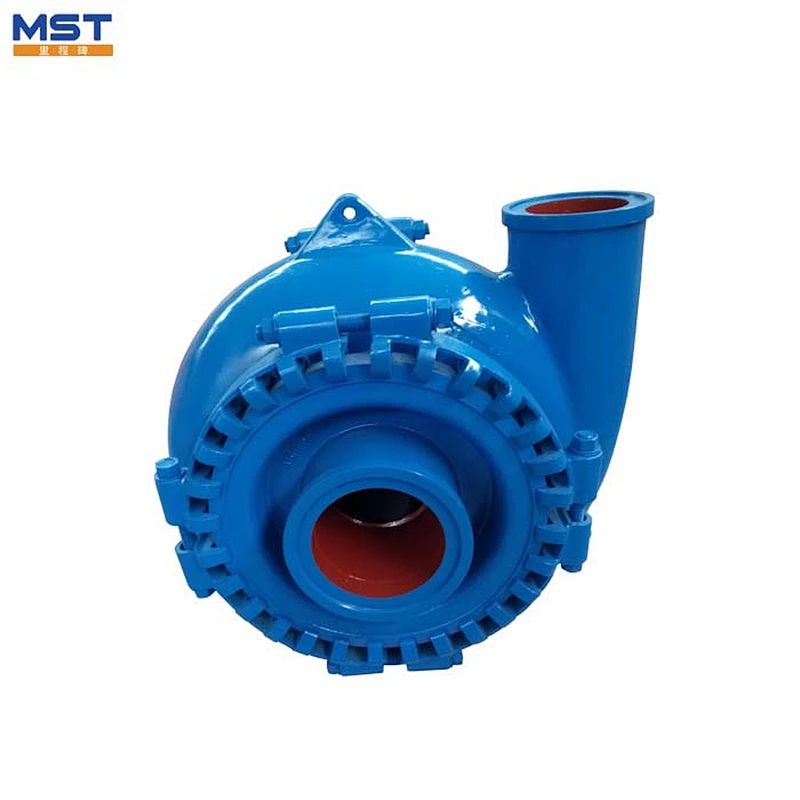

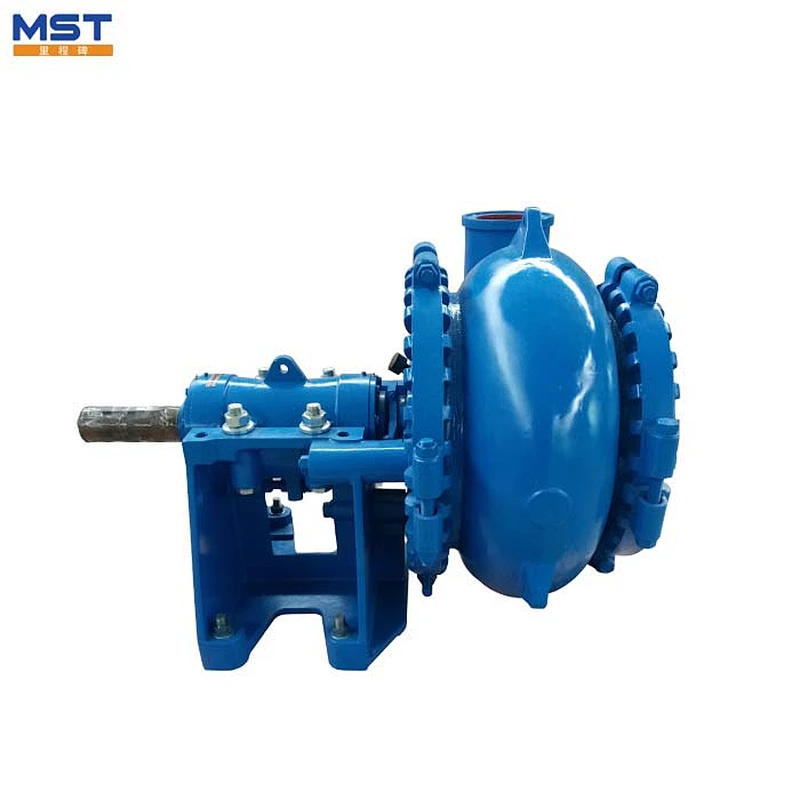

Ming sand suction diesel engine gravel pump
The G-type gravel dredge pump seriesare robust state of the art slurry pumps that feature oil or grease lubrication bearing assemblies and complete interchangeable with other major brands. The High Pressure River Dredging Pump canbe supplied in either a packed gland version using expeller technology, or mechanical seal system specifically designed for heavy duty slurry applications.
Features
- Choice of piston ring style labyrinth or other new style of water proof
- Fully interchangeable with the common brand reducing inventory hold requirements
- A full range of mechanical seal adaptations available upon request
- Oil lubrication or packed grease High Pressure River Dredging Pump
- Painted to customer specifications upon request
A complete range of build specifications
- Rubber lined with rubber impeller
- Rubber lined with metal impeller
- All metal lined sand pump using white iron chrome alloys
- Urethane lined with optional urethane impeller for special applications
Clean Water Performance of High Pressure River Dredging Pump
| MAH Clean Water Performance | ||||||
| Type | Allowable Mating Max.Power | Flow | Head | Efficiency | NPSH | Interrupted by the maximum particle |
| kw | m3/h | m | % | m | mm | |
| 1.5x1B-MAH | 15 | 3.6-21 | 5-69 | 40 | 2-5.5 | 16 |
| 2x1.5B-MAH | 15 | 32-72 | 6-58 | 45 | 3.5-8 | 19 |
| 3x2C-MAH | 30 | 39-86 | 12-64 | 55 | 4-6 | 25 |
| 4x3D-MAH | 60 | 86-198 | 9-52 | 71 | 4-6 | 28 |
| 6x4D-MAH | 60 | 162-360 | 12-56 | 68 | 5-8 | 44 |
| 8x6E-MAH | 120 | 360-830 | 10-61 | 72 | 2-9 | 63 |
| 10x8ST-MAH | 260 | 612-1368 | 11-61 | 71 | 4-10 | 76 |
Curves of G-type High Pressure River Dredging Pump
Who we are?
- 20 years experience of manufacture with 5 years oversea service.
- Professional High Pressure River Dredging Pump and service.
- Advanced equipment with qualified engineers.
- Large foundry to control excellent quality.
Pictures of ou factory
