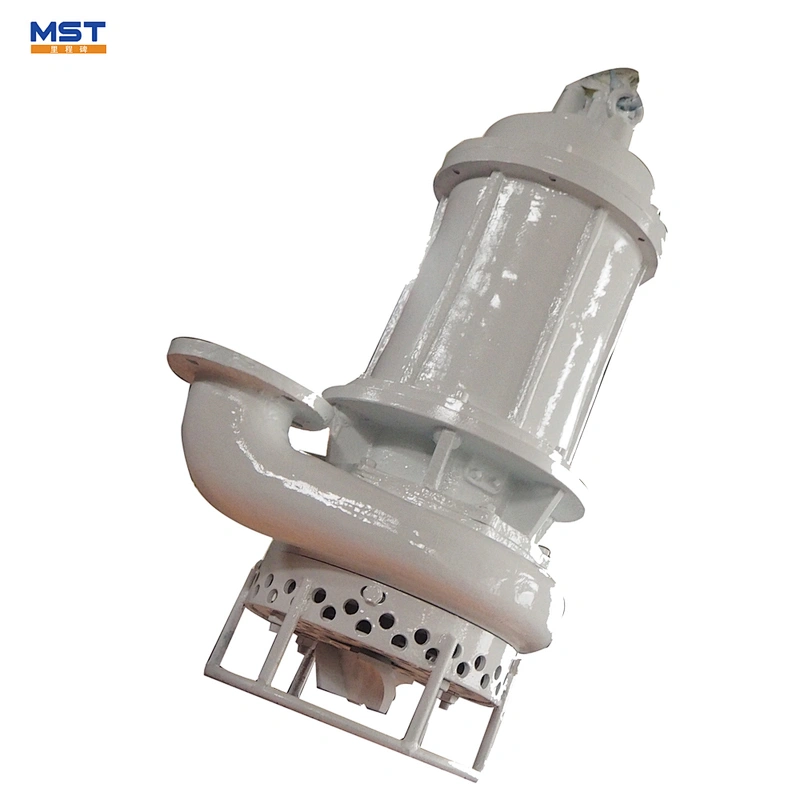

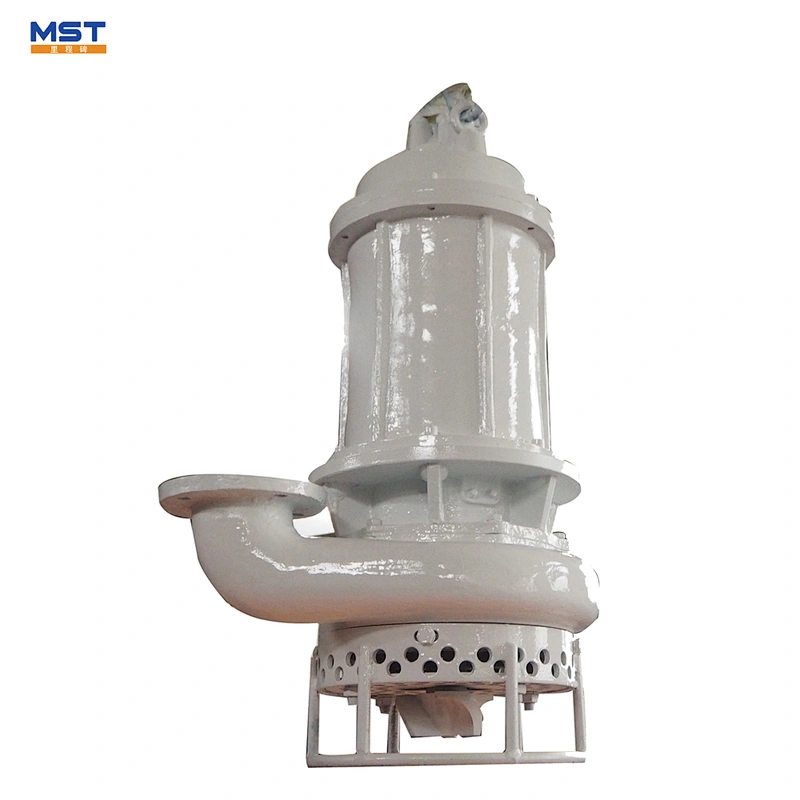

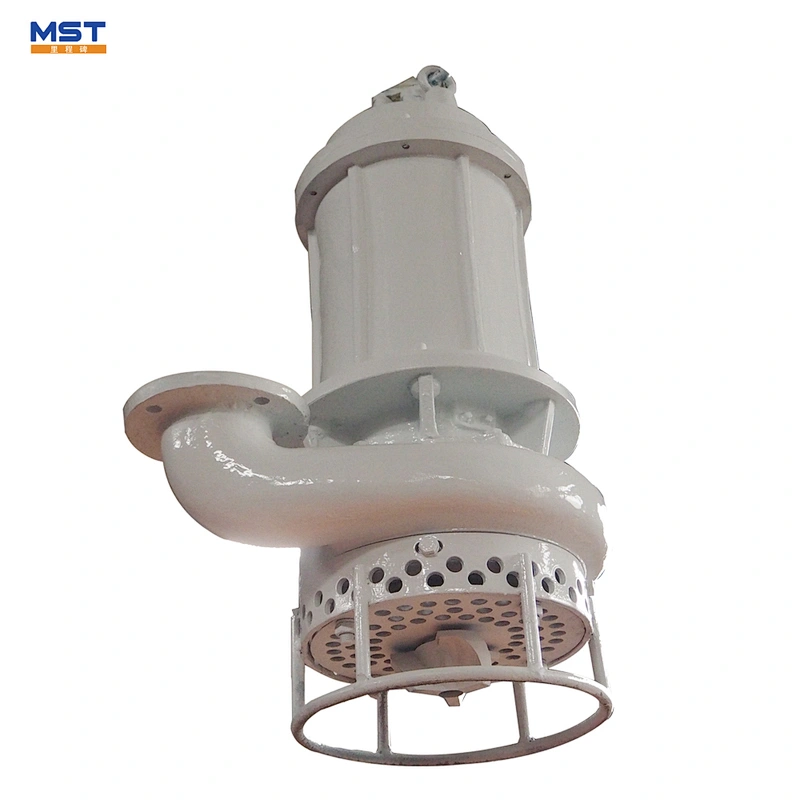

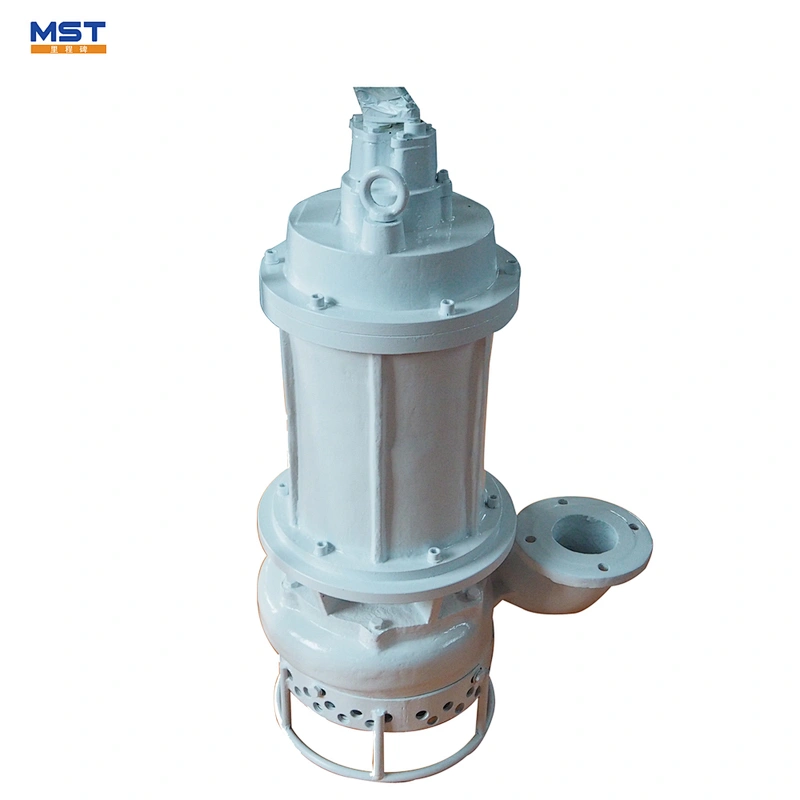

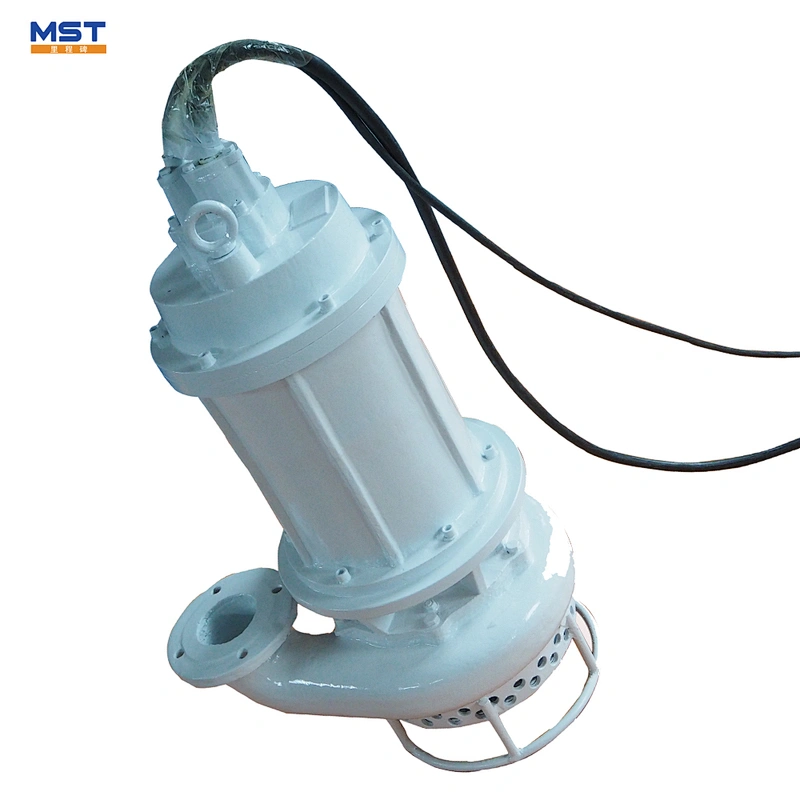

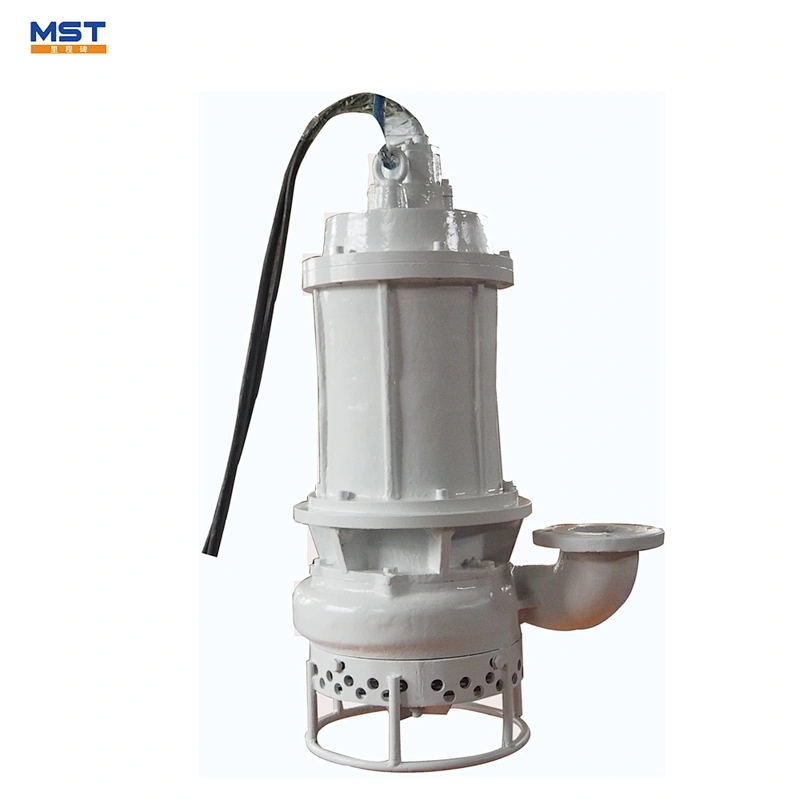

Submersible slurry dredger pump chrome
Descriptions:
Submersible slurry dredger pump chrome are designed to handle a wide range of slurries and abrasive particles in submersible applications in mining and insustry.
Best price sea water 2 inch submersible pumps are avaliable in 72 different models in sizes ranging from 80mm to 400mm(3.15-16 inches) discharge and are capable of flow rates from 23 to 2400 cubic meters per hour(100- 10560USGPM) and head up to 64 metres(210ft).
Best price sea water 2 inch submersible pumps can pass solids up to 60mm(2.4inches) in diameter enabling them to transfer dense slurries with large abrasive particles.
Features :
1.Wear parts are all constructed with abrasion resistant materials - chromium alloy; so pumps have better stability & longer service life.
2.Unique mechanical seal device can prevent the electric motor from high pressure water and impurities; thus high suction efficiency can be ensured.
3.In addition to the main impeller, a pair of agitation impeller is equipped to help break and mix the sludge.
4.Easy installation, operation and cost saving, since no additional vacuum pump or pump house is needed.
5.Professional technology support is provided during the whole process of the usage and maintenance.
Performance curves:
Technical paremeter:
| MSS Clear Water Performance | |||||
| Type | Capacity | Head | Power | Speed | Interrupted by the maximum particle |
| m3/h | m | kw | r/min | mm | |
| SS45-15-5.5 | 45 | 15 | 5.5 | 1460 | 13 |
| SS50-10-5.5 | 50 | 10 | 5.5 | 1460 | 13 |
| SS30-30-7.5 | 30 | 30 | 7.5 | 1460 | 13 |
| SS50-26-11 | 50 | 26 | 11 | 1460 | 13 |
| SS75-25-15 | 75 | 25 | 15 | 1460 | 13 |
| SS150-18-18.5 | 150 | 18 | 18.5 | 980 | 32 |
| SS200-12-22 | 200 | 15 | 22 | 980 | 45 |
| SS60-46-30 | 60 | 46 | 30 | 980 | 21 |
| SS150-30-30 | 150 | 30 | 30 | 980 | 21 |
| SS300-20-37 | 300 | 20 | 37 | 980 | 28 |
| SS200-30-45 | 200 | 30 | 45 | 980 | 36 |
| SS500-15-45 | 500 | 15 | 45 | 980 | 46 |
| SS250-35-55 | 250 | 35 | 55 | 980 | 36 |
| SS600-15-55 | 600 | 15 | 55 | 980 | 46 |
| SS350-35-75 | 350 | 35 | 75 | 980 | 28 |
| SS500-20-75 | 500 | 20 | 75 | 980 | 25 |
| SS200-60-90 | 200 | 60 | 90 | 980 | 14 |
| SS400-40-90 | 400 | 40 | 90 | 980 | 28 |
| SS600-30-110 | 600 | 30 | 110 | 980 | 28 |
| SS1000-18-110 | 1000 | 18 | 110 | 980 | 50 |
| SS500-45-132 | 500 | 45 | 132 | 980 | 28 |
| SS1000-22-132 | 1000 | 22 | 132 | 980 | 50 |
| SS650-52-160 | 650 | 52 | 160 | 980 | 28 |
| SS780-50-185 | 780 | 50 | 185 | 980 | 38 |
| SS800-55-220 | 800 | 55 | 220 | 980 | 38 |
| SS1250-35-220 | 1250 | 35 | 220 | 980 | 45 |
| SS1750-30-250 | 1750 | 30 | 250 | 980 | 55 |
| SS2000-35-315 | 2000 | 35 | 315 | 980 | 60 |
Pump for reference:
Submersible dewatering pump pond in China
Pump Application:
Submersible dewatering pump pond in China
Package & shipping:
Who we are:
- 20 years experience of manufacture with 5 years oversea service.
- Advanced equipment with qualified engineers.
- Large foundry to control excellent quality.
Scenes of pump exhibition
