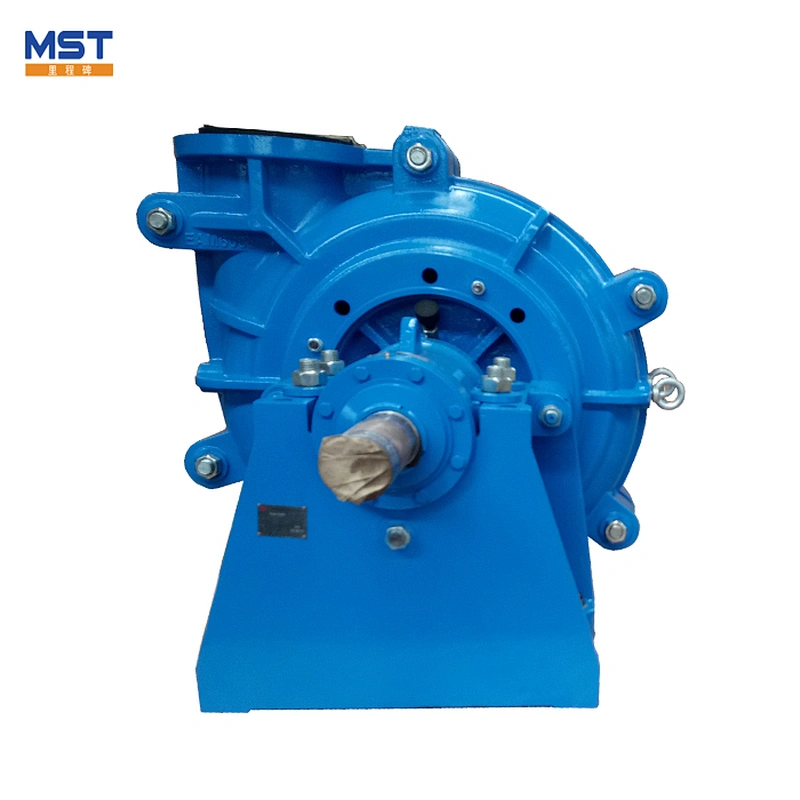

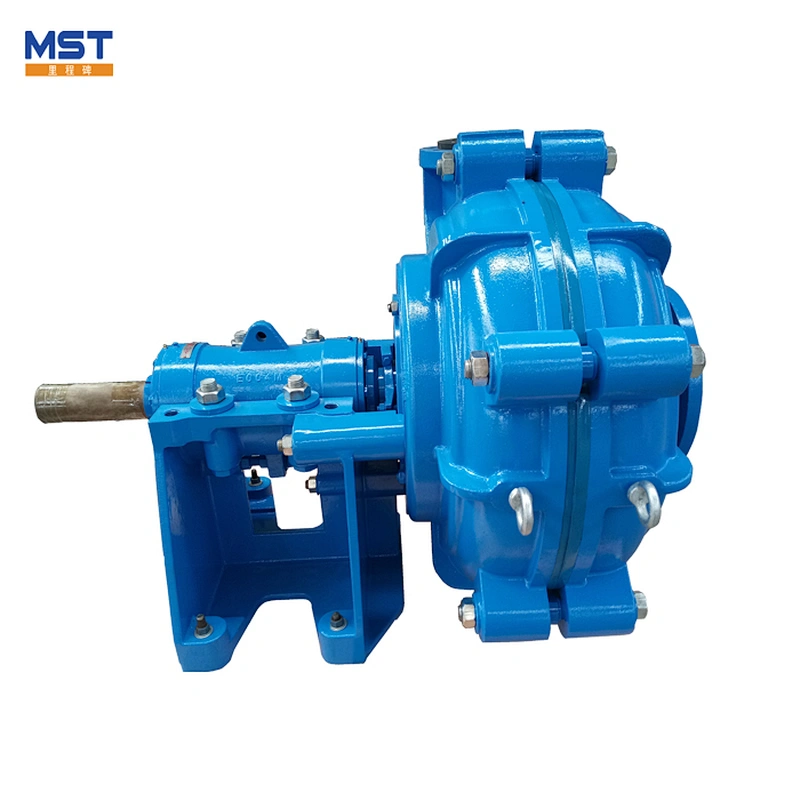

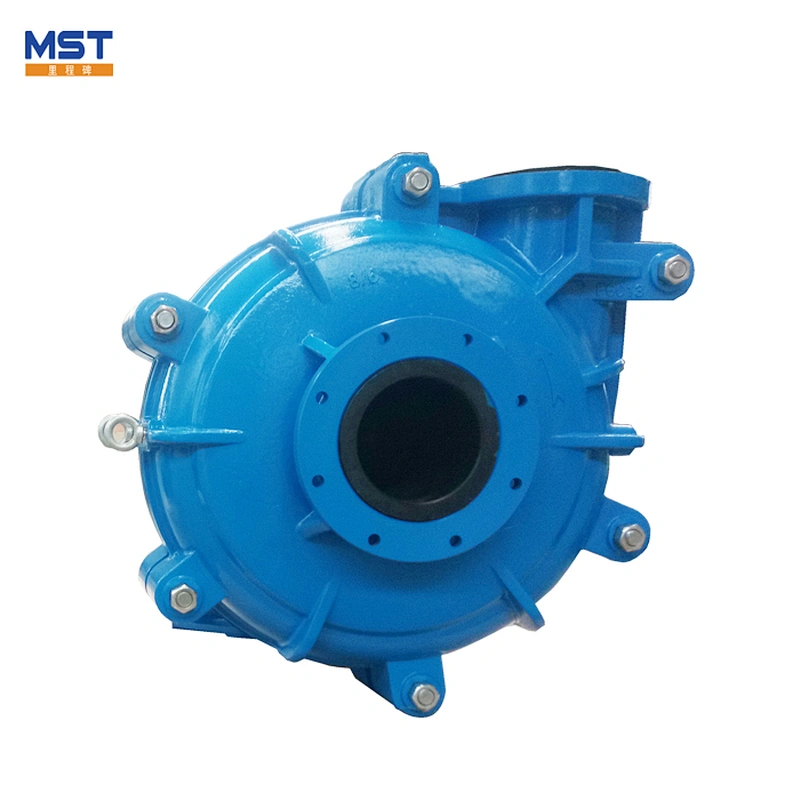

8/6E-MAHR Horizontal mining slurry pump with rubber impeller
8/6E-MAHR Horizontal mining slurry pump with rubber impeller
8/6E-MAHR Horizontal mining slurry pump with rubber impeller
8/6E-MAHR Horizontal mining slurry pump with rubber impeller
8/6E-MAHR Horizontal mining slurry pump with rubber impeller
8/6E-MAHR Horizontal mining slurry pump with rubber impeller
8/6E-MAHR Horizontal mining slurry pump with rubber impeller
8/6E-MAHR Horizontal mining slurry pump with rubber impeller
8/6E-MAHR Horizontal mining slurry pump with rubber impeller
8/6E-MAHR Horizontal mining slurry pump with rubber impeller
8/6E-MAHR Horizontal mining slurry pump with rubber impeller
8/6E-MAHR Horizontal mining slurry pump with rubber impeller
8/6E-MAHR Horizontal mining slurry pump with rubber impeller

8/6E-MAHR Horizontal mining slurry pump with rubber impeller

Model NO.
8/6E-MAHR
Price:
USD 5000.00-5200.00 / set
Delivery
FOB
Minimum order quantity
1 set
Supply Ability
50 set / Month
Country of Origin
Tianjin /Shanghai/Qingdao
Quantity:
Product Description

Milestone MAH(R) series pumps are heavy duty horizontal slurry pumps designed to handle the transfer of abraisive and high density slurries in mining and heavy industry.

MAH pumps feature a rugged cast iron construction with replaceable wear liners available in 27%chrome white iron, rubber or urethane to suit wide range of applications, slurry types and consistencies.

Product Name
High pressure sand suction sludge horizontal centrifugal rubber slurry pump
Model
8/6E-MAHR
Capacity
200m3/h
Head
15m
Eff
62%
pump Power
13.2kw
Speed
550rpm
Seal Type
Packing Seal
Base&Casing material
Cast iron
Shaft
4140 high tensile steel
Impeller
Rubber Coated HIgh Tensile Steel
Frame Plate Liner Insert
Rubber
Cover Plate liner
Rubber
Throat Bush
Rubber
Cover plate
cast iron
Stuffing box
cast iron
Expeller
27% Chrome White Iron

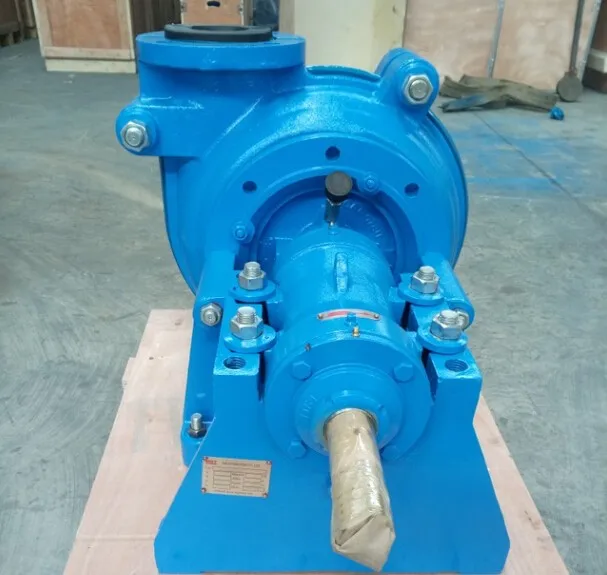

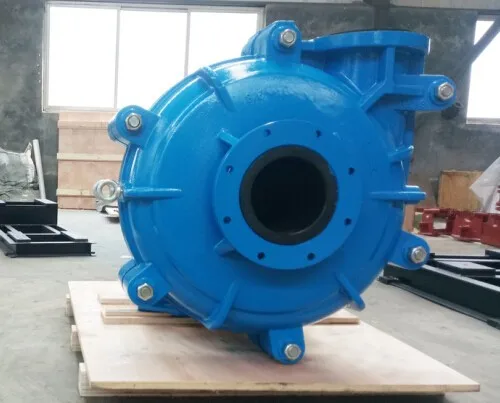

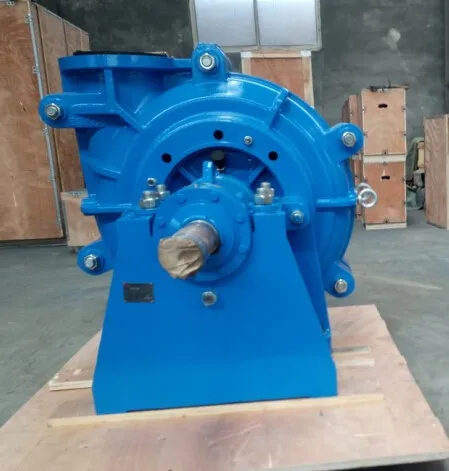

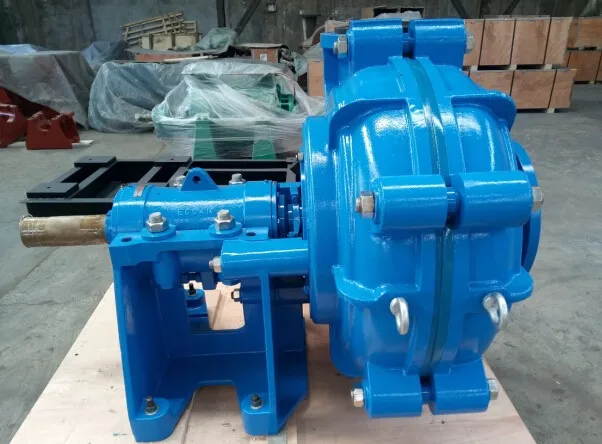

Pump details

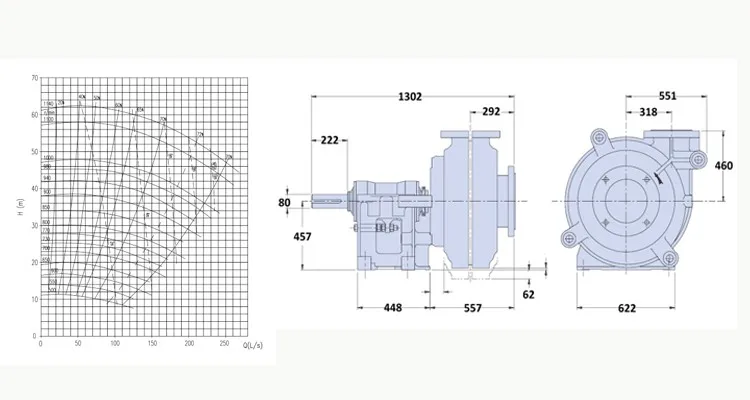

Performance Curve&Dimension Drawing

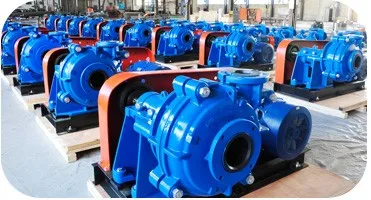

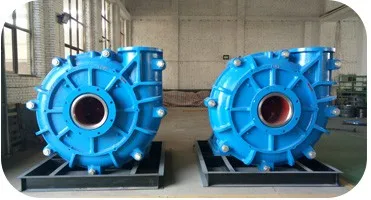

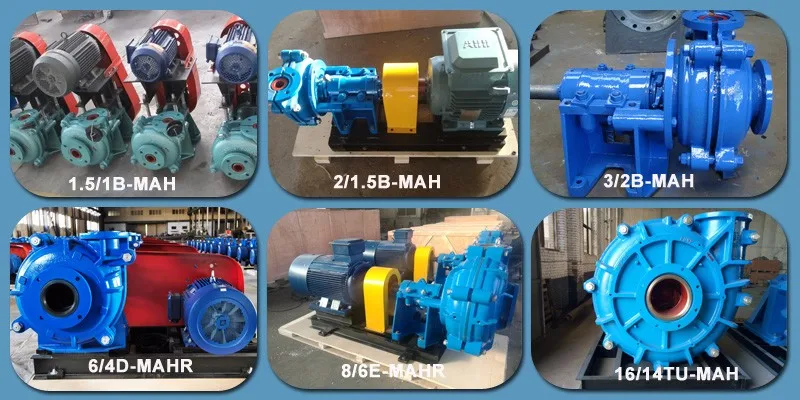

Our slurry pump

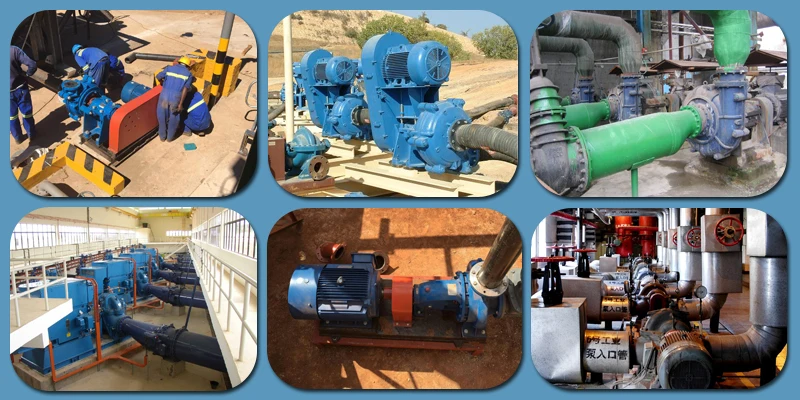

Application

Mineral & ore processing
Tailing disposal
Soil washing& remediation
Concrete wash-out
Corrosive solids handling

packing

6 sets 6/4D-MAH& 12 sets 4/3C-MAH

24 sets 6/4D-MAHR

Two sets 16/14TU-MAH
FAQ

Q: How can I select a suitable pump?
A: To select a suitable pump, firstly, confirm the pumping liquid: clean water, corrosive water, waste water or slurry. Secondly, confirm the pumping parameters: CAPACIY, HEAD, SPECIFIC GRAVITY, DENSITY, ect.
Q: What power can you supply with pump?
A: We can supply the pumps powered by electric motor or diesel engine as customer's request. Please kindly confirm your local industry voltage: __V/__Hz/ 3 phase.
Q: What information should I let you know if I want to get a quotation?
A: Pump capacity, pump head, medium, medium temperature, pump material, quantity, if possible, please also provide the pump model you are using now, price will be worked out as per the pump model, if not, we will recommend relevant product for reference.
Q: What's your MOQ, Payment Term and Lead Time?
A: MOQ for pump: 1 SET
MOQ for spare part: 10 piece
Payment Term: T/T, L/C, Western Union, Paypal
Lead Time: in general 7 working days for slurry pumps, 15 working days for water pump

Our Company
  • Application:Other
  • Pressure:High Pressure
  • Fuel:Other
  • Standard or Nonstandard:Other
  • Power:Other
  • Usage:Other
  • Structure:Single-stage Pump
  • Theory:Centrifugal Pump
  • Model Number:8/6E-MAHR
  • Brand Name:MST
  • Place of Origin:CN;HEB
