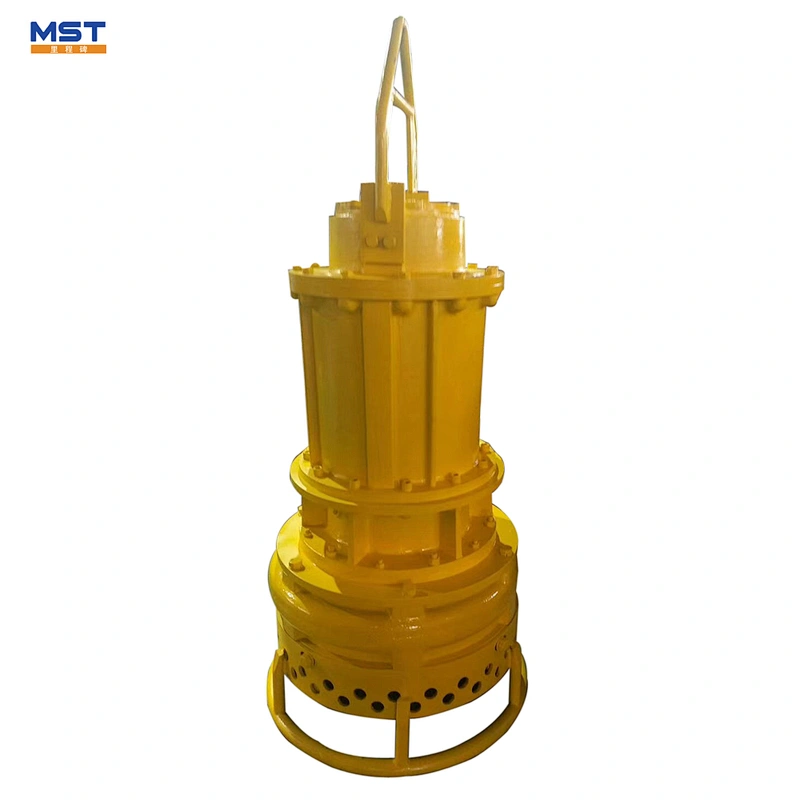

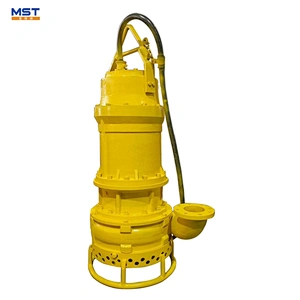

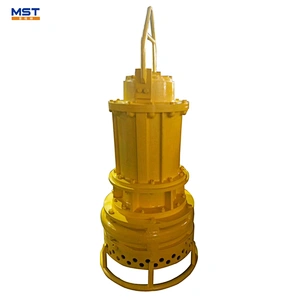

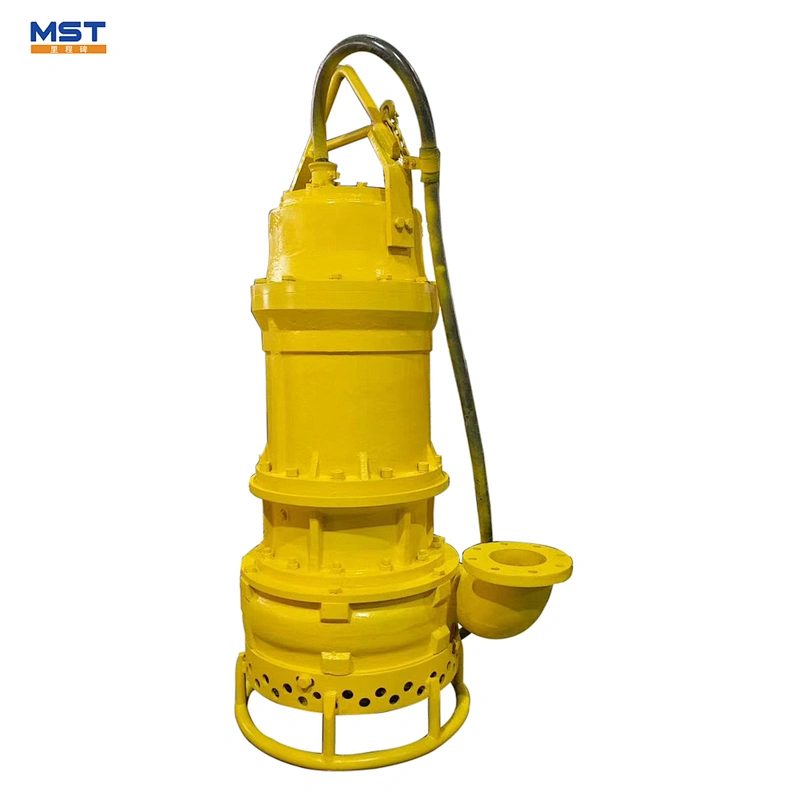

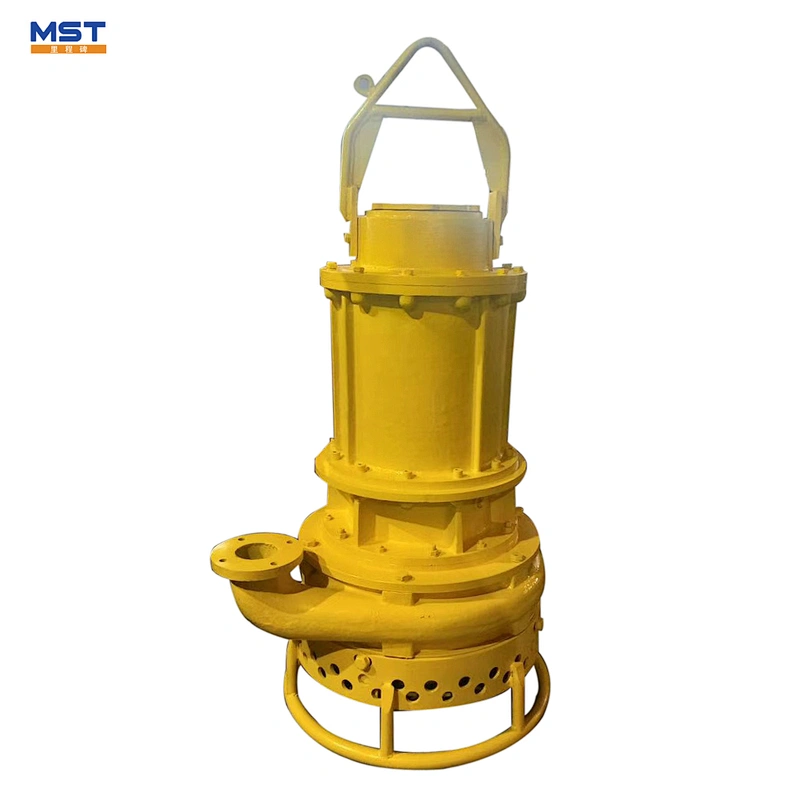

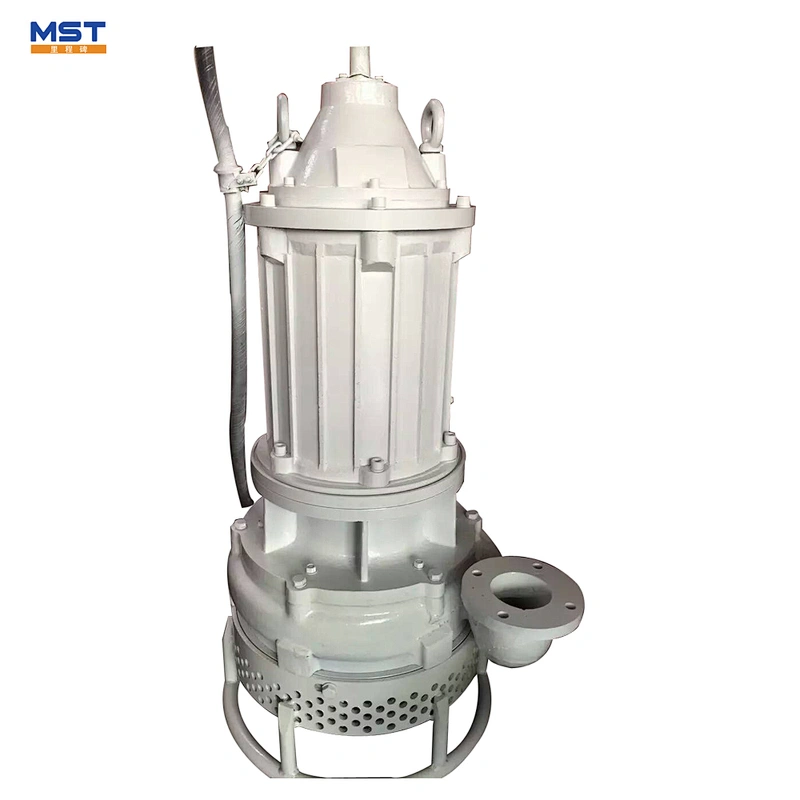

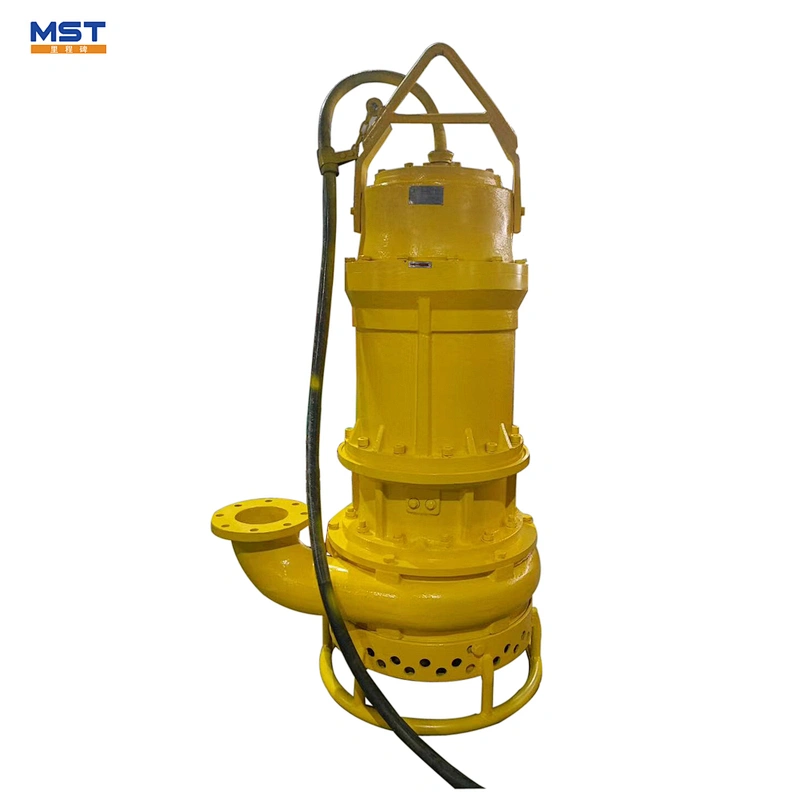

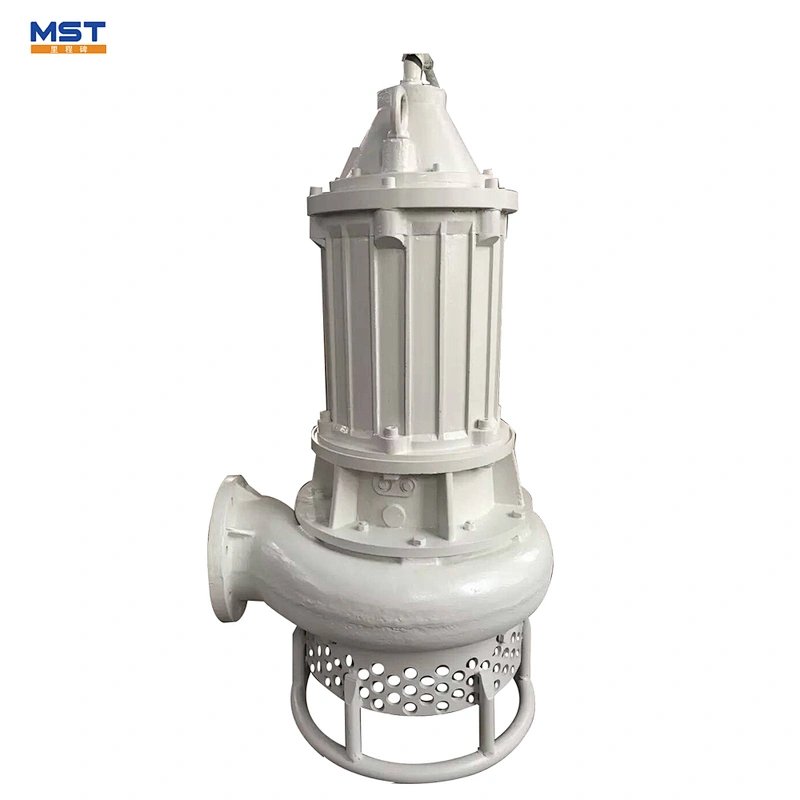

Electric submersible dredge sand river suction pump
Application of submersible slurry pump:
Submersible slurry pump sand river suction pumping are a durable,electro-submersible slurry pumps,Versatile and rugged solution for the transfer of abrasive and high density slurries in mining,civil construction,industry and other heavy duty applications.
Features of submersible slurry pump:
- Large cut water clearance: The pump casing features a large cut water clearance which allows the easy passage of large solids and reduces wear and erosion to improve service life and prevent loss of efficiency.
- Integral agitator: The 27% chrome white iron agitator assists in the pumping of slurries by breaking up large particles and agitating high concentrations of solids.
- F class motor insulation
- Support frame and strainer
- Double mechanical seal
- Oil chamber leakage probe
- Optional external cooling
Performance ranges of submersible slurry pump:
| Discharge Sizes: | 80mm - 400mm |
| Flow rates: | 23t o 2400 m3/h |
| Head: | up to 64m |
| Solids diameter: | up to 60mm(2.4 inches) |
| Material: | 27% chrome white iron |
Submersible slurry pump Use Conditions:
1. The power source is 50Hz/380V,60hz,415v,220v,3 phases(
2.The temperature of the medium cannot exceed 60°C, and it does not contain inflammable or explosive gases.If the tempreture is higher,we can add pressured cooling system.
3.The maximum weight concentration of the ash is 30% and maximum weight concentration of the slag is 60%.
4.Maximum submerged depth under the water is 20 meters, the minimum submerged depth takes submerging of the motor as reference.
5.Working status in the medium is vertically and continuous.
Submersible slurry pump material:
Control cabinet for power:
Our submersible slurry pump on site:
Submersible slurry pump package:
