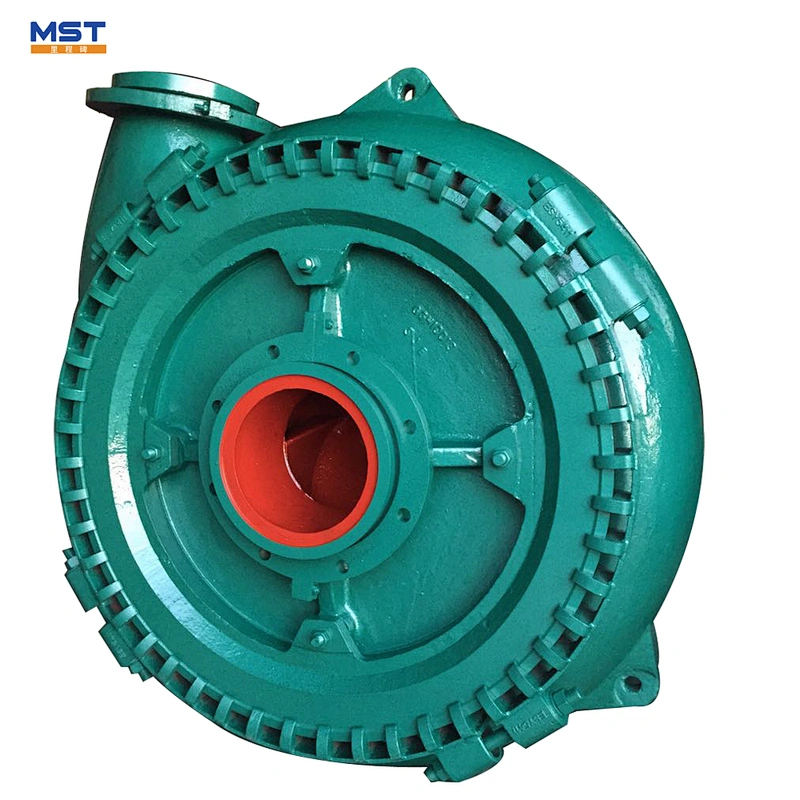

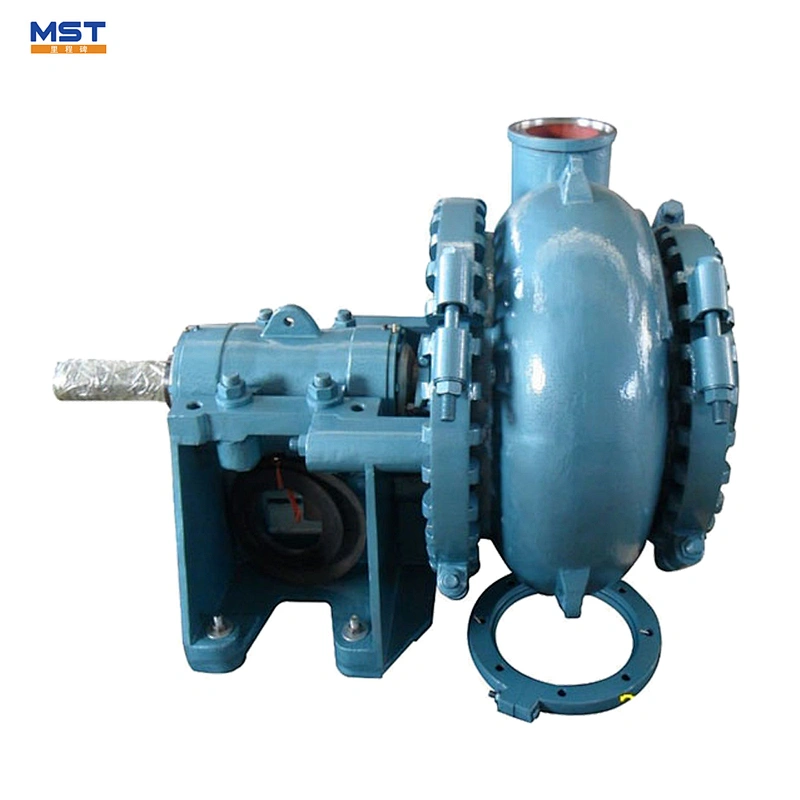

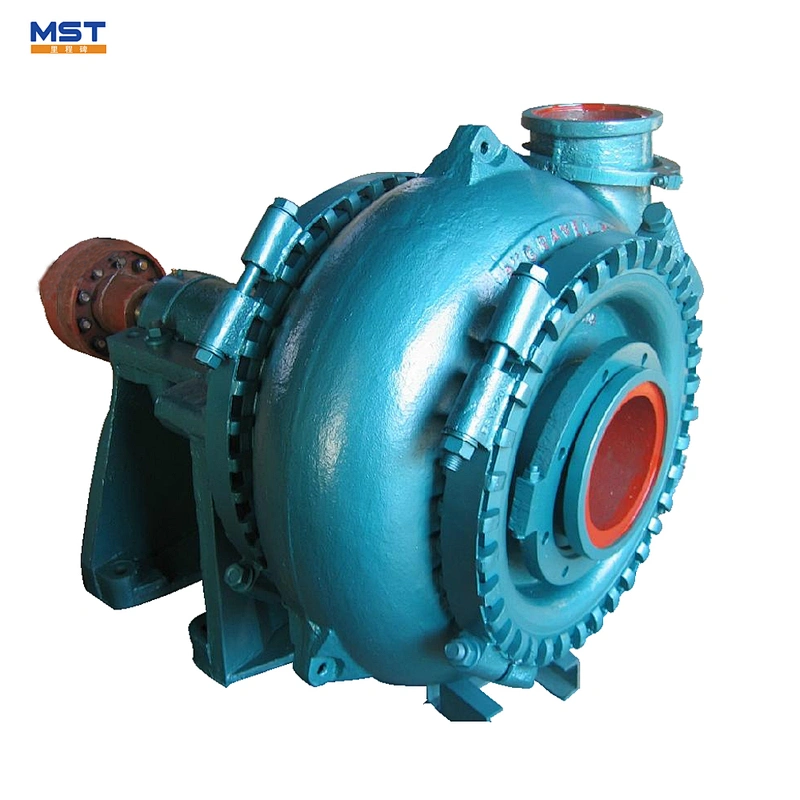

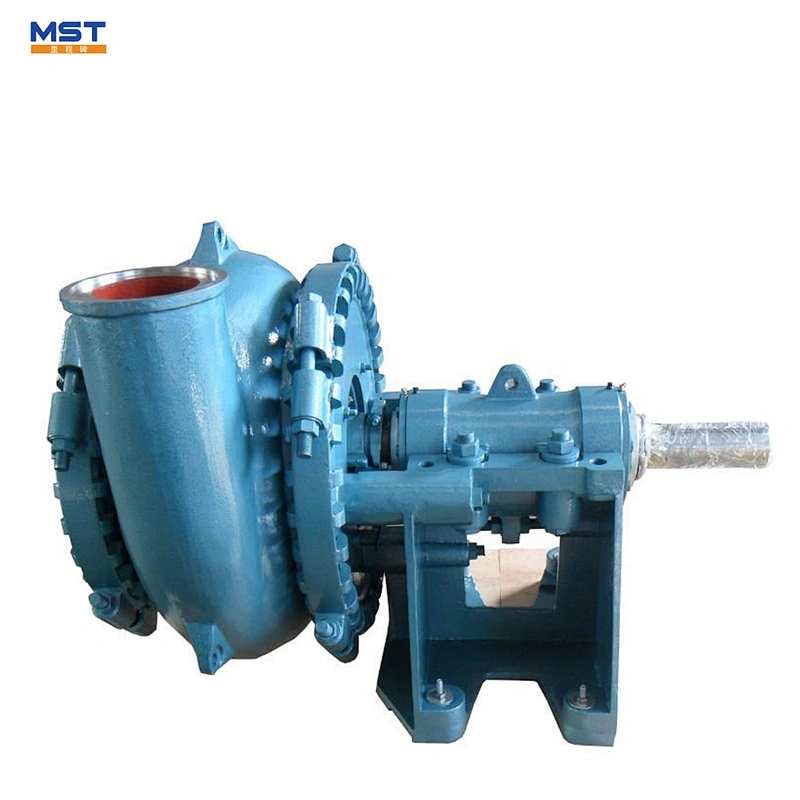

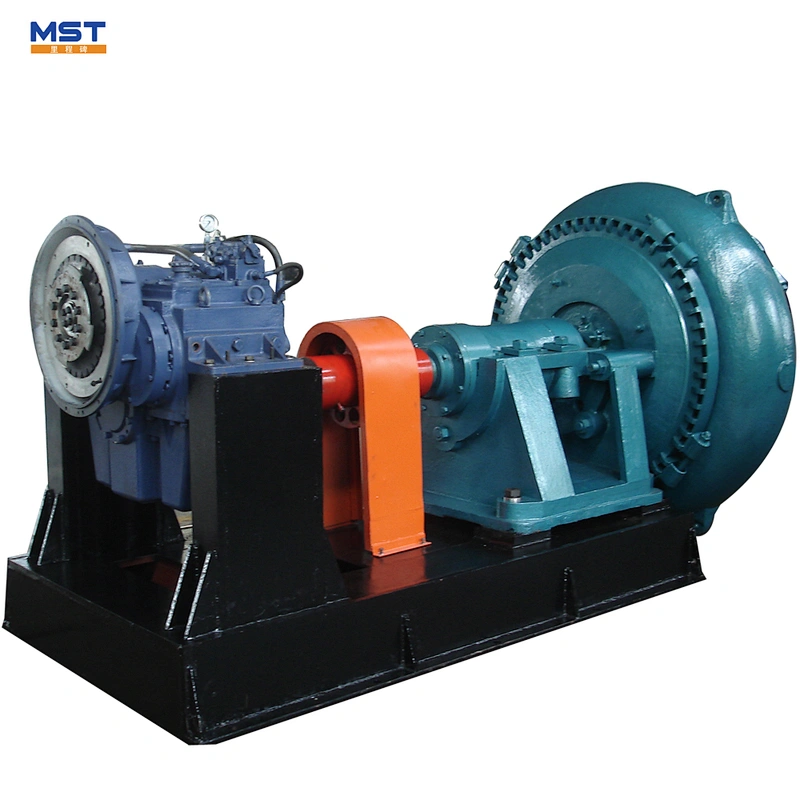

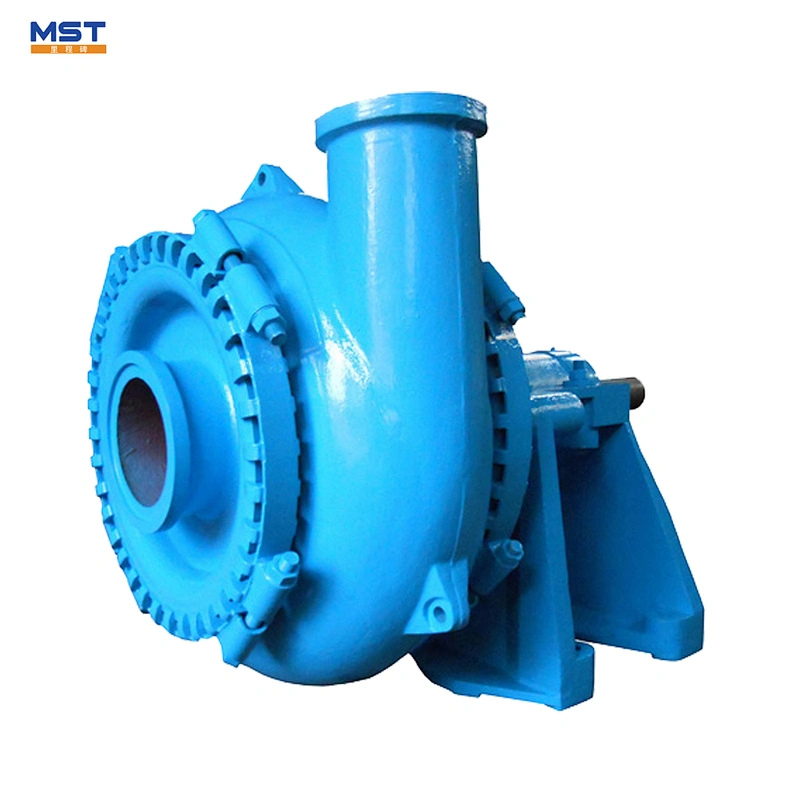

Sand suction pump machine price with motor
The G-type sand pump seriesare robust state of the art slurry pumps that feature oil or grease lubrication bearing assemblies and complete interchangeable with other major brands. The sand pump canbe supplied in either a packed gland version using expeller technology, or mechanical seal system specifically designed for heavy duty slurry applications.
Features
G-type sand pump
- Choice of piston ring style labyrinth or other new style of water proof
- Fully interchangeable with the common brand reducing inventory hold requirements
- A full range of mechanical seal adaptations available upon request
- Oil lubrication or packed grease
- Painted to customer specifications upon request
Clean Water Performance of Sand pump
Head: Up to 109m
Flow: Up to 1500 liters per sec
| MG Clean Water Performance | ||||||
| Type | Allowable Mating Max.Power | Flow | Head | Max Eff | NPSH | Interrupted by the maximum particle |
| kw | m3/h | m | % | m | mm | |
| 6x4D-MG | 60 | 2.2-23.3 | 3-54 | 58 | 2.5-3.5 | 82 |
| 8x6E-MG | 120 | 4.2-55.6 | 6-52 | 60 | 3-4.5 | 127 |
| 10x8F-MG | 260 | 16.7-77.8 | 10-54 | 65 | 3-7.5 | 178 |
| 12x10G-MG | 600 | 12.5-122.2 | 10-60 | 65 | 1.5-4.5 | 220 |
| 14x12G-MG | 600 | 2.8-20 | 8-72 | 68 | 2-8 | 241 |
| 18x16G | 600 | 13.9-333.3 | 8-50 | 72 | 3-6 | 254 |

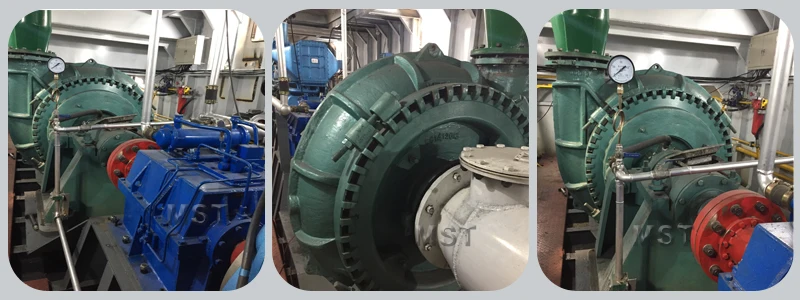

Application onsite
Sand and Gravel
Hydraulic Mining
Water treatment plants
Sugar beet & other root vegetables
Chemical / Processing
Slag Granulation
Tunnellin
Who we are?
- 20 years experience of manufacture with 5 years oversea service.
- Professional Sand pump and service.
- Advanced equipment with qualified engineers.
- Large foundry to control excellent quality.
Pictures of ou factory
Why always me, because we do pump right!!
