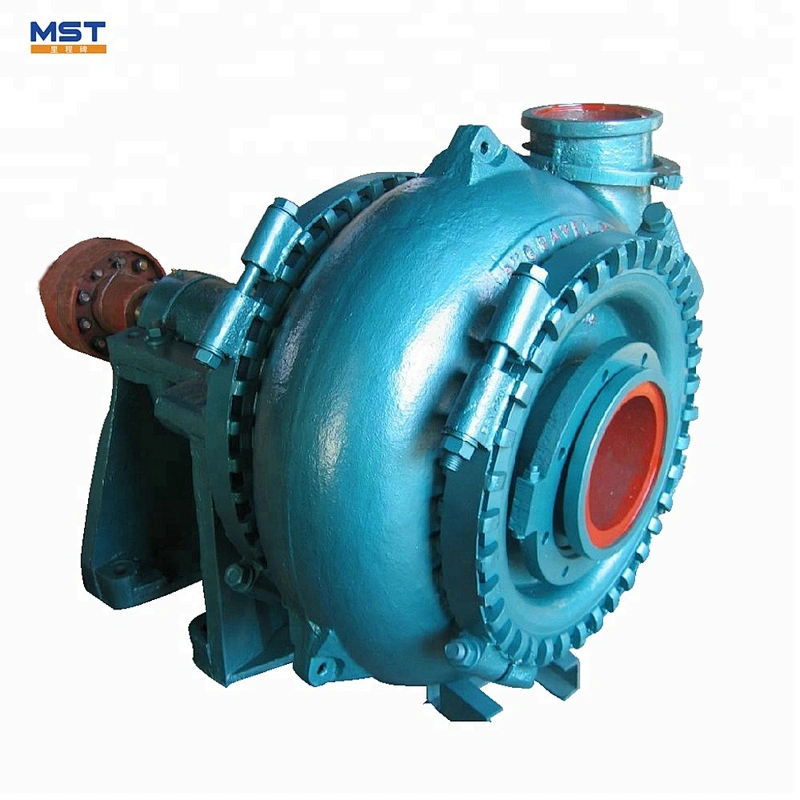

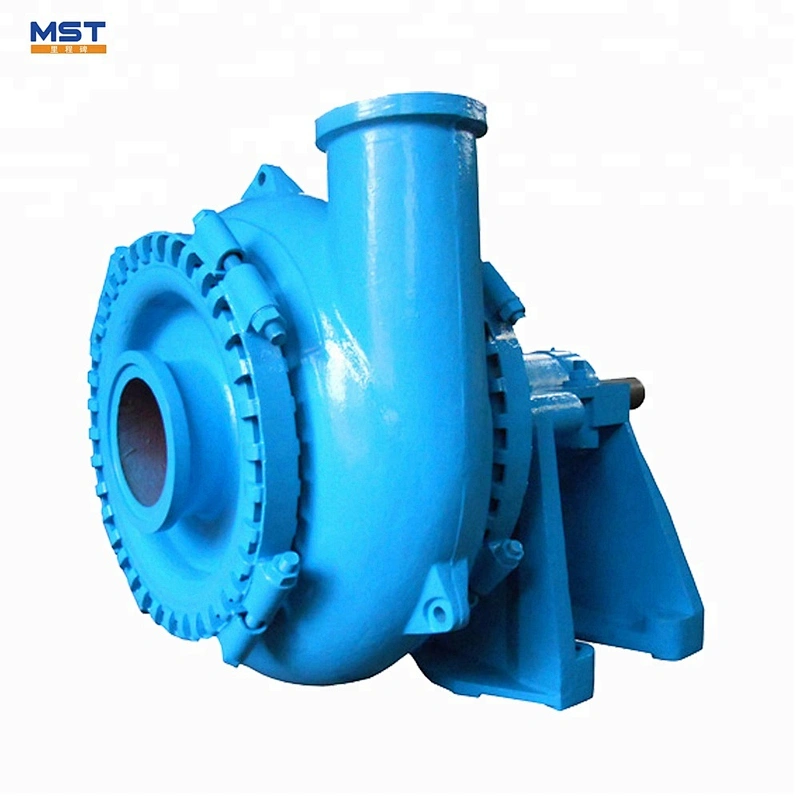

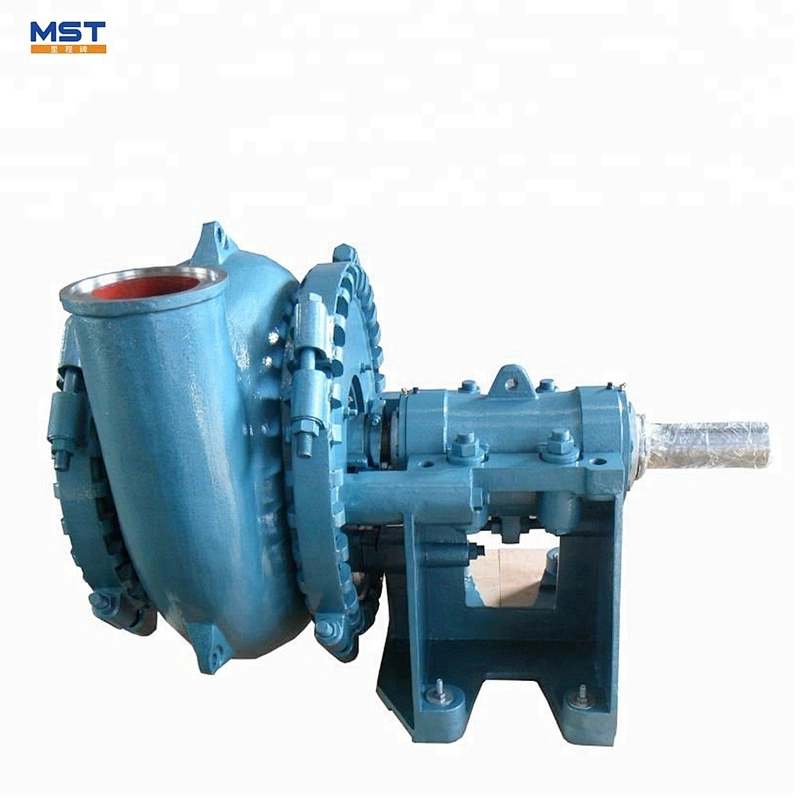

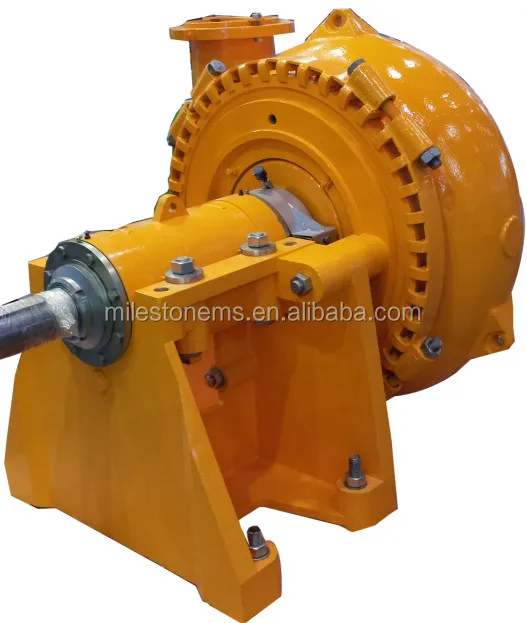

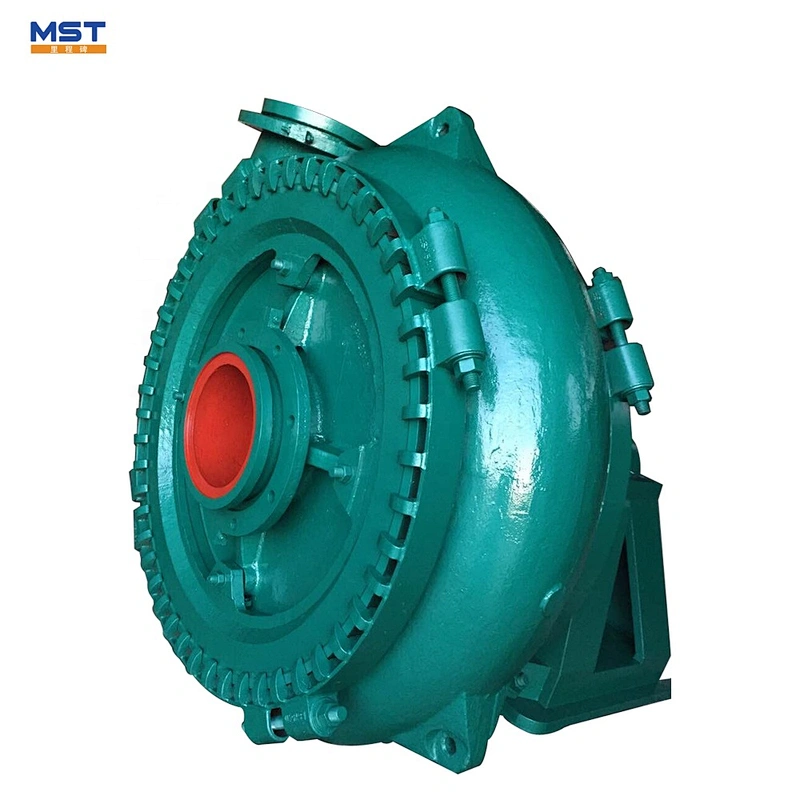

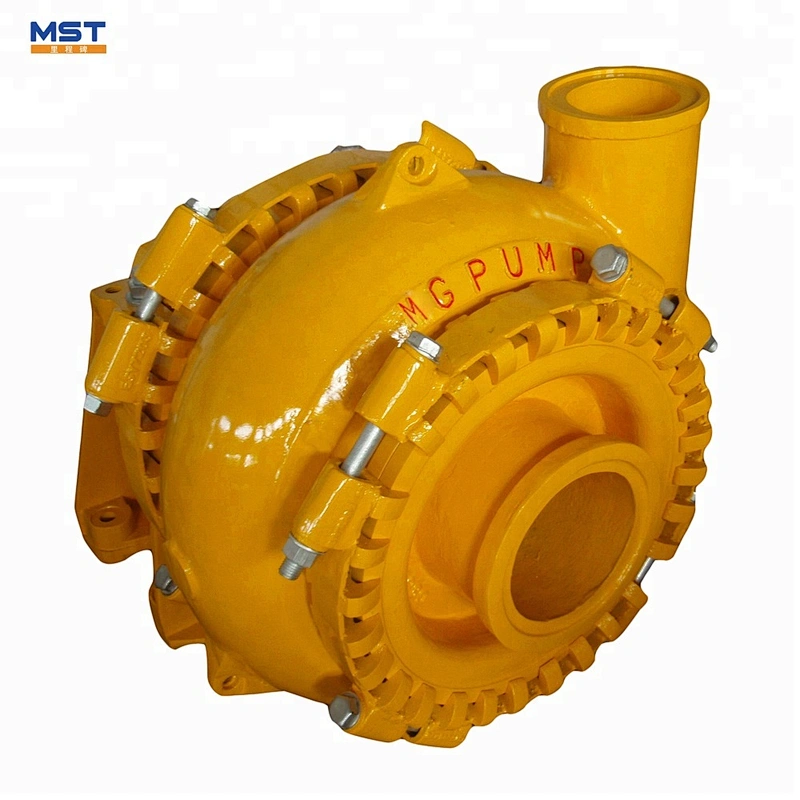

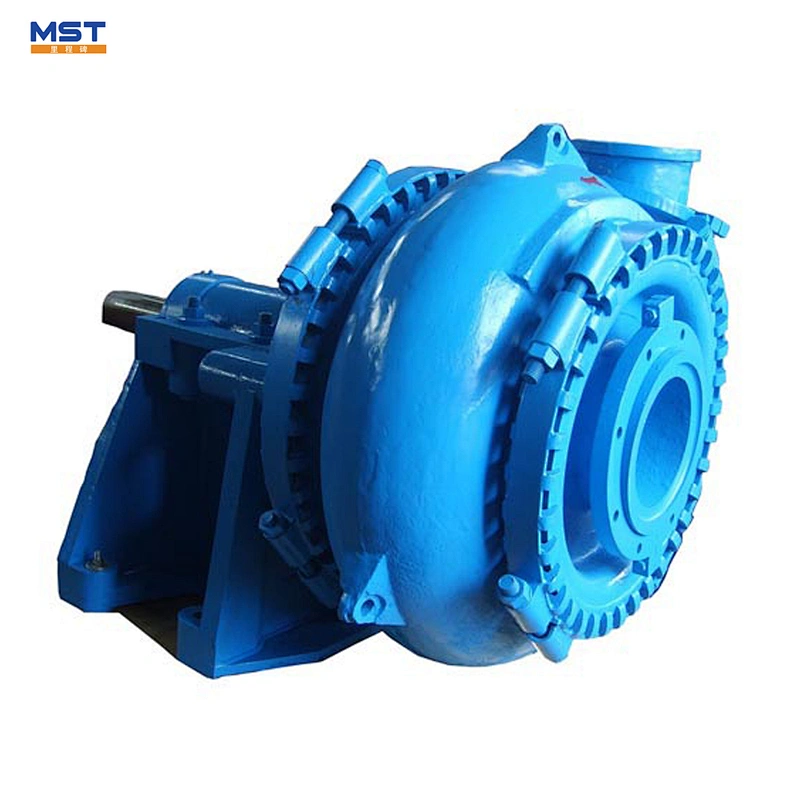

10/8 F type centrifugal sand pump
The MST-G Heavy duty centrifugal sand gravel pump is single-stage single-suction horizontal centrifugal pump, connected by belt. It is light, good anti-cavitation performance and easy to install.It is applied to conveying of sands, mud and slurry with bigger solid partices.
Gravel pump is consisted by casing, seal devices, bearing devices and frame. It is lubricated by grease. The materials of working parts are wear-resistance alloy or alloy steel, the hardness is no less than 58HRC.
Heavy duty centrifugal sand gravel pump Features
- Choice of piston ring style labyrinth or other new style of water proof
- Fully interchangeable with the common brand reducing inventory hold requirements
- A full range of mechanical seal adaptations available upon request
- Oil lubrication or packed grease
- Painted to customer specifications upon request
A complete range of build specifications
- Rubber lined with rubber impeller
- Rubber lined with metal impeller
- All metal lined using white iron chrome alloys
- Urethane lined with optional urethane impeller for special application
Type | Max.Power | Capacity | Head | Speed | Max.Eff. | NPSH | Impeller Max. | Max. Particle Size |
Kw | m3/h | m | r/min | % | m | mm | mm | |
MG6/4 | 150 | 32.4-270 | 10-45 | 600-1400 | 58 | 2.5-3.5 | 378 | 82 |
MG8/6 | 120 | 18-648 | 15-40 | 800-1400 | 60 | 3-4.5 | 378 | 127 |
MG10/8 | 560 | 180-900 | 15-50 | 500-1000 | 65 | 3-7.5 | 533 | 178 |
MG12/10 | 560 | 180-1440 | 15-55 | 400-850 | 65 | 1.5-4.5 | 667 | 220 |
MG16/14 | 600 | 360-3240 | 20-45 | 300-500 | 70 | 3-9 | 1016 | 254 |
Milestone Pump Co., Ltd(China) located in Baoding Industrial Zone, which is a part of Xiongan New Special Economic Zone. Surrounded by highways, our company has convenient transportation and advantageous geographical condition.
MST as a professional manufacture,integrate with pump design, development, production and sale, and we have been in this line for more than a decade.
MST is committed to quality management and technology innovation on the road of self-development. We have developed a large number of products after many years of practice. Some of our products have exceeded the national desigh standards.
