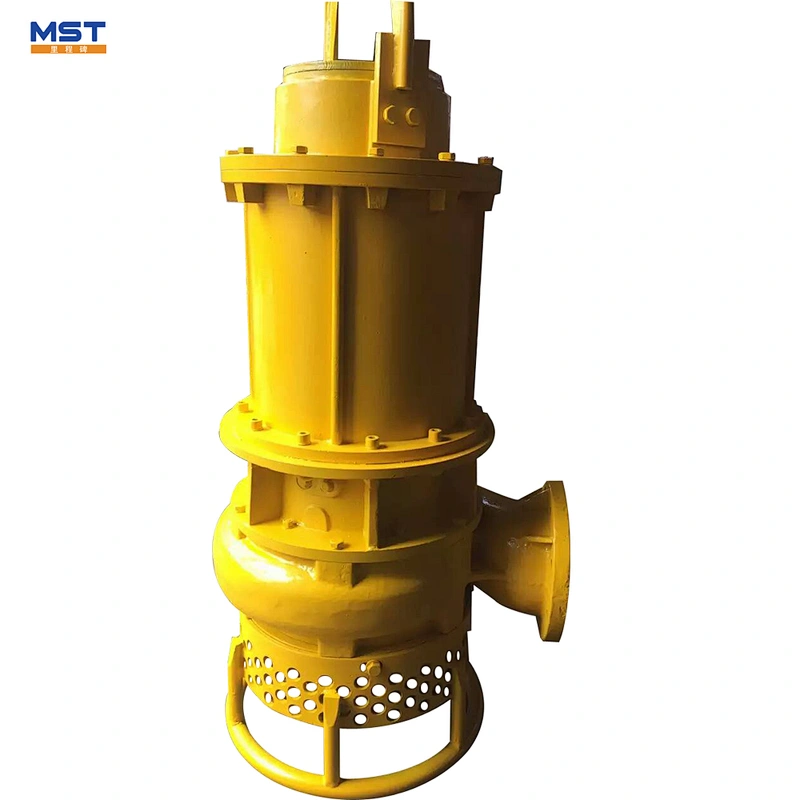

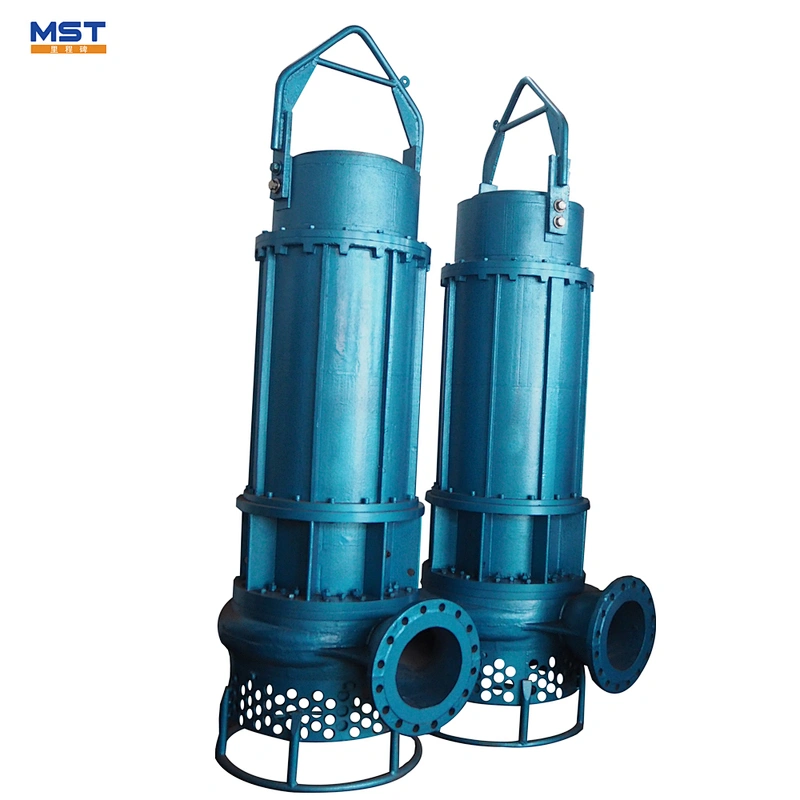

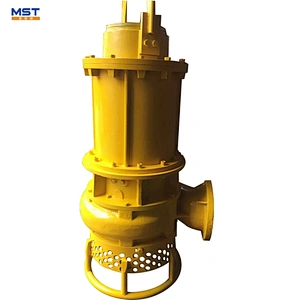

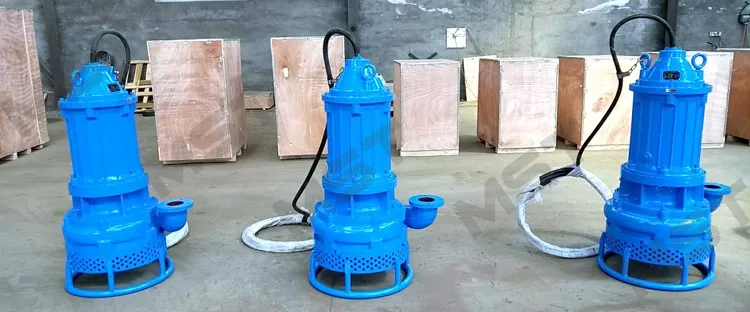

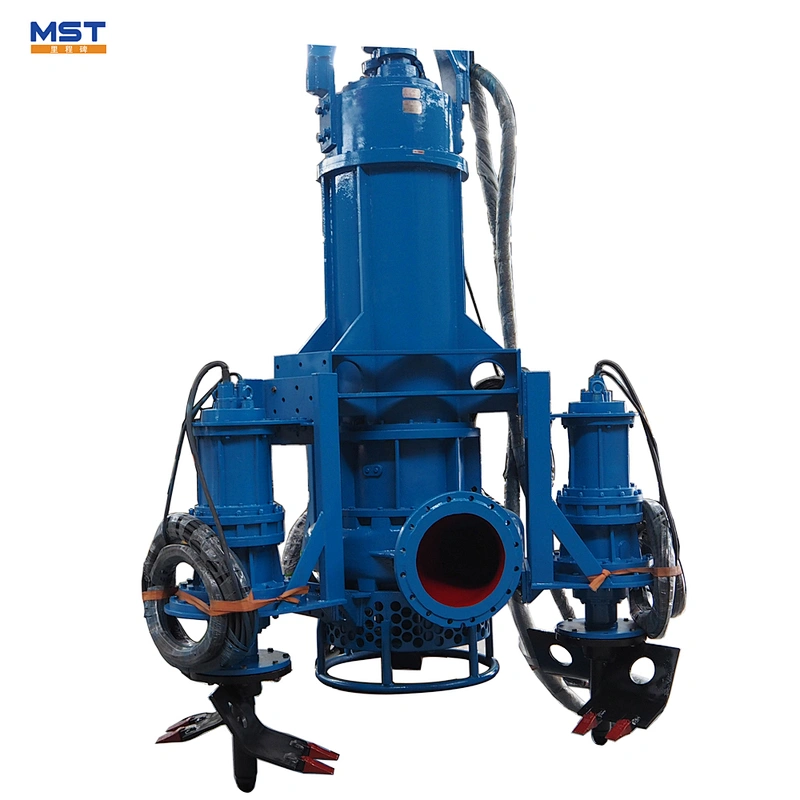

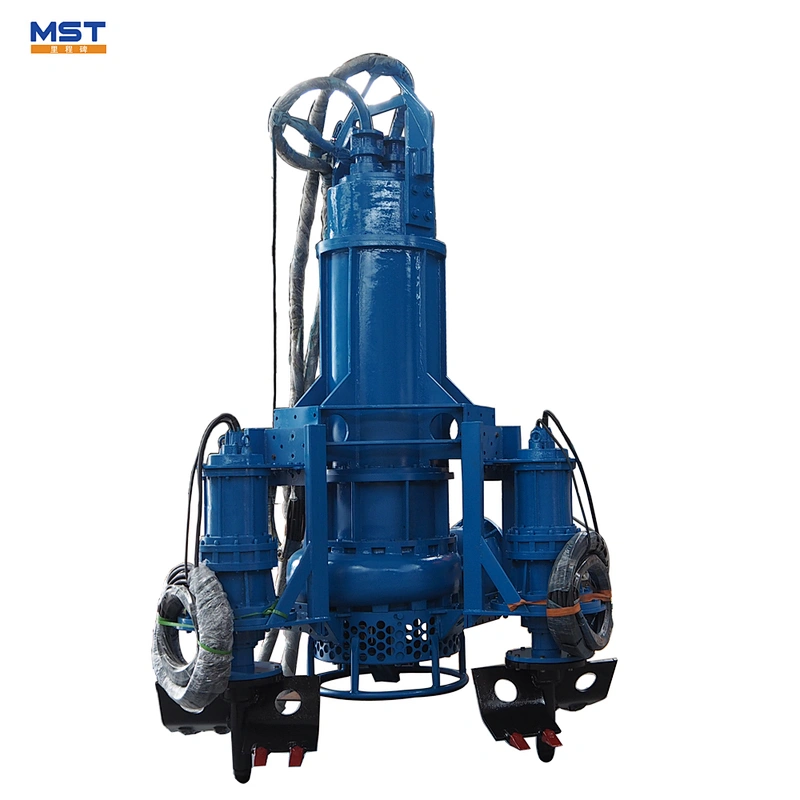

100hp water pump submersible dreger pump
Application of submersible water pump:
Milestone SS series are a durable,electro-submersible slurry pumps,Versatile and rugged solution for the
transfer of abrasive and high density slurries in mining, civil construction, industry and river dredging and other heavy duty applications.
Features of submersible slurry pump:
1. Large cut water clearance: The pump casing features a large cut water clearance which allows the easy passage of large solids and reduces wear and erosion to improve service life and prevent loss of efficiency.
2. Integral agitator: The 27% chrome white iron agitator assists in the pumping of slurries by breaking up large particles and agitating high concentrations of solids.
3. F class motor insulation
- Support frame and strainer
- Double mechanical seal
- Oil chamber leakage probe
- Optional external cooling
Submersible pump material:

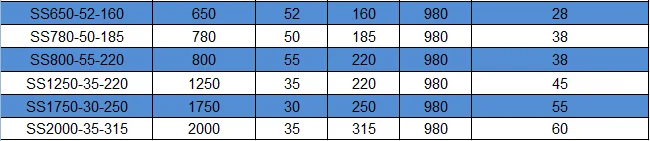

Performance ranges of submersible pump:
![48O)D63GSJV_{3L]P0N4D)6](http://sc01.alicdn.com/kf/HTB1hwvTPXXXXXcqaXXX760XFXXX5/200953651/HTB1hwvTPXXXXXcqaXXX760XFXXX5.png)
Submersible slurry pump use conditions:
1. The power source is 50Hz/380V,60hz,415v,220v,3 phases(
requirements, please inform in advance)
2. The temperature of the medium cannot exceed 60°C, and it does not contain inflammable
or explosive gases. If the tempreture is higher,we can add pressured cooling system.
3. The maximum weight concentration of the ash is 30% and maximum weight concentration
of the slag is 60%.
4. Maximum submerged depth under the water is 20 meters, the minimum submerged
depth takes submerging of the motor as reference.
5. Working status in the medium is vertically and continuous.
