submersible water pump 20kw

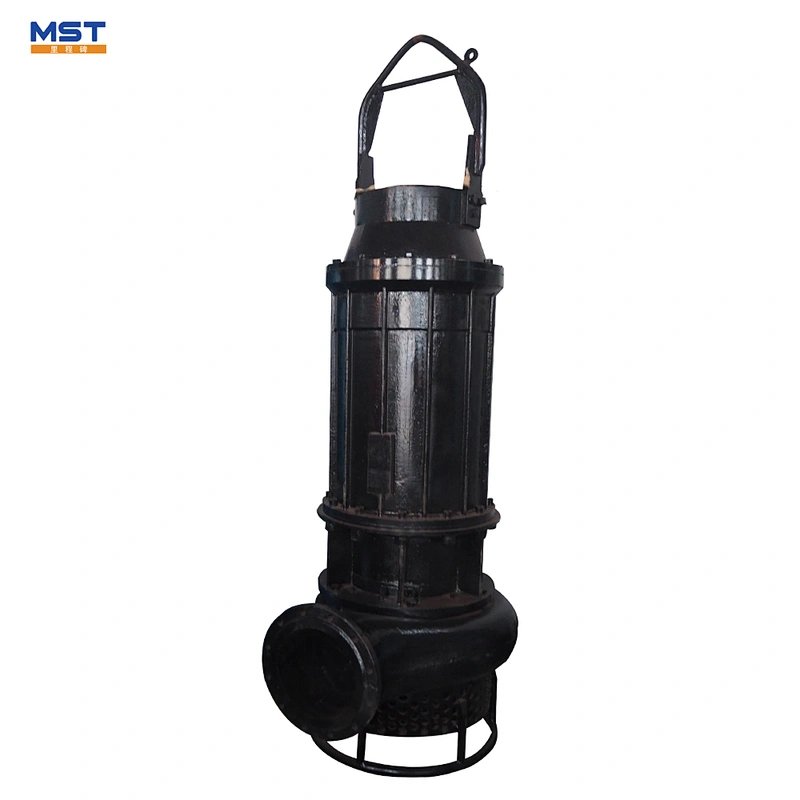

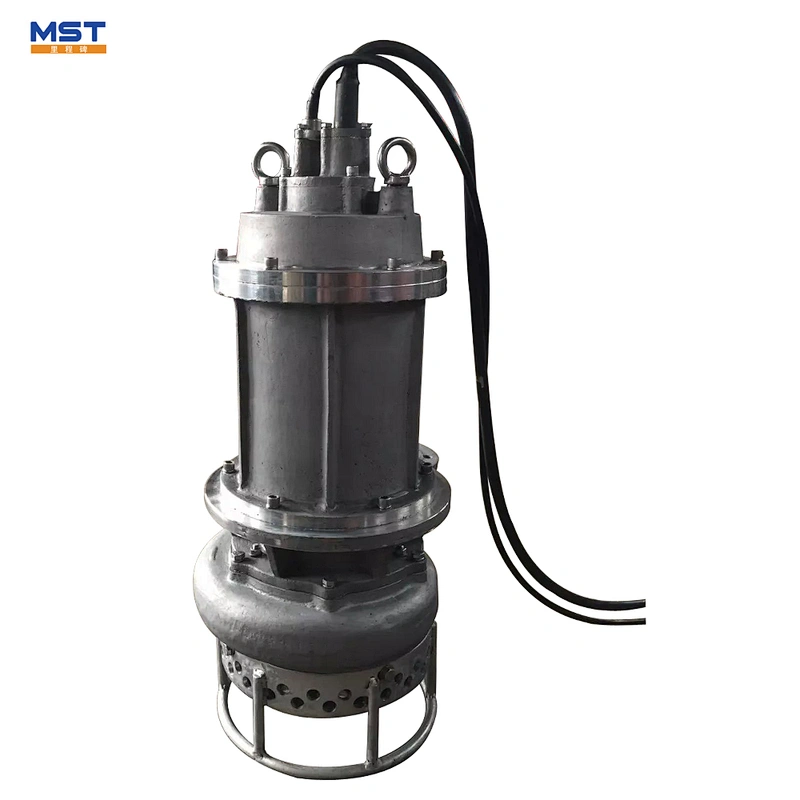

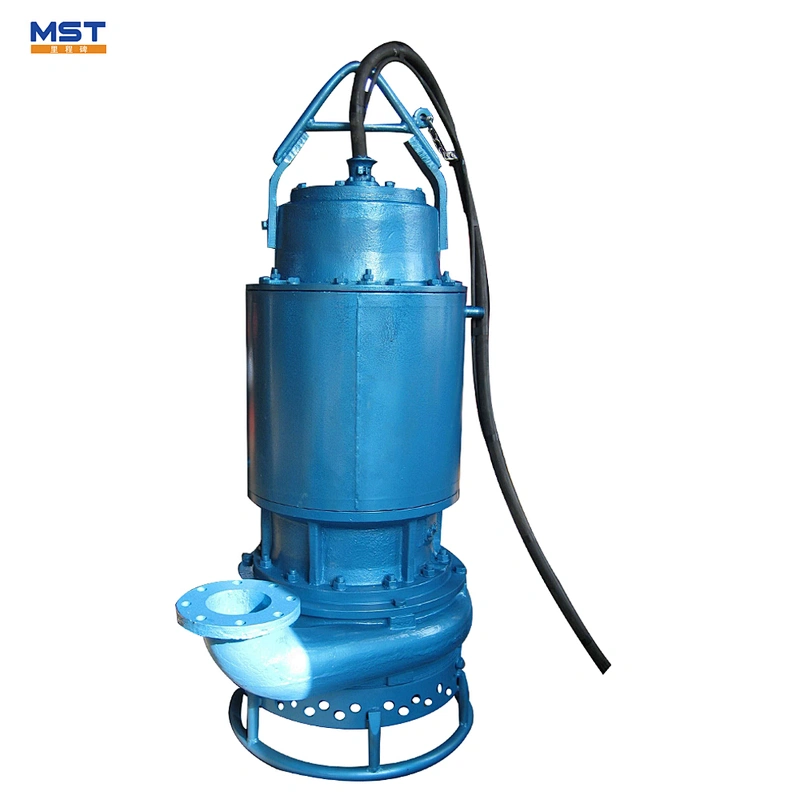

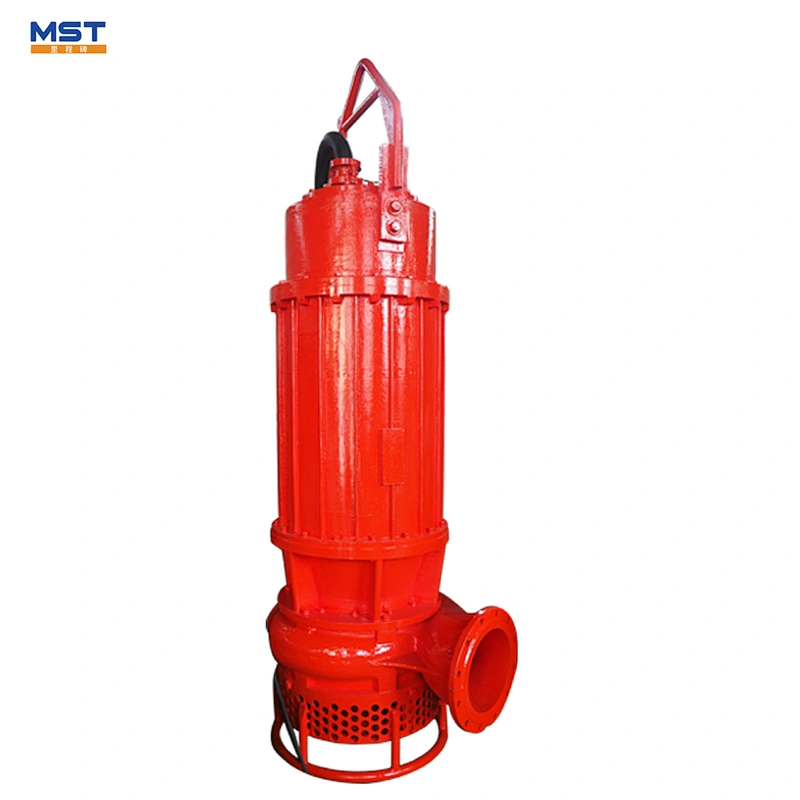

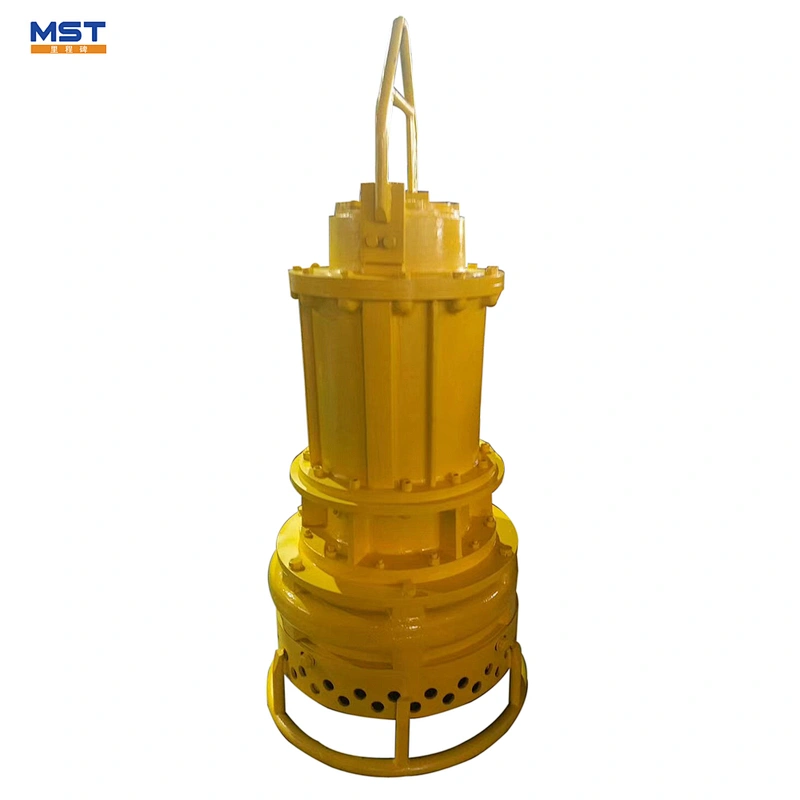

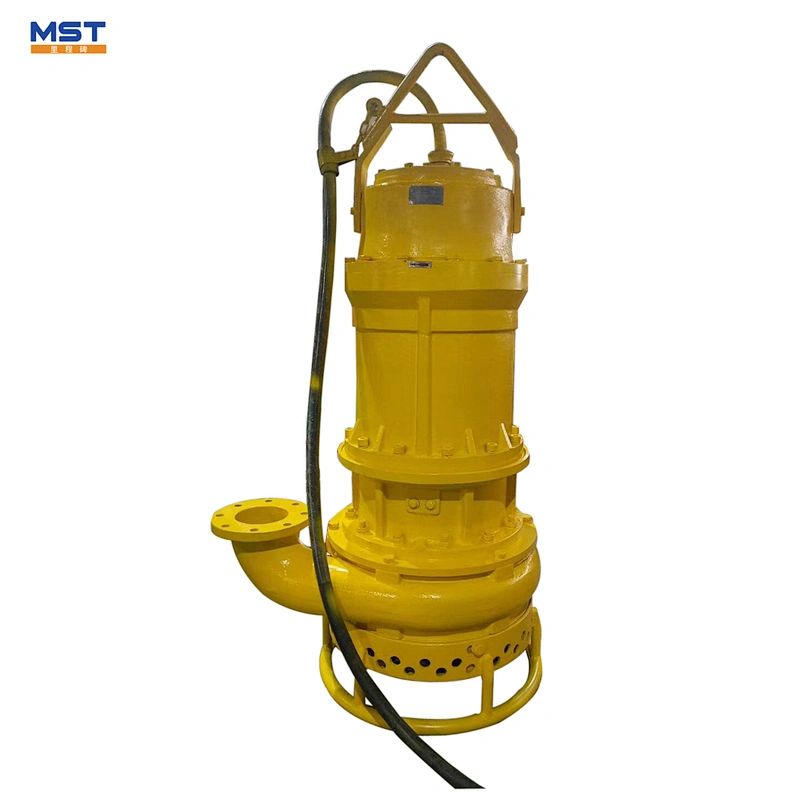

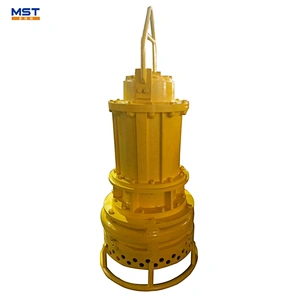

Milestone SS series are a durable,electro-submersible slurry pumps,Versatile and rugged solution for the
transfer of abrasive and high density slurries in mining,civil construction, industry and other heavy duty a
pplications.
1.Large cut water clearance: The pump casing features a large cut water clearance which allows the easypassage of large solids and reduces wear and erosion to improve service life and prevent loss of efficiency.
2.Integral agitator: The 27% chrome white iron agitator assists in the pumping of slurries by breaking up large particles and agitating high concentrations of solids.
3.F class motor insulation
- Support frame and strainer
- Double mechanical seal
- Oil chamber leakage probe
- Optional external cooling
Submersible Slurry Pump Performance Ranges
| Discharge Size | 80mm-400mm |
| Flow Rate | 23 to 2400m3/h |
| Head | up to 64m |
| Soilids Diameter | up to 60mm |
| Material | 27% Chrome White Iron |
Submersible Pump Working Condition
1. The power source is 50Hz/380V,60hz,415v,220v,3 phases(requirements, please inform in advance)
2.The temperature of the medium cannot exceed 60°C, and it does not contain inflammable or explosive gases.If the tempreture is higher,we can add pressured cooling system.
3.The maximum weight concentration of the ash is 30% and maximum weight concentration of the slag is 60%.
4.Maximum submerged depth under the water is 20 meters, the minimum submerged depth takes submerging of the motor as reference.
5.Working status in the medium is vertically and continuous.
Milestone Pump Co., Ltd(China) located in Baoding Industrial Zone, which is a part of Xiongan New Special Economic Zone. Surrounded by highways, our company has convenient transportation and advantageous geographical condition.
MST as a professional manufacture,integrate with pump design, development, production and sale, and we have been in this line for more than a decade.
MST is committed to quality management and technology innovation on the road of self-development. We have developed a large number of products after many years of practice. Some of our products have exceeded the national desigh standards.
