1.Large cut water clearance: The pump casing features a large cut water clearance which allows the easy
passage of large solids and reduces wear and erosion to improve service life and prevent loss of efficiency.
2.Integral agitator: The 27% chrome white iron agitator assists in the pumping of slurries by breaking up la
rge particles and agitating high concentrations of solids.
3.F class motor insulation
Support frame and strainer
Double mechanical seal
Oil chamber leakage probe
Optional external cooling
Performance ranges of submersible slurry pump
Pump Type
centrifugal
Voltage
50hz/60hz
Color
As customer request
Application
sand dredging, mining...
Discharge Diameter:
80mm - 400mm
Certification
ISO9001:2008; CE
Power
7.5~315kw
Warranty
1 years
Item Name
submersible slurry pump
Model
ZJQ30-30-7.5
Flow rates
23 to 2400 m3/h
MOQ
1 Piece
Head
up to 64m
Package
Wooden Cases
Solids diameter
up to 60mm(2.4 inches)
Port
Tianjin
Submersible slurry pump Use Conditions:
1. The power source is 50Hz/380V,60hz,415v,220v,3 phases(requirements, please inform in advance)
2.The temperature of the medium cannot exceed 60°C, and it does not contain inflammable or explosive gases. If the tempreture is higher,we can add pressured cooling system.
3.The maximum weight concentration of the ash is 30% and maximum weight concentration of the slag is 60%.
4.Maximum submerged depth under the water is 20 meters, the minimum submerged depth takes submerging of the motor as reference.
5.Working status in the medium is vertically and continuous.

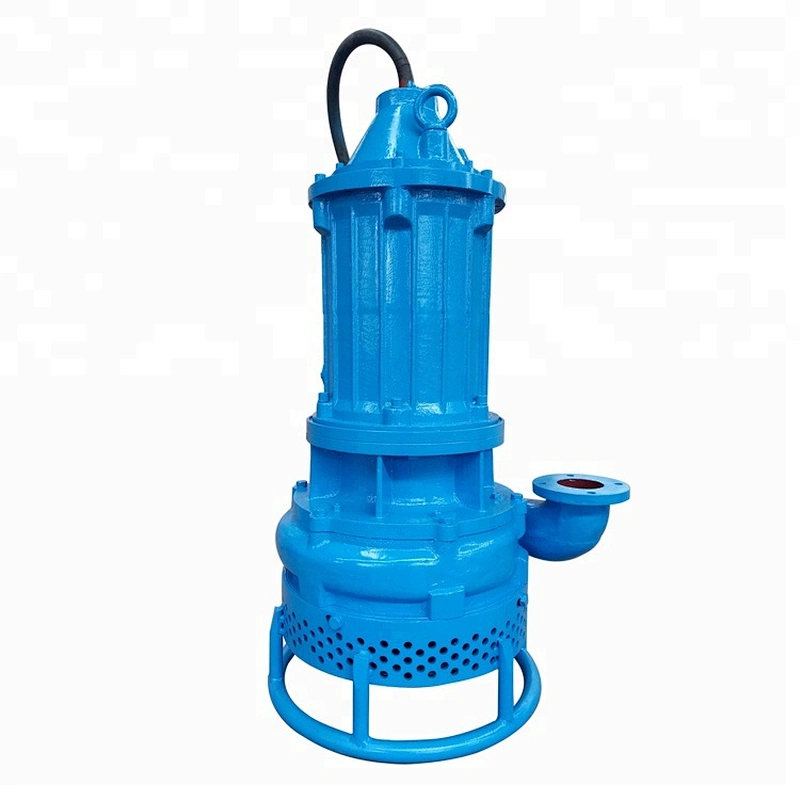

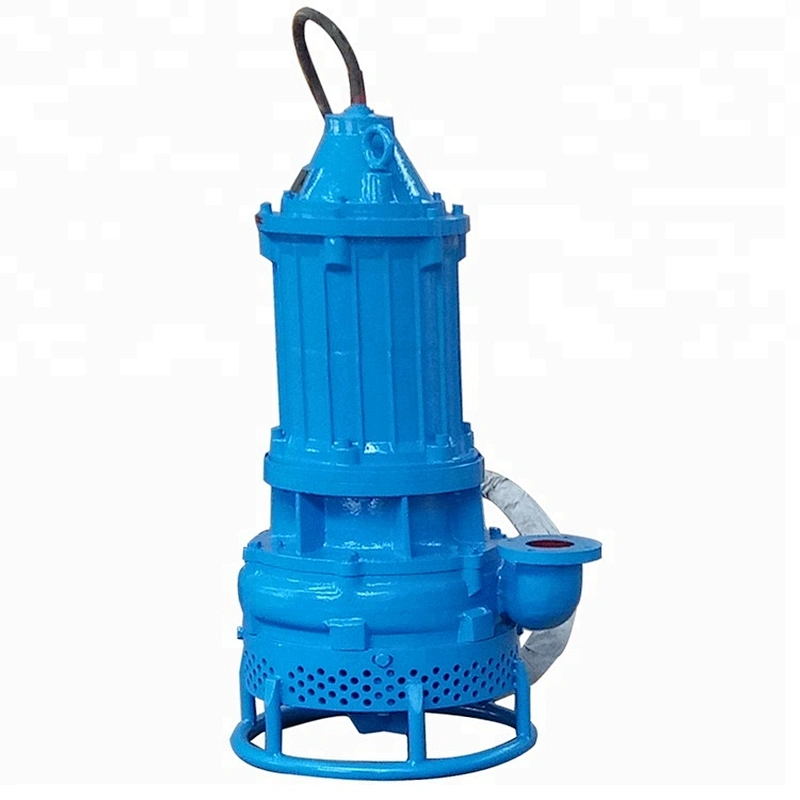

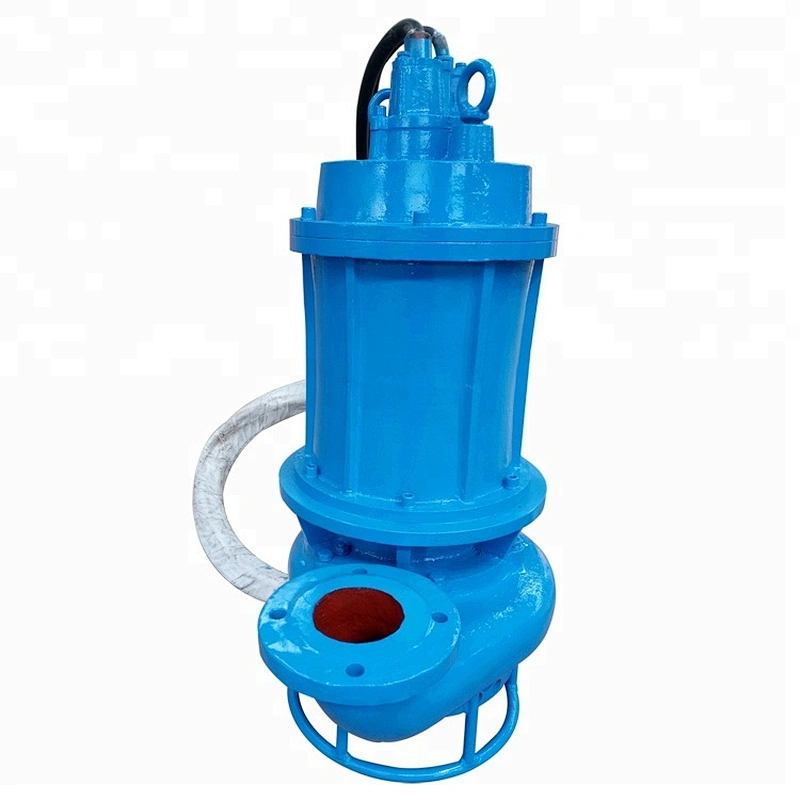

Detailed Images
Application
Milestone SS series are a durable,electro-submersible slurry pumps,Versatile and rugged solution for the
transfer of abrasive and high density slurries in mining,civil construction, industry and other heavy duty a
