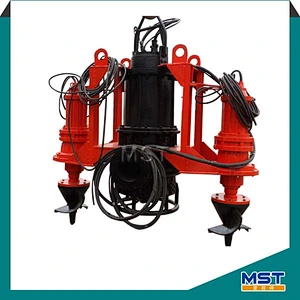

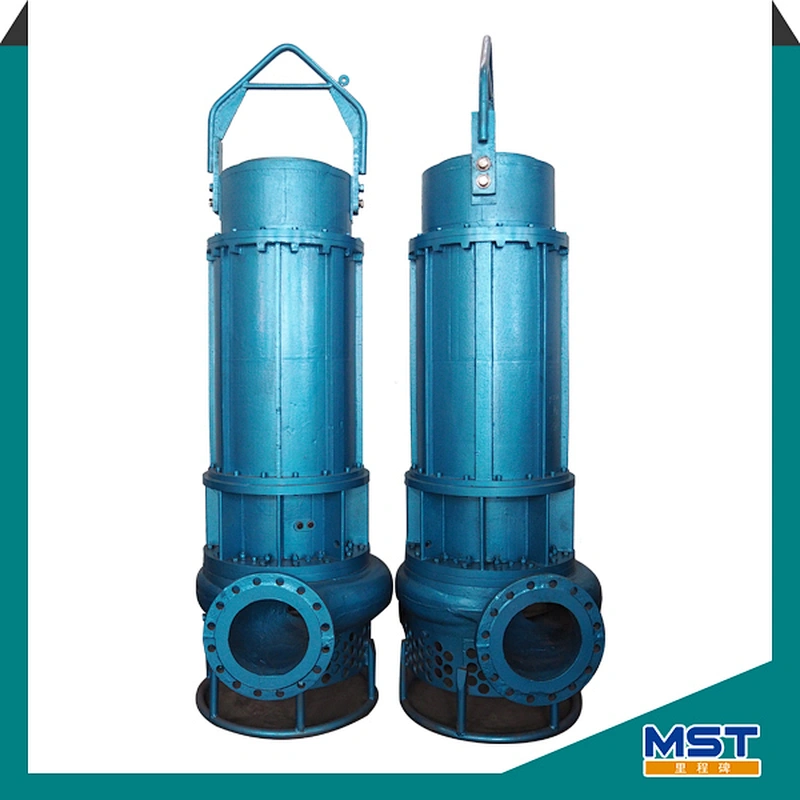

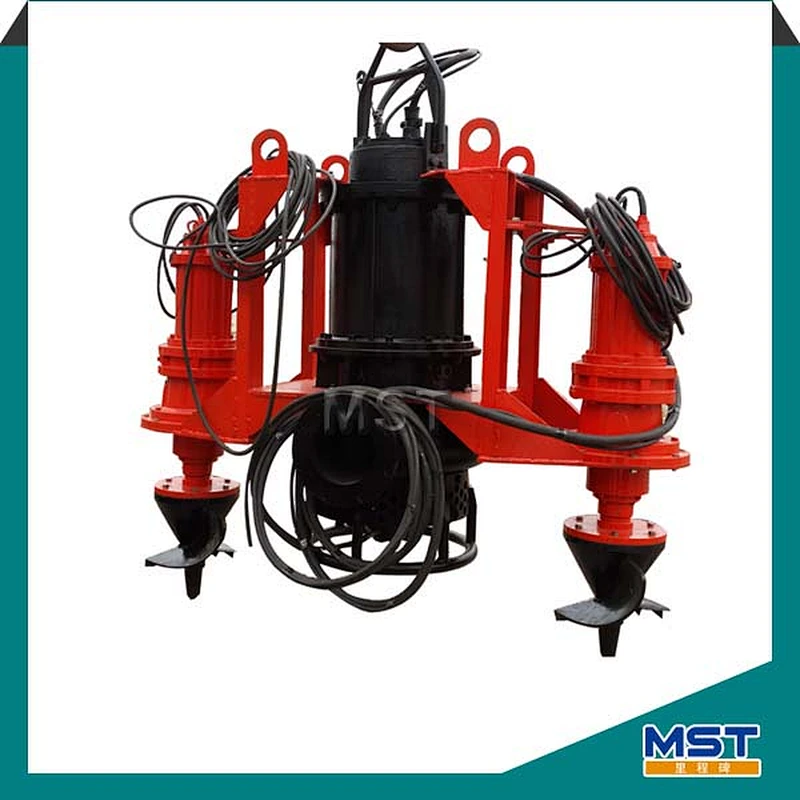

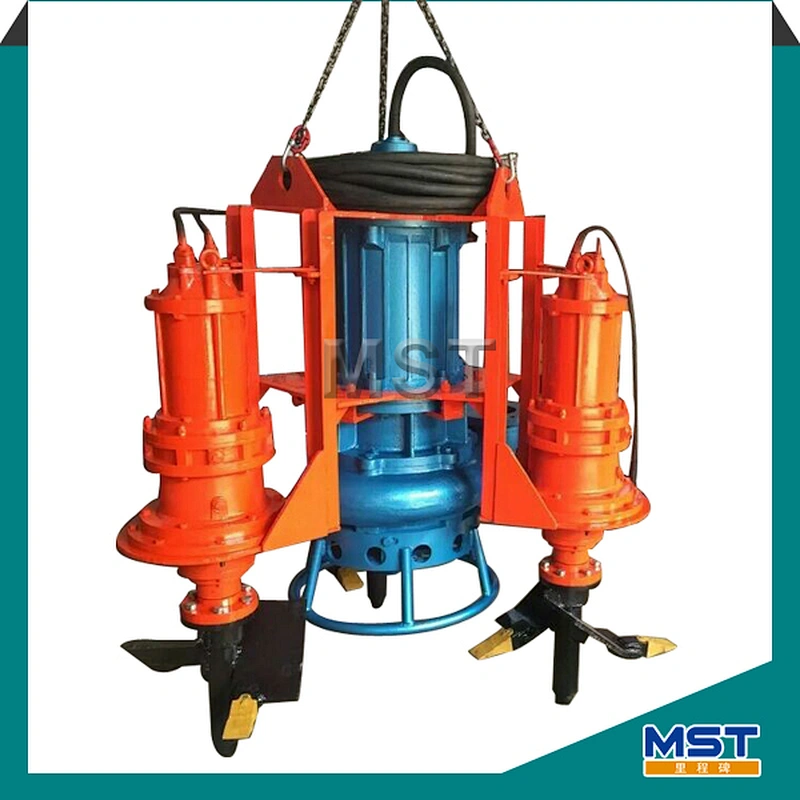

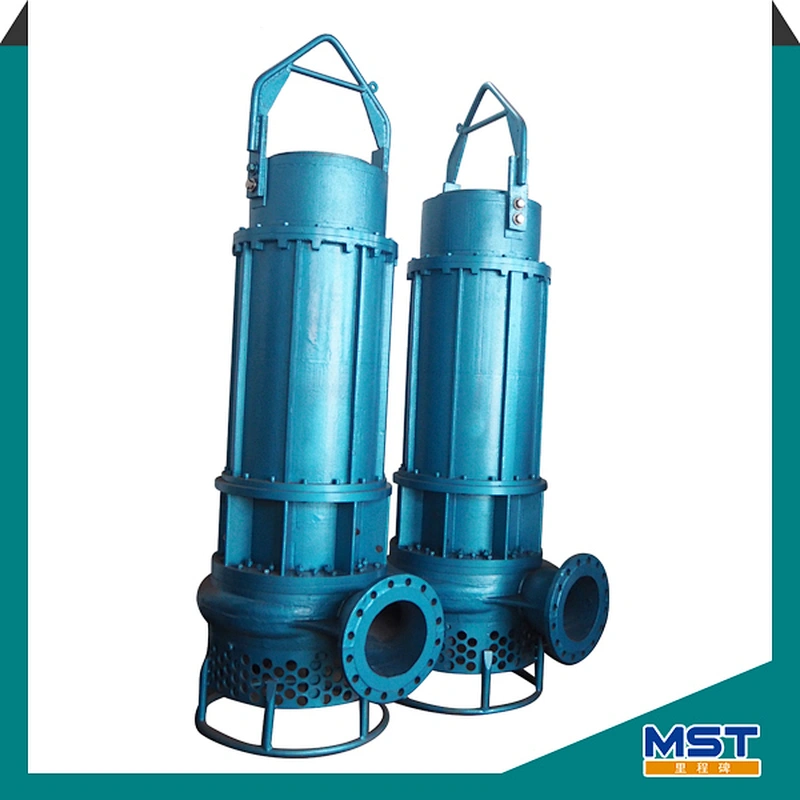

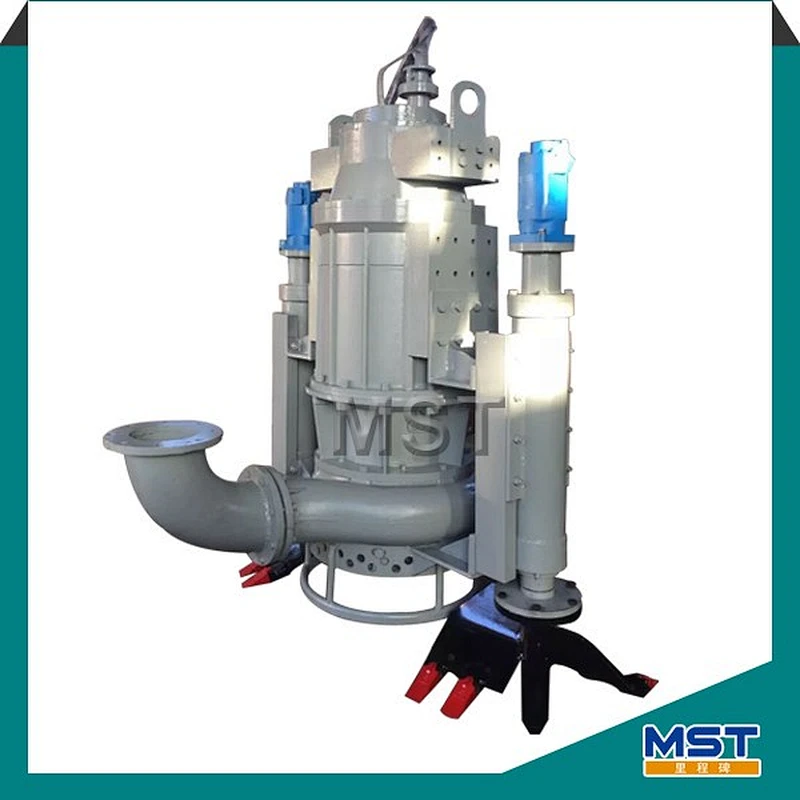

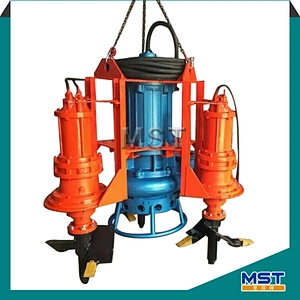

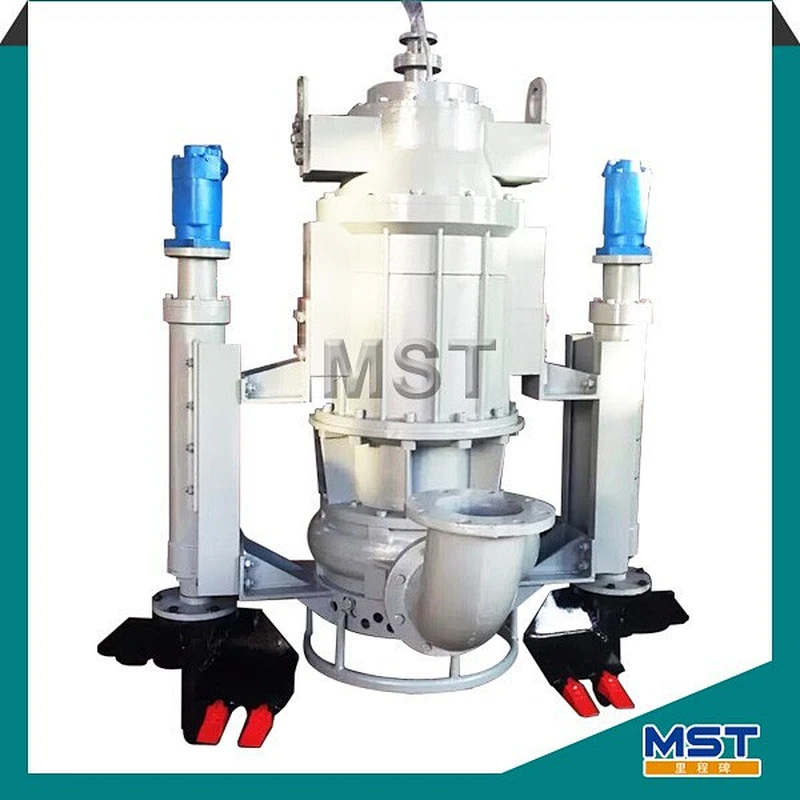

River Sand Pumping Machine Sand Solid Pump
Descriptions
Submersible slurry pump are designed to handle a wide range of slurries and abrasive particles in submersible applications in mining and insustry.
Submersible agitator slurry pump are avaliable in 72 different models in sizes ranging from 80mm to 400mm(3.15-16 inches) discharge and are capable of flow rates from 23 to 2400 cubic meters per hour(100- 10560USGPM) and head up to 64 metres(210ft).
Submersible agitator slurry pump can pass solids up to 60mm(2.4inches) in diameter enabling them to transfer dense slurries with large abrasive particles.
| Item | Submersible slurry pump |
| Model | SS |
| Material | 27% Chrome White Iron, SS 304,SS 316, or cutomized |
| Color | Decided by user |
| Mode | Submersible |
| Impeller | single impeller |
| Drive | Direct coupling |
| Seal | Packing seal or mechanical seal |
| Speed | 1460r/min,980r/min |
| Theory | Centrifugal pump |
| Structure | Single stage pump |
| Usage | High density slurries with solids etc. |
| Power | Electric motor |
| Standard | ISO |
| Application | Mining. civil construction, industry, dredging |
| Outlet diameter | 3.15-16inches |
| Capacity | 22-2400 m3/h |
| Head | 8.6-70m |
| Power | 7.5-315kw |
| Warranty | 1year |
| Certificate | ISO9001 |
| OEM | Acceptable |
| Max Solids Dia | 2.4 inches |
Features of submersible slurry pump
1.Wear parts are all constructed with abrasion resistant materials - chromium alloy; so pumps have better stability & longer service life.
2.Unique mechanical seal device can prevent the electric motor from high pressure water and impurities; thus high suction efficiency can be ensured.
3.In addition to the main impeller, a pair of agitation impeller is equipped to help break and mix the sludge.
4.Easy installation, operation and cost saving, since no additional vacuum pump or pump house is needed.
5.Professional technology support is provided during the whole process of the usage and maintenance.
Performance curves
Q:What is your product range?
A:centrifugal pump and conveyor belt.Centrifugal pump includes slurry pump,gravel pump,clean water pump,sewage pump,chemical pump,self-priming pump and diesel engine pump .Conveyor belts includes sidewall conveyor belt,flat conveyor belt and heat resistant conveyor belt.
Q:What’s is your MOQ,payment term and lead time?
A:MOQ for centrifugal pump is 1 set ,MOQ for conveyor belt is 100cbm.Pyment Term:T/T,L/C,Western Union,Paypal and Trade Assurance.Lead Time:in general 7 working days for slurry pump,15working days for water .
Q:What information should I let you know if I want to get a quotation?
A:Pump capacity,pump head,medium temperature,pump material,quantity,if possible,please also provide the pump model you are using now.price will be calculated as per the pump model,if not ,we will recommend relevant product for reference.
Q:If I put a bigger motor on my pump,will it pump more?
A:No.The anount of water and the pressure(head)that a centrifugal pump produces is related to the rotational speed,impeller diameter and size of the impeller vanes.
Q:Do you impact the finished product?
A:Yes,each batch of production and finished product will be quality checked strictly before delivering ,testing report or video can be sent to clients for reference.
Q:How do you ship the finished product?
A:By sea.By air.By international express.
